/Products/Electric Motors/DC/Leeson/Parallel Shaft Gearmotor/M1125074.00 Leeson 1/8HP Parallel Shaft DC Gearmotor, 167 RPM, 43 lb-in
Click Image to Expand

Product ID: M1125074.00

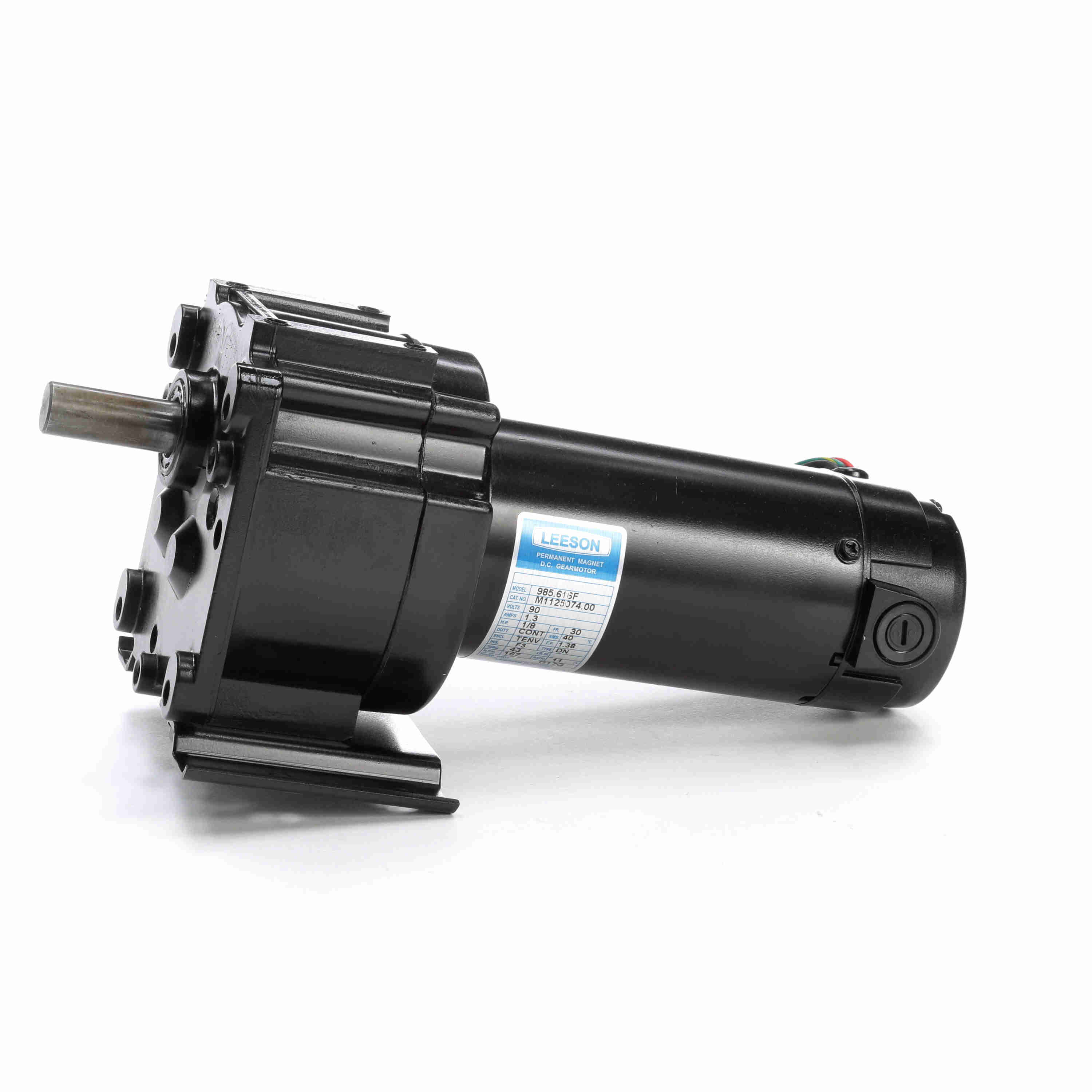

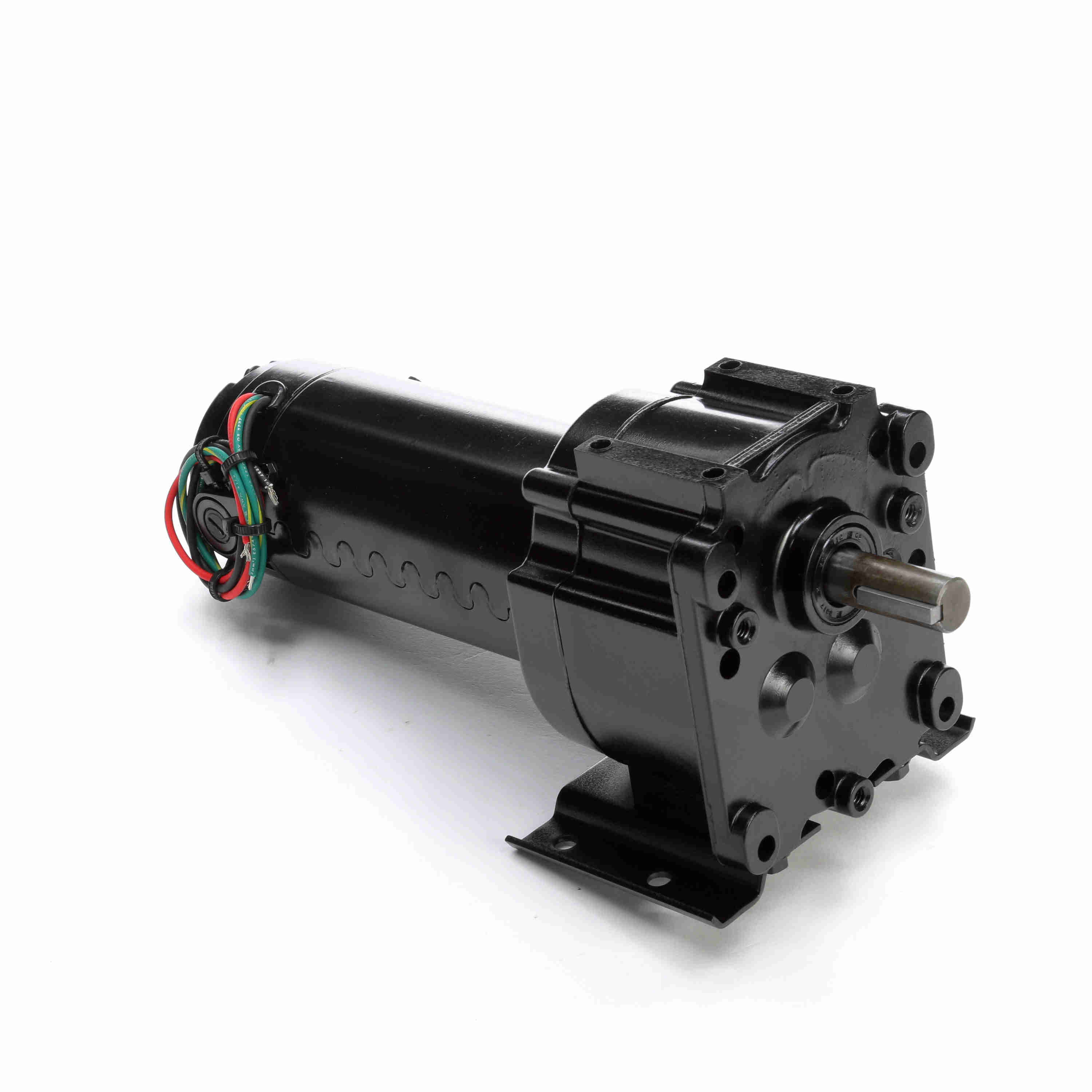

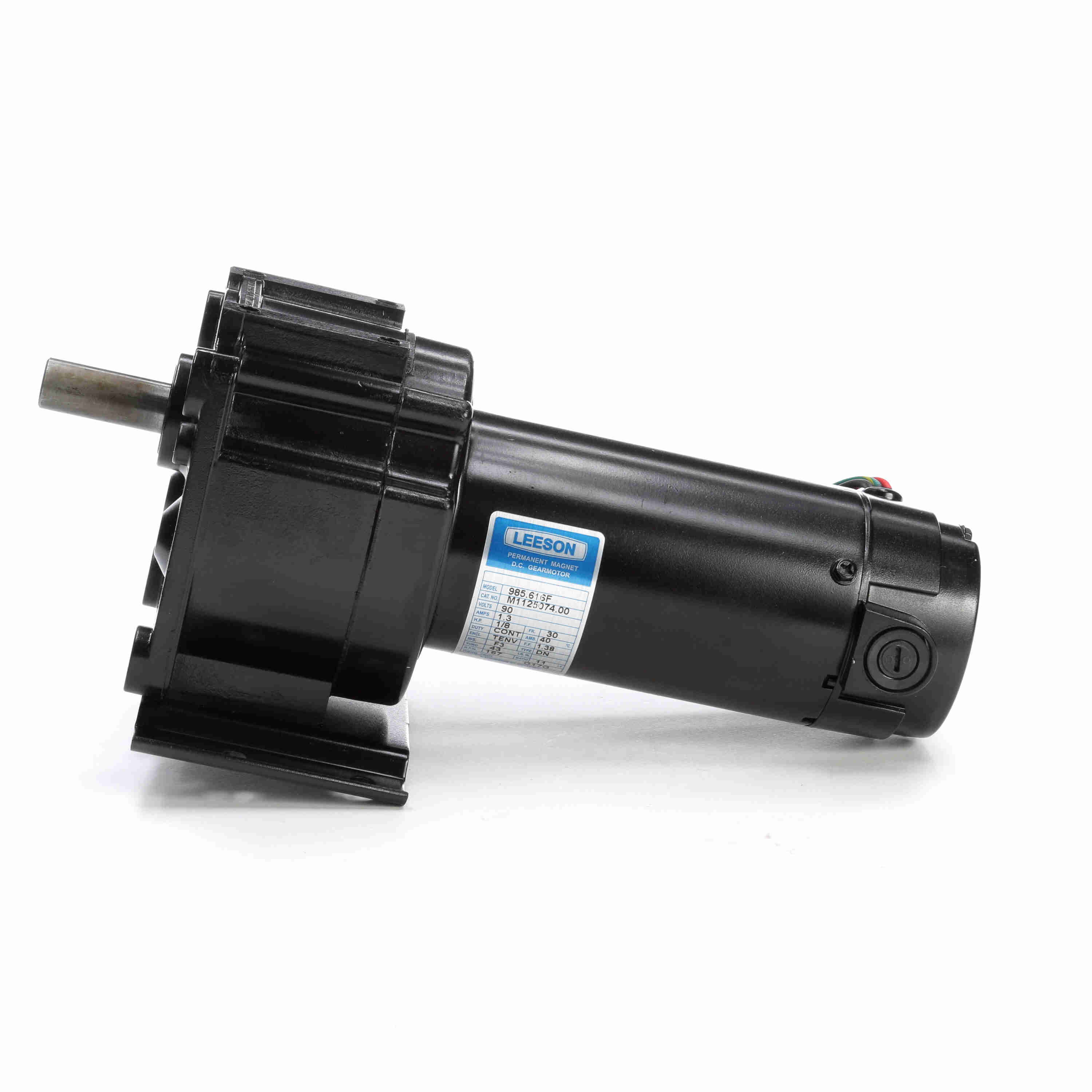

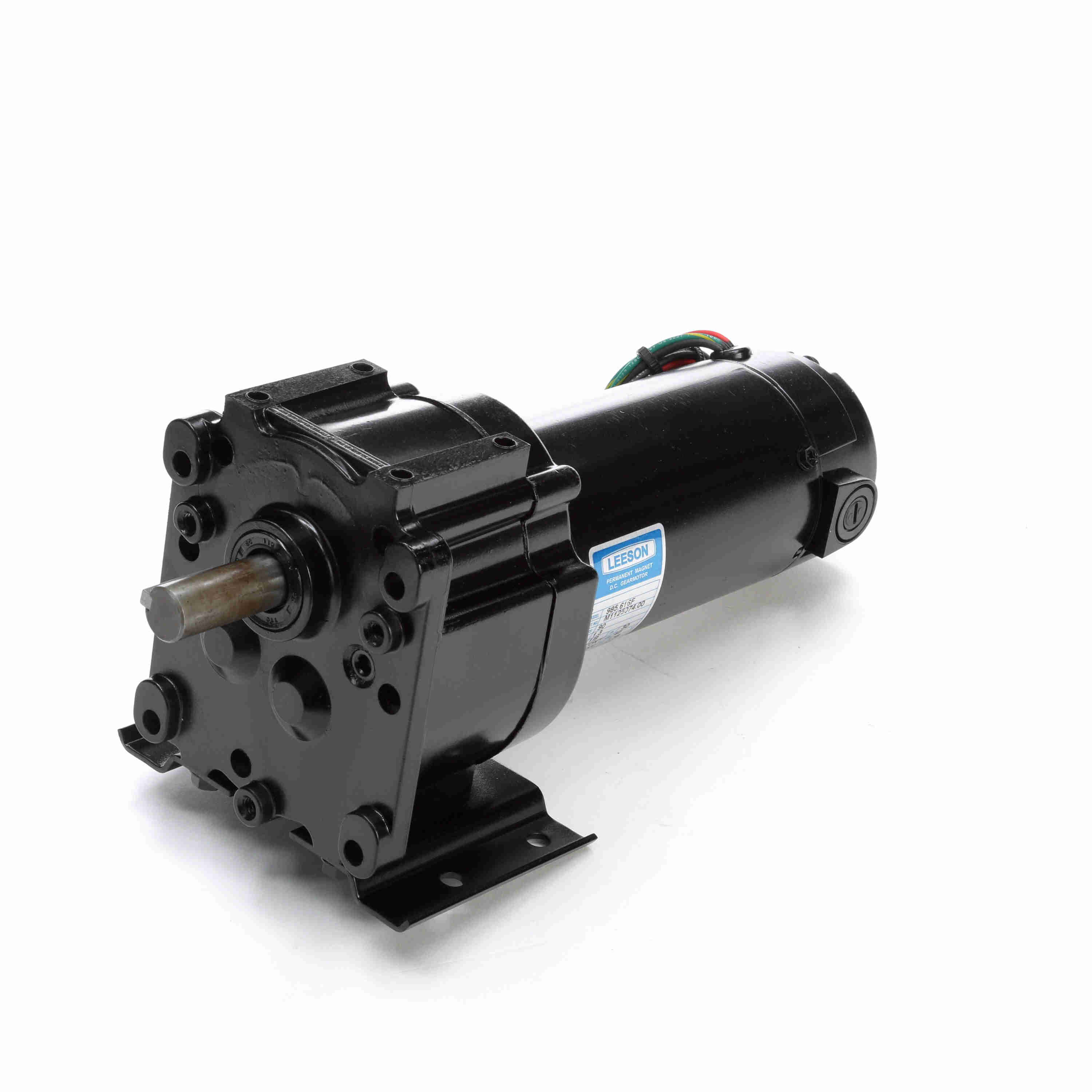

M1125074.00 Leeson 1/8HP Parallel Shaft DC Gearmotor, 167 RPM, 43 lb-in

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: M1125074.00

Selected accessories will also be added to cart
$669.97 / Each
Quantity:
TENV, 30 Frame, 90VDC, 985.616F, P302-30E

Features

Features
  • Precision machined in-line steel gears
  • First stage steel helical gear followed by spur-type gears
  • Lubrication is permanent semi-fluid grease, reducing possibility of leakage
  • Output shafts have needle bearings for high load capacities
  • Shafts are hardened steel
  • Optional conduit box available

General Specifications

General Specifications
Model :985.616F Catalog No :M1125074.00
Part Description :...11:1.167RPM.43LBIN.1/8HP.30...DC GEARMOTORS SUB-FHP.90V.DC.TENV Category :P300 Series
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :0.13 Hp Output KW :0.10 kW
Voltage :90 V Current :1.3 A
Speed :167 rpm Service Factor :1
Efficiency :70.7 % Duty :Continuous
Insulation Class :F Frame :30
Enclosure :Totally Enclosed Non Ventilated Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6000
Opp Drive End Bearing Size :6000 UL :Recognized
CSA :Y CE :Y

Technical Specifications

Technical Specifications
Rotation :Reversible Mounting :Special
Shaft Type :Parallel Overall Length :11.45 in
Frame Length :4.91 in Shaft Diameter :0.625 in
Shaft Extension :1.5 in UPC :691720091173
Weight :12.00 LB
