/Products/Pumps/Ashland Pump/Pedestal Pumps/PED33CI Ashland 1/3HP Cast Iron Pedestal Sump Pump, 115VAC Single Phase
Click Image to Expand

Product ID: PED33CI

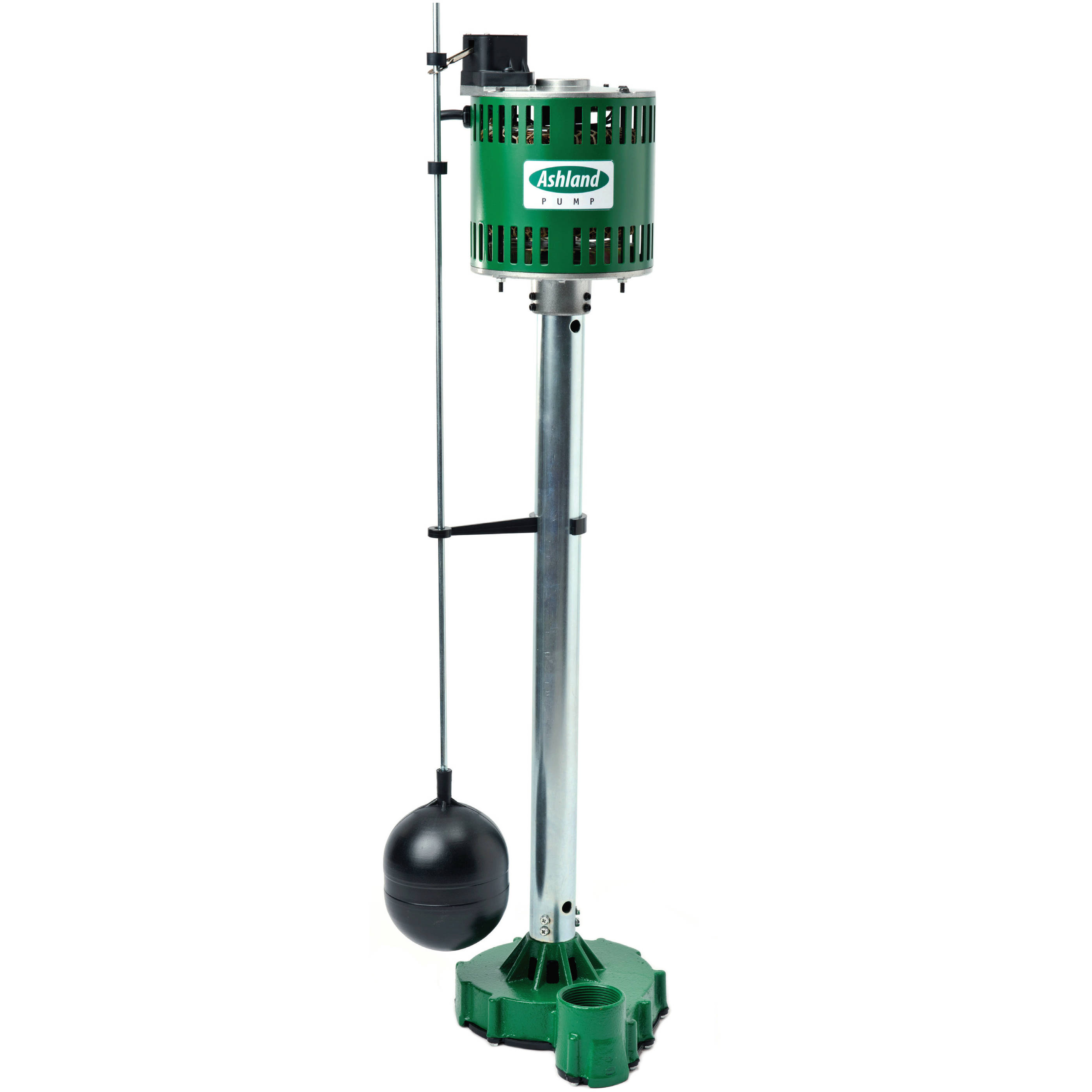

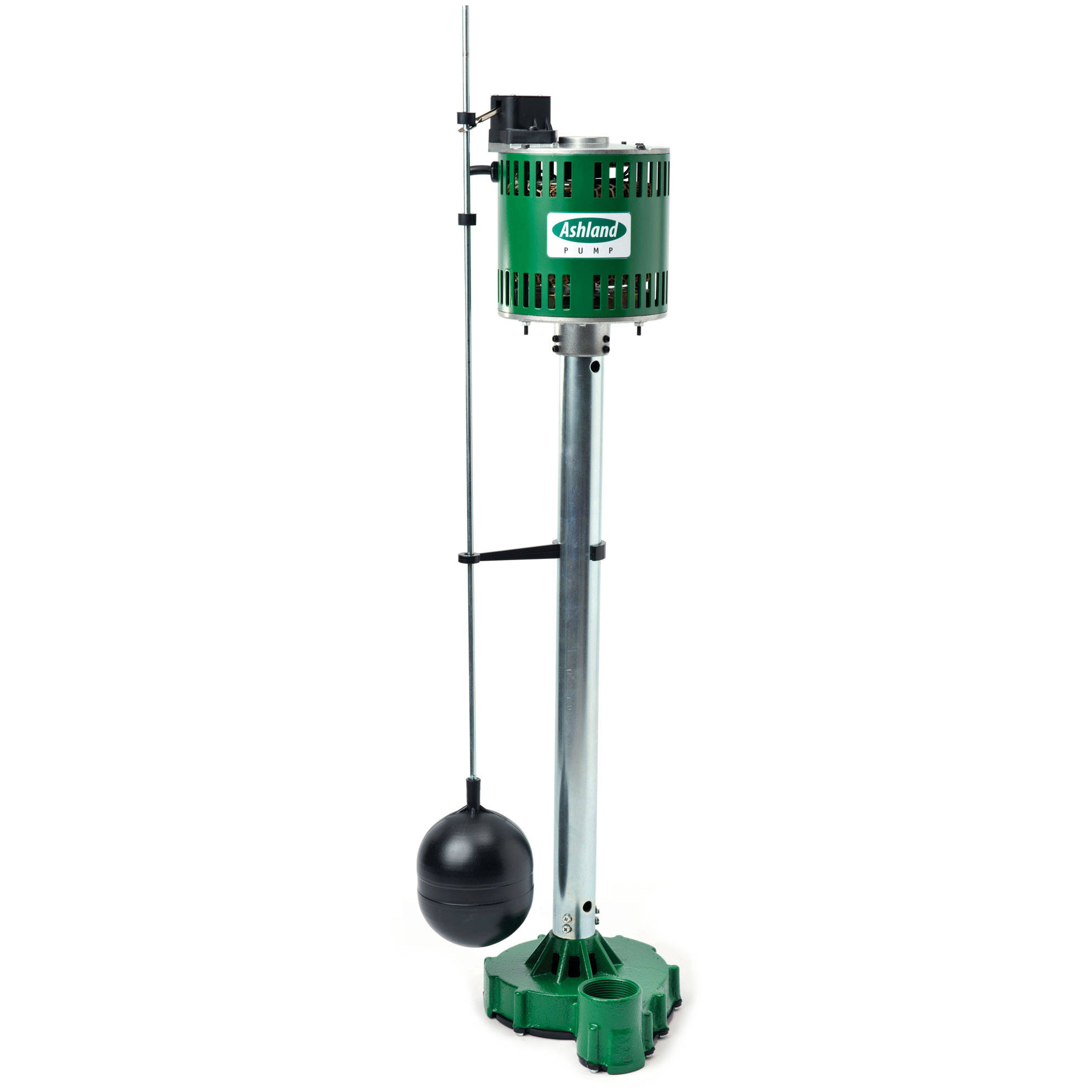

PED33CI Ashland 1/3HP Cast Iron Pedestal Sump Pump, 115VAC Single Phase

MFG: Ashland Pump
MFG Part Number: PED33CI

Selected accessories will also be added to cart
$244.00 / Each
Quantity:
1-1/2" NPT Discharge, Top Mounted Adjustable Vertical Switch

Features

  • Column style sump pump for sumps with a minimum 11" in diameter and maximum 24" deep
  • Continuous duty rated PSC motor; higher efficiency
  • Top mounted adjustable vertical switch

Specifications

Brand Ashland Pump
Model PED33CI
Switch Type Top Mounted Adjustable Vertical
Voltage 115VAC 60Hz Single Phase
RPM 1750 RPM
Full Load Amps 4.0 Amps
Discharge Size 1-1/2” NPT
Impeller Type Vortex Thermoplastic
Cable Length 8'
Solids Handling 3/8"
Maximum Liquid Temperature 104°F - Intermittent
Acceptable pH Range 6 - 8
Power Cord Size SJT
Motor Housing Steel
Casing Cast Iron
Impeller Thermoplastic
Motor Shaft SST
Hardware Steel
O-Rings NBR
Seal Lip
Upper Bearing 6202
Lower Bearing 6202
RPM 1750 RPM
Motor Type PSC (Single Phase)
Gen Insulation Class B
Stator Winding Class B
Maximum Stator Temperature 130°C
Voltage Tolerance +/-10%
Motor Protection Thermally Protected
HP 1/3HP
Service Factor 1.00

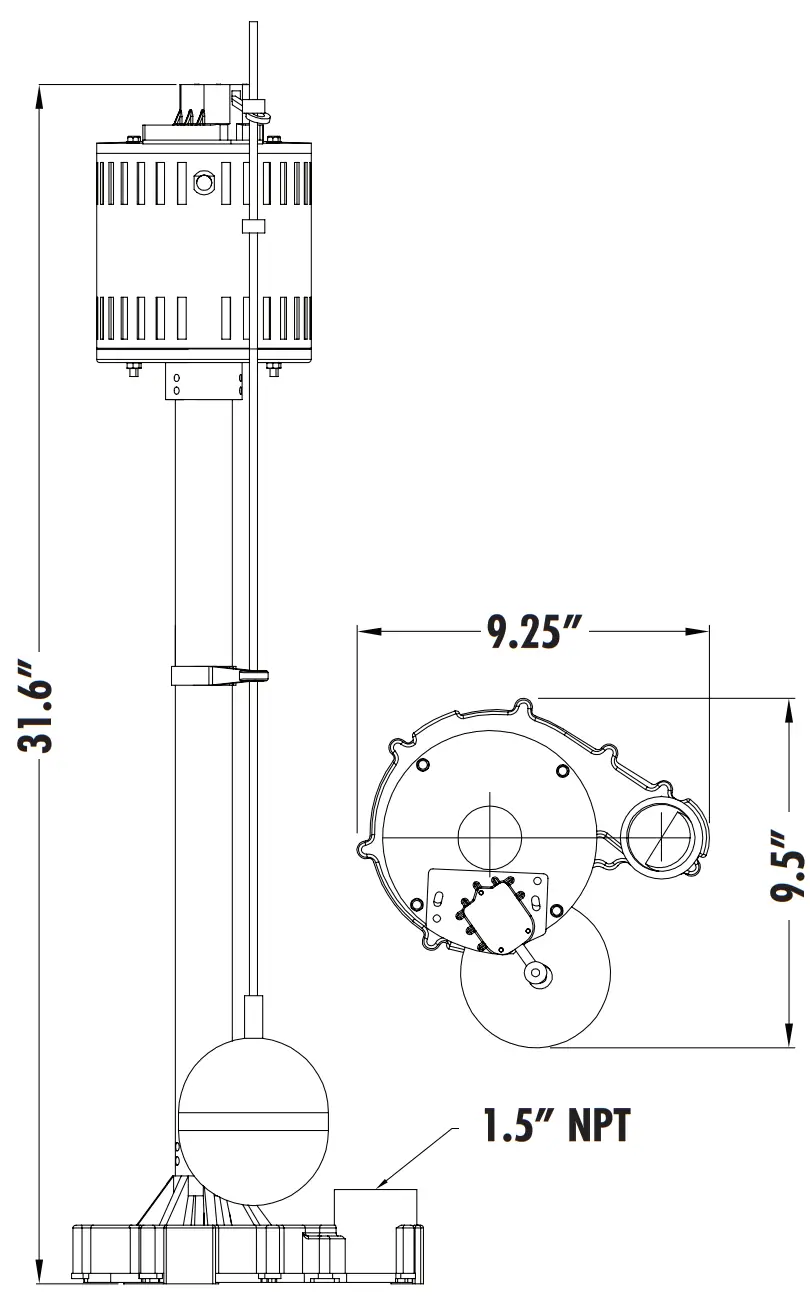

Dimensions

PED33CI Pump Dimensions

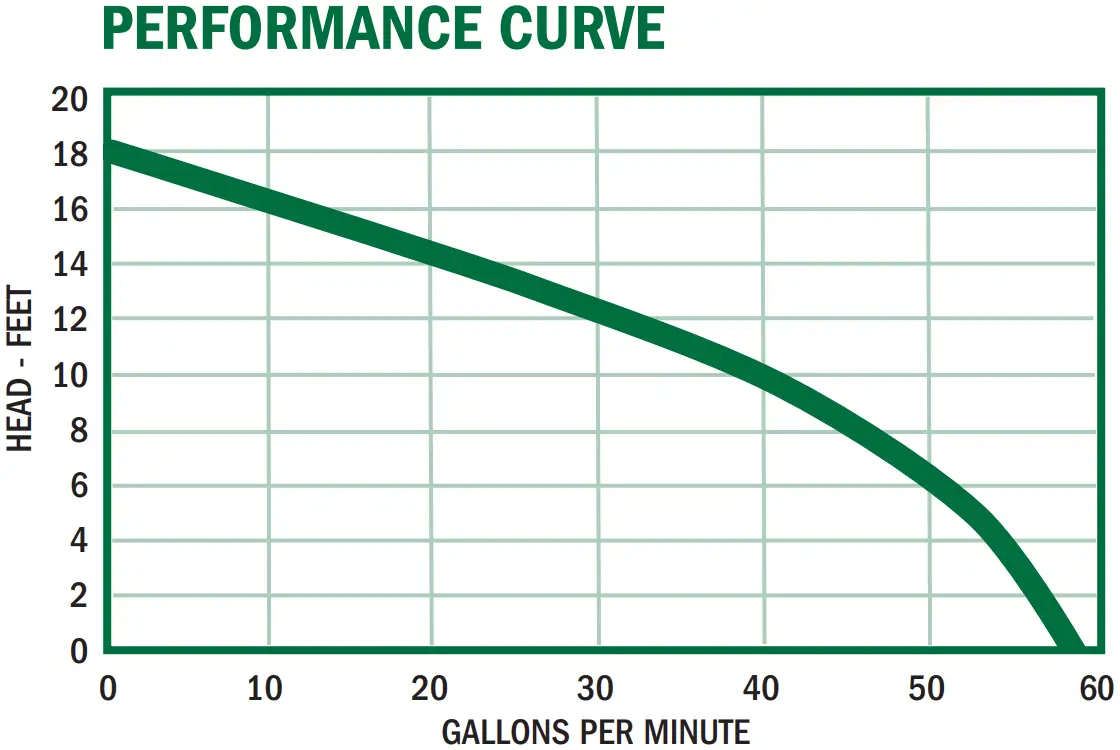

Performance Curve

PED33CI Performance Curve Graph
