/Products/Maxiphase Phase Converters/230 Volt Phase Converters, ODP/RPC 3/4-2 Maxiphase Rotary Phase Converter
Click Image to Expand

Product ID: RPC 3/4-2

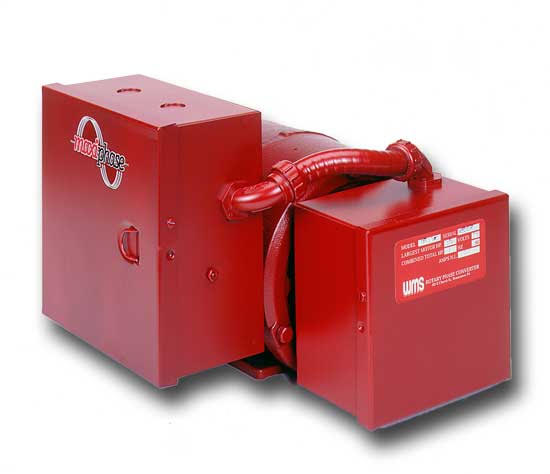

RPC 3/4-2 Maxiphase Rotary Phase Converter

MFG: Witmer Motor Service
MFG Part Number: RPC 3/4-2

Selected accessories will also be added to cart
$543.00 / Each
Quantity:
Largest HP .75, Combined HP 2, N.L Amps 2.2, 230 Volt, ODP
Available Stock: 1

Specifications

Model RPC 3/4-2
RPC .75-2
Largest Single Load 3/4 HP
Maximum Combined Load 2 HP
Voltage 230 Volts
Frequency 60Hz
Amperage 1.8 Amps
"a" Dimension 12 Inches
"b" Dimension 10 Inches
"c" Dimension 12 Inches
Motor Enclosure ODP
Open Drip-Proof
Motor Frame Size 143T
Input Circuit Breaker Rating 15A
Input Wire Size #14 Minimum
Approximate Weight 67 lbs

Product Information Links:

WMS Rotary Phase Converters are an economical alternative to commercial three phase power!

  • Easy installation, reliabile performance and low maintenance make rotary units an attractive solution for three phase power needs.
  • WMS Phase Converters are available from electric motor shops, machinery dealers and electrical supply stores across the nation.
  • WMS has developed a proven product through years of experience in the manufacturing and installation of phase converters.
  • Quick start-up using electrolytic start capacitors and a positive mechanical centrifugal switch!
  • 1 Year Warranty
WMS Maxiphase
