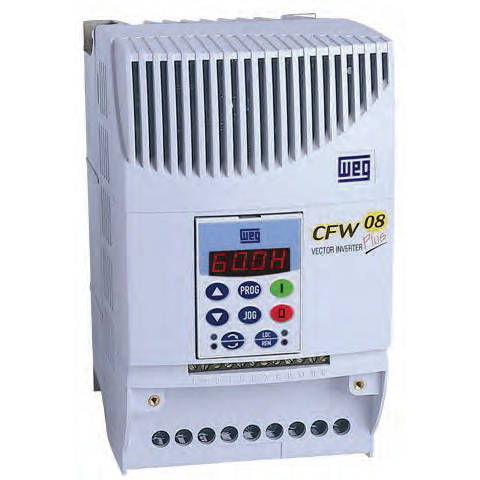

WEG CFW08+ Variable Frequency Drive, 460V, 12A
Enlarge Photo

Product ID: CFW080120THN1A1Z

WEG CFW08+ Variable Frequency Drive, 460V, 12A

MFG: WEG Electric Corporation
MFG Part Number: CFW080120THN1A1Z

Selected accessories will also be added to cart
$1,194.05 / Each
Quantity:
3-Phase, 10HP, NEMA 1 Enclosure, Size 6
Accessories
Select any of the accessories below to purchase them with this inventory item:

This item is not stocked by WEG or Witmer Motor Service. Please call for availability.

Description :

The WEG CFW08 series of drives feature the compact size of a microdrive with the full functionality of much larger drives. From extensive programmable control features to flexible mounting and display options, the CFW08 has everything one needs in a small, reliable drive package.


Overview :

Brand WEG
Catalog Number CFW080120THN1A1Z
Input Power Three Phase - 575V
Motor 10 HP @ 575 V
Nominal Drive AMPS 12
Braking Transistor Yes
Frame Size 6
Dimensions (H x W x D) 8.05” x 5.6“ x 6.5“
Approximate Shipping Weight 6 lbs

Standard Features :

  • V/Hz and Sensorless Vector Control
  • 150% current overload capacity
  • 16 bit DSP controlled PWM output
  • 2.5 / 5 / 10 / 15 kHz adjustable swiching frequency
  • Four isolated programmable digital inputs
  • Two programmable relay outputs
  • Two isolated programmable analog inputs
  • Protective features: Over current, motor overload, drive over temperature, output phase-to-phase and phase-to-ground short circuit, DC bus over and under voltage and external fault
  • Control features: Linear and "S" ramp acceleration and deceleration, local/remote control, DC braking, torque boost, motor slip compensation, electronic pot, preset speeds, adjustable V/Hz profile, maximum and minimum adjustable frequency limits, two skip frequencies, adjustable output current limit, JOG, ride-thru, flying start and PID regulator.
  • Display readings: Motor speed, frequency, voltage, current, last fault, heatsink temperature and drive status
  • Ambient: 32ºF (0ºC) to 104ºF (40ºC), 3300ft (1000m) altitude,

Technical Data :

Power Supply Three Phase 575V
Frequency 50 / 60 Hz +/-2 Hz
Cos (Displacement Power Factor) Greater than 0.98
Enclosure NEMA 1
Control Modes V/Hz
Sensorless Voltage Vector
Processor 16 bit DSP
Power Output Sinusoidal PWM (Space Vector Modulation)
IGBT Transistors 2.5, 5, 10 or 15kHz Switching Frequency
Frequency Range 0-300Hz
Overload Capacity 150% during 60 seconds every 10 minutes
Control Inputs 4 programmable isolated digital inputes, NPN or 24VDC logic (PNP)
2 x programmable differential analog inputs, programmable for current or voltage with 0.25% linearity error and can be set as DI or as PTC input
Control Outputs 2 programmable relay outputs, one NO (Form A) and on NC (Form B): 250V /0.5A
1x outputs with independent NO and NC at the same common
1x output, programmable for voltage (0-10v) or current (0-20mA or 4-20mA) and with 0.25% linearity error
Ambient Temperature 0-104°F (40°C)
up to 122°F (50°C) with 2% /1.8°F (1°C) output current derating
Humidity 5-90% Non Condensing
Altitute 0-3300ft (1000m)
up to 13,200ft (4000m) with 10% /3300ft (1000m) output derating
Keypad 4 Digit display
2 indicator LEDs
8 keys
Mounting Screws or optional DIN rail mount
