/Products/Electric Motors/3 Phase Explosion Proof/Marathon 3-Phase Explosion Proof Electric Motors/C363A Marathon 2HP Explosion Proof Electric Motor, 1800RPM
Click Image to Expand

Product ID: 145TTGN6549

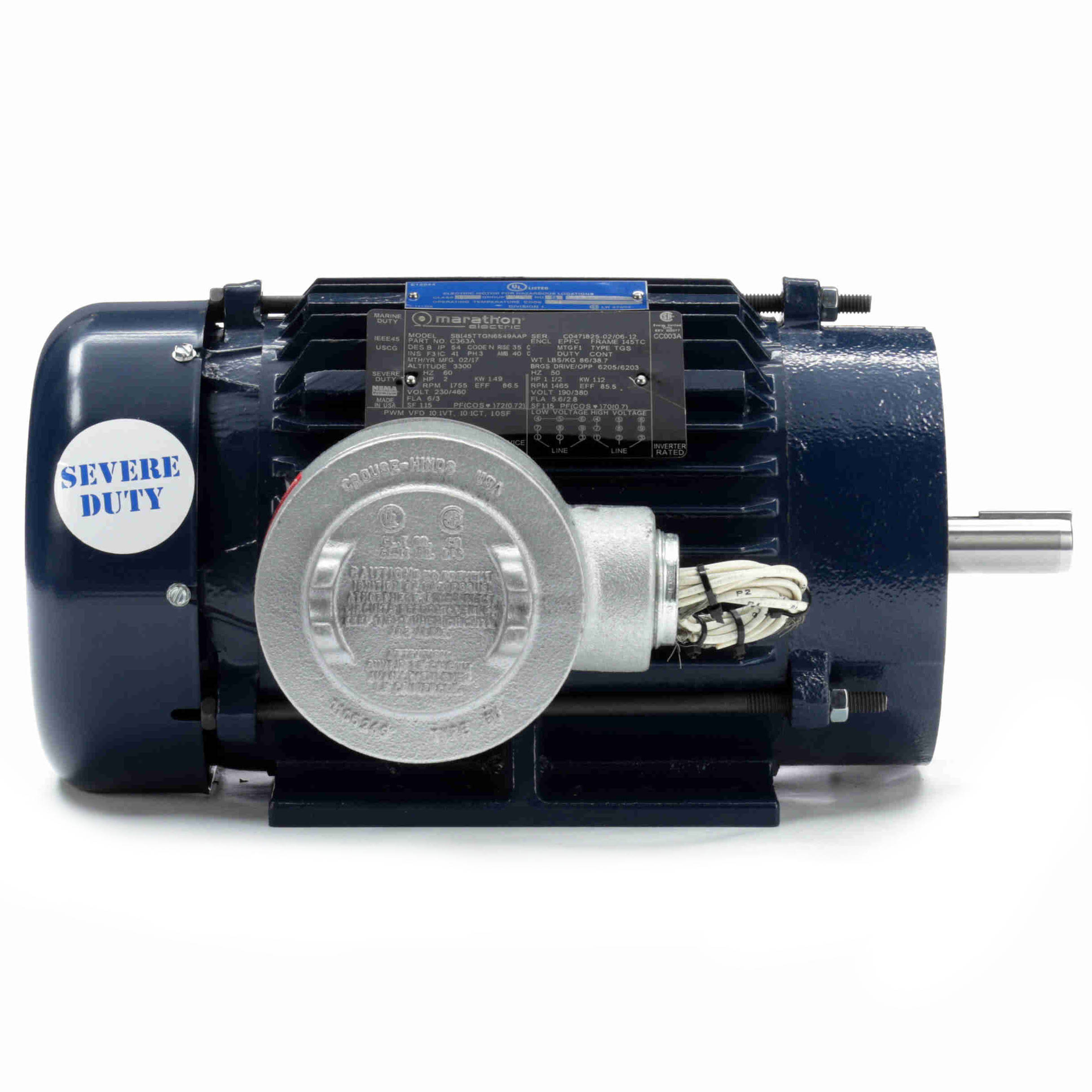

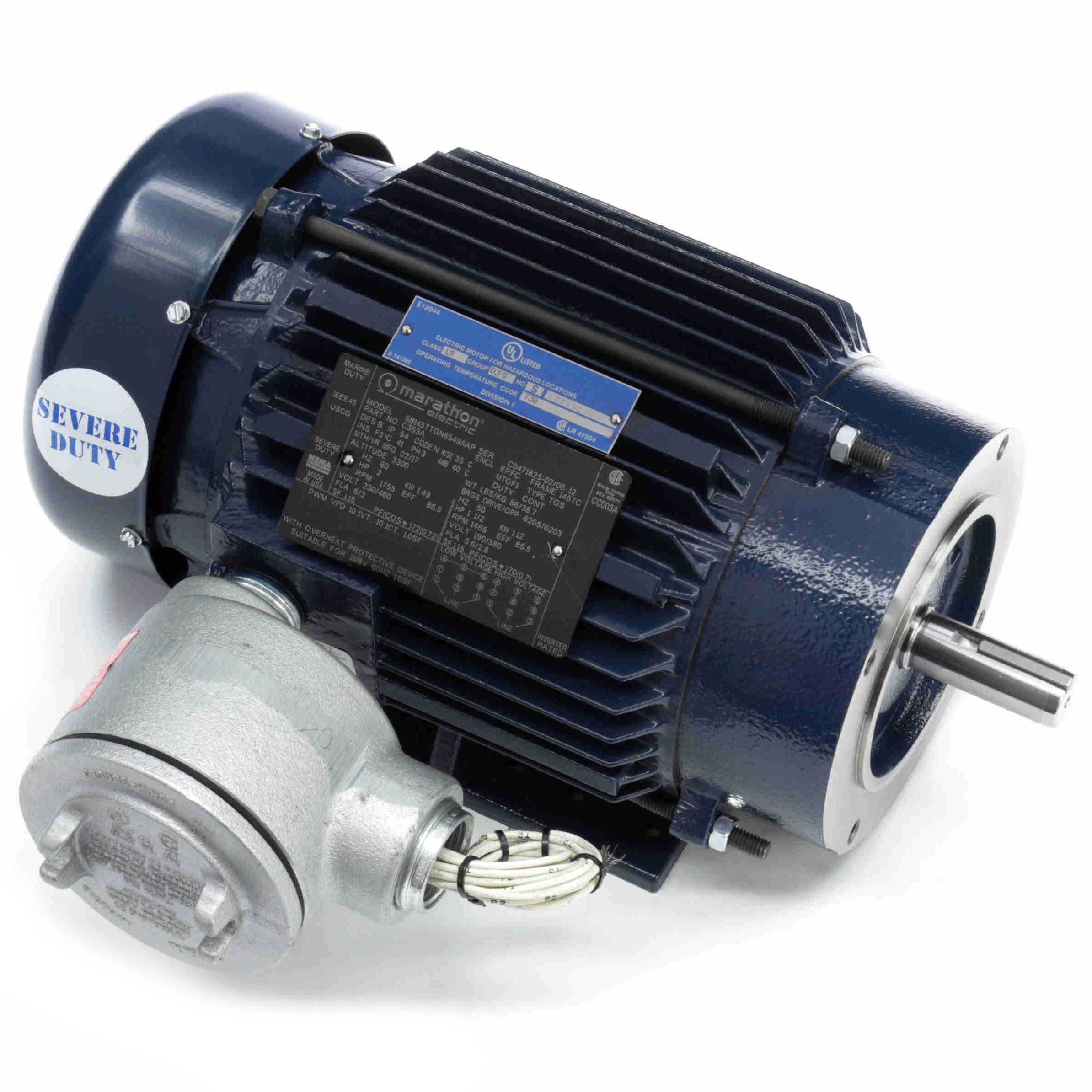

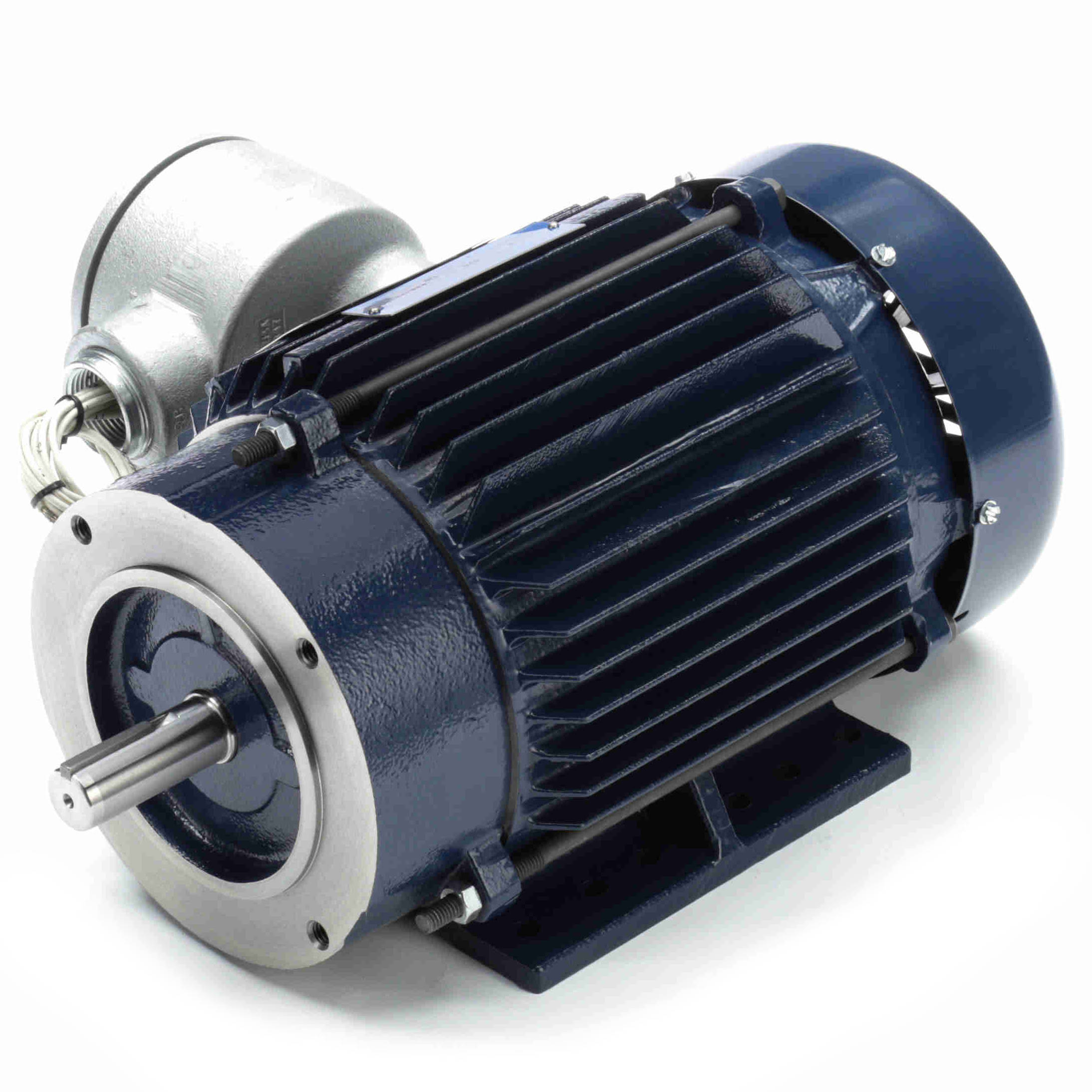

C363A Marathon 2HP Explosion Proof Electric Motor, 1800RPM

MFG: Marathon Electric
MFG Part Number: C363A

Selected accessories will also be added to cart
$1,299.97 / Each
Quantity:
EPFC, 145TC Frame, 230/460VAC 3-Phase 60Hz, 145TTGN6549, Rigid Base, C-Face, Cast Iron Frame, 7/8" Keyed Shaft

Features

  • 10:1 Variable torque, see Inverter Duty column for constant torque
  • CR200 Corona Resistant, 200?C rated magnet wire
  • Normally closed thermostats (must be connected to control circuit)
  • Meets temperature code T3B
  • All cast iron construction? External surface treated with epoxy paint
  • Nameplated 60/50 hertz, 190/380 Volts, at next lower horsepower
  • Rolled steel fan guard on 143T-145T

General Specifications

UPC:722856022172Weight:86.00 LB
Packaged Length:22.5 INPackaged Width:16.81 IN
Packaged Height:14 IN

Nameplate Specifications

Output HP:2 HpOutput KW:1.5 kW
Frequency:60 HzVoltage:230/460 V
Current:6.0/3.0 ASpeed:1755 rpm
Service Factor:1.15Phase:3
Efficiency:86.5 %Power Factor:72
Duty:ContinuousInsulation Class:F
Design Code:BKVA Code:N
Frame:145TCEnclosure:Explosion Proof Fan cooled
Thermal Protection:Thermostats (N/C)Ambient Temperature:40 ?C
Drive End Bearing Size:6205Opp Drive End Bearing Size:6203
UL:UL Listed And CSA CertifiedCSA:Y
CE:NIP Code:54
Hazardous Location:EXP PROOF CL I GR D CL II GR F&G T3B

Technical Specifications

Electrical Type:Squirrel Cage Inverter RatedStarting Method:Line Or Inverter
Poles:4Rotation:Reversible
Resistance Main:6.51 OhmsMounting:Rigid Base
Motor Orientation:HorizontalDrive End Bearing:Ball
Opp Drive End Bearing:BallFrame Material:Cast Iron
Shaft Type:TOverall Length:15.23 in
Frame Length:7.50 inShaft Diameter:0.875 in
Shaft Extension:2.12 inAssembly/Box Mounting:F1 ONLY

Speed & Load Characteristics

Speed Characteristics

CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)(%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down18.70623.032.50542.01,2450.0089.02.00
2/322.50800.025.70428.01,2000.000.02.00
1/324.50950.020.80347.06000.000.02.00
Locked-Rotor30.001,000.024.50408.000.0069.02.00
Full Load3.00100.06.00100.01,7550.000.02.00
No Load1.9063.00.000.01,8000.000.02.00
Pull-Up25.00900.022.05368.09000.000.02.00

Load Characteristics

% of Rated Load0 %25 %50 %75 %100 %115 %125 %
Current (Amps)1.902.002.302.603.003.303.50
Rated Output (KW)0.120.510.901.301.701.982.15
Efficiency (%)0.074.082.585.586.586.586.5
Power Factor (%)8.031.550.063.072.075.577.5
Speed (RPM)1,8001,7901,7801,7701,7551,7501,745
Temp. Rise @ FL0.00.00.00.035.040.00.0
Torque (ft-lbs)0.001.502.954.456.006.907.50
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Horsepower
2HP
Enclosure
EPFC
Frame
145TC
