/Products/Electric Motors/DC/Baldor/Shunt Wound/CD5318 Baldor 1HP Shunt Wound DC Electric Motor, 1750RPM

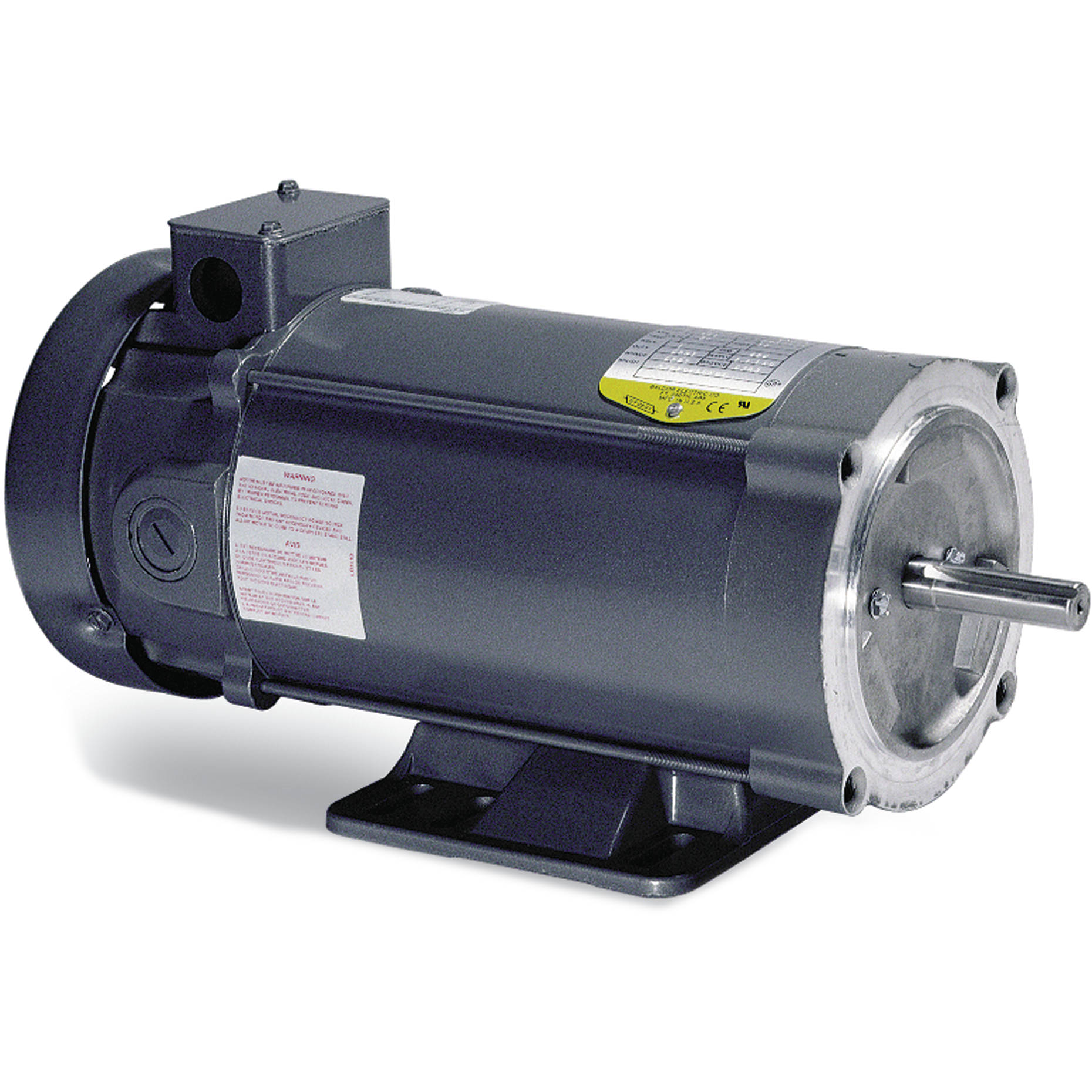

CD5318 Baldor 1HP Shunt Wound DC Electric Motor, 1750RPM
Enlarge Photo

Product ID: CD5318

CD5318 Baldor 1HP Shunt Wound DC Electric Motor, 1750RPM

MFG: Baldor Electric Company
MFG Part Number: CD5318

Selected accessories will also be added to cart
$1,799.97 / Each
Quantity:
TEFC, 56C Frame, 180VDC Armature, 100/200VDC Field, 3535D, C-Face, Foot Mount

Specifications

Specs

Armature Voltage180 V
Base Speed1,750 rpm
Field Voltage200 V
100 V
Frame56C
Frame MaterialSteel
Output Power1 hp
XP Class and GroupNONE
BrandBaldor-Reliance
Agency ApprovalsCSA
UR
Ambient Temperature40 °C
Armature Current5.0 A
Armature Inertia13.657lb-ft2
Base IndicatorRigid
Bearing Grease TypePOLYREX EM (-20F +300F)
Drip CoverNo Drip Cover
Duty RatingCONT
Feedback DeviceNo feedback
Field Winding TypeSHUNT
Heater IndicatorNo heater
Insulation ClassF
Lifting LugsNo Lifting Lugs
Motor Lead ExitLead Hole
Motor Lead Quantity/Wire Size4 @ 18 AWG
2 @ 14 AWG
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Overall Length16.29 in
Product FamilyGeneral Purpose
Pulley End Bearing TypeSealed Bearing
Service Factor1.00
Shaft Diameter0.625 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
XP DivisionNot Applicable

Applications

  • Conveyors
  • Printing and textile equipment
  • Machine tools

Features

  • Designed for use with NEMA type K SCR control
  • 20:1 constant torque speed range
  • NEMA C-face and removable base
  • NEMA 182 frame and larger – normally closed thermostat on field winding
  • Class F insulation
  • 1.0 Service Factor

Nameplate

Nameplate

CAT.NO.CD5318
SPEC.35P442Z391
HP1ENCLTEFC
RPM1750
FRAME56CTYPE3535D
ARM V180ARM A5
FLD V200/100FLD A.3/.6
INSULFAMB.40
DUTYCONTSUPPLY1.3
BRG/DE6205BRG/ODE6203
BRUSHES2/BP5000T07
BLANK
SER.
BLANK
APRV-CSAAPRV-UL
NP0111L

Performance

Performance

Performance at 180 Arm V, 1 HP

Typical performance; not guaranteed values.

General Characteristics

Armature Resistance1.898 ohms
Series Winding Resistance
Armature Inductance
Maximum Rated RPM With Field Weakening
Commutating Winding Resistance1.363 ohms
Shunt Winding Resistance686.4 ohms
Armature Inertia
Maximum Allowable Inrush Amps

Load Characteristics

Load Point1234567
Armature Amps0.351.42.53.74.96.47.9
RPM1945187818311795176017391714
Torque00.751.52.2533.754.5

Performance Curves

Type
Electric Motor
Frame
56C
Horsepower
1HP
Input Phase
DC
Enclosure
TEFC
Speed
1750RPM
