/Products/Electric Motors/DC/Baldor/Washdown Permanent Magnet/CDPWD3585 Baldor 2HP Washdown Permanent Magnet DC Electric Motor, 1750RPM

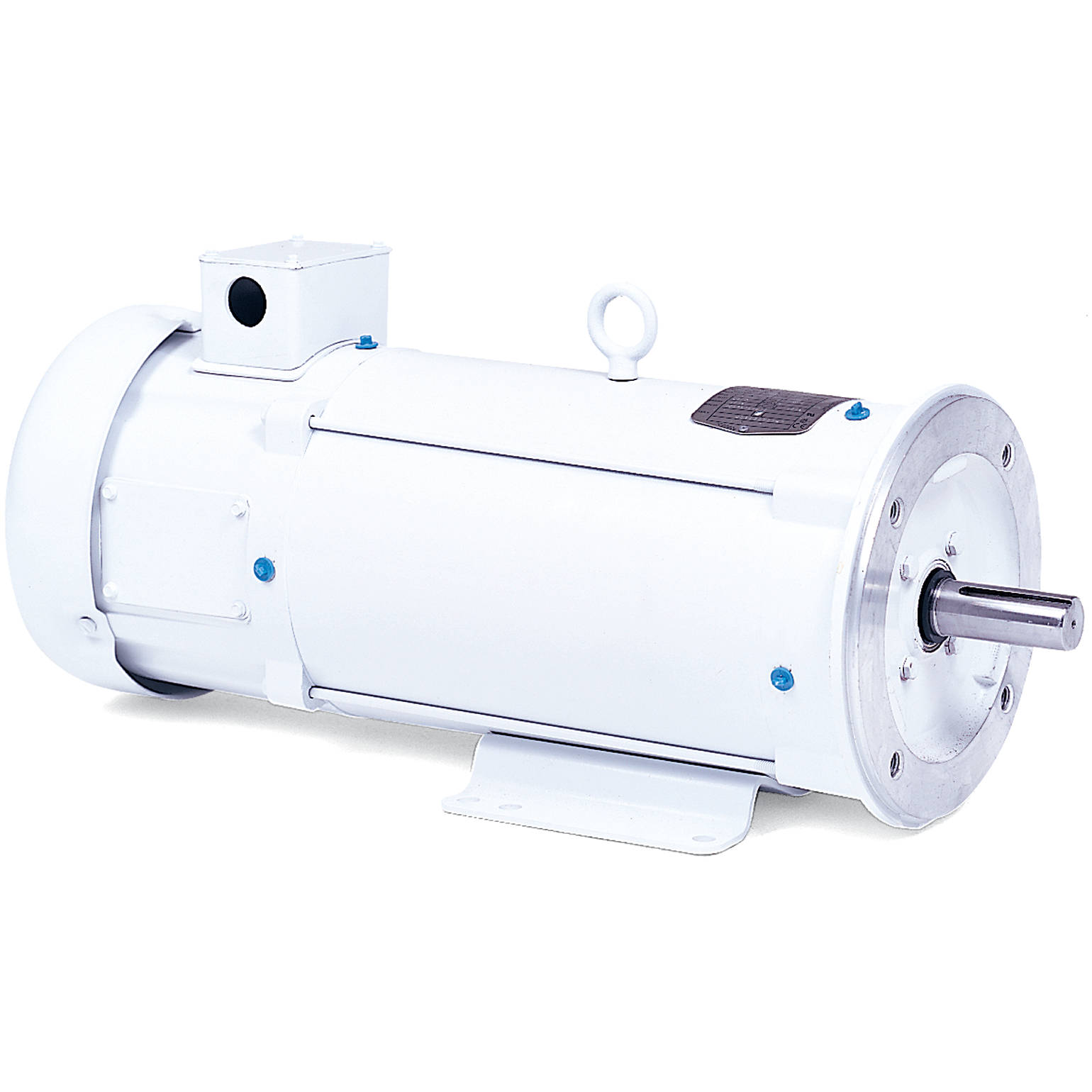

CDPWD3585 Baldor 2HP Washdown Permanent Magnet DC Electric Motor, 1750RPM
Enlarge Photo

Product ID: CDPWD3585

CDPWD3585 Baldor 2HP Washdown Permanent Magnet DC Electric Motor, 1750RPM

MFG: Baldor Electric Company
MFG Part Number: CDPWD3585

Selected accessories will also be added to cart
$2,999.97 / Each
Quantity:
TEFC, 145TC Frame, 180VDC SCR Drive, 3548P, C-Face, Foot Mount

Specifications

Specs

Armature Voltage180 V
Base Speed1,750 rpm
Frame145TC
Frame MaterialSteel
Output Power2 hp
XP Class and GroupNONE
BrandBaldor-Reliance
Agency ApprovalsCE
CSA
UR
WEEE
Ambient Temperature40 °C
Armature Current9.6 A
Armature Inertia40.456lb-ft2
Base IndicatorRigid
Bearing Grease TypePOLYREX EM (-20F +300F)
Drip CoverNo Drip Cover
Duty RatingCONT
Feedback DeviceNo feedback
Heater IndicatorNo heater
Insulation ClassF
Lifting LugsNo Lifting Lugs
Motor Lead ExitKO Box
Motor Lead Quantity/Wire Size2 @ 14 AWG, A
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Overall Length18.17 in
Product FamilyWash Down
Pulley End Bearing TypeSealed Bearing
RoHS StatusRoHS Compliant
Service Factor1.00
Shaft Diameter0.875 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible: Connected Standard
Shaft Slinger IndicatorShaft Slinger
XP DivisionNot Applicable

Applications

  • Food processing conveyors
  • Feeders

Features

  • Moisture sealant on bolt heads between frame and endplates
  • Neoprene gasketed conduit box
  • Double sealed bearings
  • Forsheda® running contact V-Ring slinger
  • Stainless steel shaft
  • Class F Insulation
  • Tachometer adaptable
  • Suitable for high pressure washdown

Nameplate

Nameplate

CAT.NO.CDPWD3585
SPEC.35P523Z170
HP2ENCLTEFC
RPM1750
FRAME145TCTYPE3548P
ARM V180ARM A9.6
FLD VFLD A
INSULFAMB.40
DUTYCONTSUPPLYK
BRG/DE6205BRG/ODE6205
BRUSHES2/BP5000T15
BLANKIP55
SER.
BLANK
APRV-CSAAPRV-ULAPRV-CE
NP1509

Performance

Performance

Performance at 180 Arm V, 2 HP

Typical performance; not guaranteed values.

General Characteristics

Armature Resistance0.8093 ohms
Series Winding Resistance
Armature Inductance11.508 mH
Maximum Rated RPM With Field Weakening
Commutating Winding Resistance
Shunt Winding Resistance
Armature Inertia40.456 LI²
Maximum Allowable Inrush Amps

Load Characteristics

Load Point1234567
Armature Amps0.22.44.76.8911.313.5
RPM1806179617701741170716711663
Torque01.534.567.59

Performance Curves

Type
Electric Motor
Horsepower
2HP
Input Phase
DC
Enclosure
TEFC
Frame
145TC
Speed
1750RPM
Input Voltage
180VDC
