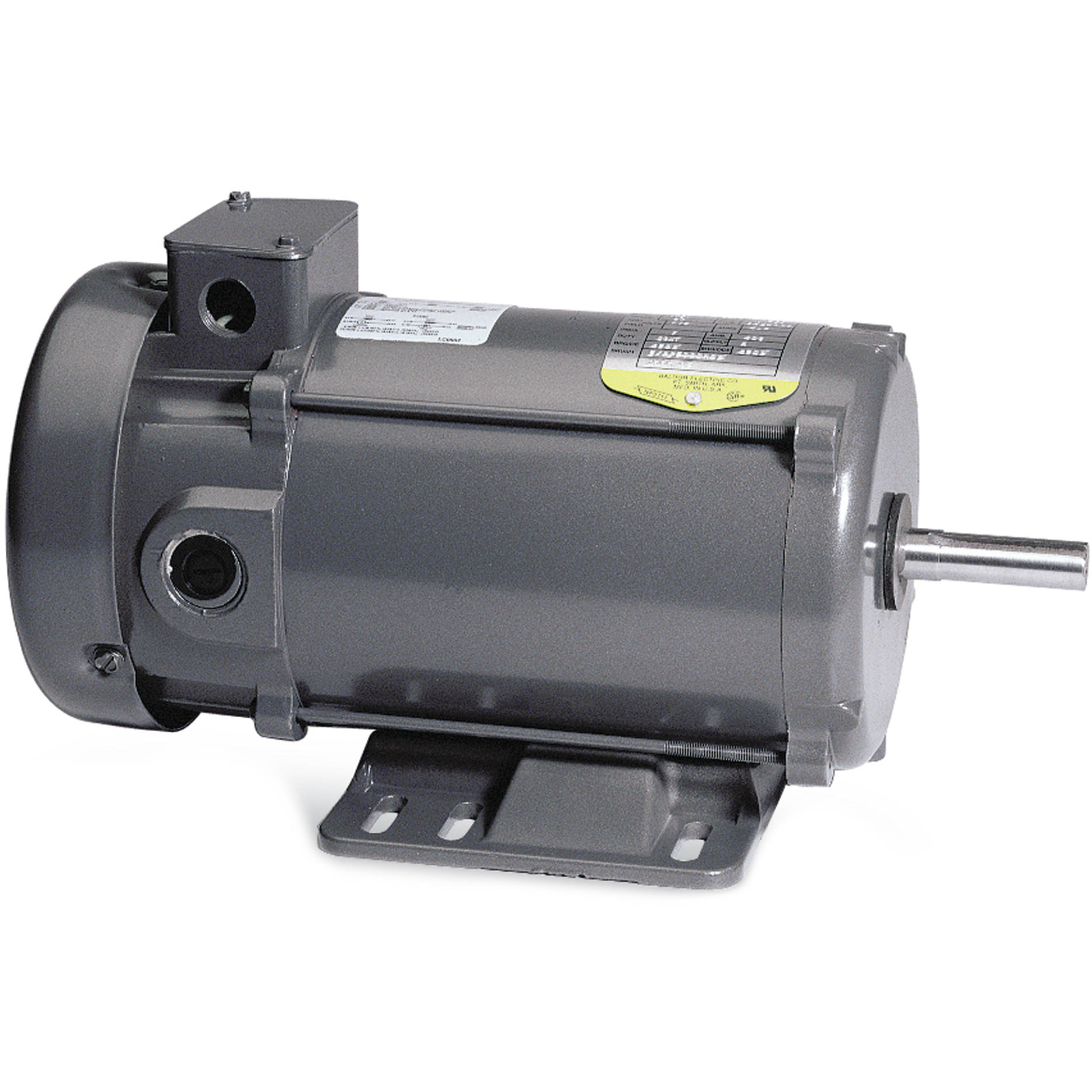

D2304 Baldor 1HP DC Power Electric Motor, 1750RPM
Enlarge Photo

Product ID: D2304

D2304 Baldor 1HP DC Power Electric Motor, 1750RPM

MFG: Baldor Electric Company
MFG Part Number: D2304

Selected accessories will also be added to cart
$2,699.97 / Each
Quantity:
TEFC, 56 Frame, 230VDC Armature, 230VDC Field, 3535D, Foot Mount

Specifications

Specs

Armature Voltage230 V
Base Speed1,750 rpm
Field Voltage230 V
Frame56
Frame MaterialSteel
Output Power1 hp
XP Class and GroupNONE
BrandBaldor-Reliance
Agency ApprovalsCSA
UR
Ambient Temperature40 °C
Armature Current4.0 A
Armature Inertia13.657lb-ft2
Base IndicatorRigid
Bearing Grease TypePOLYREX EM (-20F +300F)
Drip CoverNo Drip Cover
Duty RatingCONT
Feedback DeviceNo feedback
Field Winding TypeCOMPOUND
Heater IndicatorNo heater
Insulation ClassF
Lifting LugsNo Lifting Lugs
Motor Lead ExitKO Box
Motor Lead Quantity/Wire Size2 @ 18 AWG
2 @ 14 AWG
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Overall Length15.44 in
Product FamilyGeneral Purpose
Pulley End Bearing TypeSealed Bearing
Service Factor1.00
Shaft Diameter0.625 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorShaft Slinger
XP DivisionNot Applicable

Applications

  • Cranes and Hoists
  • Conveyors
  • Augers
  • Marine Duty Applications

Features

  • 20% compound wound
  • Weather proof, VPI insulation meets IEEE 45 specifications
  • Suitable for mounting in any position
  • Continuous duty
  • Easy access brushes
  • Can be powered from generators or batteries

Nameplate

Nameplate

CAT.NO.D2304
SPEC.35P328Z395
HP1ENCLTEFC
RPM1750
FRAME56TYPE3535D
ARM V230ARM A4
FLD V230FLD A.25
INSULFAMB.40
DUTYCONTSUPPLYA
BRG/DE6205BRG/ODE6203
BRUSHES2/BP5000T15
--BLANK
SER.
BLANKIEEE 45
APRV-CSAAPRV-UL
NP0111L

Performance

Performance

Performance at 230 Arm V, 1 HP

Typical performance; not guaranteed values.

General Characteristics

Armature Resistance3.18 ohms
Series Winding Resistance7.34 ohms
Armature Inductance
Maximum Rated RPM With Field Weakening
Commutating Winding Resistance2.35 ohms
Shunt Winding Resistance868 ohms
Armature Inertia13.657 LI²
Maximum Allowable Inrush Amps

Load Characteristics

Load Point1234567
Armature Amps0.551.42.153.13.94.755.65
RPM1858179717361682164415961554
Torque00.751.52.2533.754.5

Performance Curves

Type
Electric Motor
Frame
56
Horsepower
1HP
Input Phase
DC
Enclosure
TEFC
Speed
1750RPM
Input Voltage
230VDC
