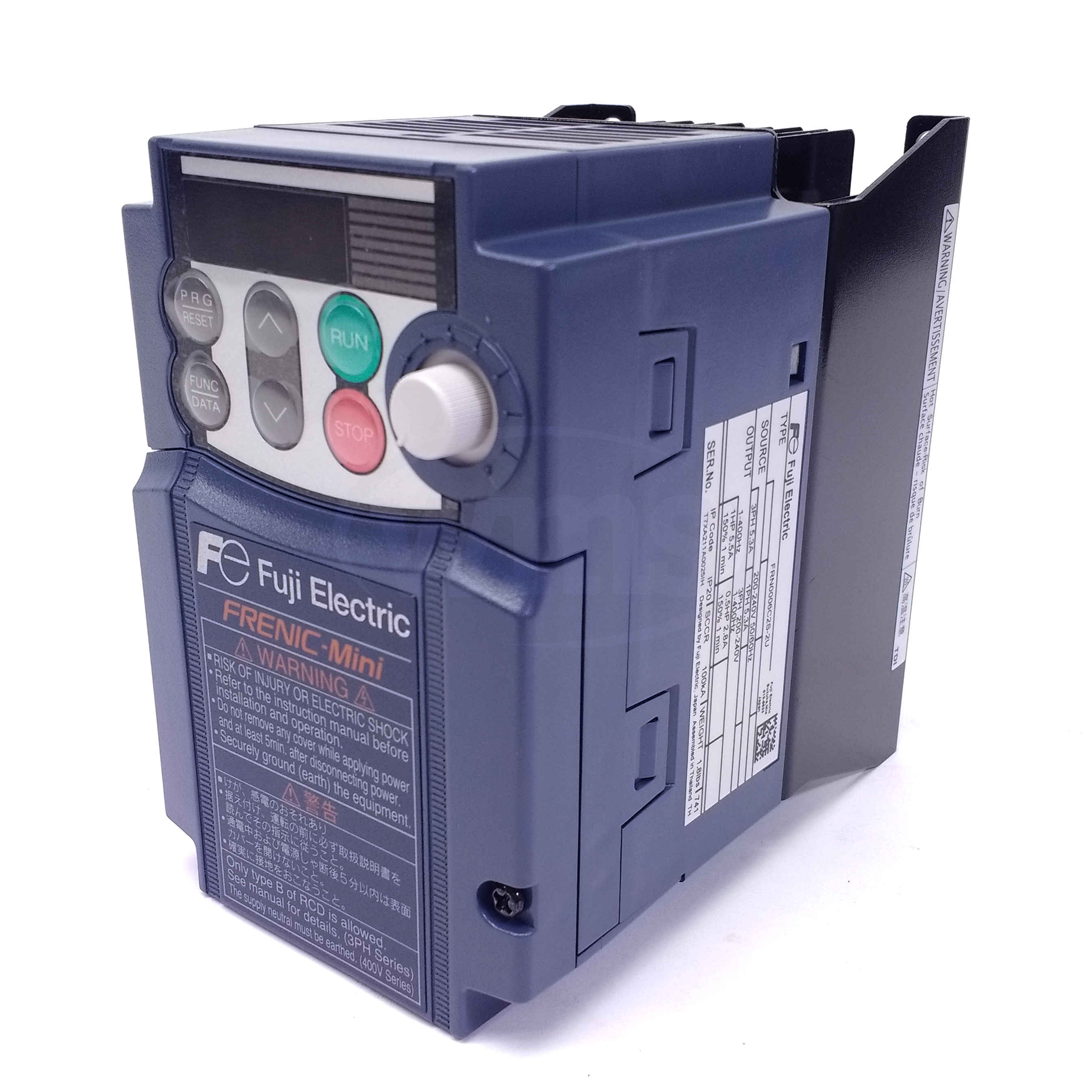

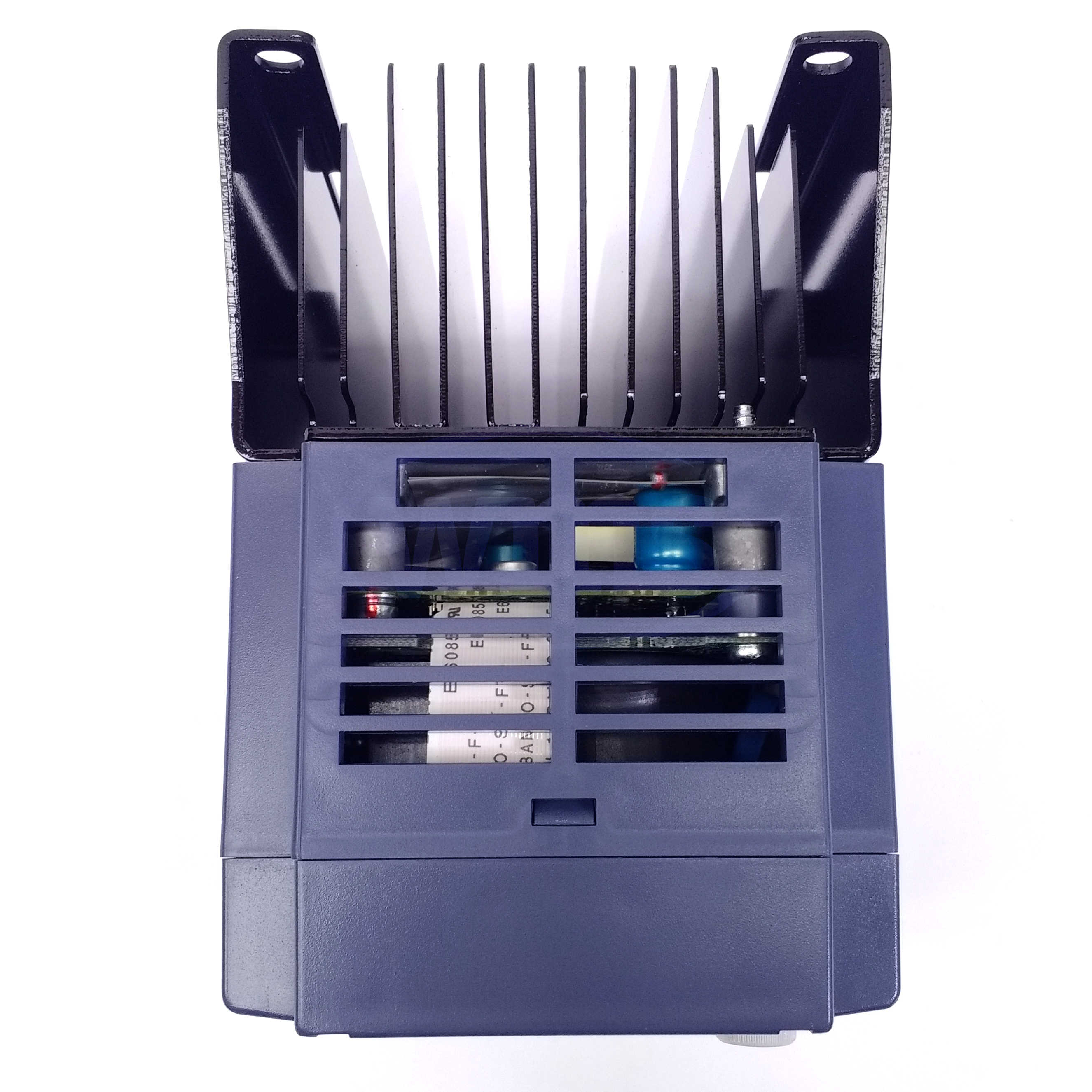

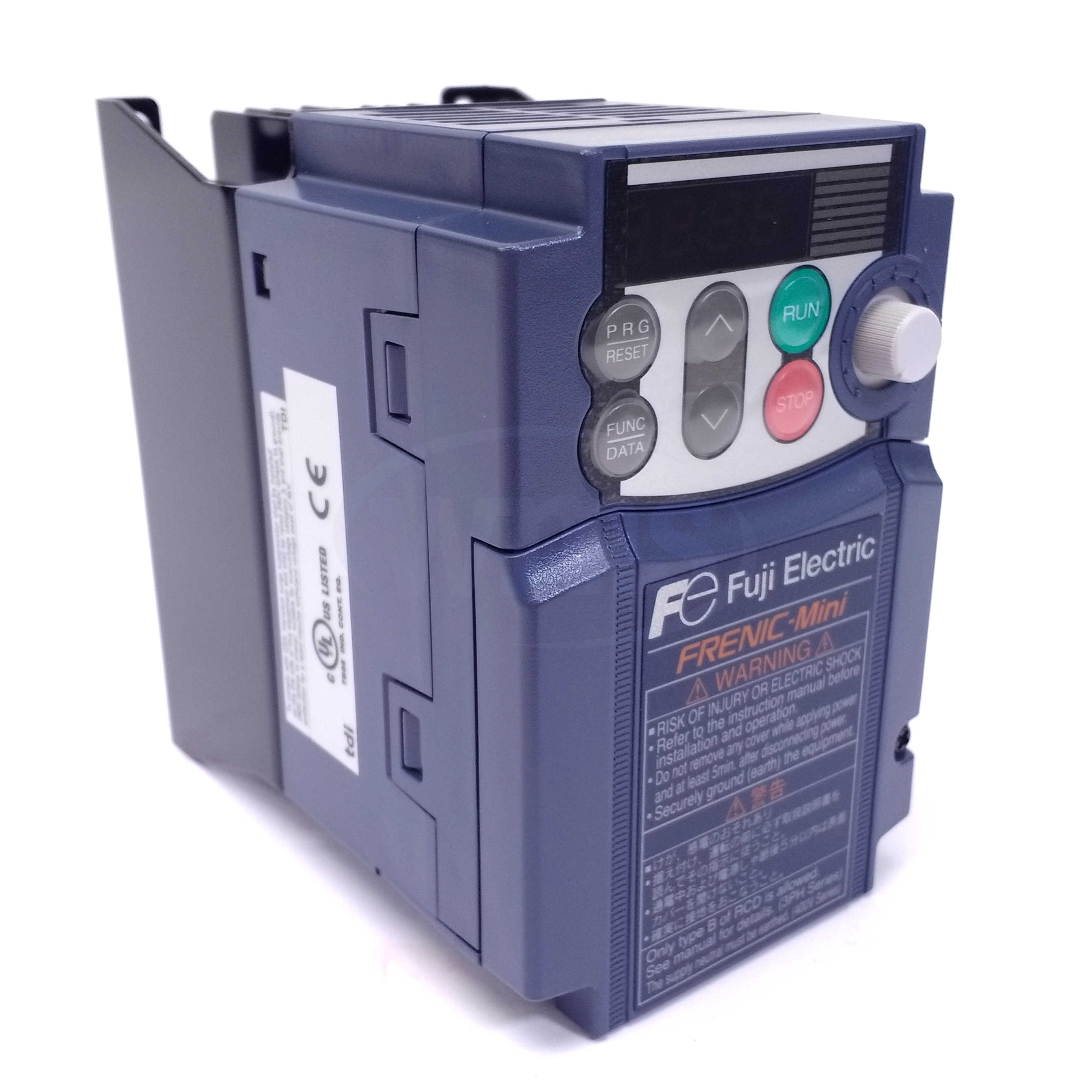

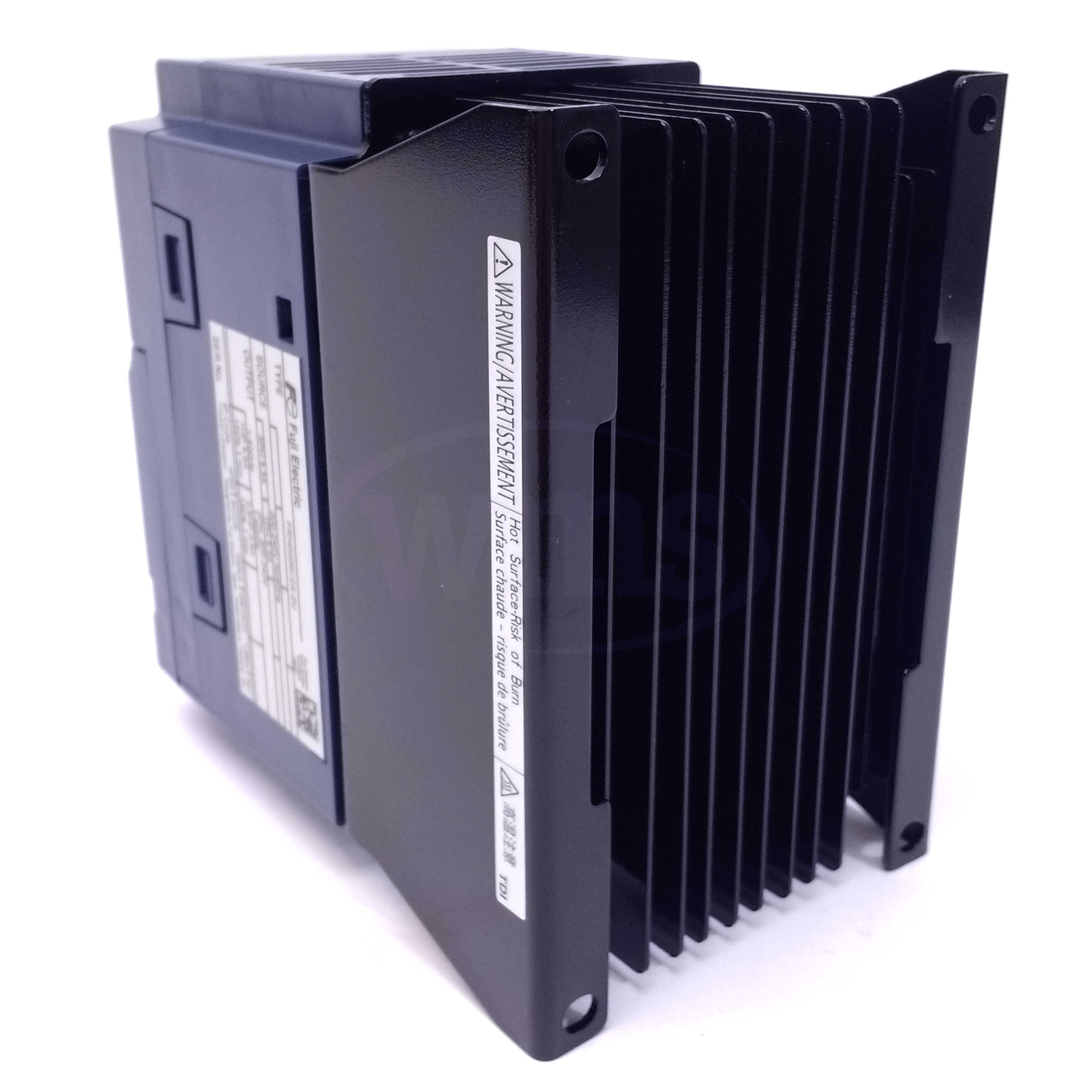

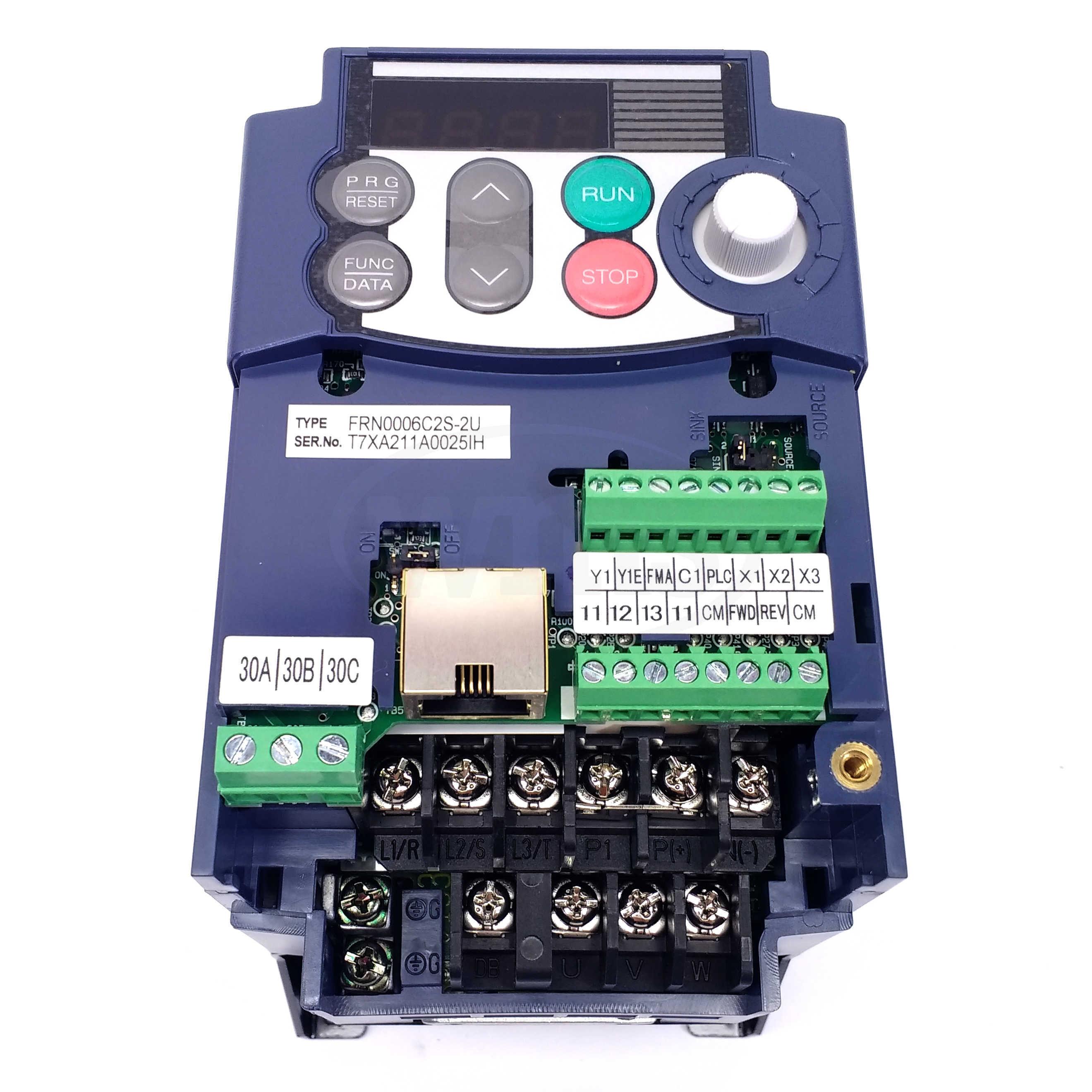

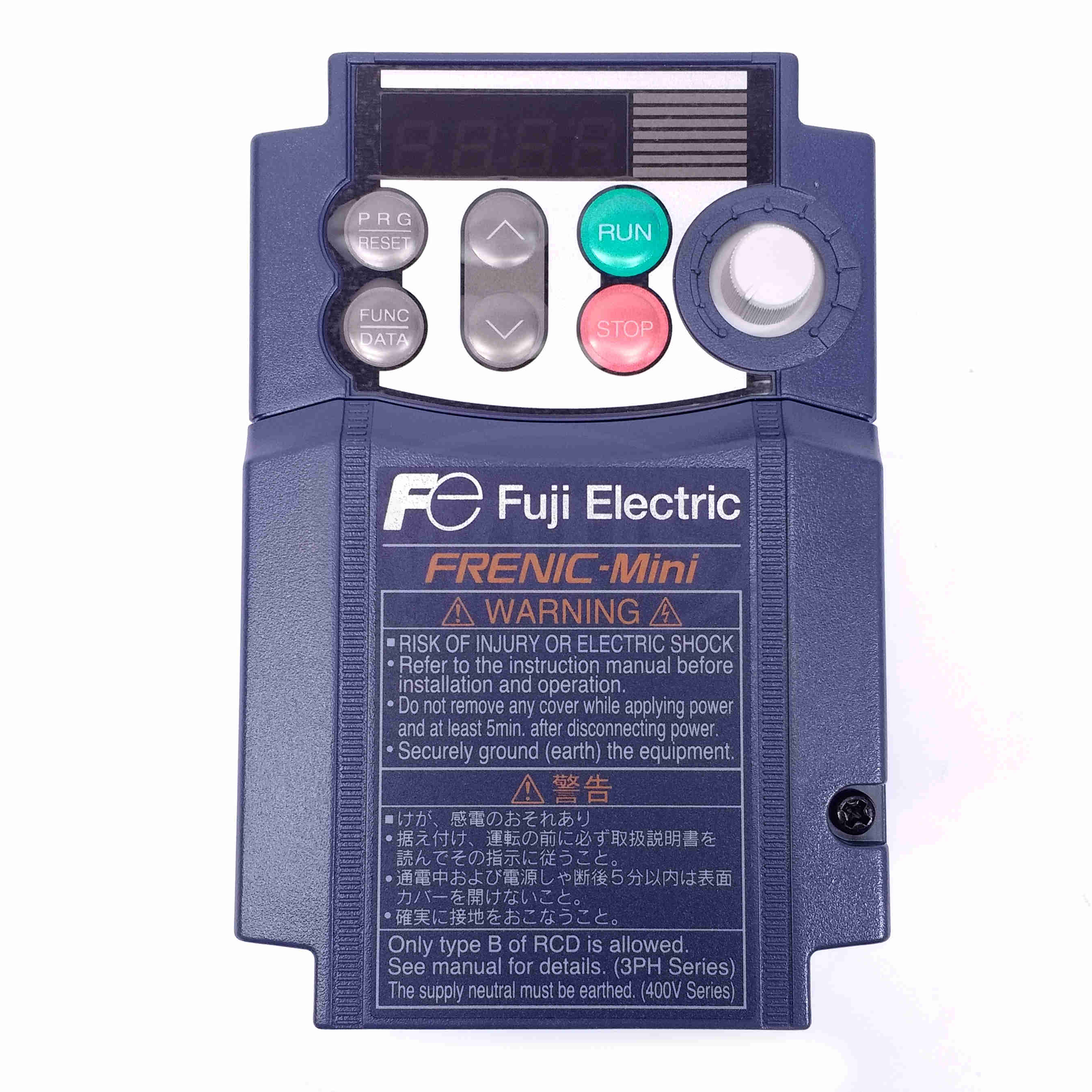

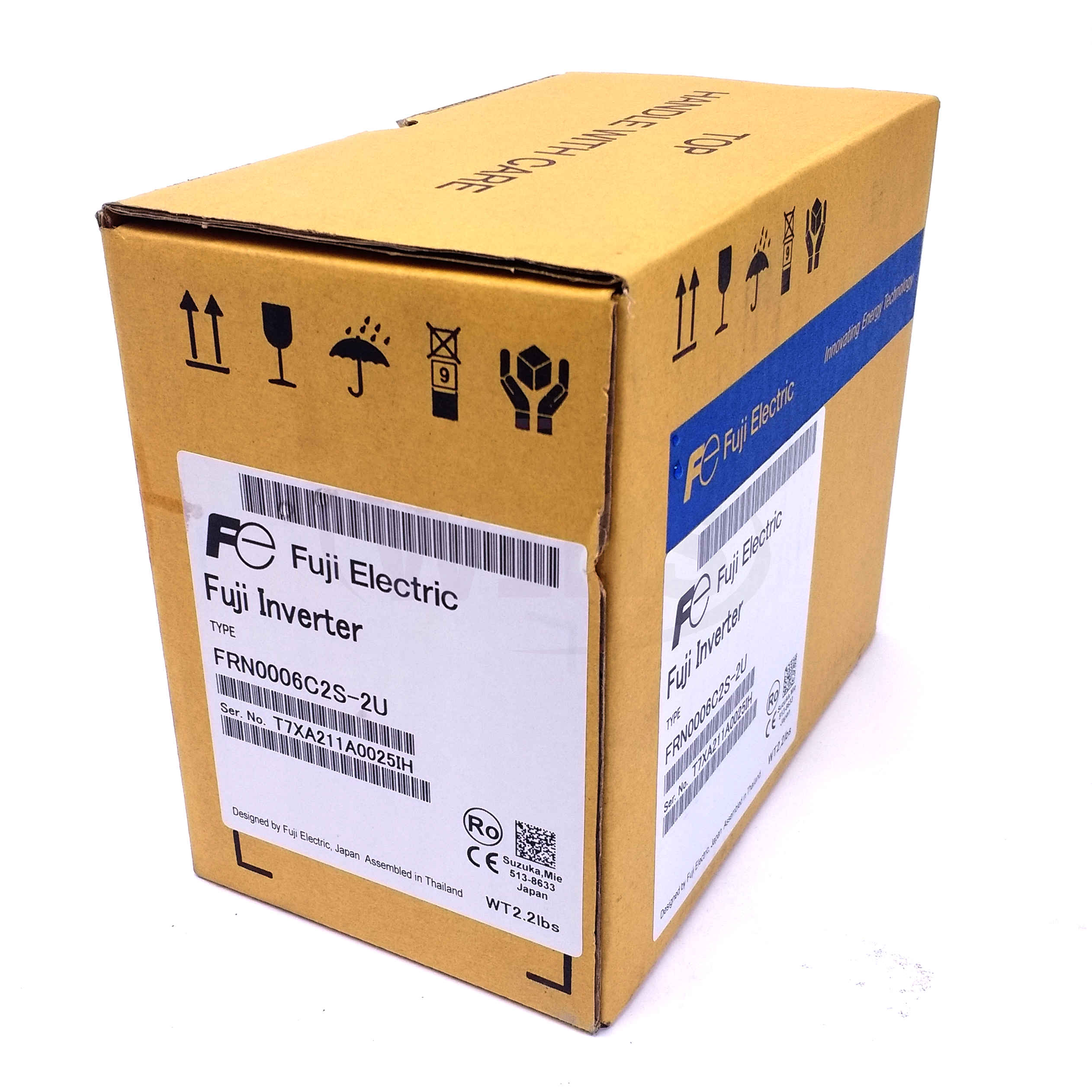

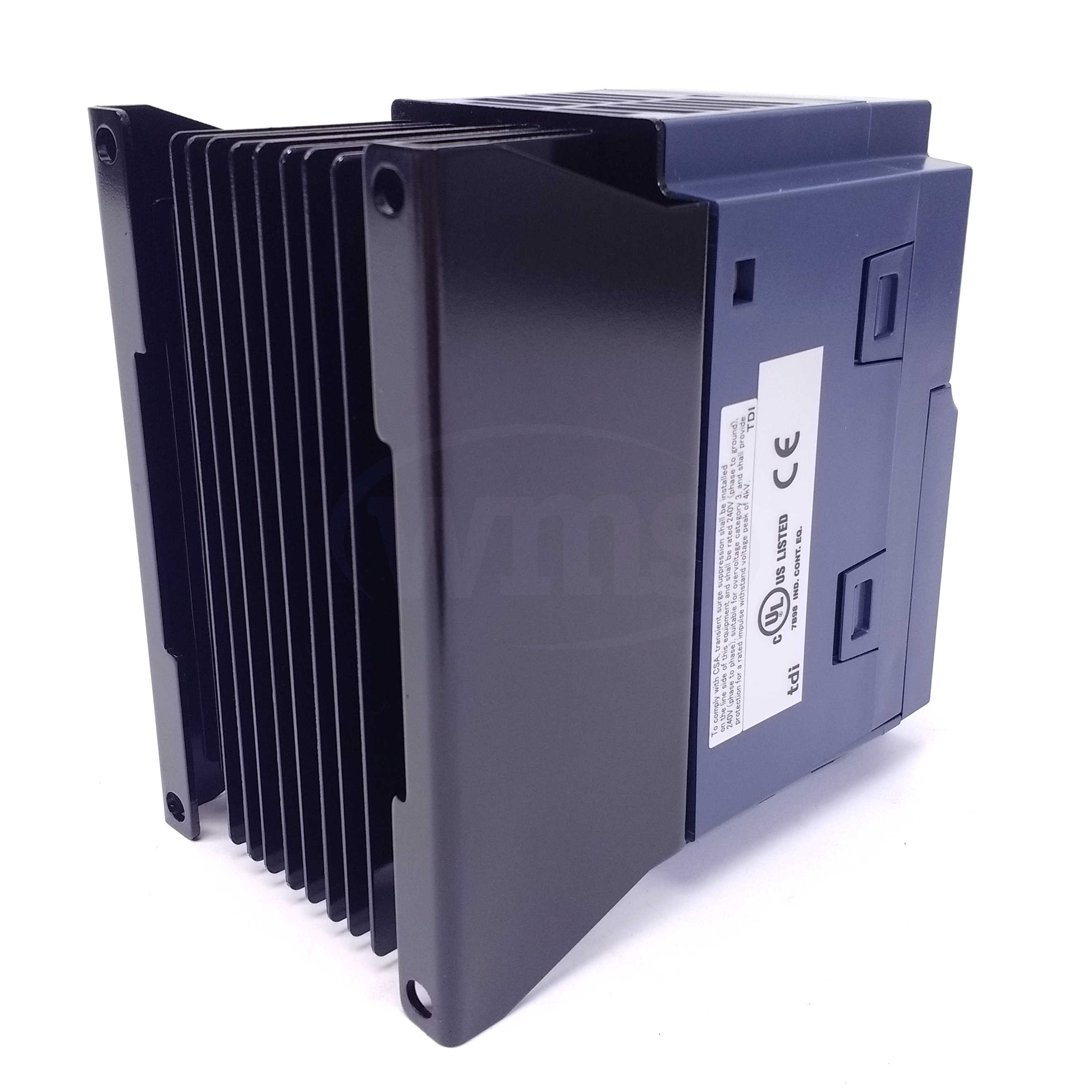

/Products/VFD's & Soft Starters/Fuji/FRENIC-Mini (C2)/FRN0006C2S-2U 1 HP Fuji FRENIC-Mini C2 Compact Variable Frequency Drive, 230V

Click Image to Expand

Previous Next

Available Stock: 21

Selected accessories will also be added to cart

$225.78 / Each

Quantity:

3-Phase Input (230V 3-Phase Output)

Accessories

Select any of the accessories below to purchase them with this inventory item:

Enclosure	UL Open Type (IP20) Optional UL Type 1
Ambient Temperature	+14 to +122°F (-10 to +50°C) - UL Open Type +14 to +104°F (-10 to +40°C) - UL Type 1
Storage Temperature	-13 to +158°F (-25 to +70°C)
Humidity	5% to 95% With No Condensation
Altitude	0 to 3,300 ft. (1,000 m) Without Derating Derate Output Current for Higher Altitudes per User's Manual

UL508C
EN 61800-5-1:2007

Input Voltage: Range-Phase	200-240VAC - 3 Phase 200-240VAC - 1-Phase with Derating
Input Voltage: Tolerance, Unbalance	3 - Phase Input = +10% to -15%, <2%
Input Frequency: Nominal, Tolerance	50/60Hz, +/-5%
Displacement Power Factor	>0.98 (@ Rated Load)
Output Voltage: Range-Phase	0 to Maximum Input Voltage -3 Phase
Maximum Output Frequency	400Hz
Rated Output Current	5.5
Nominal Applied Motor HP (KW)	1 (.75)
Motor Control Method	Induction Motor: V/f Control Dynamic Torque Vector Control Slip Compensation Auto-Torque Boost Automatic Energy Savings Synchronous Motor (PMAC): Sensorless Magnetic Positioning [speed control range: 10% of base frequency and up
Overload Capacity	150% Rated Current for 1 minute. 200% Rated Current for 0.5 second
Analog Inputs	Qty 1: 0 to +10VDC Qty 1: 0/4-20mA
Digital Inputs	Qty 5: Programmable
Analog Outputs	Qty 1: 0 to +10VDC, User Selectable Proportional Analog Signal Functionality
Digital Outputs	Qty 1: Form C (1N.O. & 1N.C.) Dry Contacts Rated 0.3A @ 230V Max, User Selectable Functionality Qty 1: Transistor Output Rated 50mA @ 27Vdc Max, User Selectable Functionality
Power Supply	Qty 1: 24VDC, 50mA Max

Series

FRENIC-Mini C2

Input Voltage

200 to 240VAC

Horsepower

1HP

Input Phase

3-Phase

Color

Blue
