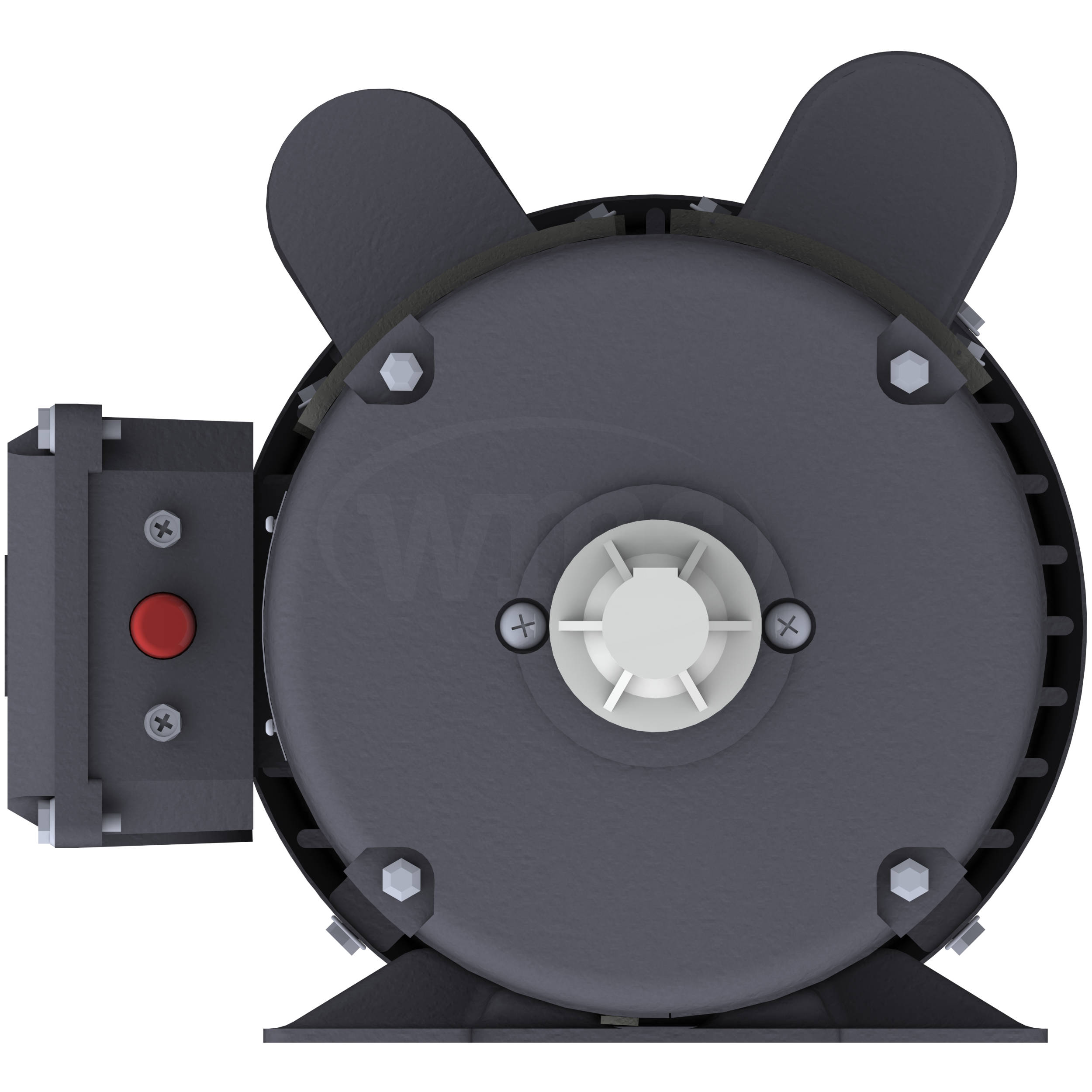

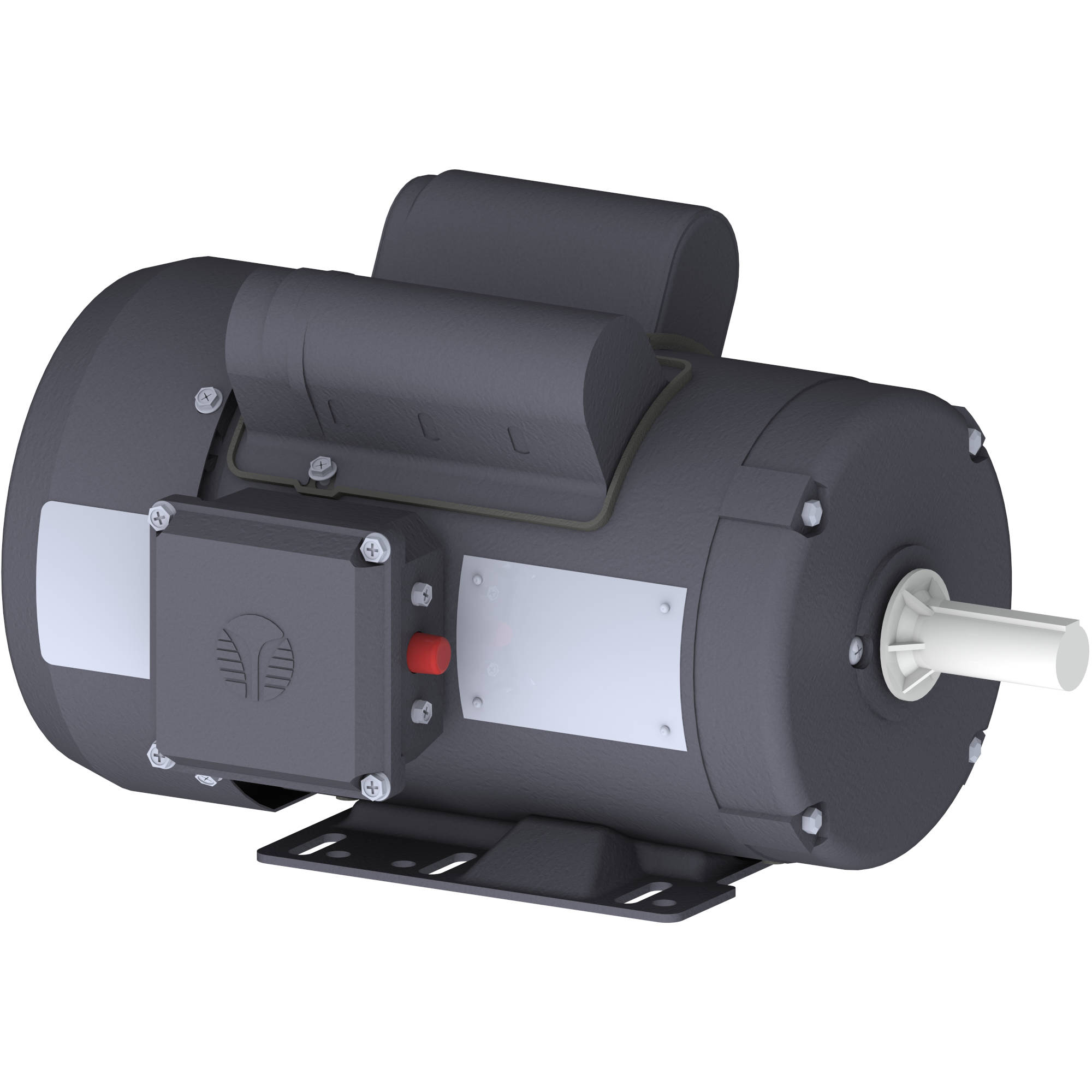

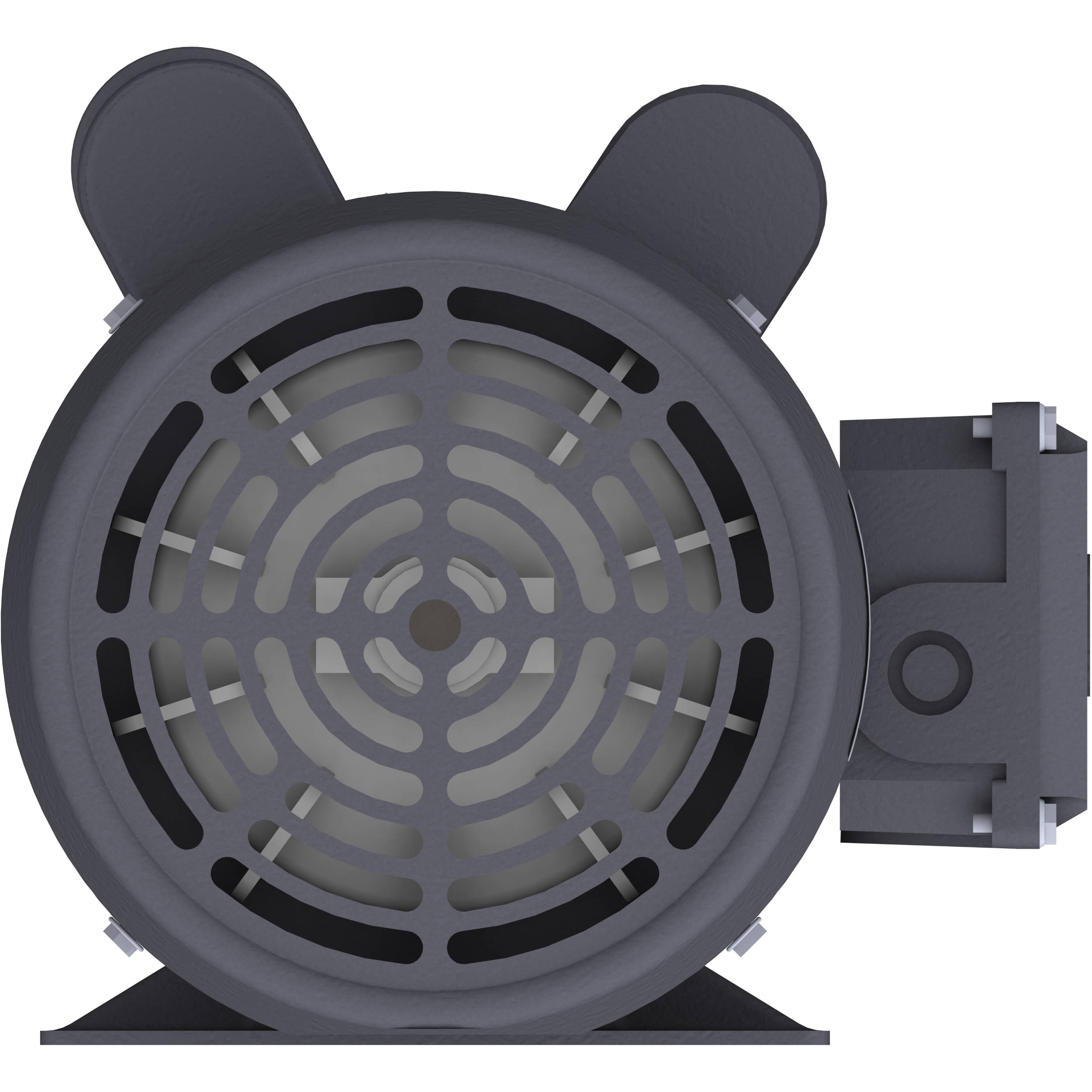

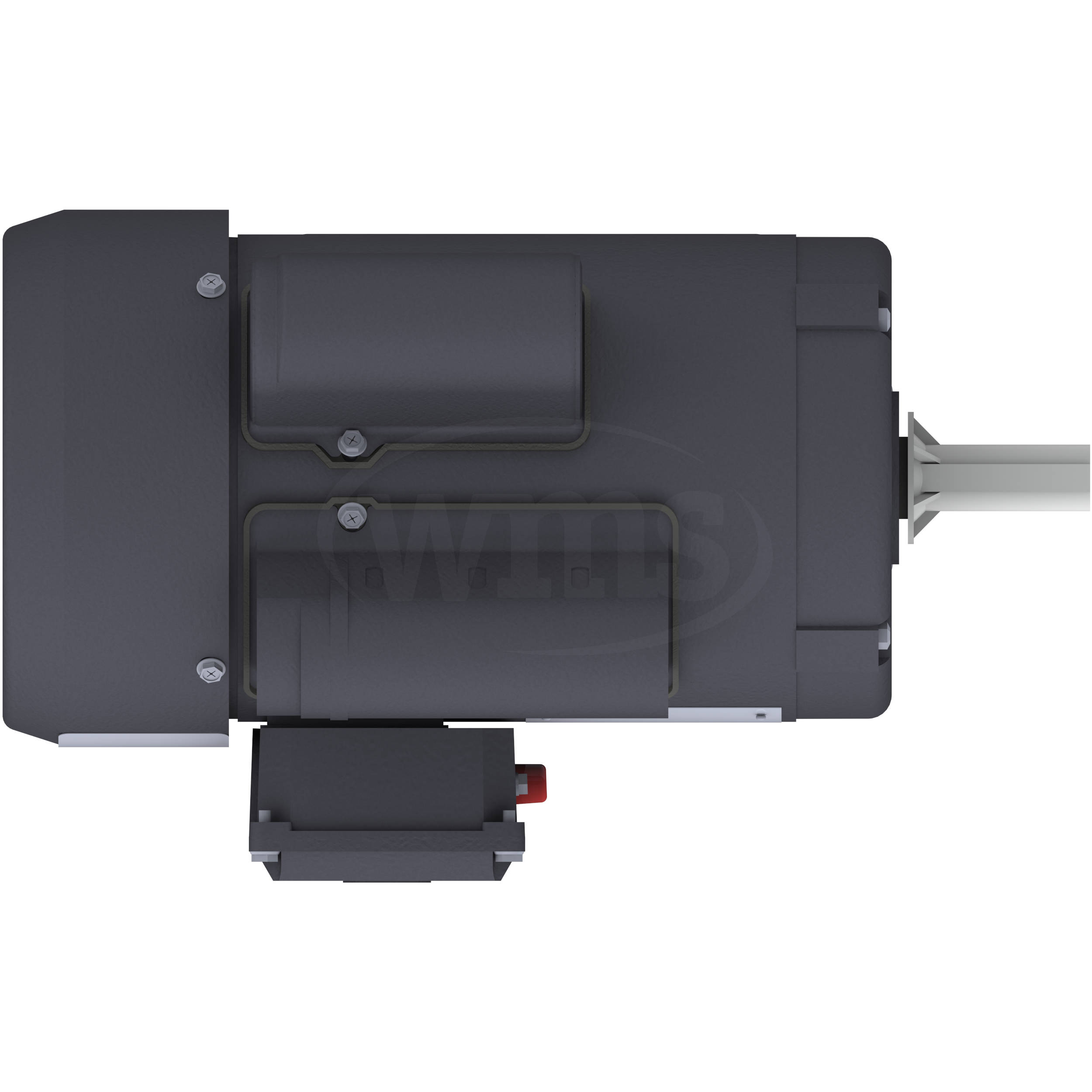

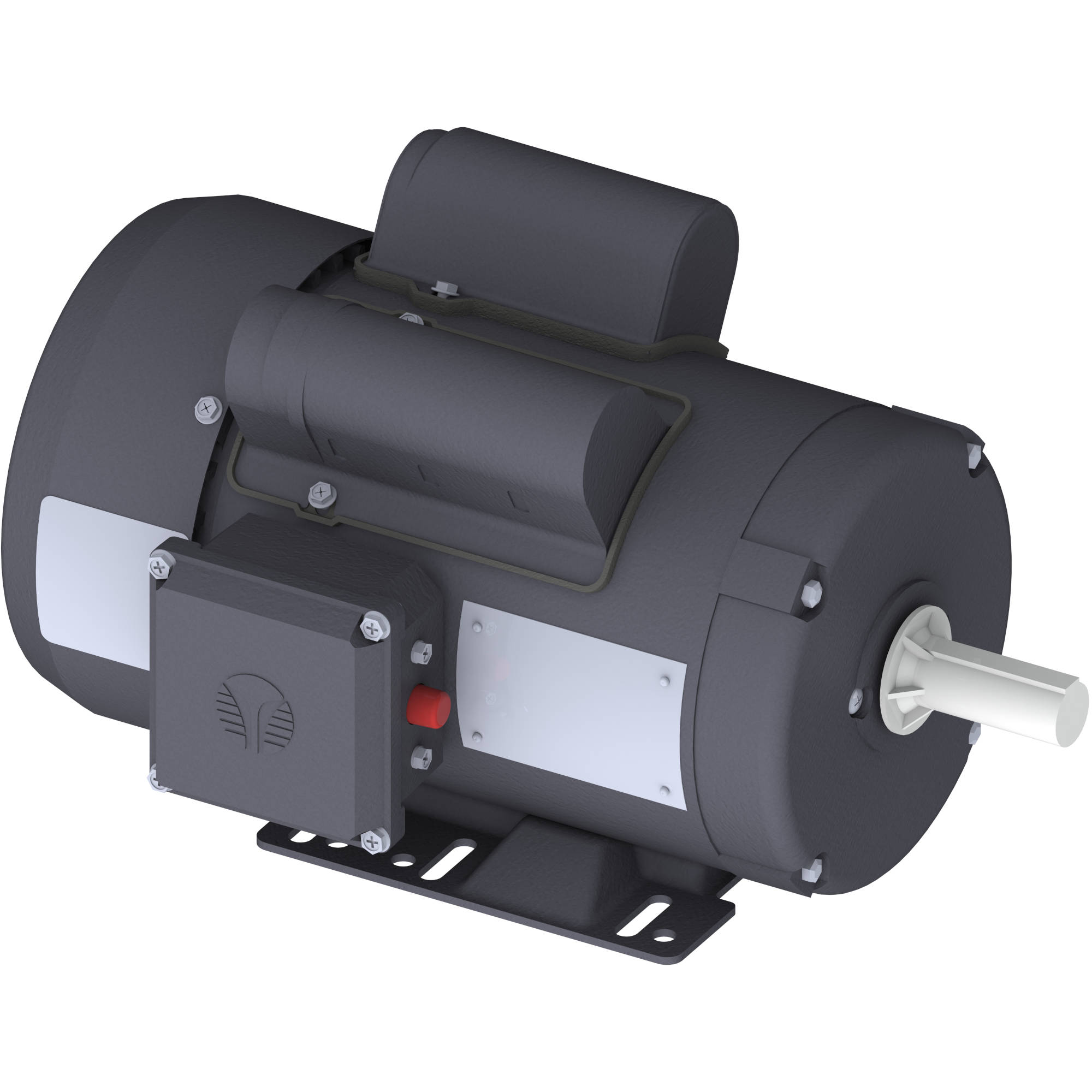

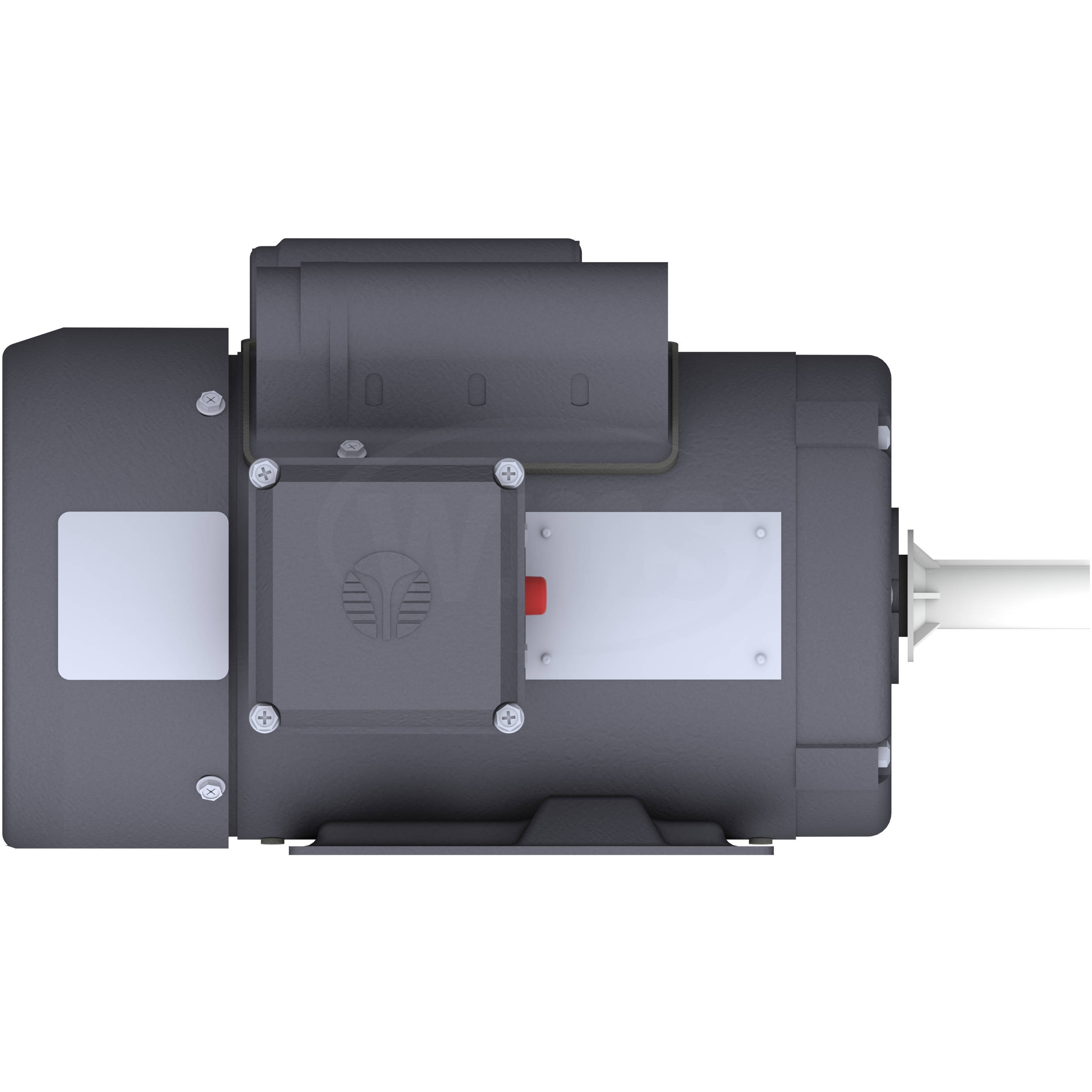

/RD1-RS-TF-56H-4-B-C-1 Techtop 1HP Farm Duty Electric Motor, 1750RPM
Click Image to Expand

Product ID: RD1RSTF56H4BC1

RD1-RS-TF-56H-4-B-C-1 Techtop 1HP Farm Duty Electric Motor, 1750RPM

MFG: TechTop Industries, Inc.
MFG Part Number: RD1-RS-TF-56H-4-B-C-1

Selected accessories will also be added to cart
$366.24 / Each
Quantity:
TEFC, 56H Frame, 115/208-230VAC 60Hz Single Phase, Rigid Base, Rolled Steel, 5/8" Keyed Shaft

Standard Features:

  • Manual Reset Protector
  • High Efficiency Dual Cap Design
  • High Quality Molded Gaskets
  • Over 300% Starting Torque
  • Cast Iron End Bells
  • Dual Oversized Ball Bearings
  • Dependable Mechanical Starting Switch
  • 18 Month Warranty

Electrical Data:

ManufacturerTechtop
Part NumberRD1RSTF56H4BC1
RD1-RS-TF-56H-4-B-C-1
Horsepower1 HP
Speed1750 RPM
Voltage115/208-230V
PhaseSingle (1)
Full Load Amps9.3/4.95-4.65 A
Power Factor0.90
Nominal Efficiency77.5 %
Service Factor1.15
KVA CodeJ
LRC @ 60Hz HV32.5622
Start CapacitorSCAP165V-300UF
Run CapacitorRCAP250V-60UF
Number of Leads7

General Data:

Frame Size56H
Frame EnclosureTEFC
MountingRigid
Insulation ClassF
DutyContinuous / S1
NEMA DesignL
Frame MaterialRolled Steel
Ingress ProtectionIP54
Cable Entry0.88”
Double Drilled
Paint ColorGraphite Gray
Paint RAL7024
Weight41.0 lbs

Torque Values:

Locked Rotor10.4631 lb-ft
346.0 % FLT
Pull-Up7.25761 lb-ft
240.0 % FLT
Breakdown8.04385 lb-ft
266.0 % FLT
Full Load3.024 lb-ft
100.0 % FLT
Type
Electric Motor
Input Phase
Single Phase
Application
Farm Duty
Frame
56H
Enclosure
TEFC
Horsepower
1HP
Speed
1800RPM
Input Voltage
115VAC
Input Voltage
208VAC
Input Voltage
230VAC
