/RD1RSTF145TC4BC2 Techtop 2 HP Electric Motor

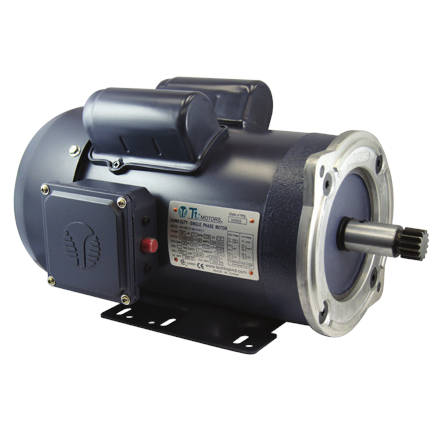

RD1RSTF145TC4BC2 Techtop 2 HP Electric Motor
Enlarge Photo

Product ID: RD1RSTF145TC4BC2

RD1RSTF145TC4BC2 Techtop 2 HP Electric Motor

MFG: TechTop Industries, Inc.
MFG Part Number: RD1-RS-TF-145TC-4-B-C-2

Selected accessories will also be added to cart
$503.16 / Each
Quantity:
Farm Duty, 1800RPM, TEFC, 145TC Frame, 115/208-230V 1-Phase, C-Face with Base, Rolled Steel

Standard Features:

  • Manual Reset Protector
  • High Efficiency Dual Cap Design
  • High Quality Molded Gaskets
  • Over 300% Starting Torque
  • Cast Iron End Bells
  • Dual Oversized Ball Bearings
  • Dependable Mechanical Starting Switch
  • 18 Month Warranty

Electrical Data:

ManufacturerTechtop
Part NumberRD1RSTF145TC4BC2
RD1-RS-TF-145TC-4-B-C-2
Horsepower2.0 HP
Speed1740 RPM
Voltage115/208-230V
PhaseSingle (1)
Full Load Amps17.3/10.4-8.65 A
Power Factor0.92
Nominal Efficiency81.5 %
Service Factor1.15
KVA CodeH
LRC @ 60Hz HV64.1204
Start CapacitorSCAP165V-500UF
Run CapacitorRCAP250V-80UF
Number of Leads7

General Data:

Frame Size145TC
Frame EnclosureTEFC
MountingRigid/C-Flange
Insulation ClassF
DutyContinuous / S1
NEMA DesignL
Frame MaterialRolled Steel
Ingress ProtectionIP54
Cable Entry0.88”
Double DrilledTrue
Paint ColorGraphite Gray
Paint RAL7024
Weight53.0 lbs

Torque Values:

Locked Rotor17.6355 lb-ft
290.0 % FLT
Pull-Up13.257 lb-ft
218.0 % FLT
Breakdown15.5071 lb-ft
255.0 % FLT
Full Load6.0812 lb-ft
100.0 % FLT
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Application
Farm Duty
Enclosure
TEFC
Frame
145TC
Horsepower
2HP
Input Voltage
115VAC
Input Voltage
208VAC
Input Voltage
230VAC
