/RD1RSTF56HC4BC1 Techtop 1 HP Electric Motor

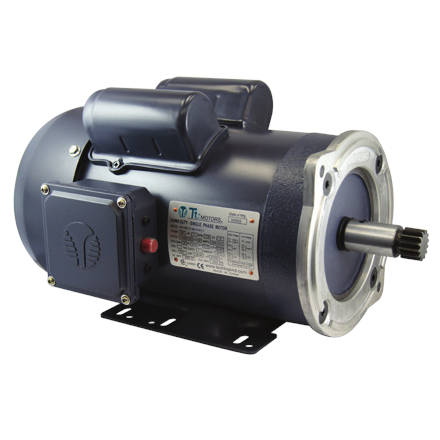

RD1RSTF56HC4BC1 Techtop 1 HP Electric Motor
Enlarge Photo

Product ID: RD1RSTF56HC4BC1

RD1RSTF56HC4BC1 Techtop 1 HP Electric Motor

MFG: TechTop Industries, Inc.
MFG Part Number: RD1-RS-TF-56HC-4-B-C-1

Selected accessories will also be added to cart
$387.24 / Each
Quantity:
Farm Duty, 1800RPM, TEFC, 56HC Frame, 115/208-230V 1-Phase, C-Face with Base, Rolled Steel

Standard Features:

  • Manual Reset Protector
  • High Efficiency Dual Cap Design
  • High Quality Molded Gaskets
  • Over 300% Starting Torque
  • Cast Iron End Bells
  • Dual Oversized Ball Bearings

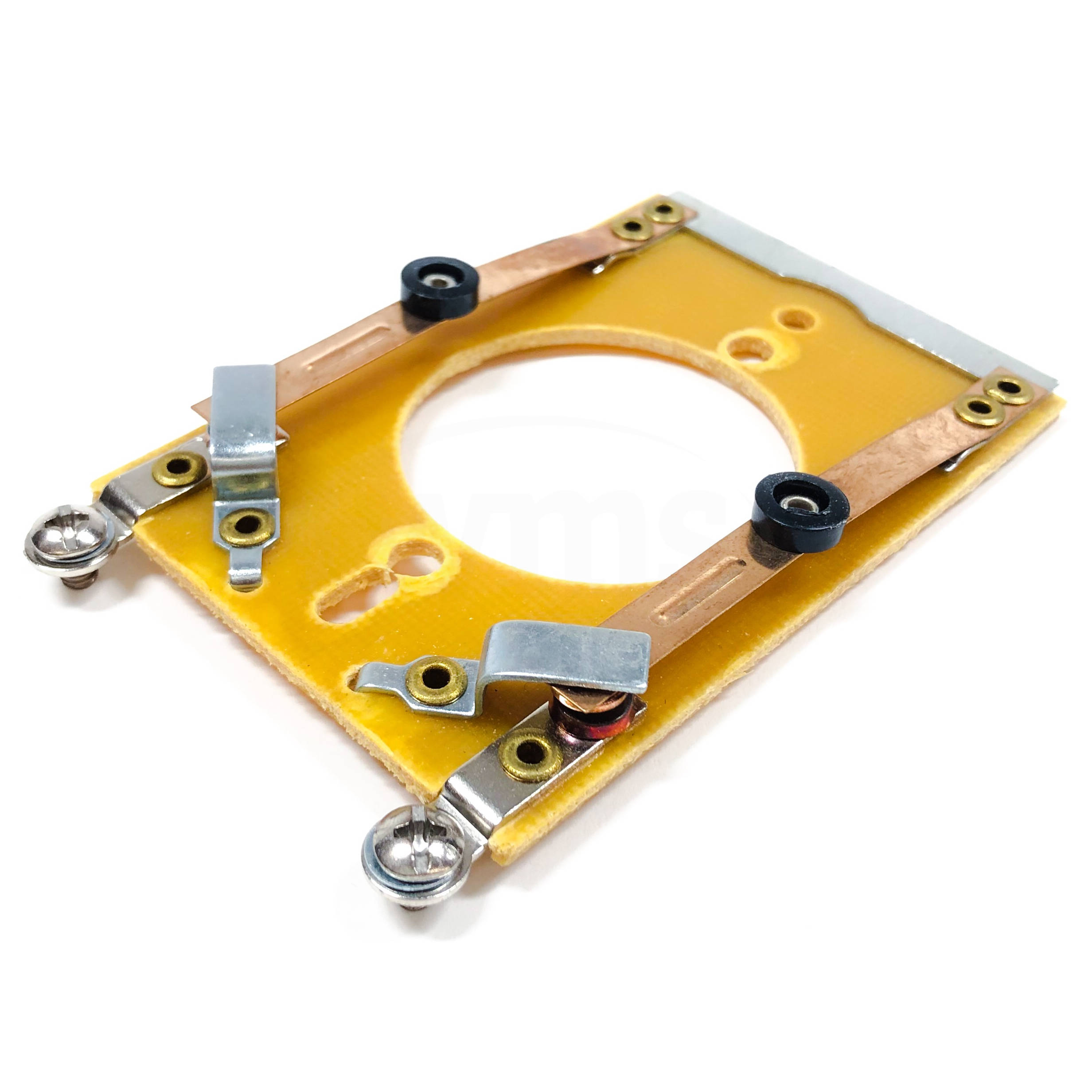

  • Dependable Mechanical Starting Switch
  • 18 Month Warranty

Electrical Data:

ManufacturerTechtop
Part NumberRD1RSTF56HC4BC1
RD1-RS-TF-56HC-4-B-C-1
Horsepower1 HP
Speed1800 RPM
Voltage115/208-230V
PhaseSingle (1)
Full Load Amps9.3/4.95-4.65 A
Power Factor0.90
Nominal Efficiency77.5 %
Service Factor1.15
KVA Code
LRC @ 60Hz HV32.5622
Start CapacitorSCAP165V-300UF
Run CapacitorRCAP250V-60UF
Number of Leads7

General Data:

Frame Size56HC
Frame EnclosureTEFC
MountingRigid/C-Flange
Insulation ClassF
DutyContinuous / S1
NEMA DesignL
Frame MaterialRolled Steel
Ingress ProtectionIP54
Cable Entry0.88”
Double Drilled
Paint ColorGraphite Gray
Paint RAL7024
Weight41.0 lbs

Torque Values:

Locked Rotor10.4631 lb-ft
346.0 % FLT
Pull-Up7.25761 lb-ft
240.0 % FLT
Breakdown8.04385 lb-ft
266.0 % FLT
Full Load3.024 lb-ft
100.0 % FLT
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Application
Farm Duty
Enclosure
TEFC
Frame
56HC
Horsepower
1HP
Input Voltage
115VAC
Input Voltage
208VAC
Input Voltage
230VAC
