/Products/Pumps/Ashland Pump/Sewage Pumps/SWF100 1HP/SWF100M2-20 Ashland 1HP Sewage Pump, 230VAC Single Phase
Click Image to Expand

Product ID: SWF100M2-20

SWF100M2-20 Ashland 1HP Sewage Pump, 230VAC Single Phase

MFG: Ashland Pump
MFG Part Number: SWF100M2-20

Selected accessories will also be added to cart
$1,347.15 / Each
Quantity:
Manual Switch, 2" Flanged Discharge, Cast Iron Construction, 1750RPM

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty rated PSC motor
  • Semi-open cast iron impeller
  • 2” solids handling

Specifications

Brand Ashland Pump
Model SWF100M2-20
Switch Type Manual
HP 1HP
Voltage 230VAC 60Hz Single Phase
RPM 1750 RPM
NEMA Start Code P
Full Load Amps 10.8 Amps
Cord Power Size 14AWG/3C
Cord Type SOW
Cord O.D. 0.55"
Discharge Size 2" Flanged
with 2" & 3" NPT Adapter
Impeller Type 2-Vane Semi-Open
Cast Iron
Cable Length 20'
Solids Handling 2"
Maximum Liquid Temperature 104°F - Intermittent
Acceptable pH Range 6 - 8
Motor Housing Cast Iron
Casing Cast Iron
Impeller Cast Iron
Motor Shaft SS430
Hardware SST
O-Rings NBR
Mechanical Seal Single Mechanical
Carbon Ceramic
Upper Bearing 6203
Lower Bearing 6203
RPM 1750 RPM
Motor Type PSC/Induction
Gen Insulation Class B
Stator Winding Class B
Maximum Stator Temperature 130°C
Voltage Tolerance +/-10%
Motor Protection Thermally Protected
HP 1HP
Service Factor 1.00

Dimensions

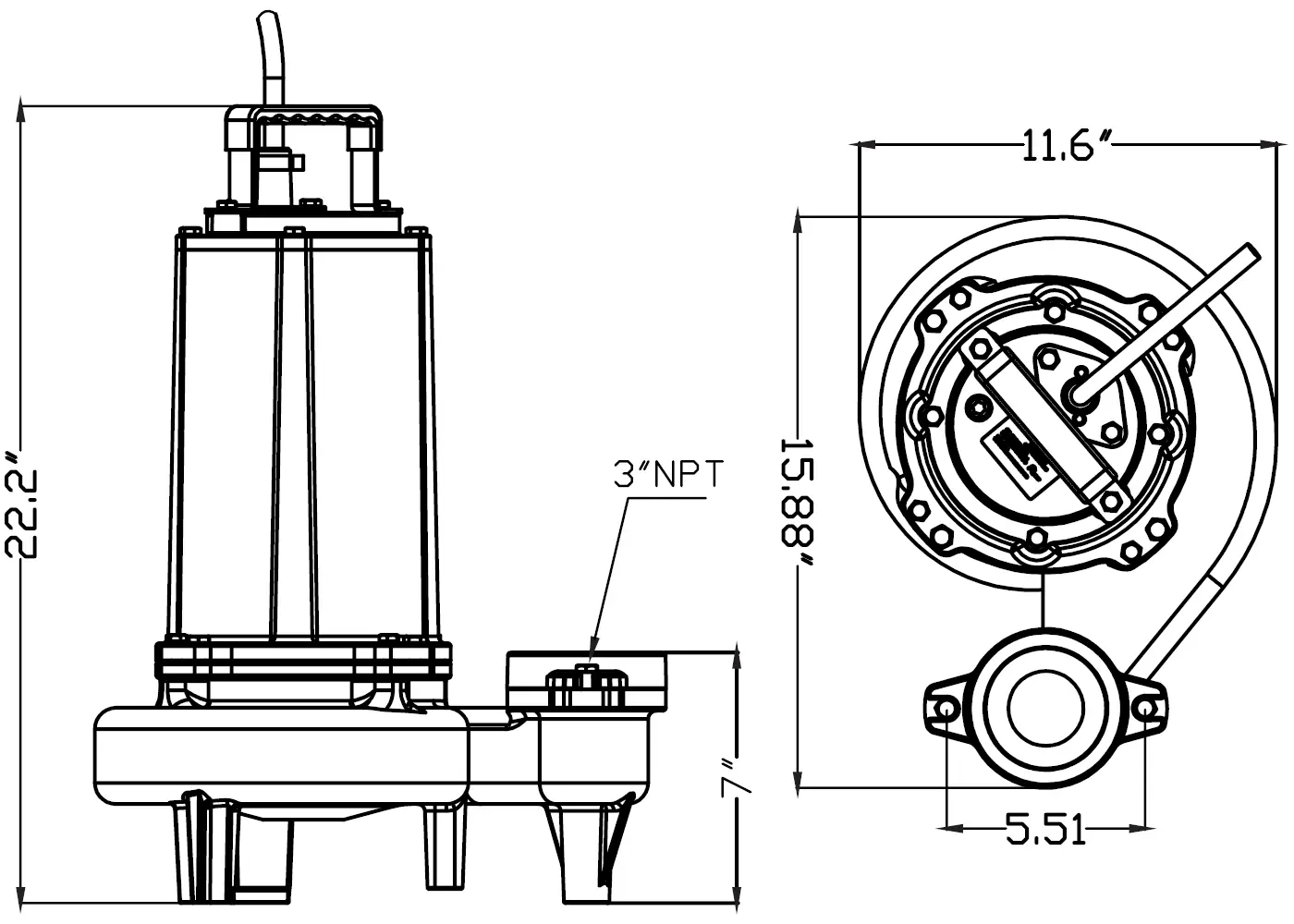

SWF100 Pump Dimensions

Performance Curve

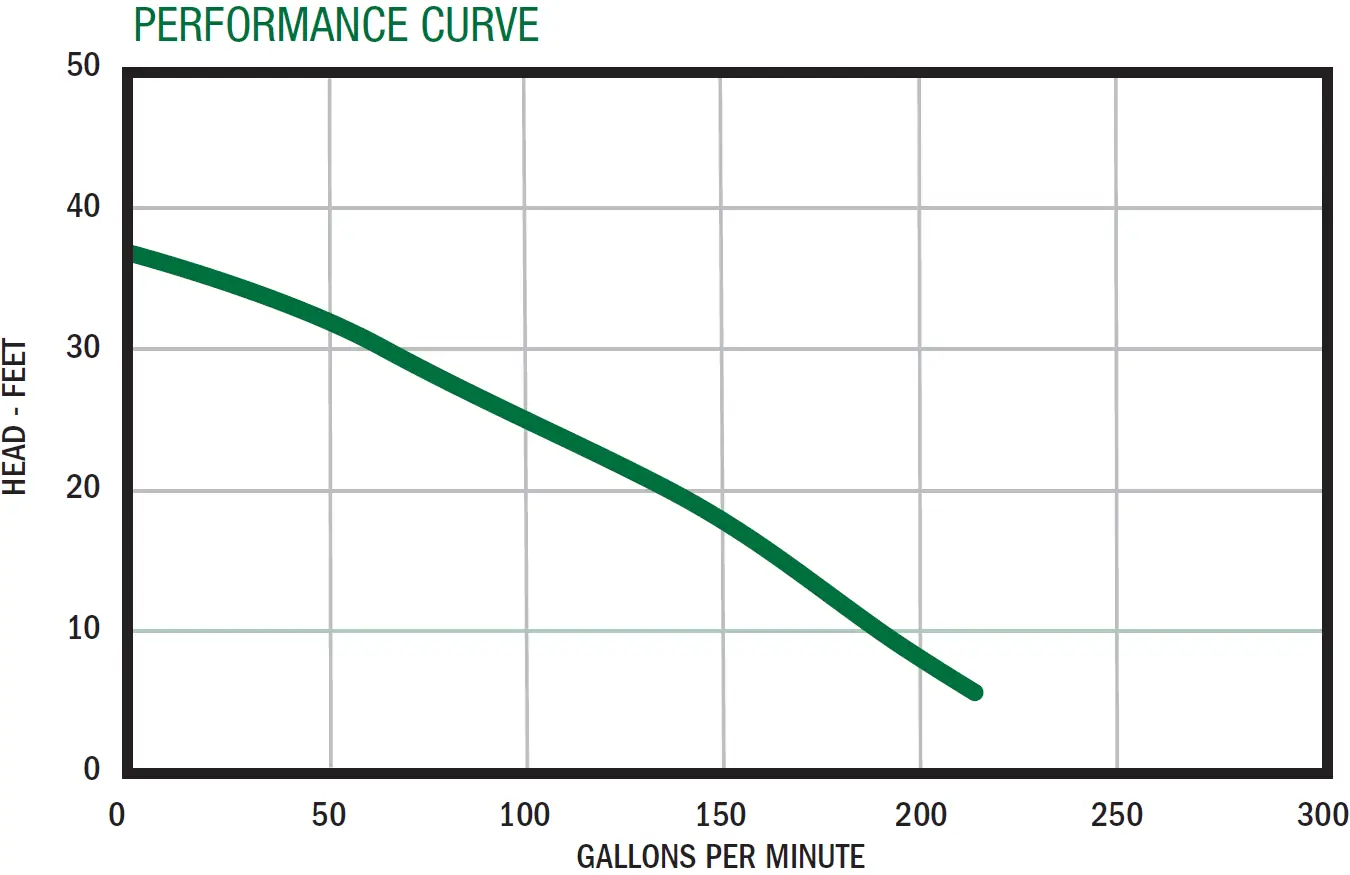

SWF100 Performance Curve Graph

Links

Speed
1750RPM
Input Phase
Single Phase
Input Voltage
230VAC
Horsepower
1HP
Type
Sewage Pump
Color
Green
