/Products/Pumps/Ashland Pump/Sewage Pumps/SWH100 1HP High Head/SWH100M5-20 Ashland 1HP High Head Sewage Pump, 208VAC Single Phase

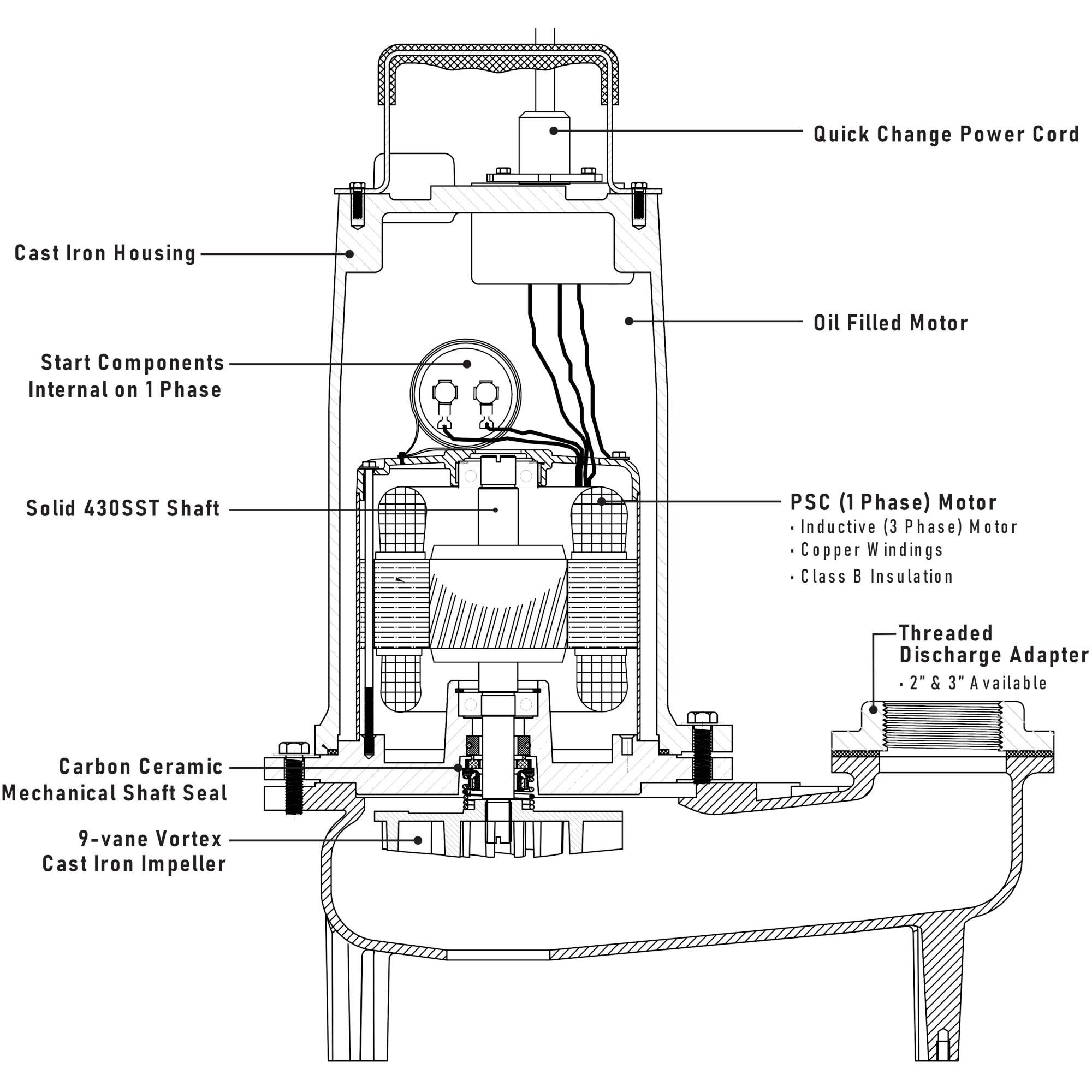

Click Image to Expand

Product ID: SWH100M5-20

SWH100M5-20 Ashland 1HP High Head Sewage Pump, 208VAC Single Phase

MFG: Ashland Pump
MFG Part Number: SWH100M5-20

Selected accessories will also be added to cart
$1,347.15 / Each
Quantity:
Manual Switch, 3" Flanged Discharge, 2" Solids Handling, Cast Iron Construction

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty rated PSC Motor (Single Phase) and Induction Motor (3 Phase)
  • Cast iron vortex impeller
  • 3" Flanged Discharge, 2" NPT Adapter
  • 2? solids handling

Specifications

BrandAshland Pump
ModelSWH100M5-20
Switch TypeManual
HP1HP
Voltage208VAC 60Hz Single Phase
RPM3450 RPM
NEMA Start CodeP
Full Load Amps12.0 Amps
Cord Power Size16AWG/3C
Cord TypeSOW
Cord O.D.0.43"
Discharge Size2" NPT Flanged Discharge
3" NPT Optional
Impeller Type9-Vane Vortex - Cast Iron
Cable Length20'
Solids Handling2"
Maximum Liquid Temperature104?F - Intermittent
Acceptable pH Range6 - 8
Motor HousingCast Iron
CasingCast Iron
ImpellerCast Iron
Motor ShaftStainless Steel 416
HardwareSST
O-RingsNBR
Mechanical SealSingle Mechanical
Carbon Ceramic
Upper Bearing6203
Lower Bearing6203
RPM3450
Motor TypePSC (Single Phase)
Induction (3 Phase)
Gen Insulation ClassB
Stator Winding ClassB
Maximum Stator Temperature130?C
Voltage Tolerance+/-10%
Motor ProtectionThermally Protected
HP1HP
Service Factor1.00

Dimensions

SWH100 Pump Dimensions

Performance Curve

SWH100 Performance Curve Graph

Links

Input Phase
Single Phase
Input Voltage
208VAC
Horsepower
1HP
Type
Sewage Pump
Color
Green
