/Products/Pumps/Ashland Pump/Sewage Pumps/SWHD100 1HP Dual Seal/SWHD100M2-20 Ashland 1HP Dual Seal Sewage Pump, 230VAC Single Phase
Click Image to Expand

Product ID: SWHD100M2-20

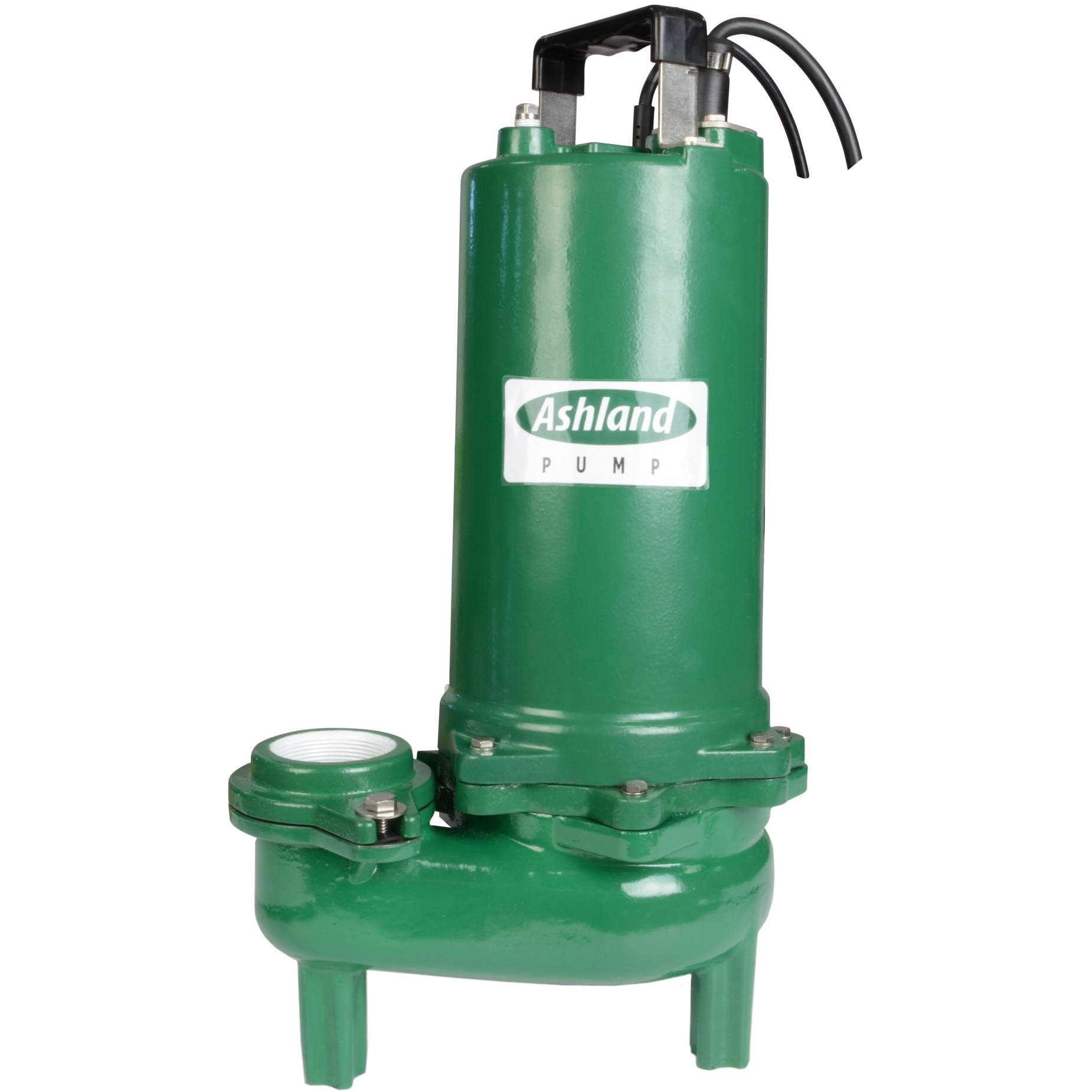

SWHD100M2-20 Ashland 1HP Dual Seal Sewage Pump, 230VAC Single Phase

MFG: Ashland Pump
MFG Part Number: SWHD100M2-20

Selected accessories will also be added to cart
$1,513.05 / Each
Quantity:
2" NPT Flanged Discharge, Cast Iron Construction, 3450RPM

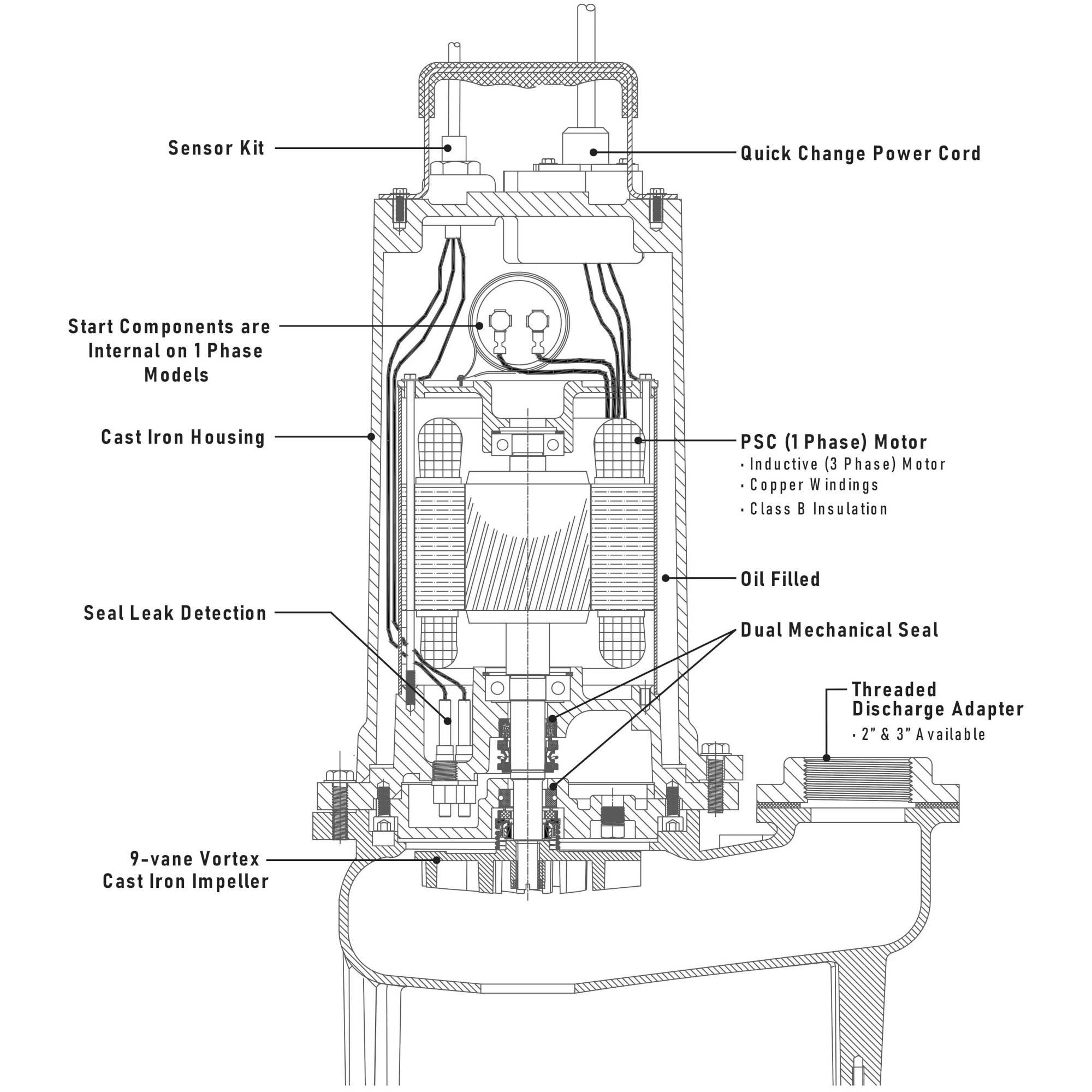

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty rated PSC/Induction motor
  • 9 Vane vortex cast iron impeller
  • 2? solids handling
  • 2? NPT Flanged Discharge
  • Mechanical Carbon Ceramic Seal
  • 20? Cord

Specifications

BrandAshland Pump
ModelSWHD100M2-20
HP1HP
Voltage230VAC 60Hz Single Phase
RPM3450 RPM
NEMA Start CodeP
Full Load Amps11.0 Amps
Cord Power Size16AWG/3C
Cord TypeSOW
Cord O.D.0.43"
Discharge Size2" NPT Flanged
3? NPT Optional
Impeller Type9-Vane Vortex
Cast Iron
Cable Length20'
Solids Handling2"
Maximum Liquid Temperature104?F - Intermittent
Acceptable pH Range6 - 8
Motor HousingCast Iron
CasingCast Iron
ImpellerCast Iron
Motor ShaftSS416
HardwareSST
O-RingsNBR
Mechanical SealDual Mechanical
Carbon Ceramic
Upper Bearing6203
Lower Bearing6203
RPM3450 RPM
Motor TypePSC (Single Phase)
Induction (3 Phase)
Gen Insulation ClassB
Stator Winding ClassB
Maximum Stator Temperature130?C
Voltage Tolerance+/-10%
Motor ProtectionThermally Protected
HP1 HP
Service Factor1.00

Dimensions

SWHD100 Pump Dimensions

Performance Curve

SWHD100 Performance Curve Graph

Links

Speed
3450RPM
Input Phase
Single Phase
Input Voltage
230VAC
Horsepower
1HP
Type
Sewage Pump
Color
Green
