/Products/Electric Motors/3 Phase Explosion Proof/WEG/Foot Mount/00109XT3E182T WEG 1HP Explosion Proof Electric Motor, 900RPM

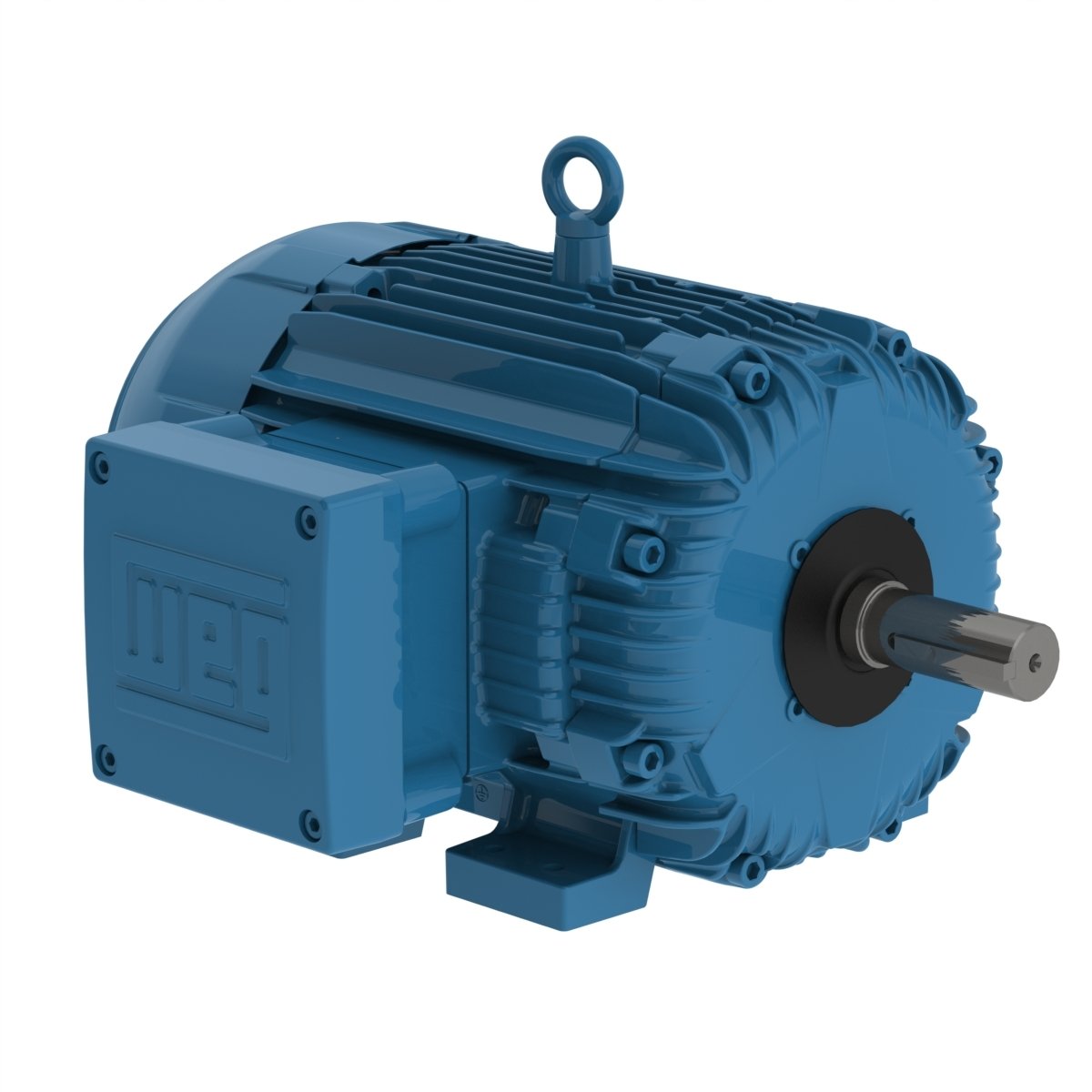

00109XT3E182T WEG 1HP Explosion Proof Electric Motor, 900RPM
Enlarge Photo

Product ID: 00109XT3E182T

00109XT3E182T WEG 1HP Explosion Proof Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 00109XT3E182T

Selected accessories will also be added to cart
$1,480.50 / Each
Quantity:
IC411 - TEFC, IP55, 182T/184T Frame, 208-230/460VAC 3-Phase 50/60Hz, 14422358, 1-1/8" Keyed Shaft

Electric Motors

Frame 182/4T
Output 1 HP (0.75 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 875 rpm
Slip 2.78 %
Rated voltage 208-230/460 V
Rated current 5.09-4.80/2.40 A
L. R. Amperes 30.5-28.8/14.4 A
LRC 6.0x(Code N)
No load current 2.76-3.20/1.60 A
Rated torque 5.92 ft.lb
Locked rotor torque 300 %
Breakdown torque 350 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 0.3991 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
Approx. weight³ 122 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
74.0  75.5  75.5

Power factor

50% 75% 100%
0.32  0.42  0.52
Frame 182/4T
Output 1 HP (0.75 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 715 rpm
Slip 4.67 %
Rated voltage 380 V
Rated current 2.52 A
L. R. Amperes 15.1 A
LRC 6.0x(Code L)
No load current 1.60 A
Rated torque 7.25 ft.lb
Locked rotor torque 240 %
Breakdown torque 250 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 0.3991 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 46.0 dB(A)
Approx. weight³ 122 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
74.7  75.5  75.5

Power factor

50% 75% 100%
0.38  0.50  0.60
Frame 182/4T
Output 1 HP (0.75 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 715 rpm
Slip 4.67 %
Rated voltage 400 V
Rated current 2.56 A
L. R. Amperes 15.4 A
LRC 6.0x(Code M)
No load current 1.70 A
Rated torque 7.25 ft.lb
Locked rotor torque 270 %
Breakdown torque 280 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 0.3991 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 46.0 dB(A)
Approx. weight³ 122 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
72.0  75.5  75.5

Power factor

50% 75% 100%
0.35  0.46  0.56
Frame 182/4T
Output 1 HP (0.75 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 720 rpm
Slip 4.00 %
Rated voltage 415 V
Rated current 2.61 A
L. R. Amperes 15.7 A
LRC 6.0x(Code N)
No load current 1.80 A
Rated torque 7.20 ft.lb
Locked rotor torque 300 %
Breakdown torque 310 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 0.3991 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 46.0 dB(A)
Approx. weight³ 122 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
70.0  74.0  75.5

Power factor

50% 75% 100%
0.33  0.43  0.53
