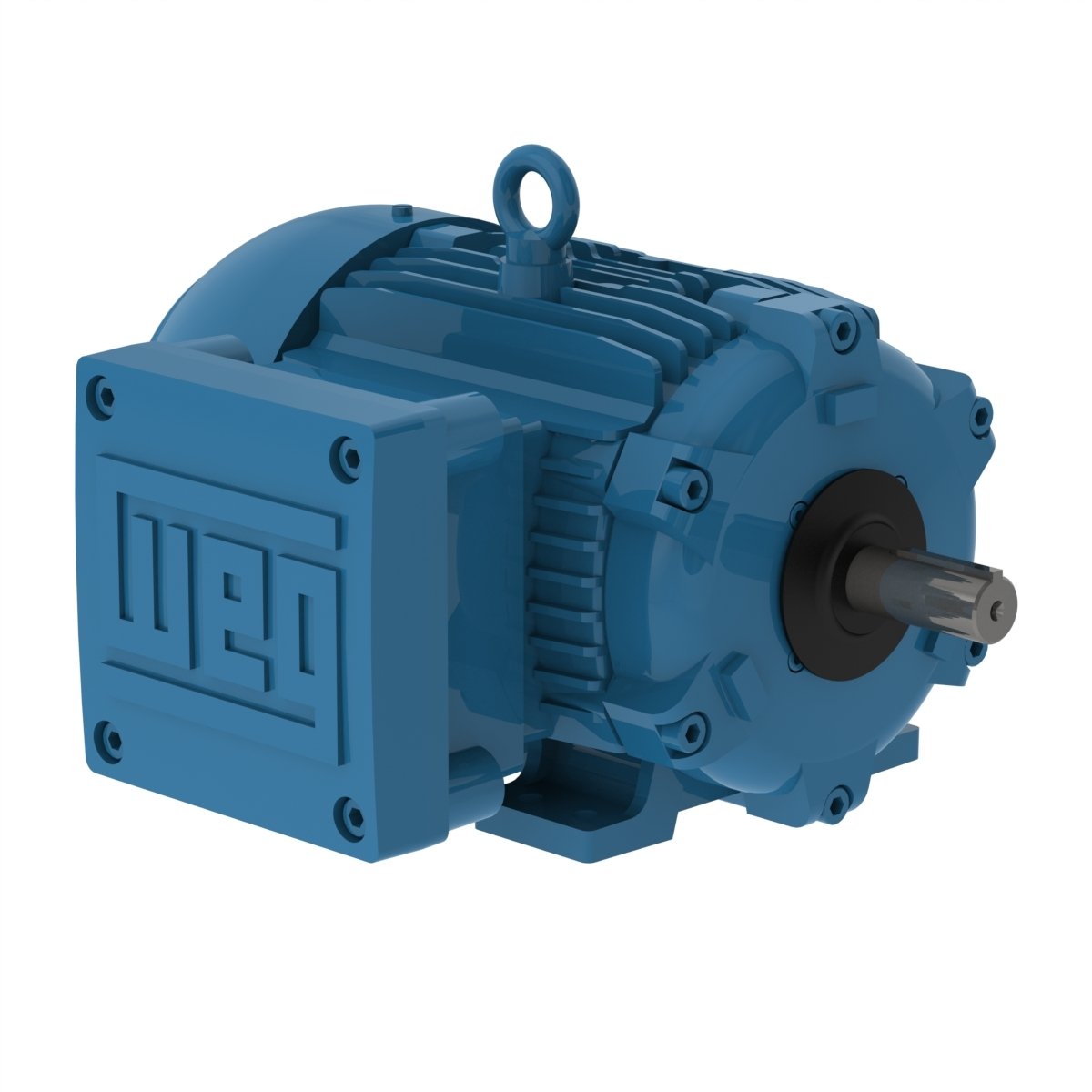

00112XT3H145T WEG 1HP Explosion Proof Electric Motor, 1200RPM
Enlarge Photo

Product ID: 00112XT3H145T

00112XT3H145T WEG 1HP Explosion Proof Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00112XT3H145T

Selected accessories will also be added to cart
$879.32 / Each
Quantity:
IC411 - TEFC, 143T/145T Frame, 575VAC 3-Phase 60Hz, 14591814, Foot Mount, Cast Iron Frame, 7/8" Keyed Shaft

Electric Motors

Frame143/5T
Output1 HP (0.75 kW)
Number of Poles6
Frequency60 Hz
Rated speed1150 rpm
Slip4.17 %
Rated voltage575 V
Rated current1.30 A
L. R. Amperes8.08 A
LRC6.2x(Code K)
No load current0.800 A
Rated torque4.51 ft.lb
Locked rotor torque260 %
Breakdown torque280 %
Locked rotor time50s (cold) 28s (hot)
Moment of inertia (J)0.1595 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?50.0 dB(A)
Approx. weight?77.4 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
77.0  82.0  82.5

Power factor

50%75%100%
0.51  0.63  0.70
Type
Electric Motor
Input Phase
3-Phase
Speed
1200RPM
Horsepower
1HP
Enclosure
TEFC
Input Voltage
575VAC
Frame
143T
Frame
145T
