/Products/Electric Motors/3 Phase Explosion Proof/WEG 3-Phase Explosion Proof Electric Motors/Foot Mount/00118XT3H143T WEG 1HP Explosion Proof Electric Motor, 1800RPM

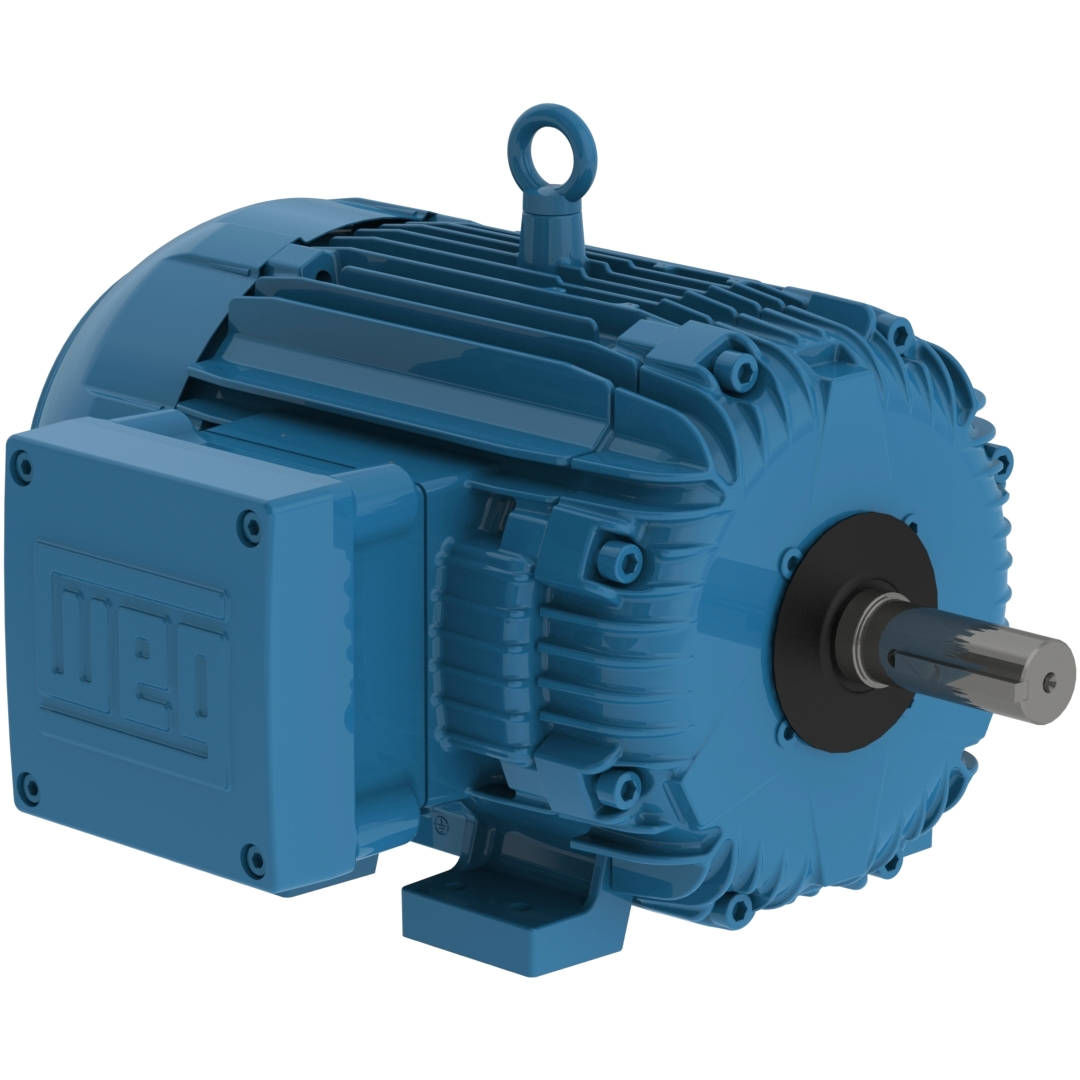

00118XT3H143T WEG 1HP Explosion Proof Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00118XT3H143T

00118XT3H143T WEG 1HP Explosion Proof Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00118XT3H143T

Selected accessories will also be added to cart
$801.89 / Each
Quantity:
IC411 - TEFC, IP55, 143T/145T Frame, 575VAC 60Hz 3 Phase, 14284312, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Electric Motors

Frame143/5T
Output1 HP (0.75 kW)
Number of Poles4
Frequency60 Hz
Rated speed1760 rpm
Slip2.22 %
Rated voltage575 V
Rated current1.14 A
L. R. Amperes9.84 A
LRC8.6x(Code L)
No load current0.748 A
Rated torque2.98 ft.lb
Locked rotor torque290 %
Breakdown torque370 %
Locked rotor time32s (cold) 18s (hot)
Moment of inertia (J)0.0975 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?51.0 dB(A)
Approx. weight?67.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
80.0  82.5  85.5

Power factor

50%75%100%
0.57  0.70  0.77

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 202P (ISO 12944 - C4)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Winding thermal protectionThermostat - 2 wires 1 per phase 155?C
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Horsepower
1HP
Enclosure
TEFC
Input Voltage
575VAC
Frame
143T
Frame
145T
