00118AT3PCT143T-W22 WEG 1HP Cooling Tower Electric Motor, 1800RPM

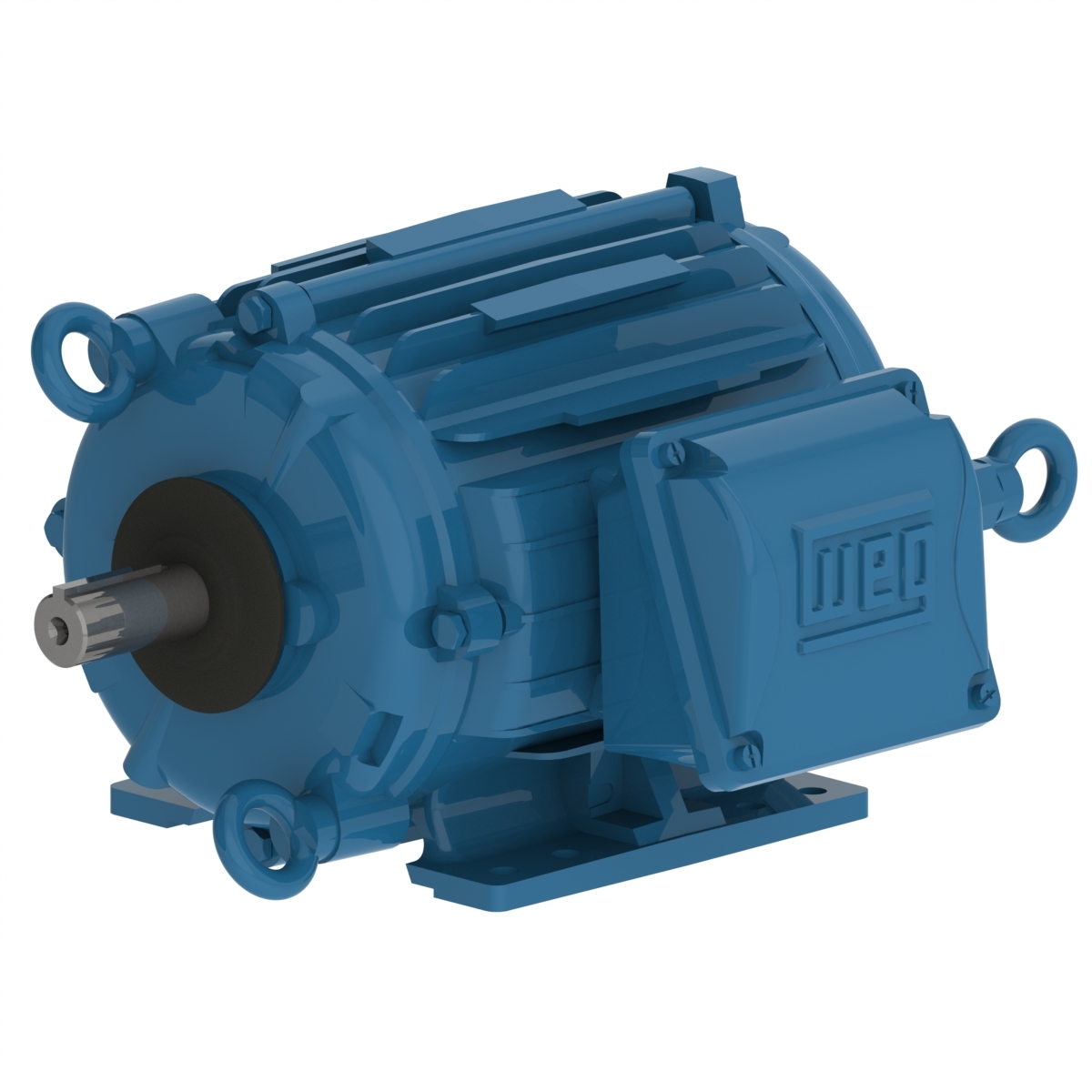

Enlarge Photo

Product ID: 00118AT3PCT143T-W22

00118AT3PCT143T-W22 WEG 1HP Cooling Tower Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00118AT3PCT143T-W22

Selected accessories will also be added to cart
$592.74 / Each
Quantity:
IC410 - TEAO, IP55, 143T Frame, 200 VAC 60Hz 3 Phase, 12126083, NEMA Premium Efficiency, Foot Mount, Cast Iron Frame, F-2 Mounting, 7/8" Keyed Shaft

Electric Motors

Frame143T
Output1 HP (0.75 kW)
Number of Poles4
Frequency60 Hz
Rated speed1760 rpm
Slip2.22 %
Rated voltage200 V
Rated current3.38 A
L. R. Amperes29.1 A
LRC8.6x(Code M)
No load current2.16 A
Rated torque2.98 ft.lb
Locked rotor torque290 %
Breakdown torque350 %
Locked rotor time32s (cold) 18s (hot)
Moment of inertia (J)0.1172 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC410 - TEAO
MountingF-2
Rotation?Both (CW and CCW)
Noise level?51.0 dB(A)
Approx. weight?0.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
80.0  84.0  85.5

Power factor

50%75%100%
0.55  0.68  0.75

Features

Frame MaterialCast Iron
Impregnation MethodDouble impregnation polyester
Space Heater Voltage200 - 240 V
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 202E (ISO 12944 - C4)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingComplete (200h)
Joints SealPermatex
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Application
Cooling Tower
Enclosure
TEAO
Horsepower
1HP
Frame
143T
