/Products/Electric Motors/3 Phase Explosion Proof/WEG 3-Phase Explosion Proof Electric Motors/Foot Mount/00136XT3E143T WEG 1HP Explosion Proof Electric Motor, 3600RPM

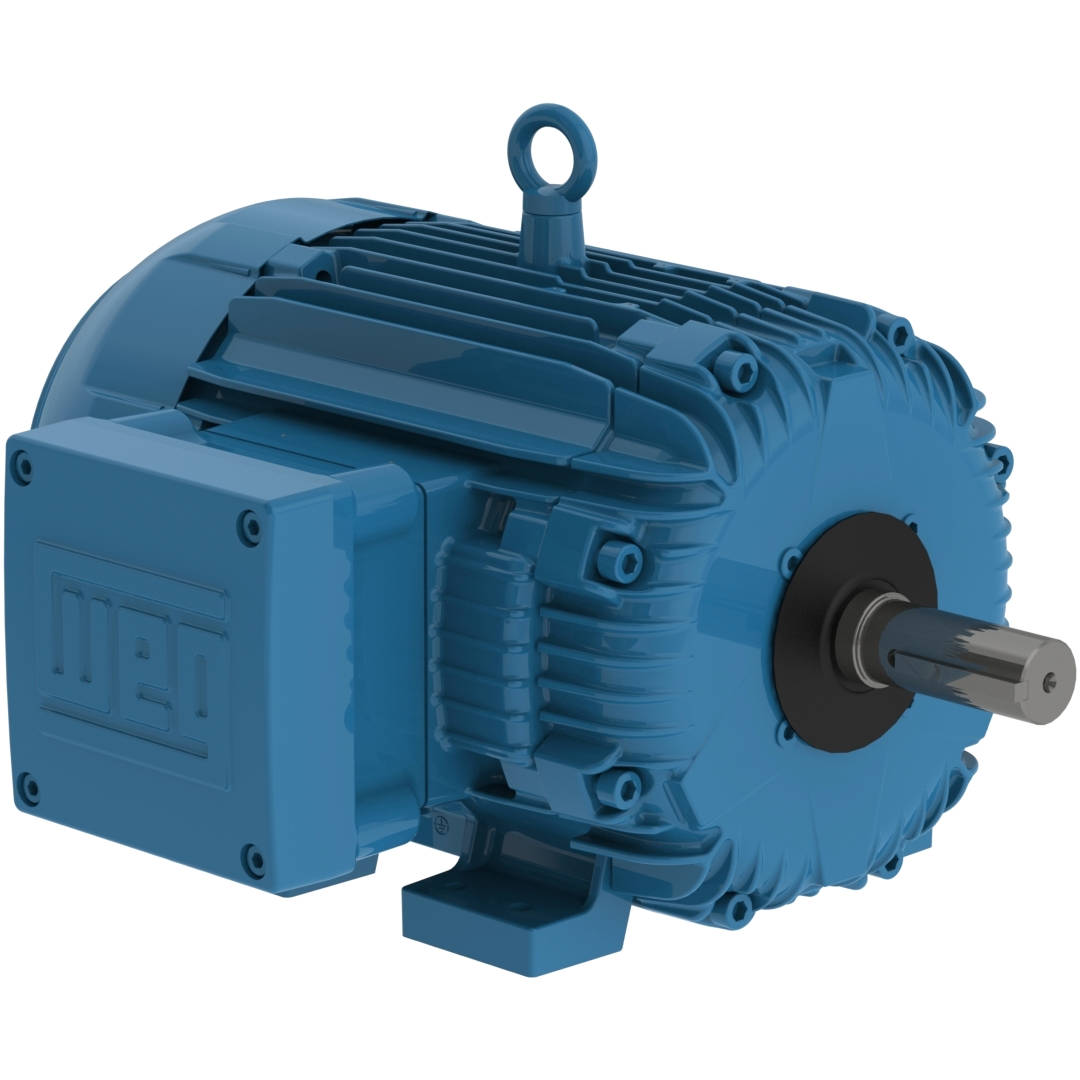

00136XT3E143T WEG 1HP Explosion Proof Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00136XT3E143T

00136XT3E143T WEG 1HP Explosion Proof Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00136XT3E143T

Selected accessories will also be added to cart
$788.54 / Each
Quantity:
IC411 - TEFC, IP55, 143T/145T Frame, 230/460/380VAC 50/60Hz 3 Phase, 14458358, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Electric Motors

Frame143/5T
Output1 HP (0.75 kW)
Number of Poles2
Frequency60 Hz
Rated speed3500 rpm
Slip2.78 %
Rated voltage230/460 V
Rated current2.98/1.49 A
L. R. Amperes26.8/13.4 A
LRC9.0x(Code M)
No load current1.30/0.650 A
Rated torque1.50 ft.lb
Locked rotor torque340 %
Breakdown torque400 %
Locked rotor time72s (cold) 40s (hot)
Moment of inertia (J)0.0415 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?68.0 dB(A)
Approx. weight?69.8 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
75.5  77.0  77.0

Power factor

50%75%100%
0.65  0.76  0.82
Frame143/5T
Output1 HP (0.75 kW)
Number of Poles2
Frequency50 Hz
Rated speed2885 rpm
Slip3.83 %
Rated voltage380 V
Rated current1.64 A
L. R. Amperes13.1 A
LRC8.0x(Code K)
No load current0.650 A
Rated torque1.82 ft.lb
Locked rotor torque250 %
Breakdown torque300 %
Locked rotor time72s (cold) 40s (hot)
Moment of inertia (J)0.0415 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?62.0 dB(A)
Approx. weight?69.8 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
75.5  80.0  80.7

Power factor

50%75%100%
0.71  0.81  0.86
Frame143/5T
Output1 HP (0.75 kW)
Number of Poles2
Frequency50 Hz
Rated speed2895 rpm
Slip3.50 %
Rated voltage400 V
Rated current1.60 A
L. R. Amperes13.6 A
LRC8.5x(Code L)
No load current0.700 A
Rated torque1.81 ft.lb
Locked rotor torque290 %
Breakdown torque340 %
Locked rotor time72s (cold) 40s (hot)
Moment of inertia (J)0.0415 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?62.0 dB(A)
Approx. weight?69.8 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
75.5  80.0  80.7

Power factor

50%75%100%
0.67  0.78  0.84
Frame143/5T
Output1 HP (0.75 kW)
Number of Poles2
Frequency50 Hz
Rated speed2905 rpm
Slip3.17 %
Rated voltage415 V
Rated current1.58 A
L. R. Amperes14.2 A
LRC9.0x(Code M)
No load current0.750 A
Rated torque1.81 ft.lb
Locked rotor torque300 %
Breakdown torque370 %
Locked rotor time72s (cold) 40s (hot)
Moment of inertia (J)0.0415 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?62.0 dB(A)
Approx. weight?69.8 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
75.5  80.0  80.7

Power factor

50%75%100%
0.64  0.76  0.82

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 202P (ISO 12944 - C4)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Winding thermal protectionThermostat - 2 wires 1 per phase 155?C
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
1HP
Enclosure
TEFC
Frame
143T
Frame
145T
