00152ET3WAL100L-W22 WEG 2HP/1.5kW IEC TRU-Metric Electric Motor, 1200RPM

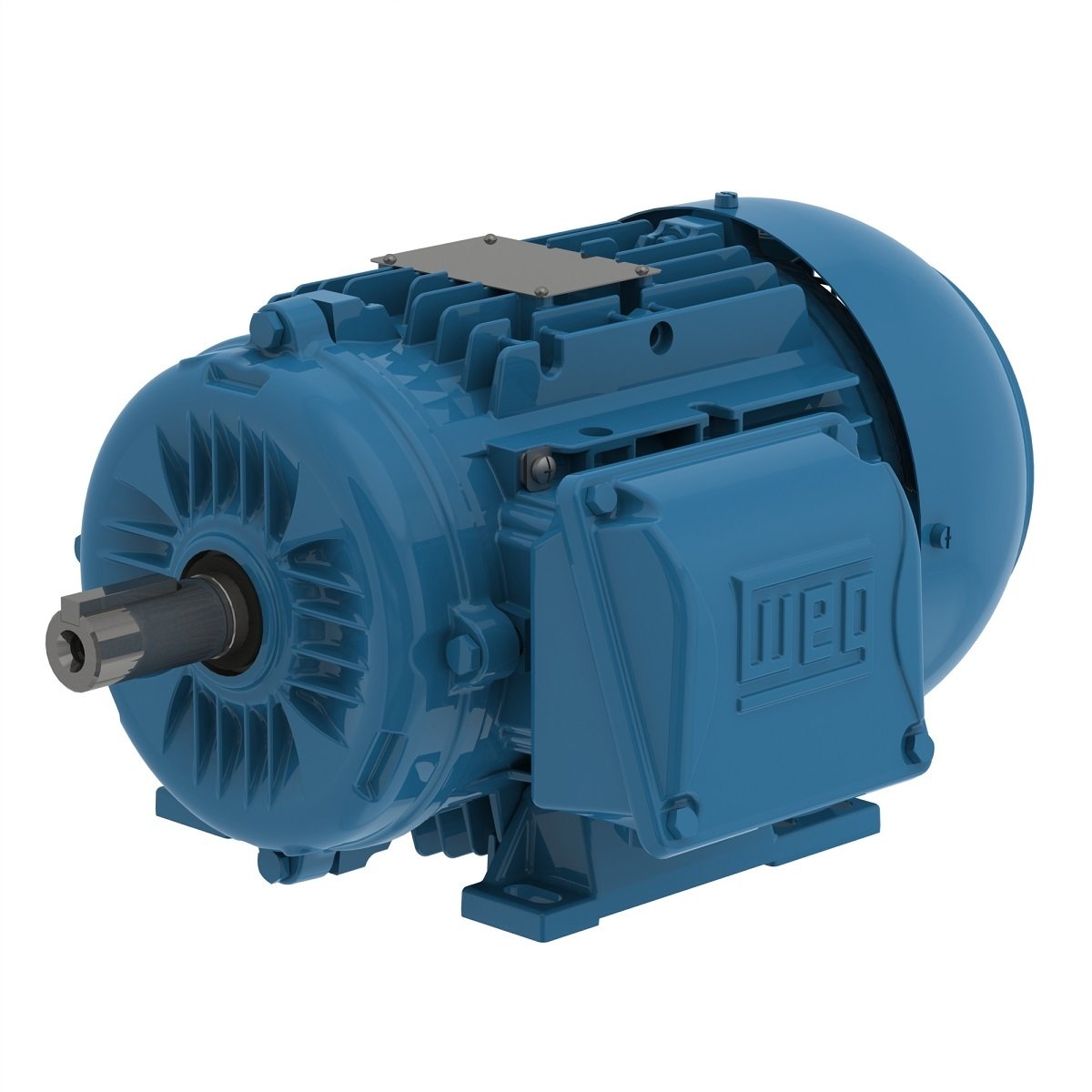

Enlarge Photo

Product ID: 00152ET3WAL100L-W22

00152ET3WAL100L-W22 WEG 2HP/1.5kW IEC TRU-Metric Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00152ET3WAL100L-W22

Selected accessories will also be added to cart
$609.00 / Each
Quantity:
IC411-TEFC, IP55, 100L Frame, 460/220-240/380-415VAC 3-Phase 50/60Hz, 14731240, Foot Mount, Multimounting, Aluminum Frame, 28mm Keyed Shaft

Electric Motors

Frame L100L
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 950 rpm
Slip 5.00 %
Rated voltage 220/380 V
Rated current 6.28/3.63 A
L. R. Amperes 32.7/18.9 A
LRC 5.2
No load current 3.30/1.91 A
Rated torque 10.9 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 0s (cold) 0s (hot)
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 48.0 dB(A)
Approx. weight³ 73.4 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.0  82.5  82.5

Power factor

50% 75% 100%
0.56  0.69  0.76
Frame L100L
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 955 rpm
Slip 4.50 %
Rated voltage 240/415 V
Rated current 6.16/3.56 A
L. R. Amperes 37.6/21.7 A
LRC 6.1
No load current 3.72/2.15 A
Rated torque 10.8 ft.lb
Locked rotor torque 260 %
Breakdown torque 310 %
Locked rotor time 0s (cold) 0s (hot)
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 48.0 dB(A)
Approx. weight³ 73.4 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.0  82.5  82.5

Power factor

50% 75% 100%
0.49  0.63  0.71
Frame L100L
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1165 rpm
Slip 2.92 %
Rated voltage 460 V
Rated current 3.13 A
L. R. Amperes 21.3 A
LRC 6.8
No load current 2.00 A
Rated torque 8.89 ft.lb
Locked rotor torque 300 %
Breakdown torque 300 %
Locked rotor time 72s (cold) 40s (hot)
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 48.0 dB(A)
Approx. weight³ 73.4 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.5  87.5  88.5

Power factor

50% 75% 100%
0.49  0.62  0.68

Features

Frame Material Aluminum
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 3/4"
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
