00156XT3E143TC WEG 1.5HP Explosion Proof Electric Motor, 3600RPM

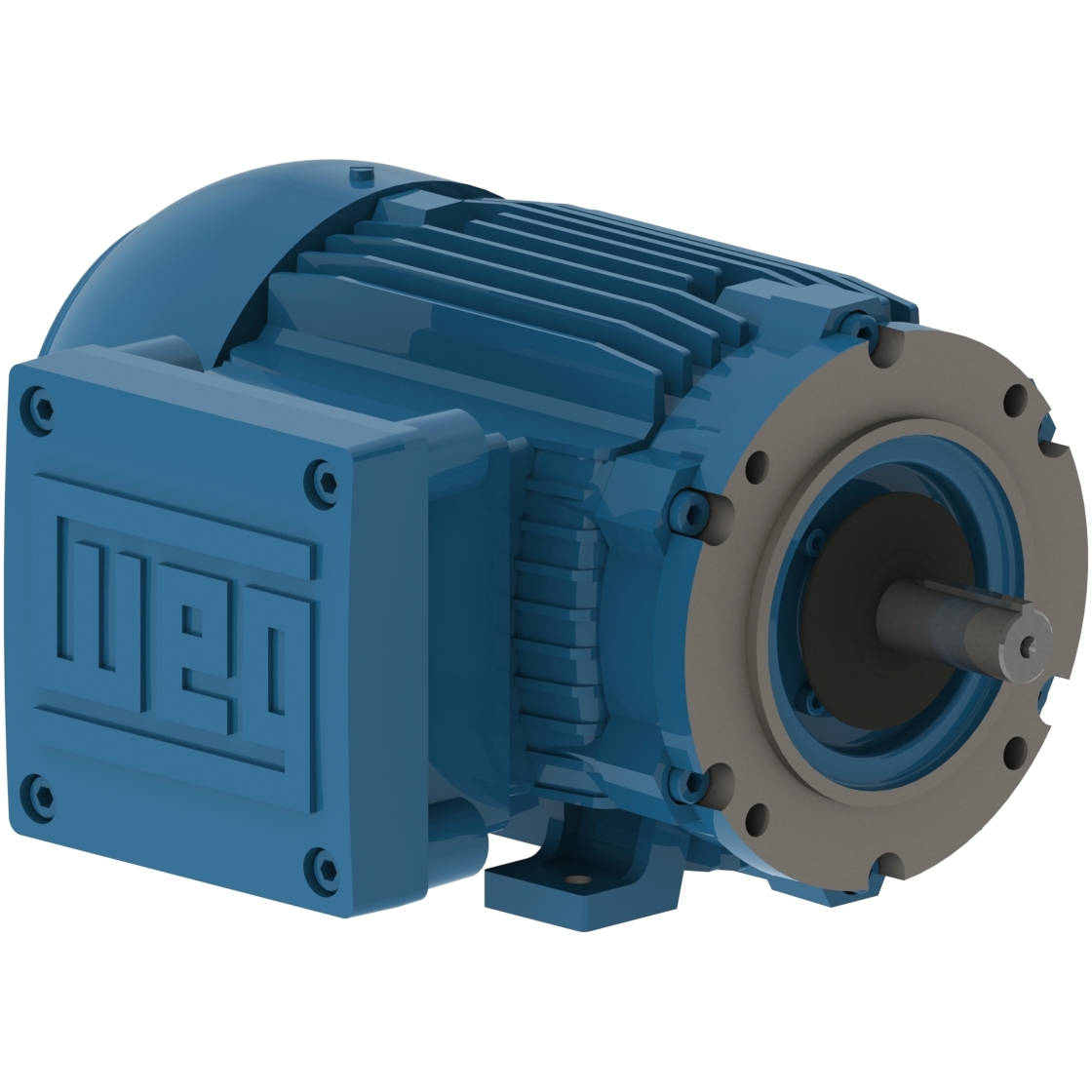

Enlarge Photo

Product ID: 00156XT3E143TC

00156XT3E143TC WEG 1.5HP Explosion Proof Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00156XT3E143TC

Selected accessories will also be added to cart
$951.41 / Each
Quantity:
IC411 - TEFC, IP55, 143TC/145TC Frame, 230/460/380VAC 50/60Hz 3 Phase, 14371274, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Electric Motors

Frame143/5TC
Output1.5 HP (1.1 kW)
Number of Poles2
Frequency60 Hz
Rated speed3500 rpm
Slip2.78 %
Rated voltage230/460 V
Rated current4.10/2.05 A
L. R. Amperes37.7/18.9 A
LRC9.2x(Code M)
No load current2.00/1.00 A
Rated torque2.25 ft.lb
Locked rotor torque340 %
Breakdown torque440 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)0.0413 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?68.0 dB(A)
Approx. weight?72.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
78.5  82.5  84.0

Power factor

50%75%100%
0.62  0.73  0.80
Frame143/5TC
Output1.5 HP (1.1 kW)
Number of Poles2
Frequency50 Hz
Rated speed2860 rpm
Slip4.67 %
Rated voltage380 V
Rated current2.36 A
L. R. Amperes18.9 A
LRC8.0x(Code K)
No load current0.900 A
Rated torque2.75 ft.lb
Locked rotor torque280 %
Breakdown torque300 %
Locked rotor time19s (cold) 11s (hot)
Moment of inertia (J)0.0413 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?62.0 dB(A)
Approx. weight?72.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
79.5  82.5  82.5

Power factor

50%75%100%
0.70  0.81  0.86
Frame143/5TC
Output1.5 HP (1.1 kW)
Number of Poles2
Frequency50 Hz
Rated speed2885 rpm
Slip3.83 %
Rated voltage400 V
Rated current2.32 A
L. R. Amperes19.5 A
LRC8.4x(Code L)
No load current1.00 A
Rated torque2.73 ft.lb
Locked rotor torque320 %
Breakdown torque330 %
Locked rotor time19s (cold) 11s (hot)
Moment of inertia (J)0.0413 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?62.0 dB(A)
Approx. weight?72.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
80.0  82.5  82.5

Power factor

50%75%100%
0.66  0.77  0.83
Frame143/5TC
Output1.5 HP (1.1 kW)
Number of Poles2
Frequency50 Hz
Rated speed2895 rpm
Slip3.50 %
Rated voltage415 V
Rated current2.29 A
L. R. Amperes19.9 A
LRC8.7x(Code L)
No load current1.10 A
Rated torque2.72 ft.lb
Locked rotor torque360 %
Breakdown torque360 %
Locked rotor time19s (cold) 11s (hot)
Moment of inertia (J)0.0413 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?62.0 dB(A)
Approx. weight?72.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
81.5  84.0  82.5

Power factor

50%75%100%
0.63  0.74  0.81

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 202P (ISO 12944 - C4)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Winding thermal protectionThermostat - 2 wires 1 per phase 155?C
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Enclosure
TEFC
Horsepower
1.5HP
Frame
143TC
Frame
145TC
