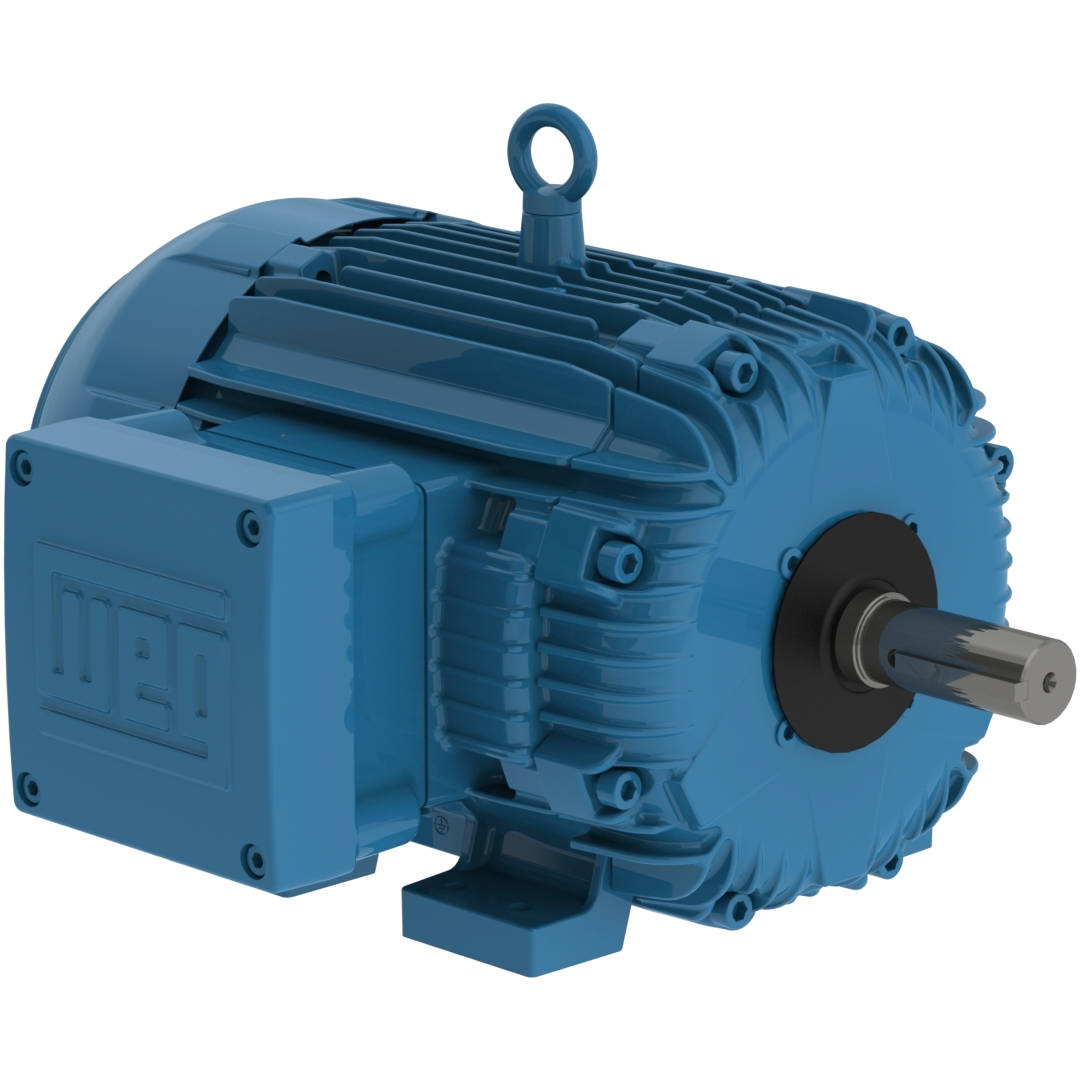

00158XT3E145T WEG 1.5HP Explosion Proof Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00158XT3E145T

00158XT3E145T WEG 1.5HP Explosion Proof Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00158XT3E145T

Selected accessories will also be added to cart
$857.07 / Each
Quantity:
IC411 - TEFC, IP55, 143T/145T Frame, 230/460/380VAC 50/60Hz 3 Phase, 14319266, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Electric Motors

Frame143/5T
Output1.5 HP (1.1 kW)
Number of Poles4
Frequency60 Hz
Rated speed1755 rpm
Slip2.50 %
Rated voltage230/460 V
Rated current4.10/2.05 A
L. R. Amperes36.5/18.2 A
LRC8.9x(Code L)
No load current2.40/1.20 A
Rated torque4.49 ft.lb
Locked rotor torque270 %
Breakdown torque350 %
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)0.1303 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?51.0 dB(A)
Approx. weight?73.4 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
81.5  85.5  86.5

Power factor

50%75%100%
0.58  0.70  0.78
Frame143/5T
Output1.5 HP (1.1 kW)
Number of Poles4
Frequency50 Hz
Rated speed1440 rpm
Slip4.00 %
Rated voltage380 V
Rated current2.40 A
L. R. Amperes15.8 A
LRC6.6x(Code H)
No load current1.20 A
Rated torque5.47 ft.lb
Locked rotor torque200 %
Breakdown torque260 %
Locked rotor time27s (cold) 15s (hot)
Moment of inertia (J)0.1303 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?49.0 dB(A)
Approx. weight?73.4 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
84.0  84.0  84.0

Power factor

50%75%100%
0.66  0.77  0.83
Frame143/5T
Output1.5 HP (1.1 kW)
Number of Poles4
Frequency50 Hz
Rated speed1445 rpm
Slip3.67 %
Rated voltage400 V
Rated current2.33 A
L. R. Amperes16.8 A
LRC7.2x(Code J)
No load current1.30 A
Rated torque5.45 ft.lb
Locked rotor torque229 %
Breakdown torque290 %
Locked rotor time27s (cold) 15s (hot)
Moment of inertia (J)0.1303 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?49.0 dB(A)
Approx. weight?73.4 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
84.0  84.0  84.0

Power factor

50%75%100%
0.62  0.74  0.81
Frame143/5T
Output1.5 HP (1.1 kW)
Number of Poles4
Frequency50 Hz
Rated speed1450 rpm
Slip3.33 %
Rated voltage415 V
Rated current2.27 A
L. R. Amperes17.5 A
LRC7.7x(Code K)
No load current1.40 A
Rated torque5.43 ft.lb
Locked rotor torque250 %
Breakdown torque320 %
Locked rotor time27s (cold) 15s (hot)
Moment of inertia (J)0.1303 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?49.0 dB(A)
Approx. weight?73.4 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
82.5  84.0  85.5

Power factor

50%75%100%
0.58  0.71  0.79

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 202P (ISO 12944 - C4)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Winding thermal protectionThermostat - 2 wires 1 per phase 155?C
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Enclosure
TEFC
Horsepower
1.5HP
Frame
143T
Frame
145T
