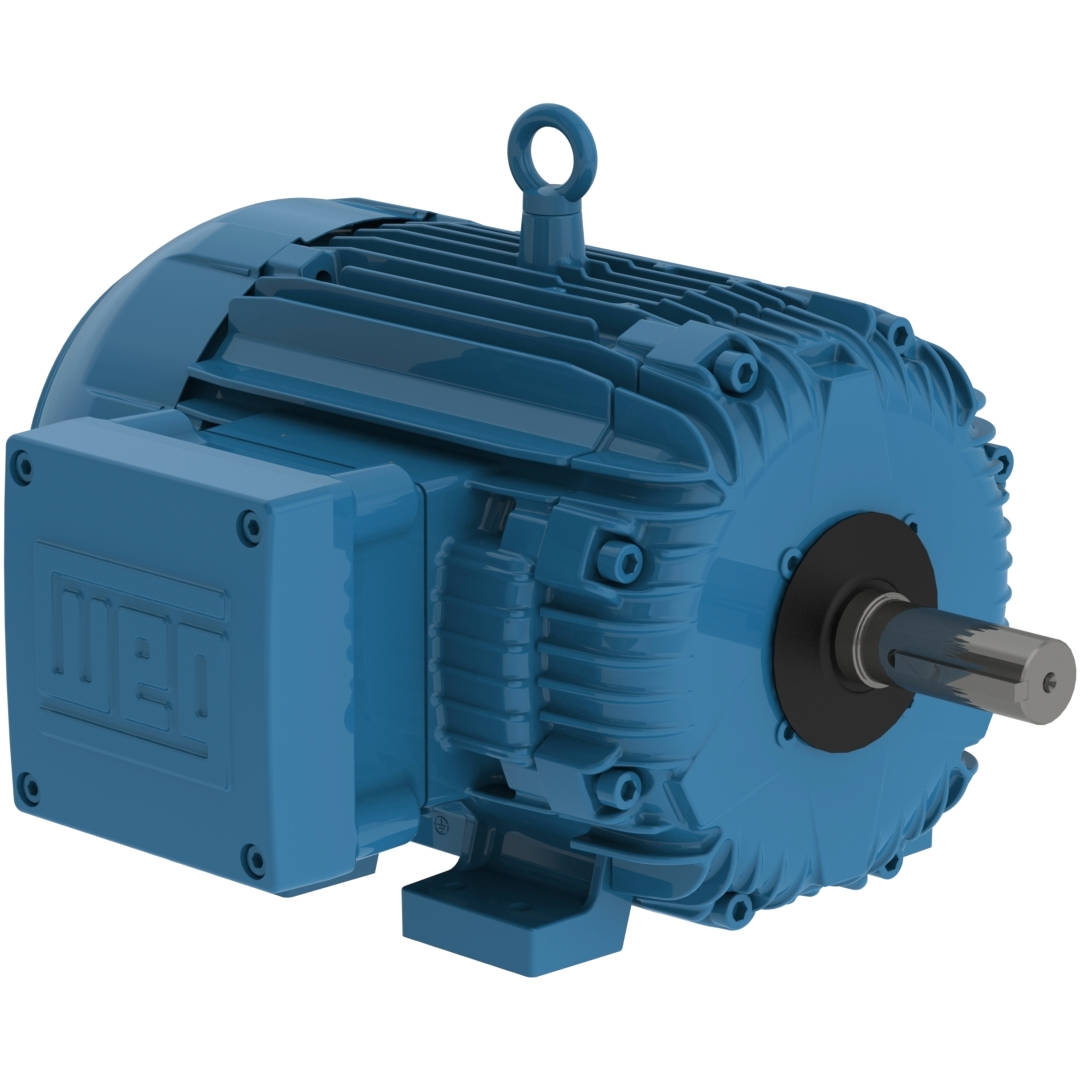

Motor/Control Division

Frame	182/4T
Output	1.5 HP (1.1 kW)
Number of Poles	8
Frequency	60 Hz
Rated speed	860 rpm
Slip	4.44 %
Rated voltage	230/460 V
Rated current	5.68/2.84 A
L. R. Amperes	35.2/17.6 A
LRC	6.2x(Code L)
No load current	3.80/1.90 A
Rated torque	9.16 ft.lb
Locked rotor torque	240 %
Breakdown torque	260 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	0.5223 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	50.0 dB(A)
Approx. weight?	134 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
77.0	78.5	78.5

Power factor

50%	75%	100%
0.42	0.54	0.62

Frame	182/4T
Output	1.5 HP (1.1 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	700 rpm
Slip	6.67 %
Rated voltage	380 V
Rated current	3.04 A
L. R. Amperes	17.6 A
LRC	5.8x(Code J)
No load current	1.79 A
Rated torque	11.3 ft.lb
Locked rotor torque	200 %
Breakdown torque	190 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	0.5223 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	46.0 dB(A)
Approx. weight?	134 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
80.0	80.0	78.5

Power factor

50%	75%	100%
0.51	0.62	0.70

Frame	182/4T
Output	1.5 HP (1.1 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	710 rpm
Slip	5.33 %
Rated voltage	400 V
Rated current	3.12 A
L. R. Amperes	18.7 A
LRC	6.0x(Code K)
No load current	1.92 A
Rated torque	11.1 ft.lb
Locked rotor torque	229 %
Breakdown torque	210 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	0.5223 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	46.0 dB(A)
Approx. weight?	134 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
78.5	78.5	77.0

Power factor

50%	75%	100%
0.47	0.58	0.66

Frame	182/4T
Output	1.5 HP (1.1 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	715 rpm
Slip	4.67 %
Rated voltage	415 V
Rated current	3.11 A
L. R. Amperes	19.3 A
LRC	6.2x(Code L)
No load current	2.04 A
Rated torque	11.0 ft.lb
Locked rotor torque	260 %
Breakdown torque	240 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	0.5223 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	46.0 dB(A)
Approx. weight?	134 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
77.0	78.0	77.0

Power factor

50%	75%	100%
0.44	0.55	0.64

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 3/4"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202P (ISO 12944 - C4)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Winding thermal protection	Thermostat - 2 wires 1 per phase 155?C
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	9
