/Products/Electric Motors/3 Phase Explosion Proof/WEG/00212XT3E184T WEG 2HP Explosion Proof Electric Motor, 1200RPM

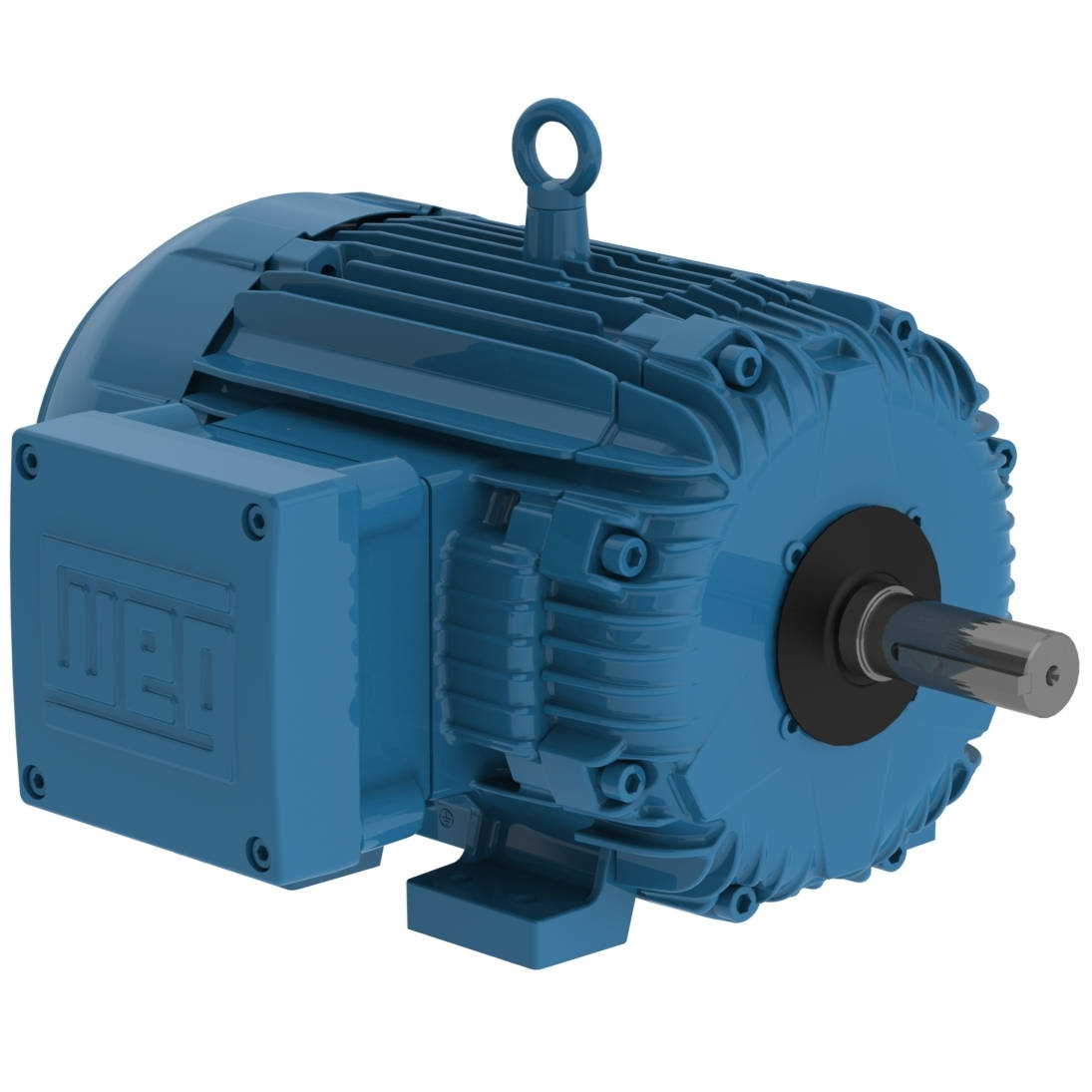

00212XT3E184T WEG 2HP Explosion Proof Electric Motor, 1200RPM
Enlarge Photo

Product ID: 00212XT3E184T

00212XT3E184T WEG 2HP Explosion Proof Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00212XT3E184T

Selected accessories will also be added to cart
$868.50 / Each
Quantity:
IC411 - TEFC, IP55, 182T/184T Frame, 230/460/380VAC 50/60Hz 3 Phase, 14325198, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Electric Motors

Frame 182/4T
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1165 rpm
Slip 2.92 %
Rated voltage 230/460 V
Rated current 6.26/3.13 A
L. R. Amperes 46.9/23.5 A
LRC 7.5x(Code L)
No load current 4.00/2.00 A
Rated torque 9.02 ft.lb
Locked rotor torque 300 %
Breakdown torque 330 %
Locked rotor time 82s (cold) 46s (hot)
Moment of inertia (J) 0.5323 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 135 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.5  86.5  88.5

Power factor

50% 75% 100%
0.47  0.58  0.68
Frame 182/4T
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 955 rpm
Slip 4.50 %
Rated voltage 380 V
Rated current 3.66 A
L. R. Amperes 22.0 A
LRC 6.0x(Code J)
No load current 1.80 A
Rated torque 11.0 ft.lb
Locked rotor torque 220 %
Breakdown torque 240 %
Locked rotor time 95s (cold) 53s (hot)
Moment of inertia (J) 0.5323 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 135 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.0  87.5  86.5

Power factor

50% 75% 100%
0.53  0.65  0.72
Frame 182/4T
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 960 rpm
Slip 4.00 %
Rated voltage 400 V
Rated current 3.59 A
L. R. Amperes 24.1 A
LRC 6.7x(Code K)
No load current 1.95 A
Rated torque 10.9 ft.lb
Locked rotor torque 260 %
Breakdown torque 270 %
Locked rotor time 84s (cold) 47s (hot)
Moment of inertia (J) 0.5323 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 135 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.5  87.5  87.5

Power factor

50% 75% 100%
0.49  0.62  0.69
Frame 182/4T
Output 2 HP (1.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 965 rpm
Slip 3.50 %
Rated voltage 415 V
Rated current 3.56 A
L. R. Amperes 25.3 A
LRC 7.1x(Code L)
No load current 2.05 A
Rated torque 10.9 ft.lb
Locked rotor torque 300 %
Breakdown torque 300 %
Locked rotor time 75s (cold) 42s (hot)
Moment of inertia (J) 0.5323 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 135 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.5  87.5  87.5

Power factor

50% 75% 100%
0.46  0.59  0.67

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 3/4"
Terminal Block Without
Shaft Locking Device Without
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202P (ISO 12944 - C4)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Winding thermal protection Thermostat - 2 wires 1 per phase 155°C
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
