/Products/Electric Motors/3 Phase Explosion Proof/WEG 3-Phase Explosion Proof Electric Motors/C-Face, Foot Mount/00212XT3E184TC WEG 2HP Explosion Proof Electric Motor, 1200RPM

Product ID: 00212XT3E184TC

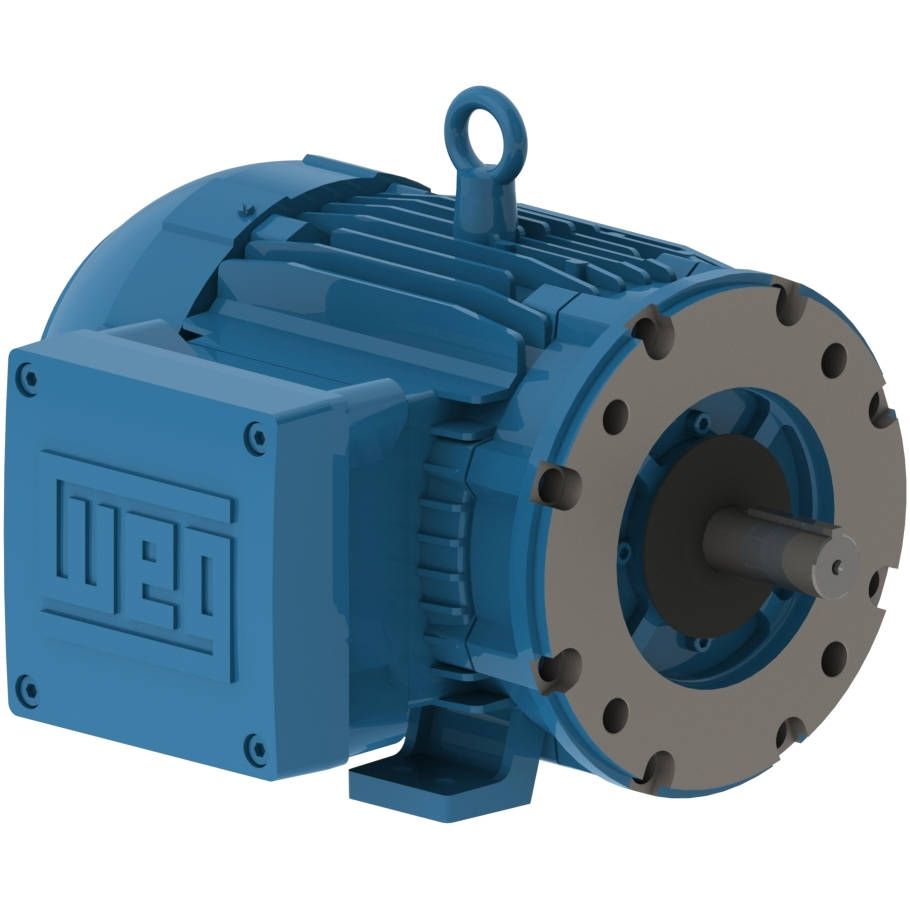

00212XT3E184TC WEG 2HP Explosion Proof Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00212XT3E184TC

Selected accessories will also be added to cart

$1,177.47 / Each

Quantity:

IC411 - TEFC, IP55, 182TC/184TC Frame, 230/460/380VAC 50/60Hz 3 Phase, 14281643, NEMA Premium Efficiency, Foot Mounted, C-Face, Cast Iron Frame, 1-1/8" Keyed Shaft

Electric Motors

Frame	182/4TC
Output	2 HP (1.5 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1165 rpm
Slip	2.92 %
Rated voltage	230/460 V
Rated current	6.26/3.13 A
L. R. Amperes	46.9/23.5 A
LRC	7.5x(Code L)
No load current	4.00/2.00 A
Rated torque	9.02 ft.lb
Locked rotor torque	300 %
Breakdown torque	330 %
Locked rotor time	82s (cold) 46s (hot)

Moment of inertia (J)	0.5323 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	52.0 dB(A)
Approx. weight?	137 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.5	86.5	88.5

Power factor

50%	75%	100%
0.47	0.58	0.68

Frame	182/4TC
Output	2 HP (1.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	955 rpm
Slip	4.50 %
Rated voltage	380 V
Rated current	3.66 A
L. R. Amperes	22.0 A
LRC	6.0x(Code J)
No load current	1.80 A
Rated torque	11.0 ft.lb
Locked rotor torque	220 %
Breakdown torque	240 %
Locked rotor time	95s (cold) 53s (hot)

Moment of inertia (J)	0.5323 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	49.0 dB(A)
Approx. weight?	137 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.0	87.5	86.5

Power factor

50%	75%	100%
0.53	0.65	0.72

Frame	182/4TC
Output	2 HP (1.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	960 rpm
Slip	4.00 %
Rated voltage	400 V
Rated current	3.59 A
L. R. Amperes	24.1 A
LRC	6.7x(Code K)
No load current	1.95 A
Rated torque	10.9 ft.lb
Locked rotor torque	260 %
Breakdown torque	270 %
Locked rotor time	84s (cold) 47s (hot)

Moment of inertia (J)	0.5323 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	49.0 dB(A)
Approx. weight?	137 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.5	87.5	87.5

Power factor

50%	75%	100%
0.49	0.62	0.69

Frame	182/4TC
Output	2 HP (1.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	965 rpm
Slip	3.50 %
Rated voltage	415 V
Rated current	3.56 A
L. R. Amperes	25.3 A
LRC	7.1x(Code L)
No load current	2.05 A
Rated torque	10.9 ft.lb
Locked rotor torque	300 %
Breakdown torque	300 %
Locked rotor time	75s (cold) 42s (hot)

Moment of inertia (J)	0.5323 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	49.0 dB(A)
Approx. weight?	137 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.5	87.5	87.5

Power factor

50%	75%	100%
0.46	0.59	0.67

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 3/4"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202P (ISO 12944 - C4)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Winding thermal protection	Thermostat - 2 wires 1 per phase 155?C
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	9
