Motor/Control Division

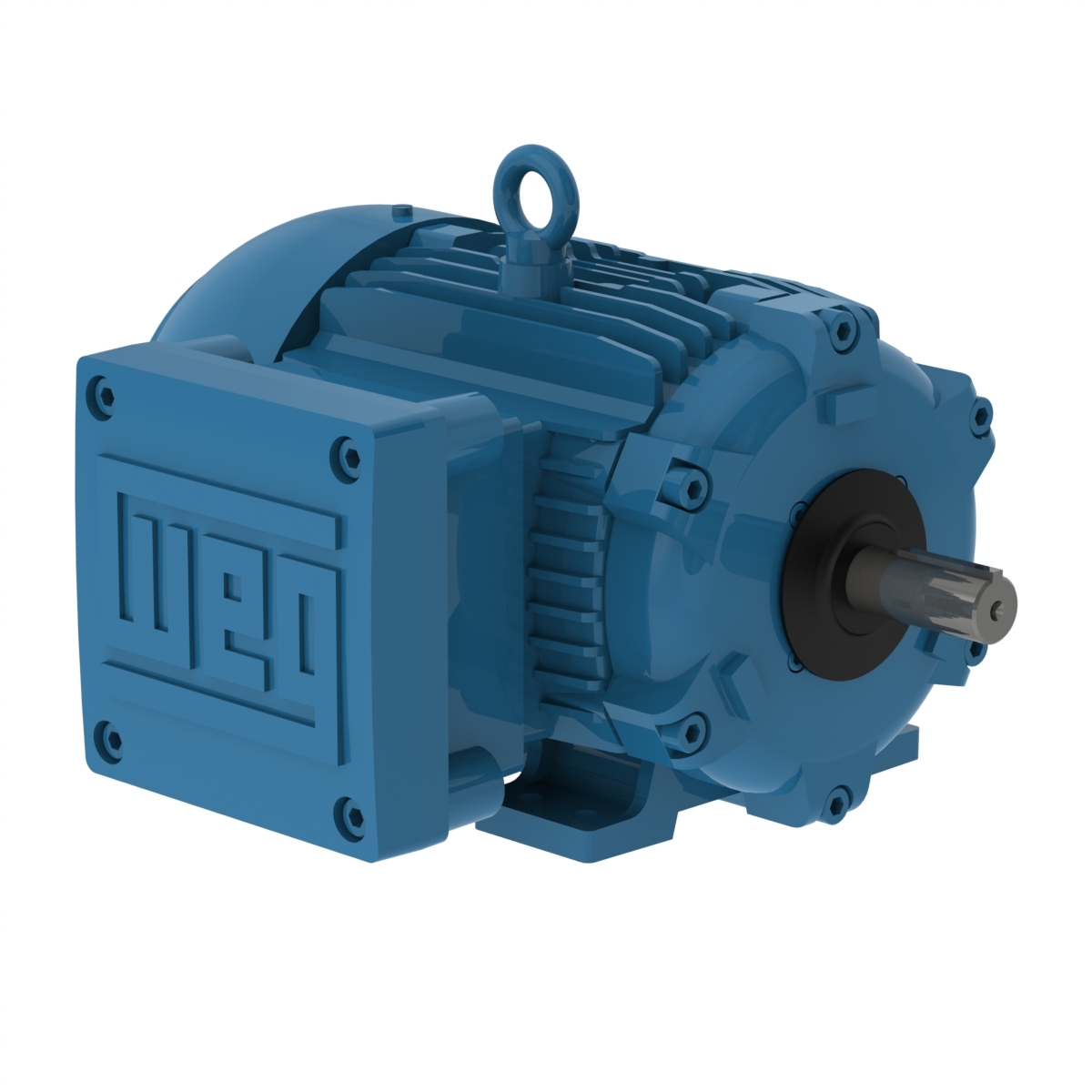

Frame	143/5T
Output	2 HP (1.5 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1750 rpm
Slip	2.78 %
Rated voltage	208-230/460 V
Rated current	6.02-5.58/2.79 A
L. R. Amperes	53.5-49.7/24.8 A
LRC	8.9x(Code L)
No load current	2.76-3.20/1.60 A
Rated torque	5.92 ft.lb
Locked rotor torque	270 %
Breakdown torque	320 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	0.1595 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	51.0 dB(A)
Approx. weight?	73.4 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	85.5	86.5

Power factor

50%	75%	100%
0.56	0.70	0.78

Frame	143/5T
Output	2 HP (1.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1425 rpm
Slip	5.00 %
Rated voltage	380 V
Rated current	3.29 A
L. R. Amperes	25.0 A
LRC	7.6x(Code K)
No load current	1.60 A
Rated torque	7.27 ft.lb
Locked rotor torque	190 %
Breakdown torque	220 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	0.1595 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	49.0 dB(A)
Approx. weight?	73.4 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	84.0	82.5

Power factor

50%	75%	100%
0.64	0.77	0.84

Frame	143/5T
Output	2 HP (1.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1435 rpm
Slip	4.33 %
Rated voltage	400 V
Rated current	3.18 A
L. R. Amperes	24.8 A
LRC	7.8x(Code K)
No load current	1.80 A
Rated torque	7.22 ft.lb
Locked rotor torque	220 %
Breakdown torque	250 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	0.1595 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	49.0 dB(A)
Approx. weight?	73.4 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.5	84.0	84.0

Power factor

50%	75%	100%
0.59	0.73	0.81

Frame	143/5T
Output	2 HP (1.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1445 rpm
Slip	3.67 %
Rated voltage	415 V
Rated current	3.18 A
L. R. Amperes	24.8 A
LRC	7.8x(Code K)
No load current	2.00 A
Rated torque	7.17 ft.lb
Locked rotor torque	240 %
Breakdown torque	270 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	0.1595 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	49.0 dB(A)
Approx. weight?	73.4 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.5	84.0	84.0

Power factor

50%	75%	100%
0.55	0.69	0.78

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 3/4"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202P (ISO 12944 - C4)
Grounding Lugs	Single
Fan Cover material	Rolled Steel
Tropicalized Painting	Without
Fan material	Plastic

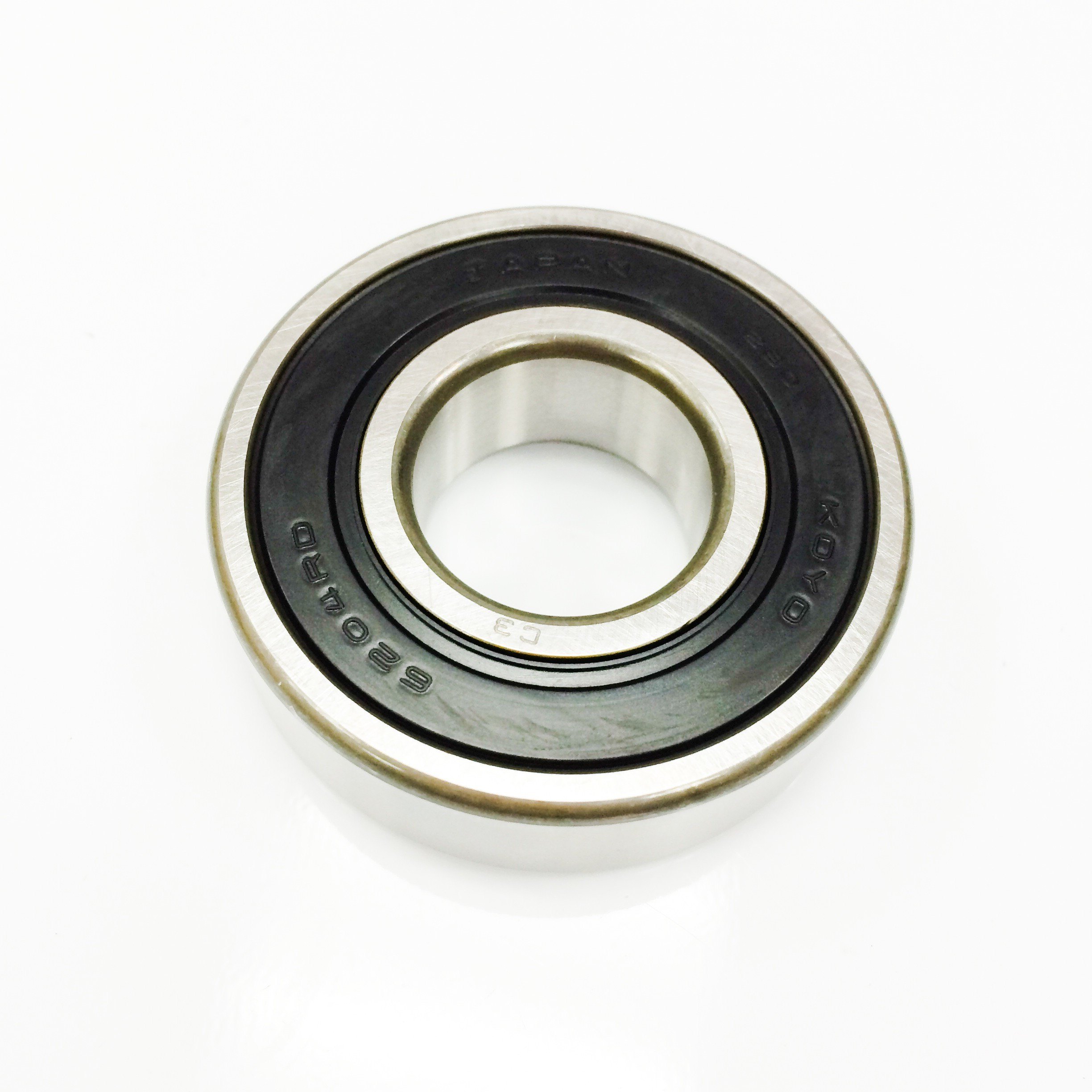

Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Winding thermal protection	Thermostat - 2 wires 1 per phase 155?C
Balancing Method	1/2 Key
Drip Cover	Without
