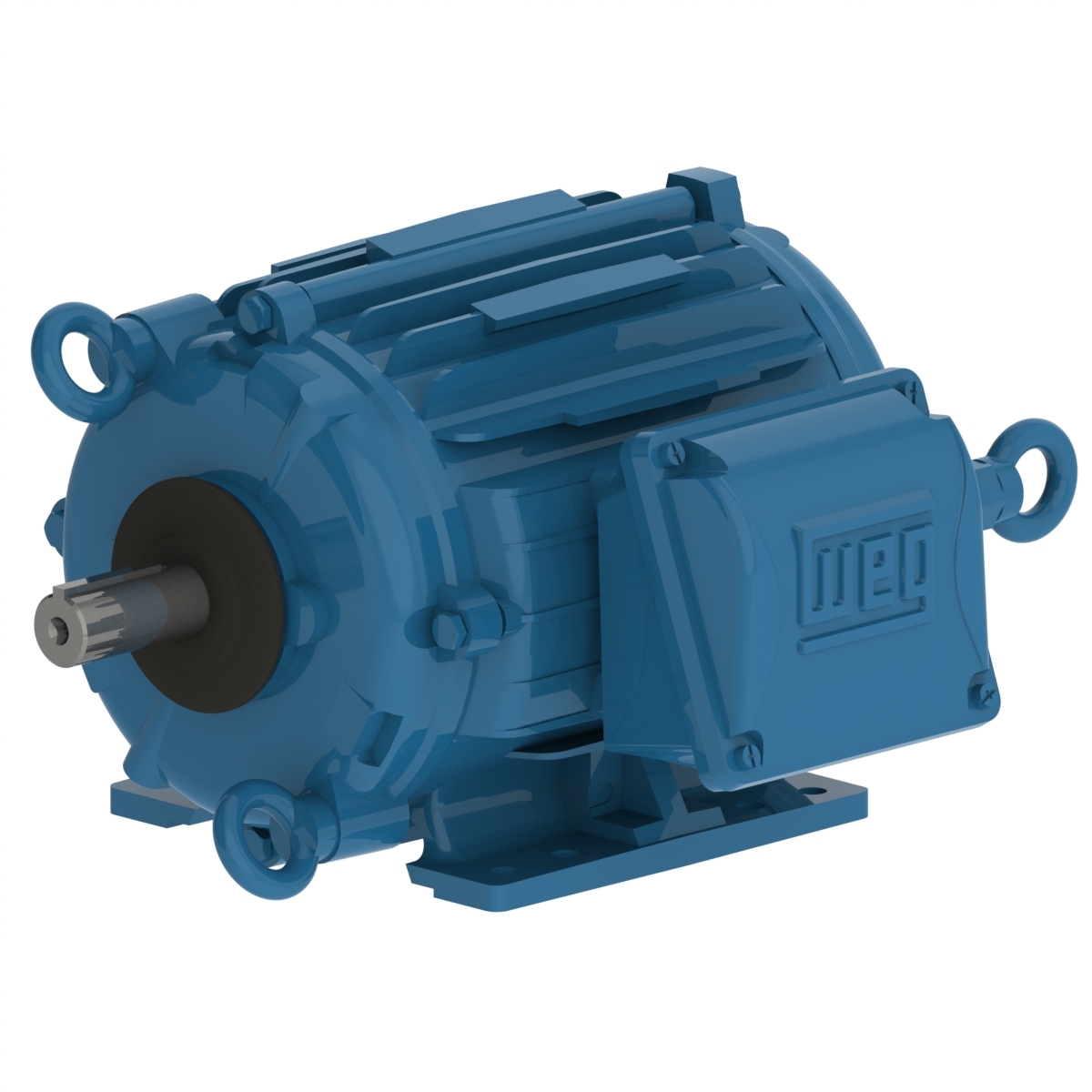

00218AT3PCT145T-W22 WEG 2HP Cooling Tower Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00218AT3PCT145T-W22

00218AT3PCT145T-W22 WEG 2HP Cooling Tower Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00218AT3PCT145T-W22

Selected accessories will also be added to cart
$689.75 / Each
Quantity:
IC410 - TEAO, IP55, 143T/145T Frame, 200VAC 60Hz 3 Phase, 12126223, NEMA Premium Efficiency, Cast Iron Frame, Foot Mounted, 7/8" Keyed Shaft

Electric Motors

Frame143/5T
Output2 HP (1.5 kW)
Number of Poles4
Frequency60 Hz
Rated speed1755 rpm
Slip2.50 %
Rated voltage200 V
Rated current6.35 A
L. R. Amperes52.7 A
LRC8.3x(Code L)
No load current3.75 A
Rated torque5.98 ft.lb
Locked rotor torque270 %
Breakdown torque320 %
Locked rotor time19s (cold) 11s (hot)
Moment of inertia (J)0.1561 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC410 - TEAO
MountingF-2
Rotation?Both (CW and CCW)
Noise level?51.0 dB(A)
Approx. weight?53.4 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
85.5  86.5  86.5

Power factor

50%75%100%
0.57  0.70  0.79

Features

Frame MaterialCast Iron
Impregnation MethodDouble impregnation polyester
Space Heater Voltage200 - 240 V
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 202E (ISO 12944 - C4)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingComplete (200h)
Joints SealPermatex
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector

Bearing details

 Drive EndNon Drive End
Bearing type6205 2RS  6204 2RS
SealingV'Ring V'Ring
Lubrication interval- -
Lubricant amount- -
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
140 lb 193 lb

Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Application
Cooling Tower
Horsepower
2HP
Enclosure
TEAO
Input Voltage
200VAC
Frame
143T
Frame
145T
