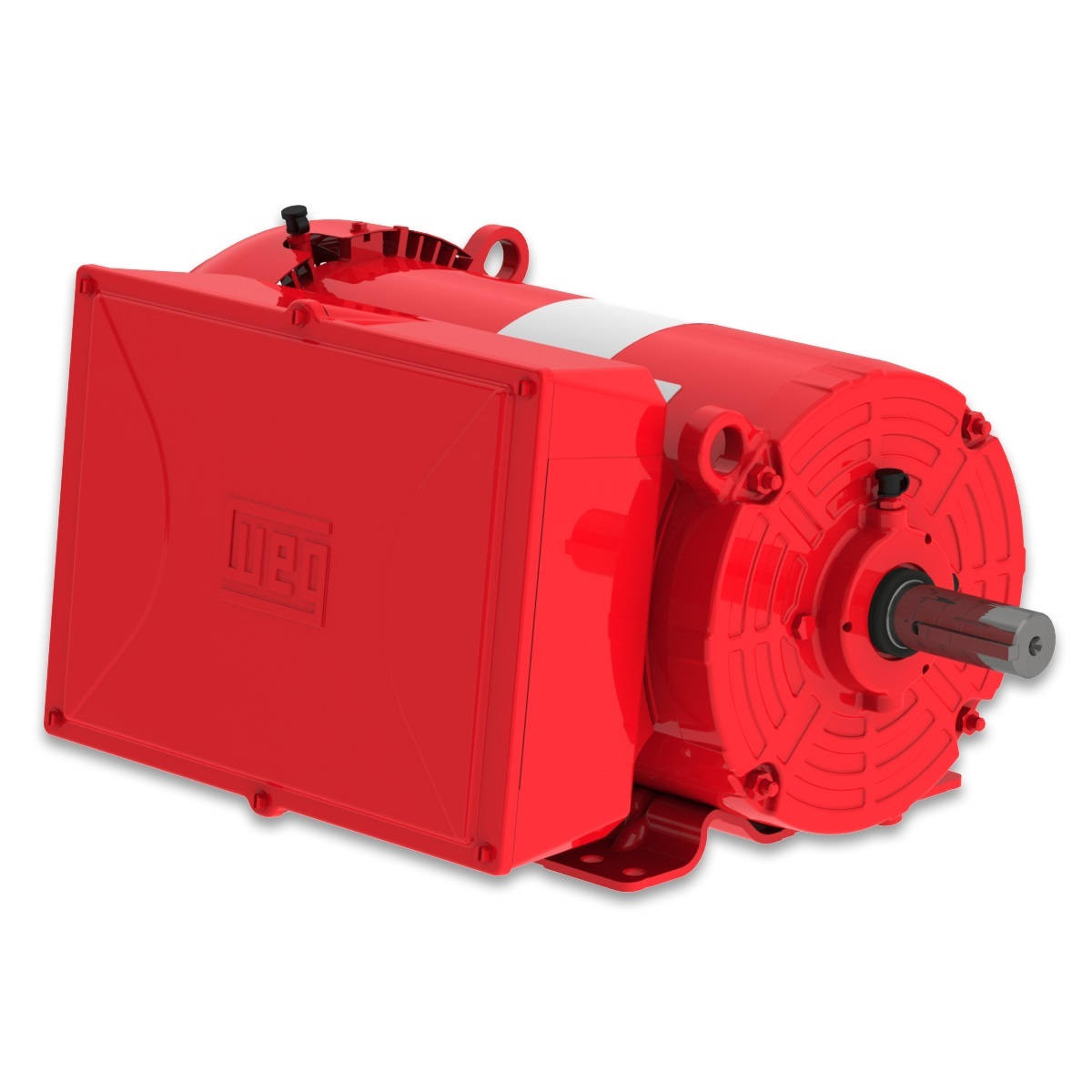

00218ES1RFD184T-S WEG 2HP Farm Duty Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00218ES1RFD184T-S

00218ES1RFD184T-S WEG 2HP Farm Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00218ES1RFD184T-S

Selected accessories will also be added to cart
$703.10 / Each
Quantity:
IC411 - TEFC, IP55, 182T/184T Frame, 115/230VAC 60Hz Single Phase, 14058208, Rolled Steel Frame, Foot Mounted

Electric Motors

Frame182/4T
Output2 HP (1.5 kW)
Number of Poles4
Frequency60 Hz
Rated speed1770 rpm
Slip1.67 %
Rated voltage115/230 V
Rated current19.9/9.96 A
L. R. Amperes205/103 A
LRC10.3x(Code N)
No load current11.8/5.90 A
Rated torque5.93 ft.lb
Locked rotor torque409 %
Breakdown torque390 %
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)0.3246 sq.ft.lb
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²59.0 dB(A)
Approx. weight³90.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
66.074.077.0

Power factor

50%75%100%
0.720.800.85

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.377"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3003 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Overload protector (phenolic)Manual
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Application
Farm Duty
Enclosure
TEFC
Horsepower
2HP
Frame
182T
Frame
184T
