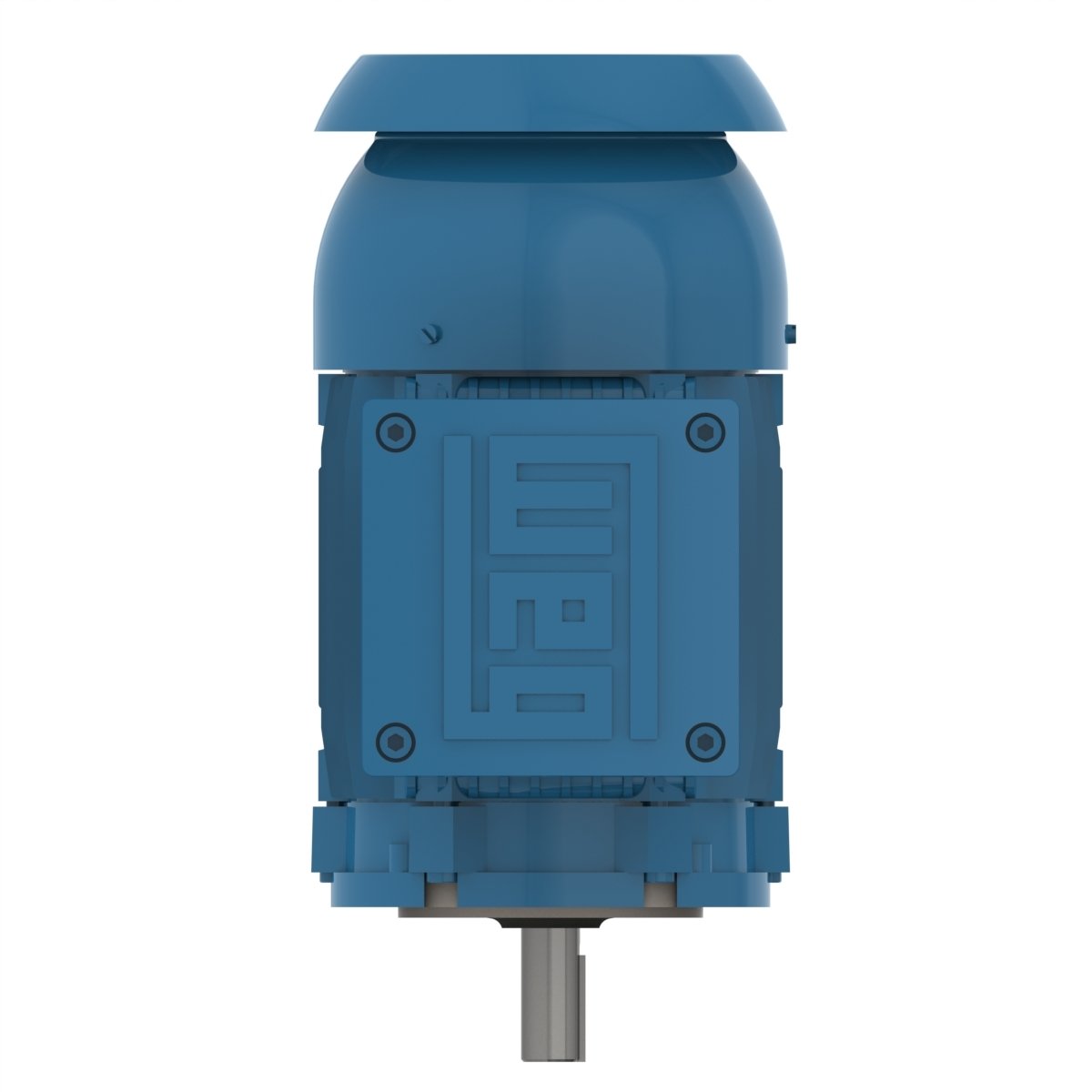

00218XT3ER145TC WEG 2HP Explosion Proof Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00218XT3ER145TC

00218XT3ER145TC WEG 2HP Explosion Proof Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00218XT3ER145TC

Selected accessories will also be added to cart
$1,039.52 / Each
Quantity:
IC411 - TEFC, IP55, 143TC/145TC Frame, 208-230/460VAC 3-Phase 50/60Hz, 14276311, NEMA Premium Efficiency, Footless, C-Face

Electric Motors

Frame143/5TC
Output2 HP (1.5 kW)
Number of Poles4
Frequency60 Hz
Rated speed1750 rpm
Slip2.78 %
Rated voltage208-230/460 V
Rated current6.02-5.58/2.79 A
L. R. Amperes53.5-49.7/24.8 A
LRC8.9x(Code L)
No load current2.76-3.20/1.60 A
Rated torque5.92 ft.lb
Locked rotor torque270 %
Breakdown torque320 %
Locked rotor time19s (cold) 11s (hot)
Moment of inertia (J)0.1595 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?51.0 dB(A)
Approx. weight?73.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
84.0  85.5  86.5

Power factor

50%75%100%
0.56  0.70  0.78
Frame143/5TC
Output2 HP (1.5 kW)
Number of Poles4
Frequency50 Hz
Rated speed1425 rpm
Slip5.00 %
Rated voltage380 V
Rated current3.29 A
L. R. Amperes25.0 A
LRC7.6x(Code K)
No load current1.60 A
Rated torque7.27 ft.lb
Locked rotor torque190 %
Breakdown torque220 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)0.1595 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?49.0 dB(A)
Approx. weight?73.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
84.0  84.0  82.5

Power factor

50%75%100%
0.64  0.77  0.84
Frame143/5TC
Output2 HP (1.5 kW)
Number of Poles4
Frequency50 Hz
Rated speed1435 rpm
Slip4.33 %
Rated voltage400 V
Rated current3.18 A
L. R. Amperes24.8 A
LRC7.8x(Code K)
No load current1.80 A
Rated torque7.22 ft.lb
Locked rotor torque220 %
Breakdown torque250 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)0.1595 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?49.0 dB(A)
Approx. weight?73.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
82.5  84.0  84.0

Power factor

50%75%100%
0.59  0.73  0.81
Frame143/5TC
Output2 HP (1.5 kW)
Number of Poles4
Frequency50 Hz
Rated speed1445 rpm
Slip3.67 %
Rated voltage415 V
Rated current3.18 A
L. R. Amperes24.8 A
LRC7.8x(Code K)
No load current2.00 A
Rated torque7.17 ft.lb
Locked rotor torque240 %
Breakdown torque270 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)0.1595 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?49.0 dB(A)
Approx. weight?73.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
82.5  84.0  84.0

Power factor

50%75%100%
0.55  0.69  0.78

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 202P (ISO 12944 - C4)
Grounding LugsSingle
Fan Cover materialRolled Steel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Winding thermal protectionThermostat - 2 wires 1 per phase 155?C
Balancing Method1/2 Key
Drip CoverWith
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Horsepower
2HP
Enclosure
TEFC
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
143TC
Frame
145TC
