00318XT3ER182TC WEG 3HP Explosion Proof Electric Motor, 1800RPM

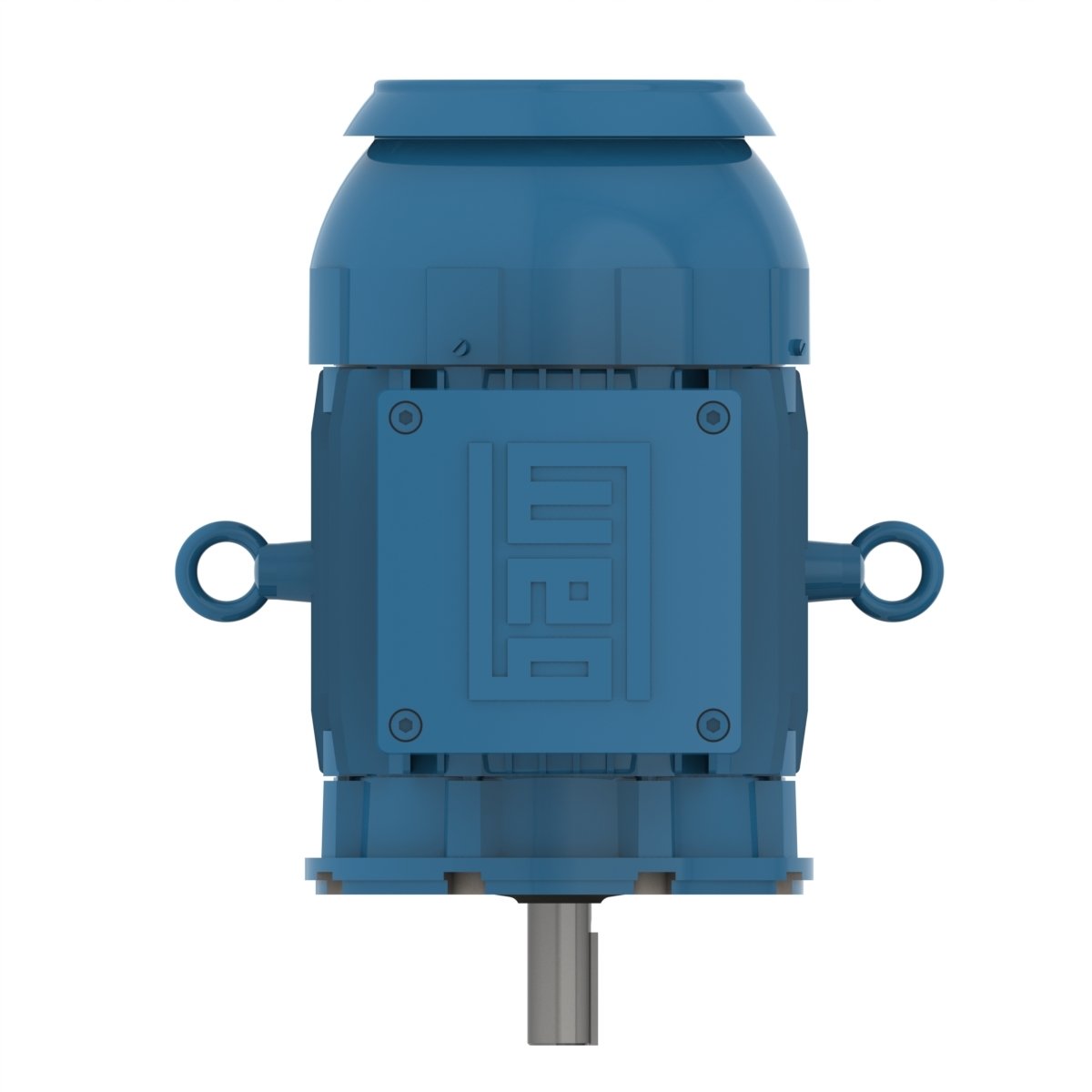

Enlarge Photo

Product ID: 00318XT3ER182TC

00318XT3ER182TC WEG 3HP Explosion Proof Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00318XT3ER182TC

Selected accessories will also be added to cart
$1,243.33 / Each
Quantity:
IC411 - TEFC, IP55, 182TC/184TC Frame, 208-230/460VAC 3-Phase 60Hz, 14281143, C-Face, Footless, NEMA Premium Efficiency, 1-1/8" Keyed Shaft

Electric Motors

Frame182/4TC
Output3 HP (2.2 kW)
Number of Poles4
Frequency60 Hz
Rated speed1760 rpm
Slip2.22 %
Rated voltage208-230/460 V
Rated current8.65-7.82/3.91 A
L. R. Amperes69.2-62.6/31.3 A
LRC8.0x(Code K)
No load current3.62-4.20/2.10 A
Rated torque8.83 ft.lb
Locked rotor torque250 %
Breakdown torque320 %
Locked rotor time50s (cold) 28s (hot)
Moment of inertia (J)0.2781 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?56.0 dB(A)
Approx. weight?122 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
87.5  88.5  89.5

Power factor

50%75%100%
0.59  0.71  0.79
Frame182/4TC
Output3 HP (2.2 kW)
Number of Poles4
Frequency50 Hz
Rated speed1440 rpm
Slip4.00 %
Rated voltage380 V
Rated current4.60 A
L. R. Amperes29.4 A
LRC6.4x(Code H)
No load current2.02 A
Rated torque10.8 ft.lb
Locked rotor torque200 %
Breakdown torque229 %
Locked rotor time45s (cold) 25s (hot)
Moment of inertia (J)0.2781 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?56.0 dB(A)
Approx. weight?122 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
88.5  88.5  87.5

Power factor

50%75%100%
0.67  0.78  0.83
Frame182/4TC
Output3 HP (2.2 kW)
Number of Poles4
Frequency50 Hz
Rated speed1445 rpm
Slip3.67 %
Rated voltage400 V
Rated current4.48 A
L. R. Amperes31.4 A
LRC7.0x(Code J)
No load current2.20 A
Rated torque10.8 ft.lb
Locked rotor torque229 %
Breakdown torque260 %
Locked rotor time45s (cold) 25s (hot)
Moment of inertia (J)0.2781 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?56.0 dB(A)
Approx. weight?122 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
87.5  88.5  87.5

Power factor

50%75%100%
0.63  0.75  0.81
Frame182/4TC
Output3 HP (2.2 kW)
Number of Poles4
Frequency50 Hz
Rated speed1450 rpm
Slip3.33 %
Rated voltage415 V
Rated current4.38 A
L. R. Amperes32.4 A
LRC7.4x(Code J)
No load current2.34 A
Rated torque10.7 ft.lb
Locked rotor torque260 %
Breakdown torque290 %
Locked rotor time45s (cold) 25s (hot)
Moment of inertia (J)0.2781 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?56.0 dB(A)
Approx. weight?122 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
87.5  88.5  88.5

Power factor

50%75%100%
0.59  0.72  0.79

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 202P (ISO 12944 - C4)
Grounding LugsSingle
Fan Cover materialRolled Steel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Winding thermal protectionThermostat - 2 wires 1 per phase 155?C
Balancing Method1/2 Key
Drip CoverWith
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Horsepower
3HP
Enclosure
TEFC
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
182TC
Frame
184TC
