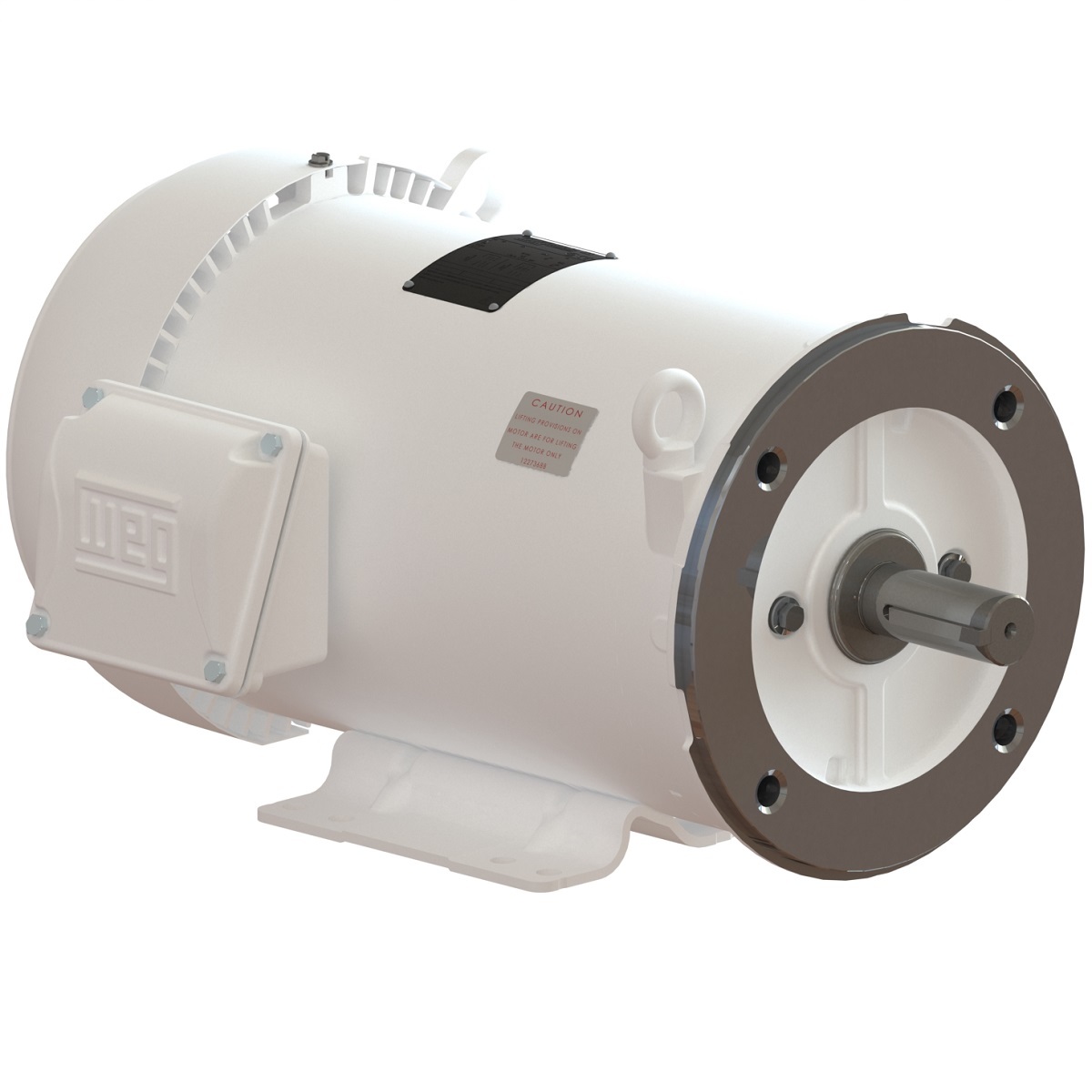

TEFC, IP56, 182TC/184TC Frame, 230/460VAC 60Hz, 190-220/380-415VAC 50Hz 3 Phase, 15228395, Foot Mount, C-Face, NEMA Premium Efficiency, Rolled Steel Frame, 1-1/8" Keyed Stainless Steel Shaft

Accessories

Select any of the accessories below to purchase them with this inventory item:

CFW080160TDN4A1Z WEG Variable Frequency Drive, 5HP

$795.74 / Each

CFW080100TGN4A1Z WEG Variable Frequency Drive, 5HP

$982.37 / Each

Electric Motors

Frame	182/4TC
Output	5 HP (3.7 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1750 rpm
Slip	2.78 %
Rated voltage	230/460 V
Rated current	13.0/6.49 A
L. R. Amperes	90.9/45.4 A
LRC	7.0x(Code J)
No load current	6.89/3.44 A
Rated torque	2.07 kgfm
Locked rotor torque	220 %
Breakdown torque	300 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	0.0130 kgmÂ²
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP56
Enclosure	IC411 - TEFC
Mounting	F-1
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	56.0 dB(A)
Approx. weightÂ³<	36.9 kg

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	89.5	89.5

Power factor

50%	75%	100%
0.60	0.73	0.80

Frame	182/4TC
Output	5 HP (3.7 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1425 rpm
Slip	5.00 %
Rated voltage	190/380 V
Rated current	15.8/7.88 A
L. R. Amperes	91.4/45.7 A
LRC	5.8x(Code G)
No load current	6.74/3.37 A
Rated torque	2.55 kgfm
Locked rotor torque	170 %
Breakdown torque	229 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.0130 kgmÂ²
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP56
Enclosure	IC411 - TEFC
Mounting	F-1
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	53.0 dB(A)
Approx. weightÂ³<	36.9 kg

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.9	87.2	84.9

Power factor

50%	75%	100%
0.68	0.80	0.84

Frame	182/4TC
Output	5 HP (3.7 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1435 rpm
Slip	4.33 %
Rated voltage	220/415 V
Rated current	14.3/7.59 A
L. R. Amperes	91.6/48.6 A
LRC	6.4x(Code H)
No load current	7.10/3.77 A
Rated torque	2.53 kgfm
Locked rotor torque	200 %
Breakdown torque	260 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.0130 kgmÂ²
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP56
Enclosure	IC411 - TEFC
Mounting	F-1
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	53.0 dB(A)
Approx. weightÂ³<	36.9 kg

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.2	87.3	85.8

Power factor

50%	75%	100%
0.63	0.76	0.82

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 3/4"
Terminal Block	Without
Shaft Material	AISI 304 Stainless Steel
Painting	04501 205E
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Complete (200h)
Joints Seal	Permatex
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Stainless Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
Overload protector (phenolic)	Without overload protector
