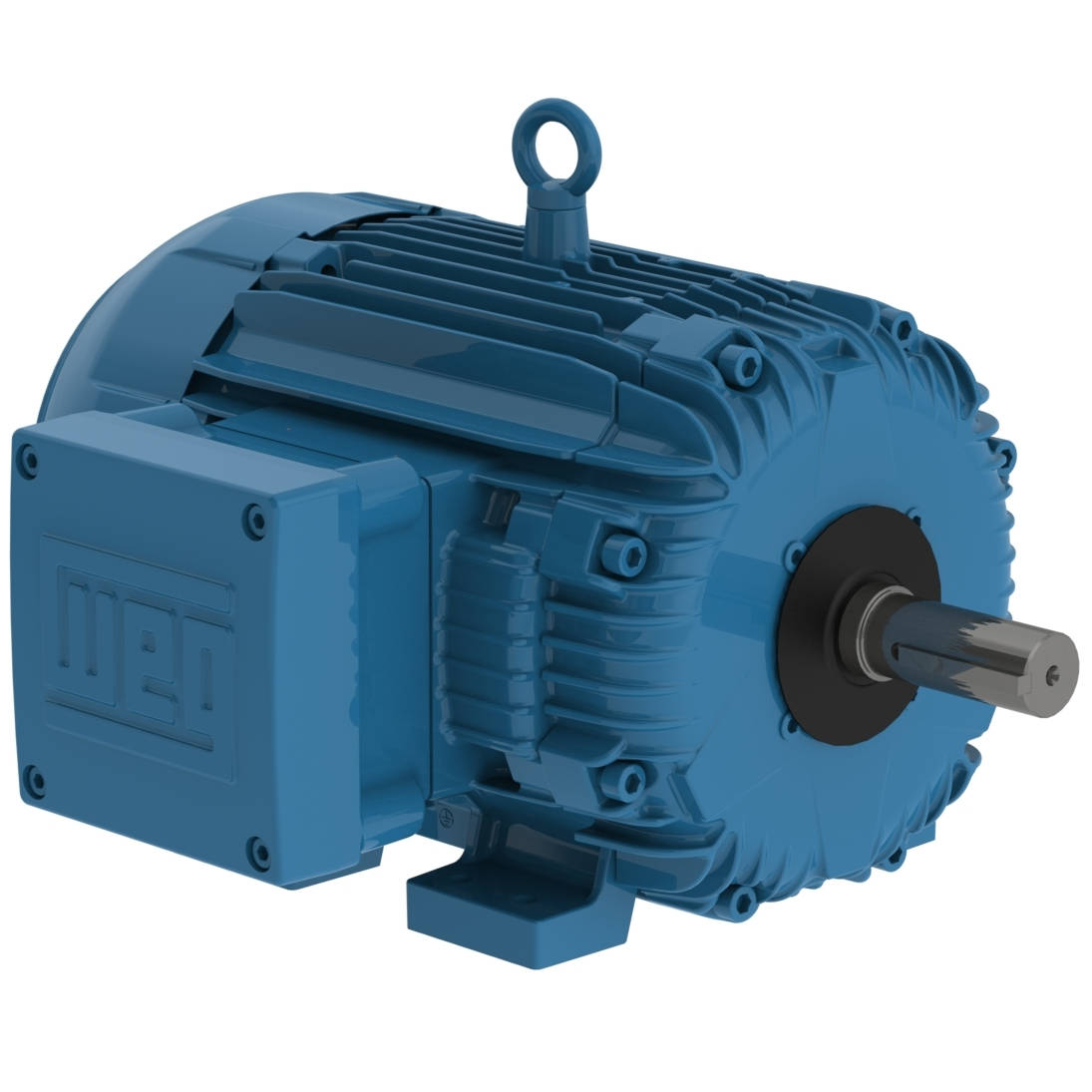

00518XT3E184T WEG 5HP Explosion Proof Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00518XT3E184T

00518XT3E184T WEG 5HP Explosion Proof Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00518XT3E184T

Selected accessories will also be added to cart
$1,085.80 / Each
Quantity:
IC411 - TEFC, IP55, 182T/184T Frame, 230/460/380VAC 50/60Hz 3 Phase, 14276568, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Electric Motors

Frame182/4T
Output5 HP (3.7 kW)
Number of Poles4
Frequency60 Hz
Rated speed1750 rpm
Slip2.78 %
Rated voltage230/460 V
Rated current13.1/6.57 A
L. R. Amperes93.3/46.6 A
LRC7.1x(Code J)
No load current6.20/3.10 A
Rated torque15.0 ft.lb
Locked rotor torque229 %
Breakdown torque300 %
Locked rotor time43s (cold) 24s (hot)
Moment of inertia (J)0.3695 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?56.0 dB(A)
Approx. weight?133 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
86.5  88.5  89.5

Power factor

50%75%100%
0.59  0.71  0.79
Frame182/4T
Output5 HP (3.7 kW)
Number of Poles4
Frequency50 Hz
Rated speed1435 rpm
Slip4.33 %
Rated voltage380 V
Rated current7.83 A
L. R. Amperes47.8 A
LRC6.1x(Code G)
No load current3.10 A
Rated torque18.3 ft.lb
Locked rotor torque210 %
Breakdown torque229 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)0.3695 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?56.0 dB(A)
Approx. weight?133 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
86.0  86.5  86.5

Power factor

50%75%100%
0.67  0.77  0.83
Frame182/4T
Output5 HP (3.7 kW)
Number of Poles4
Frequency50 Hz
Rated speed1440 rpm
Slip4.00 %
Rated voltage400 V
Rated current7.54 A
L. R. Amperes51.3 A
LRC6.8x(Code J)
No load current3.40 A
Rated torque18.2 ft.lb
Locked rotor torque229 %
Breakdown torque260 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)0.3695 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?56.0 dB(A)
Approx. weight?133 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
86.5  87.0  87.5

Power factor

50%75%100%
0.63  0.74  0.81
Frame182/4T
Output5 HP (3.7 kW)
Number of Poles4
Frequency50 Hz
Rated speed1445 rpm
Slip3.67 %
Rated voltage415 V
Rated current7.45 A
L. R. Amperes53.6 A
LRC7.2x(Code J)
No load current3.80 A
Rated torque18.2 ft.lb
Locked rotor torque250 %
Breakdown torque290 %
Locked rotor time34s (cold) 19s (hot)
Moment of inertia (J)0.3695 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?56.0 dB(A)
Approx. weight?133 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
86.5  87.0  87.5

Power factor

50%75%100%
0.59  0.72  0.79

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 202P (ISO 12944 - C4)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Winding thermal protectionThermostat - 2 wires 1 per phase 155?C
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Horsepower
5HP
Enclosure
TEFC
Frame
182T
Frame
184T
