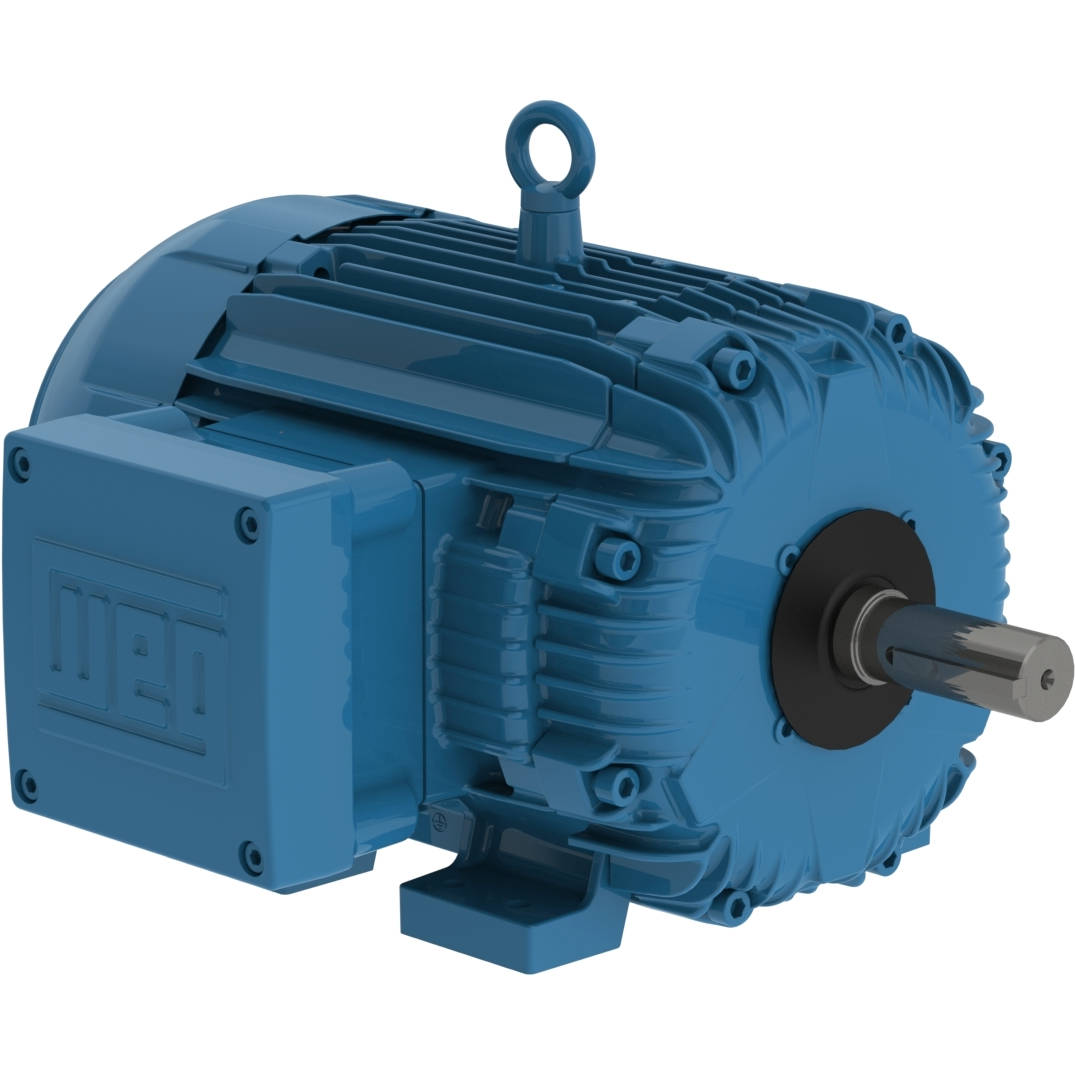

Motor/Control Division

Frame	182/4T
Output	5 HP (3.7 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3490 rpm
Slip	3.06 %
Rated voltage	230/460 V
Rated current	12.2/6.10 A
L. R. Amperes	91.5/45.7 A
LRC	7.5x(Code J)
No load current	4.40/2.20 A
Rated torque	7.52 ft.lb
Locked rotor torque	250 %
Breakdown torque	380 %
Locked rotor time	46s (cold) 26s (hot)

Moment of inertia (J)	0.1889 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	69.0 dB(A)
Approx. weight?	131 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.5	87.5	88.5

Power factor

50%	75%	100%
0.70	0.81	0.86

Frame	182/4T
Output	5 HP (3.7 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2850 rpm
Slip	5.00 %
Rated voltage	380 V
Rated current	7.30 A
L. R. Amperes	41.6 A
LRC	5.7x(Code F)
No load current	2.15 A
Rated torque	9.21 ft.lb
Locked rotor torque	200 %
Breakdown torque	280 %
Locked rotor time	46s (cold) 26s (hot)

Moment of inertia (J)	0.1889 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	64.0 dB(A)
Approx. weight?	131 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.5	87.5	86.5

Power factor

50%	75%	100%
0.76	0.86	0.89

Frame	182/4T
Output	5 HP (3.7 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2865 rpm
Slip	4.50 %
Rated voltage	400 V
Rated current	6.94 A
L. R. Amperes	44.4 A
LRC	6.4x(Code G)
No load current	2.40 A
Rated torque	9.16 ft.lb
Locked rotor torque	229 %
Breakdown torque	310 %
Locked rotor time	46s (cold) 26s (hot)

Moment of inertia (J)	0.1889 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	64.0 dB(A)
Approx. weight?	131 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.5	87.5	87.5

Power factor

50%	75%	100%
0.72	0.83	0.88

Frame	182/4T
Output	5 HP (3.7 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2875 rpm
Slip	4.17 %
Rated voltage	415 V
Rated current	6.84 A
L. R. Amperes	47.2 A
LRC	6.9x(Code H)
No load current	2.60 A
Rated torque	9.13 ft.lb
Locked rotor torque	260 %
Breakdown torque	340 %
Locked rotor time	46s (cold) 26s (hot)

Moment of inertia (J)	0.1889 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	64.0 dB(A)
Approx. weight?	131 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.5	87.5	87.5

Power factor

50%	75%	100%
0.69	0.80	0.86

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 3/4"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202P (ISO 12944 - C4)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Winding thermal protection	Thermostat - 2 wires 1 per phase 155?C
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	9
