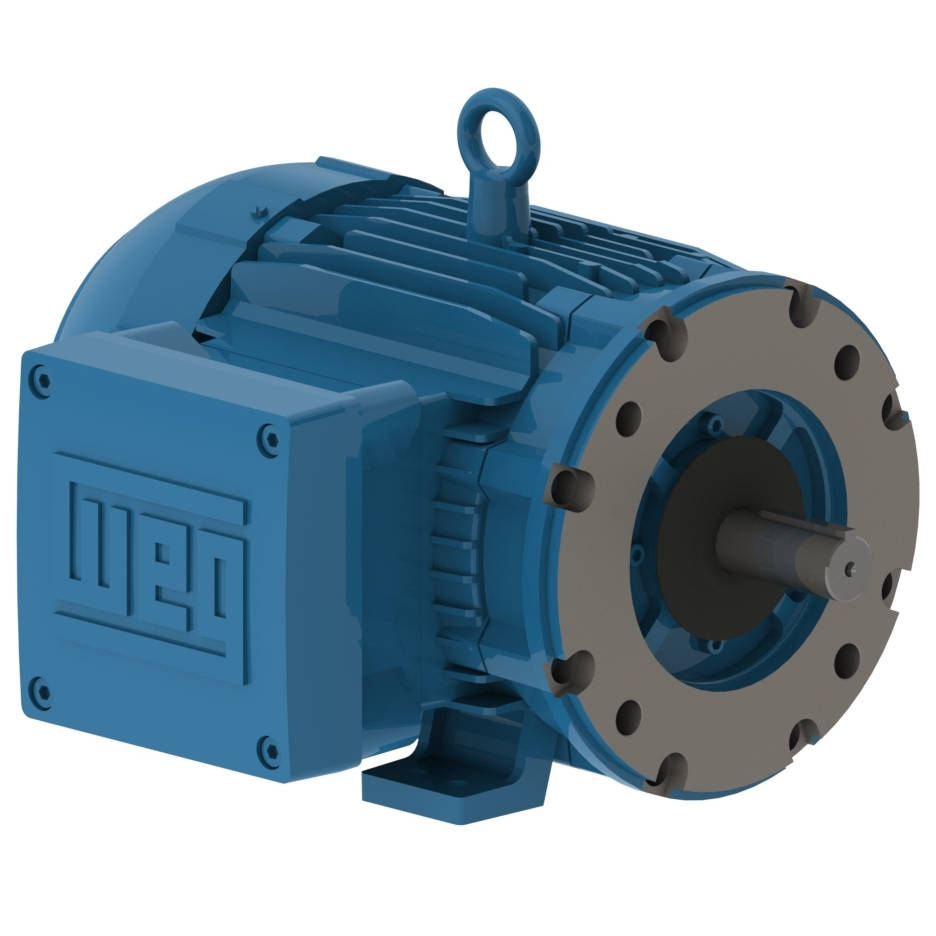

00536XT3E184TC WEG 5HP Explosion Proof Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00536XT3E184TC

00536XT3E184TC WEG 5HP Explosion Proof Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00536XT3E184TC

Selected accessories will also be added to cart
$1,179.25 / Each
Quantity:
IC411 - TEFC, 182TC/184TC Frame, 208-230/460VAC 3-Phase 60Hz, C-Face, Foot Mount, 14284314, NEMA Premium Efficiency
WEG Explosion-proof motor was especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength. It meets the requirements of explosive atmospheres like Division I/Zone 1. All ratings meet NEMA Premium Efficiency. Motors are certified for VFD service.
Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 5 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box? Left position
Enclosure IC411 - TEFC
Frame182/4TC
Output5 HP (3.7 kW)
Number of Poles2
Frequency60 Hz
Rated speed3490 rpm
Slip3.06 %
Rated voltage208-230/460 V
Rated current13.5-12.2/6.10 A
L. R. Amperes101-91.5/45.7 A
LRC7.5x(Code J)
No load current3.79-4.40/2.20 A
Rated torque7.42 ft.lb
Locked rotor torque250 %
Breakdown torque380 %
Locked rotor time46s (cold) 26s (hot)
Moment of inertia (J)0.1889 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?69.0 dB(A)
Approx. weight?134 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
85.5  87.5  88.5

Power factor

50%75%100%
0.70  0.81  0.86
Frame182/4TC
Output5 HP (3.7 kW)
Number of Poles2
Frequency50 Hz
Rated speed2850 rpm
Slip5.00 %
Rated voltage380 V
Rated current7.30 A
L. R. Amperes41.6 A
LRC5.7x(Code F)
No load current2.15 A
Rated torque9.09 ft.lb
Locked rotor torque200 %
Breakdown torque280 %
Locked rotor time46s (cold) 26s (hot)
Moment of inertia (J)0.1889 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?64.0 dB(A)
Approx. weight?134 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
86.5  87.5  86.5

Power factor

50%75%100%
0.76  0.86  0.89
Frame182/4TC
Output5 HP (3.7 kW)
Number of Poles2
Frequency50 Hz
Rated speed2865 rpm
Slip4.50 %
Rated voltage400 V
Rated current6.94 A
L. R. Amperes44.4 A
LRC6.4x(Code G)
No load current2.40 A
Rated torque9.04 ft.lb
Locked rotor torque229 %
Breakdown torque310 %
Locked rotor time46s (cold) 26s (hot)
Moment of inertia (J)0.1889 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?64.0 dB(A)
Approx. weight?134 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
86.5  87.5  87.5

Power factor

50%75%100%
0.72  0.83  0.88
Frame182/4TC
Output5 HP (3.7 kW)
Number of Poles2
Frequency50 Hz
Rated speed2875 rpm
Slip4.17 %
Rated voltage415 V
Rated current6.84 A
L. R. Amperes47.2 A
LRC6.9x(Code H)
No load current2.60 A
Rated torque9.01 ft.lb
Locked rotor torque260 %
Breakdown torque340 %
Locked rotor time46s (cold) 26s (hot)
Moment of inertia (J)0.1889 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?64.0 dB(A)
Approx. weight?134 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
86.5  87.5  87.5

Power factor

50%75%100%
0.69  0.80  0.86
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
5HP
Enclosure
TEFC
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
182TC
Frame
184TC
