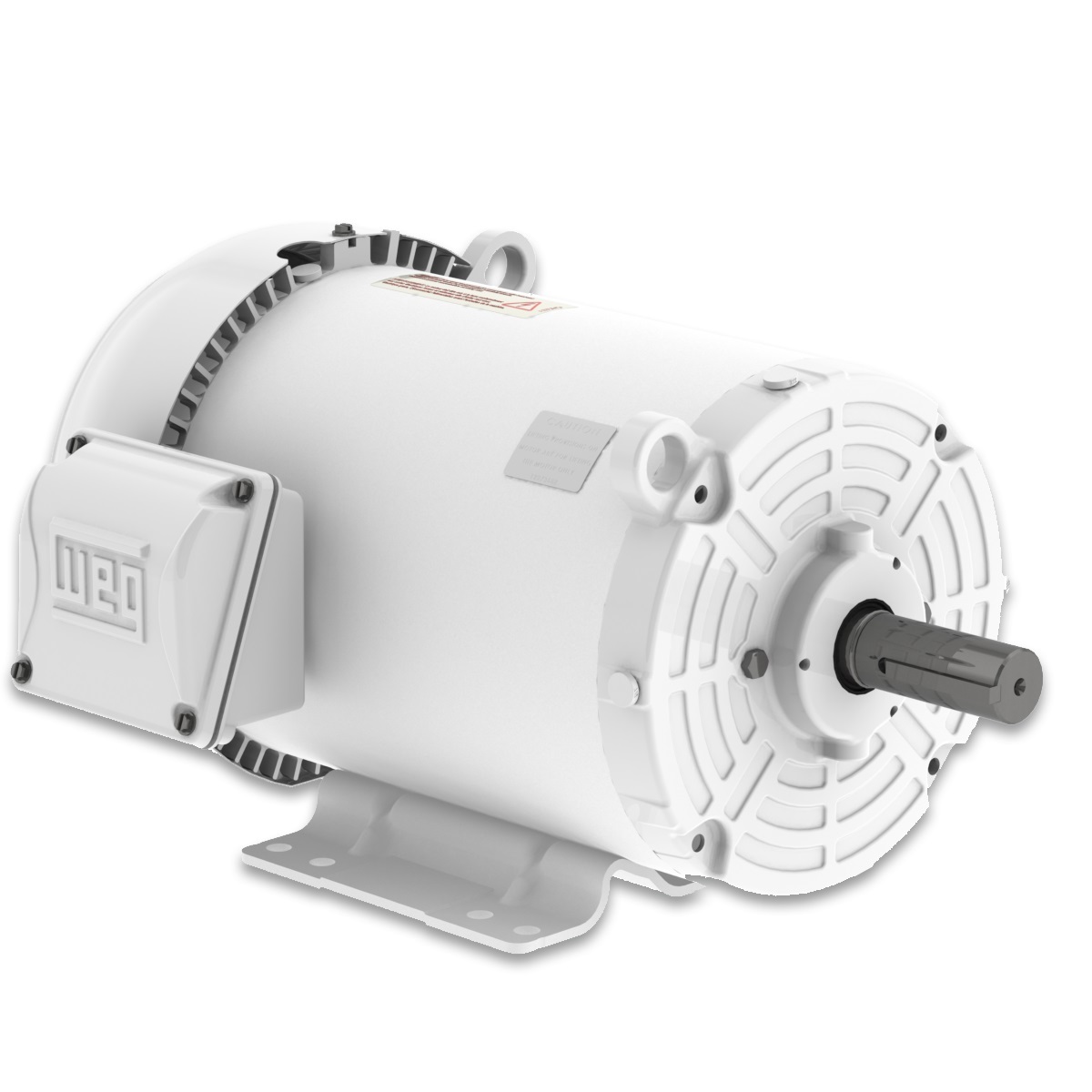

TEFC, IP56, 213TC/215TC Frame, 230/460VAC 60Hz, 190-220/380-415VAC 50Hz 3 Phase, 15228440, Foot Mounted, NEMA Premium Efficiency, Rolled Steel Frame, 1-3/8" Keyed Stainless Steel Shaft

Accessories

Select any of the accessories below to purchase them with this inventory item:

CFW080100TGN4A1Z WEG Variable Frequency Drive, 5HP

$982.37 / Each

Electric Motors

Frame	213/5TC
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3530 rpm
Slip	1.94 %
Rated voltage	230/460 V
Rated current	17.3/8.67 A
L. R. Amperes	132/65.9 A
LRC	7.6x(Code H)
No load current	6.63/3.32 A
Rated torque	11.2 ft.lb
Locked rotor torque	260 %
Breakdown torque	300 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.5496 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP56
Enclosure	IC411 - TEFC
Mounting	F-1
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	70.0 dB(A)
Approx. weightÂ³<	136 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	88.5	89.5

Power factor

50%	75%	100%
0.76	0.85	0.89

Frame	213/5TC
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2905 rpm
Slip	3.17 %
Rated voltage	190/380 V
Rated current	21.2/10.6 A
L. R. Amperes	134/66.8 A
LRC	6.3x(Code G)
No load current	6.54/3.27 A
Rated torque	13.6 ft.lb
Locked rotor torque	190 %
Breakdown torque	240 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.5496 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP56
Enclosure	IC411 - TEFC
Mounting	F-1
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	67.0 dB(A)
Approx. weightÂ³<	136 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.6	88.4	86.9

Power factor

50%	75%	100%
0.81	0.88	0.91

Frame	213/5TC
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2915 rpm
Slip	2.83 %
Rated voltage	220/415 V
Rated current	19.1/10.1 A
L. R. Amperes	133/70.7 A
LRC	7.0x(Code H)
No load current	6.64/3.52 A
Rated torque	13.5 ft.lb
Locked rotor torque	220 %
Breakdown torque	270 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.5496 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP56
Enclosure	IC411 - TEFC
Mounting	F-1
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	67.0 dB(A)
Approx. weightÂ³<	136 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.6	88.8	87.7

Power factor

50%	75%	100%
0.78	0.87	0.90

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Material	AISI 304 Stainless Steel
Painting	04501 205E
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Complete (200h)
Joints Seal	Permatex
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Stainless Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
Overload protector (phenolic)	Without overload protector
