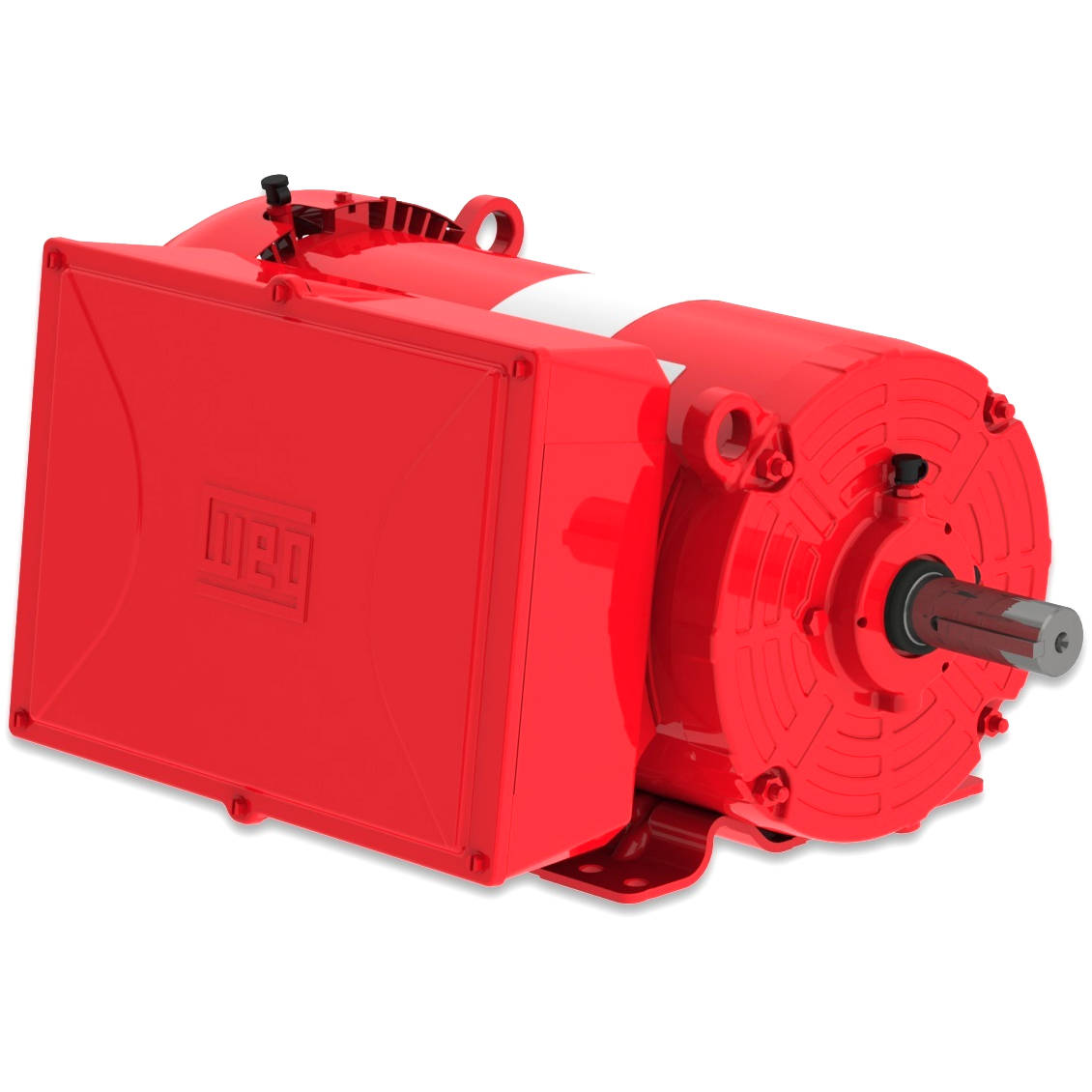

01018ES1DFD215TC-S WEG 10HP Farm Duty Electric Motor, 1800RPM
Enlarge Photo

Product ID: 01018ES1DFD215TC-S

01018ES1DFD215TC-S WEG 10HP Farm Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 01018ES1DFD215TC-S

Selected accessories will also be added to cart
$1,731.94 / Each
Quantity:
IC411 - TEFC, IP55, 213T/215T Frame, 230VAC 60Hz Single Phase, 14058211, Rolled Steel, Foot Mounted, 1-3/8" Keyed Shaft

Electric Motors

Frame213/5T
Output10 HP (7.5 kW)
Number of Poles4
Frequency60 Hz
Rated speed1745 rpm
Slip3.06 %
Rated voltage230 V
Rated current39.1 A
L. R. Amperes313 A
LRC8.0x(Code J)
No load current6.50 A
Rated torque4.16 kgfm
Locked rotor torque320 %
Breakdown torque280 %
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)0.0601 kgm²
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²64.0 dB(A)
Approx. weight³81.0 kg

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
80.084.085.0

Power factor

50%75%100%
0.970.980.98

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.732"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3003 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Overload protector (phenolic)Manual
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Application
Farm Duty
Enclosure
TEFC
Horsepower
10HP
Frame
213TC
Frame
215TC
