/Products/Electric Motors/3 Phase Stainless Steel/Leeson/103387.00 Leeson 1/2HP Washguard Stainless Steel Electric Motor, 1800 RPM
Click Image to Expand

Product ID: 103387.00

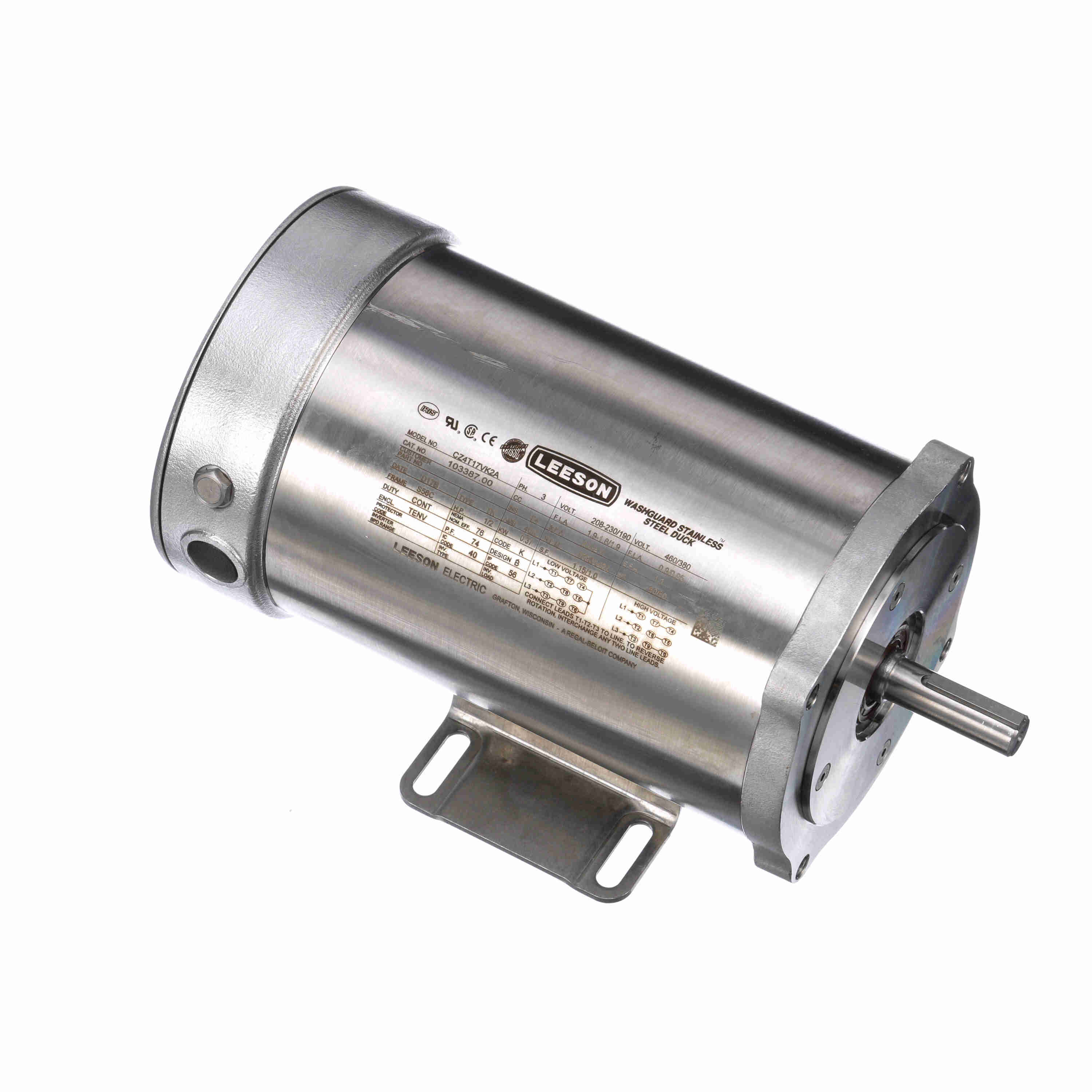

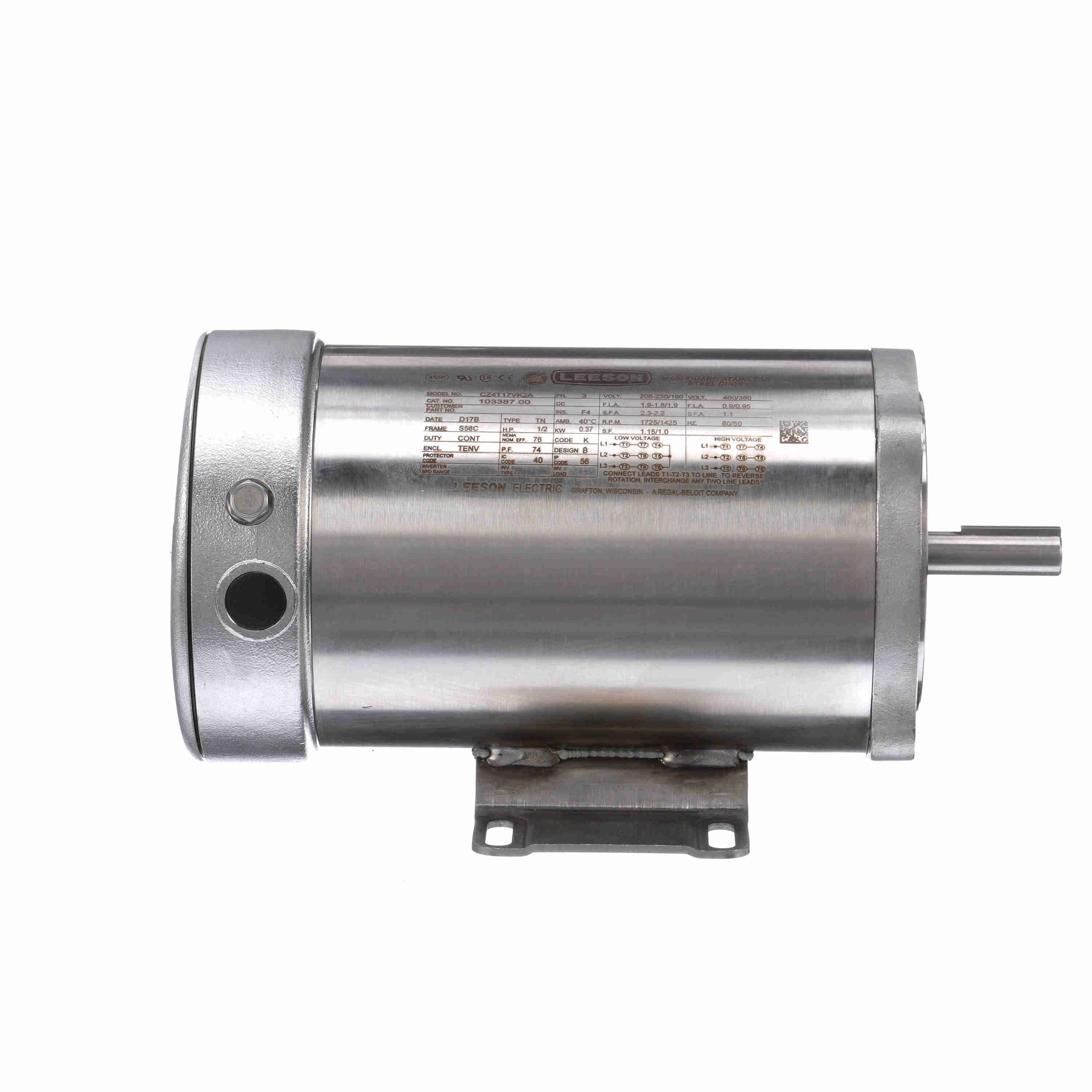

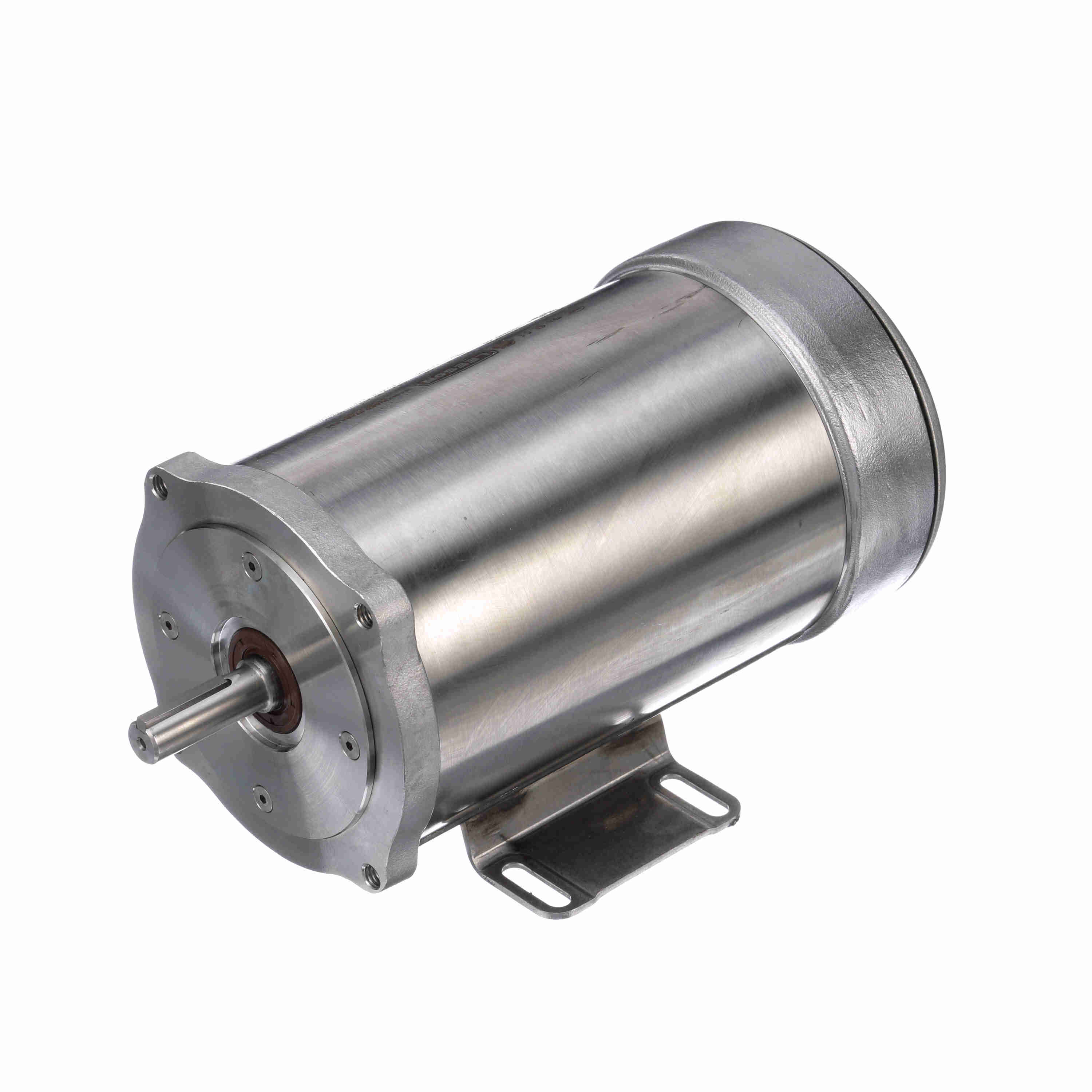

103387.00 Leeson 1/2HP Washguard Stainless Steel Electric Motor, 1800 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 103387.00

Selected accessories will also be added to cart
$415.97 / Each
Quantity:
TENV, S56C Frame, 208-230/460V 60Hz 3-Phase, Rigid Base, CZ4T17VK2A

Features

Features
  • All exterior components are 300-series stainless steel; All sealing components are Viton® for superior chemical resistance
  • End shields are O-ring sealed to the frame; Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
  • Double-sealed bearings are pre-lubricated with moisture-resistant high temperature grease for long life
  • Interior coatings applied to rotor and stator protect against corrosion; Ease to clean construction is BISSC Certified for bakery applications
  • Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
  • WASHGUARD efficiencies meet EPAct mandates for non-exempt motors when tested without shaft seals
  • LEESON’s exclusive IRIS™ Inverter-Rated Insulation System provides extra protection and long life, especially in inverter-driven applications

General Specifications

General Specifications
Model :CZ4T17VK2A Catalog No :103387.00
Part Description :..1/2HP..1800RPM.S56.TENV.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID-C......Stainless washdown.NOT....... Category :3 Phase
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :0.50 Hp Output KW :0.37 kW
Frequency :60 Hz Voltage :208-230/460 V
Current :1.9-1.8/0.90 A Speed :1725 rpm
Service Factor :1.15 Phase :3
Efficiency :76 % Duty :Continuous
Insulation Class :F Design Code :B
KVA Code :K Frame :S56C
Enclosure :Totally Enclosed Non Ventilated Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6204
Opp Drive End Bearing Size :6204 UL :Recognized
CSA :Y CE :Y
IP Code :56

Technical Specifications

Technical Specifications
Electrical Type :Squirrel Cage Induction Run Starting Method :Across The Line
Poles :4 Rotation :Reversible
Mounting :Rigid Base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Stainless Steel Shaft Type :NEMA 56
Overall Length :11.49 in Frame Length :6.75 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720104743
Weight :37.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up5.000.0100.700.000.000.00.50
Break-Down4.50549.0100.00417.07600.000.00.50
Full Load0.82100.024.00100.01,7250.000.00.50
Locked-Rotor5.30646.0106.00442.000.000.00.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 0.50
  • 0.076
  • 0.0
  • 18.3
  • 1,793
  • 0.0
  • 0.00
  • 25 %
  • 0.55
  • 0.163
  • 58.1
  • 37.4
  • 1,778
  • 0.0
  • 6.00
  • 50 %
  • 0.62
  • 0.271
  • 69.1
  • 55.4
  • 1,759
  • 0.0
  • 12.00
  • 75 %
  • 0.70
  • 0.377
  • 73.8
  • 67.0
  • 1,741
  • 0.0
  • 18.00
  • 100 %
  • 0.82
  • 0.484
  • 75.8
  • 74.4
  • 1,722
  • 86.0
  • 24.00
  • 115 %
  • 0.89
  • 0.548
  • 76.7
  • 77.2
  • 1,715
  • 95.0
  • 27.60
  • 125 %
  • 0.94
  • 0.596
  • 76.0
  • 79.3
  • 1,701
  • 0.0
  • 30.00
