/Products/Electric Motors/DC/Leeson/NEMA Frame - SCR Rated/108262.00 Leeson 1.5HP DC Electric Motor, 1750 RPM
Click Image to Expand

Product ID: 108262.00

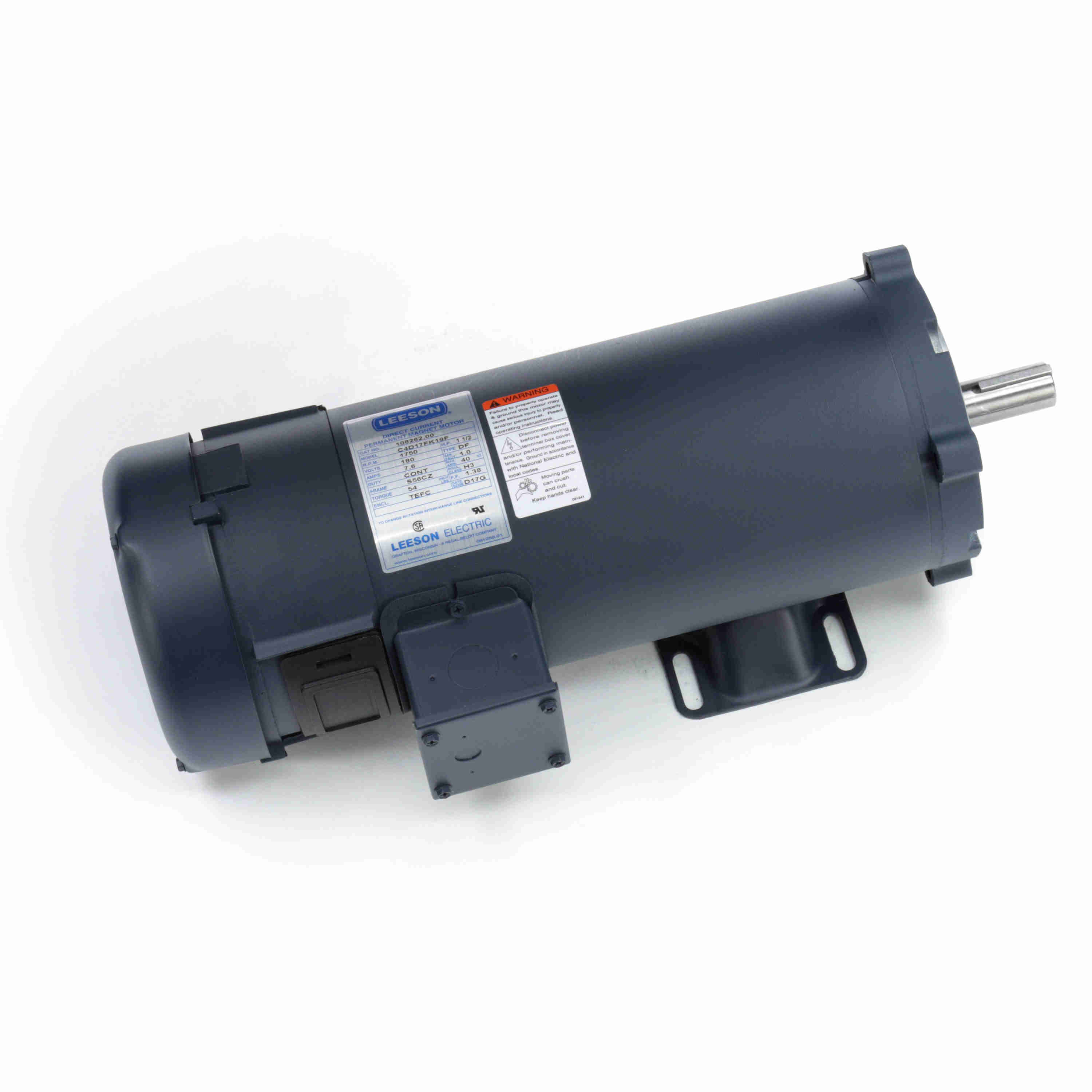

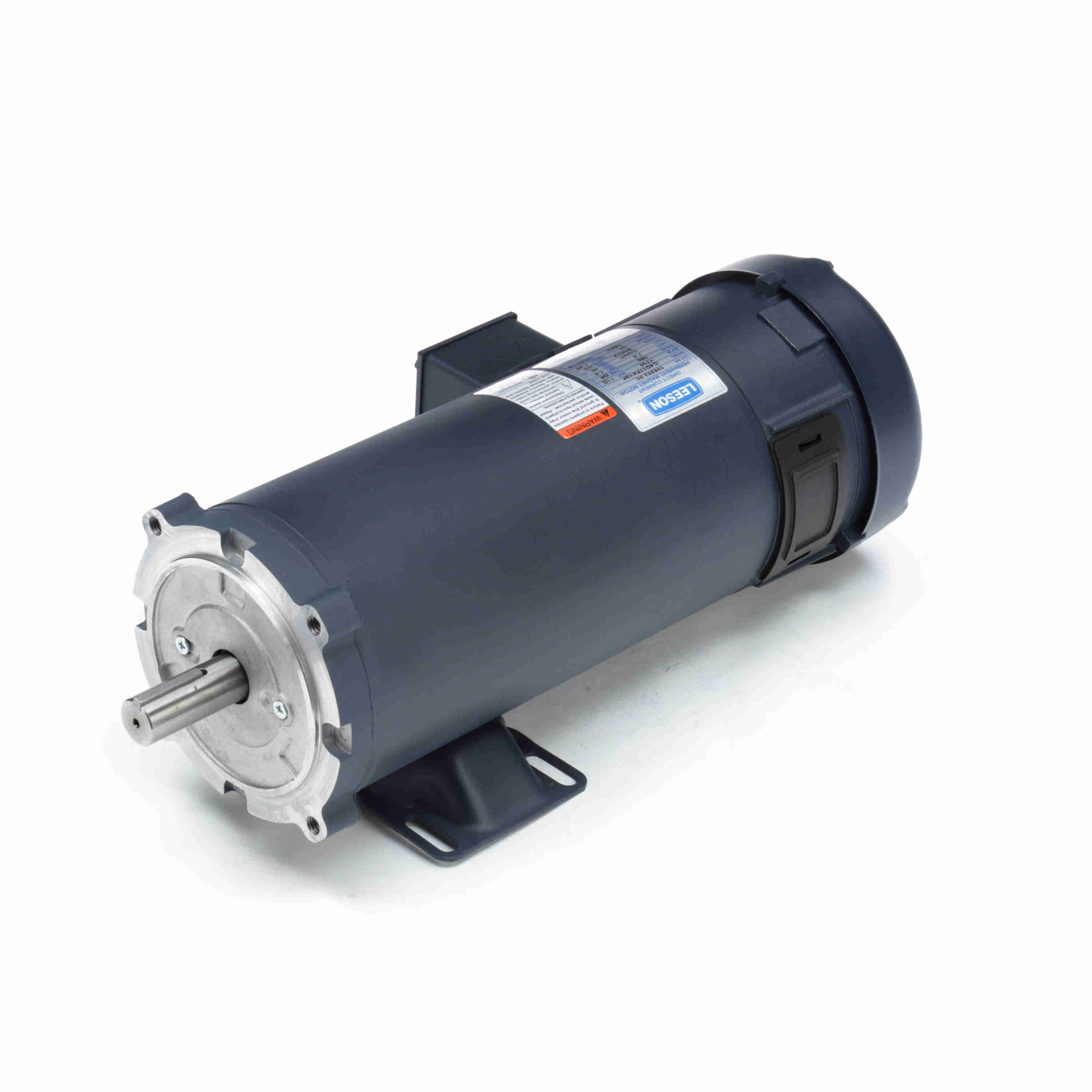

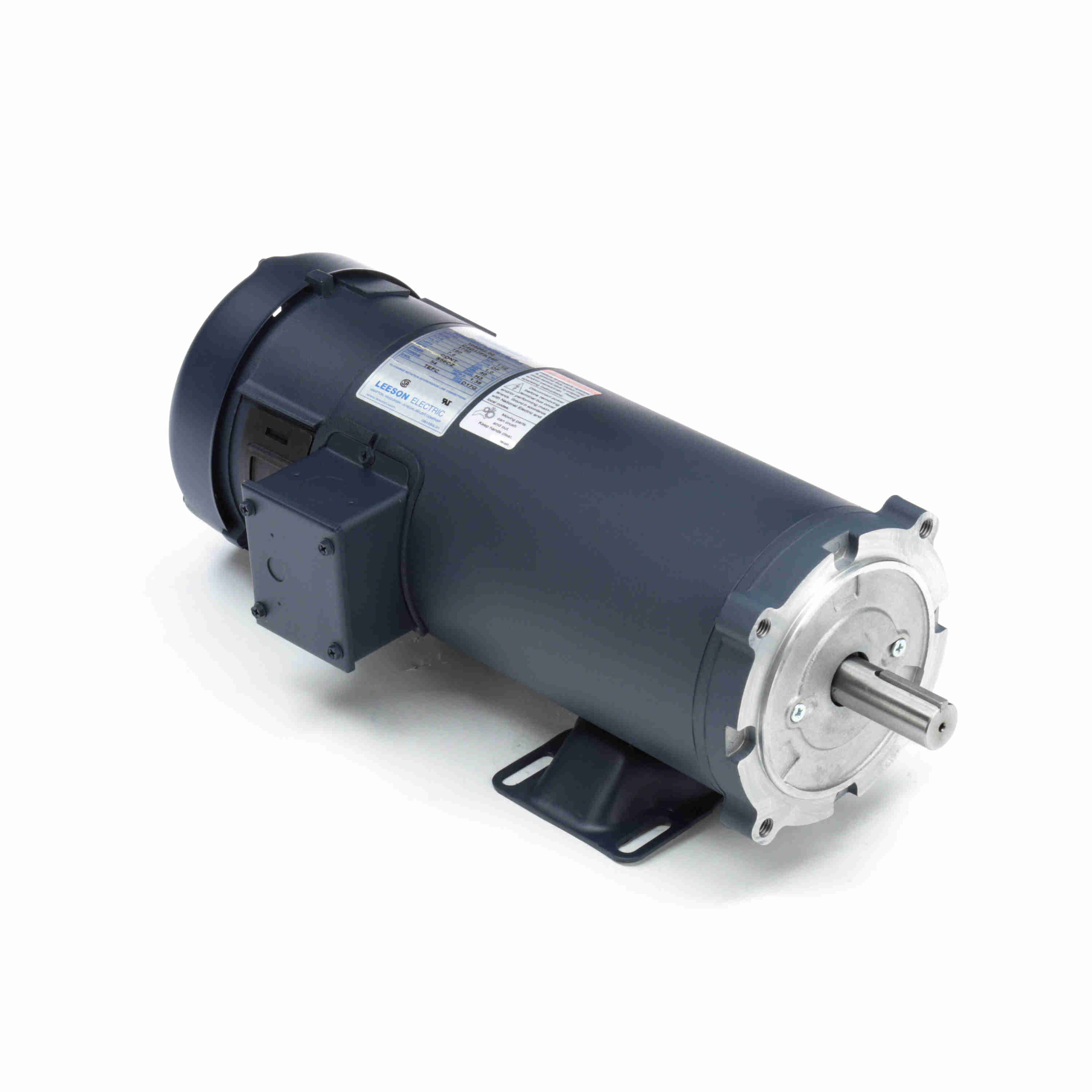

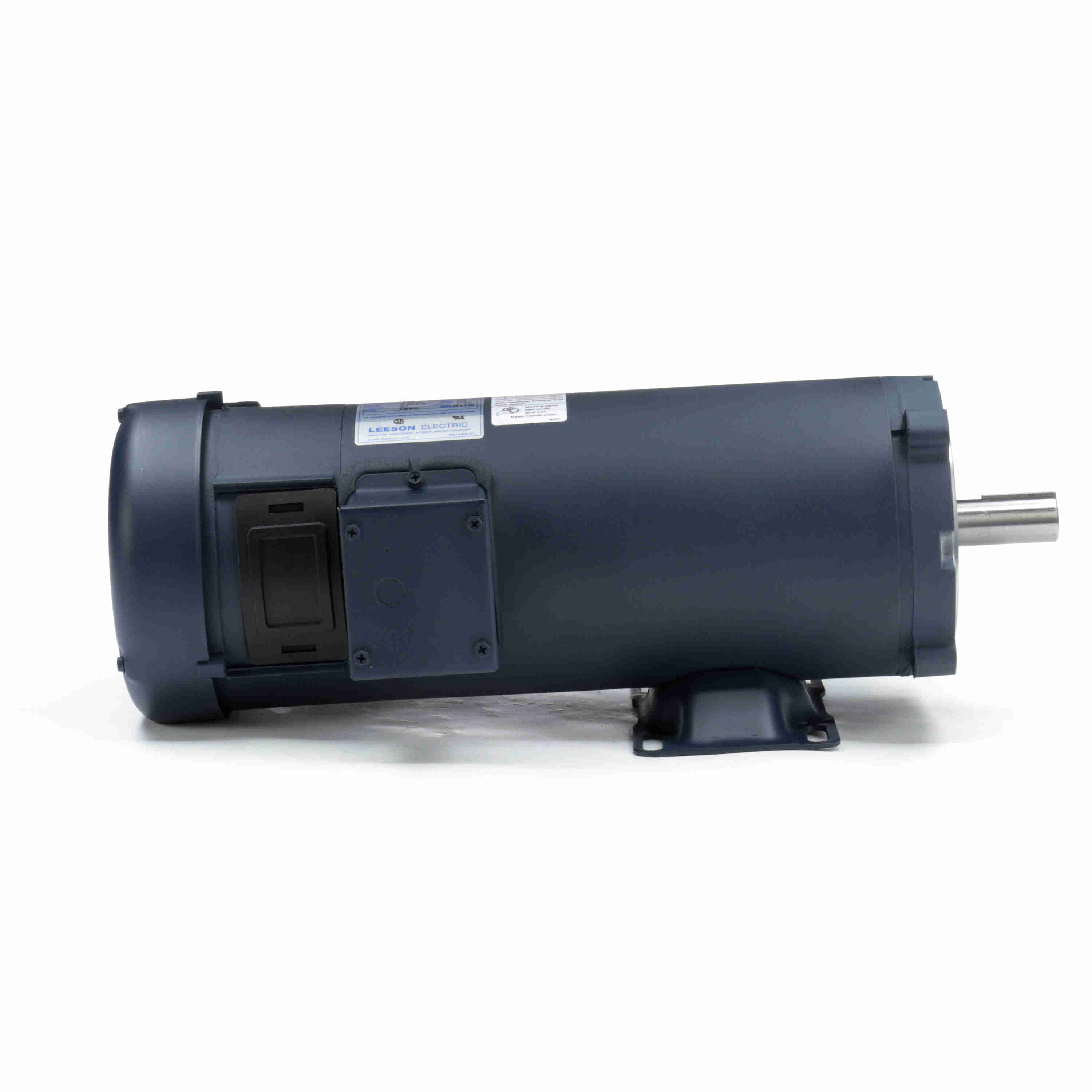

108262.00 Leeson 1.5HP DC Electric Motor, 1750 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 108262.00

Selected accessories will also be added to cart
$939.97 / Each
Quantity:
TEFC, S56CZ Frame, 180VDC, C4D17FK19F, C-Face With Removable Base, SCR Rated

Features

Features
  • Brush holder design provides easy access to brushes
  • Large oversized brushes assure long brush life
  • Removable bolt-on base; NEMA C face designs
  • 115 or 230 volt input power ratings – 90 / 180 volt output; Capable of dynamic braking
  • PWM or SCR type controller rated; High starting torque
  • Permanently lubricated sealed bearings
  • LEESON SCR controls available to power motors; High starting torque
  • Higher HP and speed achievable using PWM type DC controls
  • UL and CSA Listed; Meets NEMA MG1 standards
  • Dynamically balanced armatures; 30:1 constant torque operation

General Specifications

General Specifications
Model :C4D17FK19F Catalog No :108262.00
Part Description :1.5HP.1750RPM.S56CZ.TEFC.180V.CONT.40C.1.0SF.RIGID C.DC NEMA.C4D17FK19F Category :SCR
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :1.50 Hp Output KW :1.1 kW
Voltage :180 V Current :7.6 A
Speed :1750 rpm Service Factor :1
Efficiency :86.5 % Duty :Continuous
Insulation Class :H Frame :S56CZ
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N

Technical Specifications

Technical Specifications
Rotation :Reversible Mounting :Rigid C base
Overall Length :17.39 in Frame Length :9.97 in
Shaft Diameter :0.875 in Shaft Extension :2.13 in
UPC :691720006863 Weight :52.00 LB
