/Products/Electric Motors/DC Metric/Leeson/TEFC, Round Body/108369.00 Leeson 0.75kW IEC Metric DC Electric Motor, 1800RPM
Click Image to Expand

Product ID: 108369.00

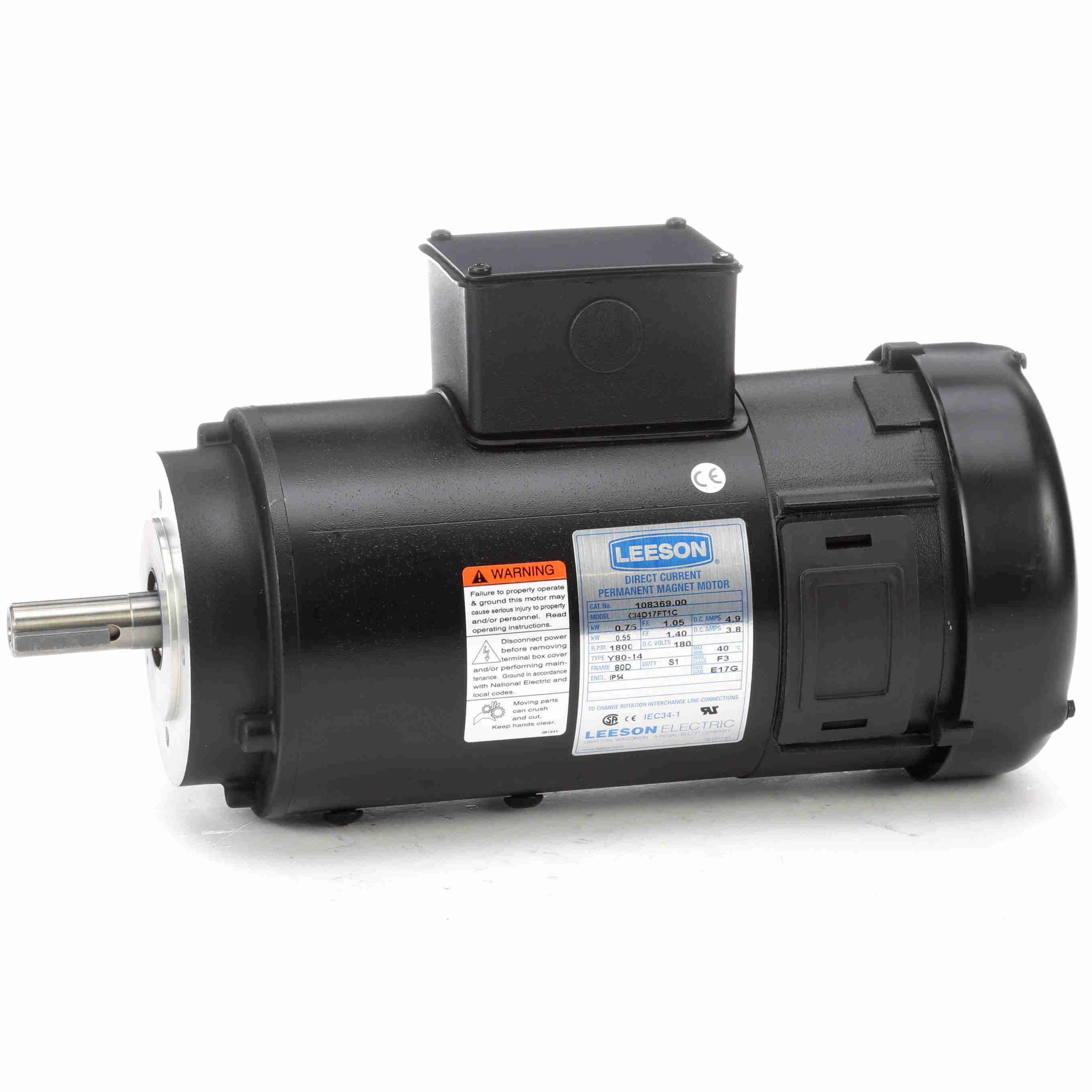

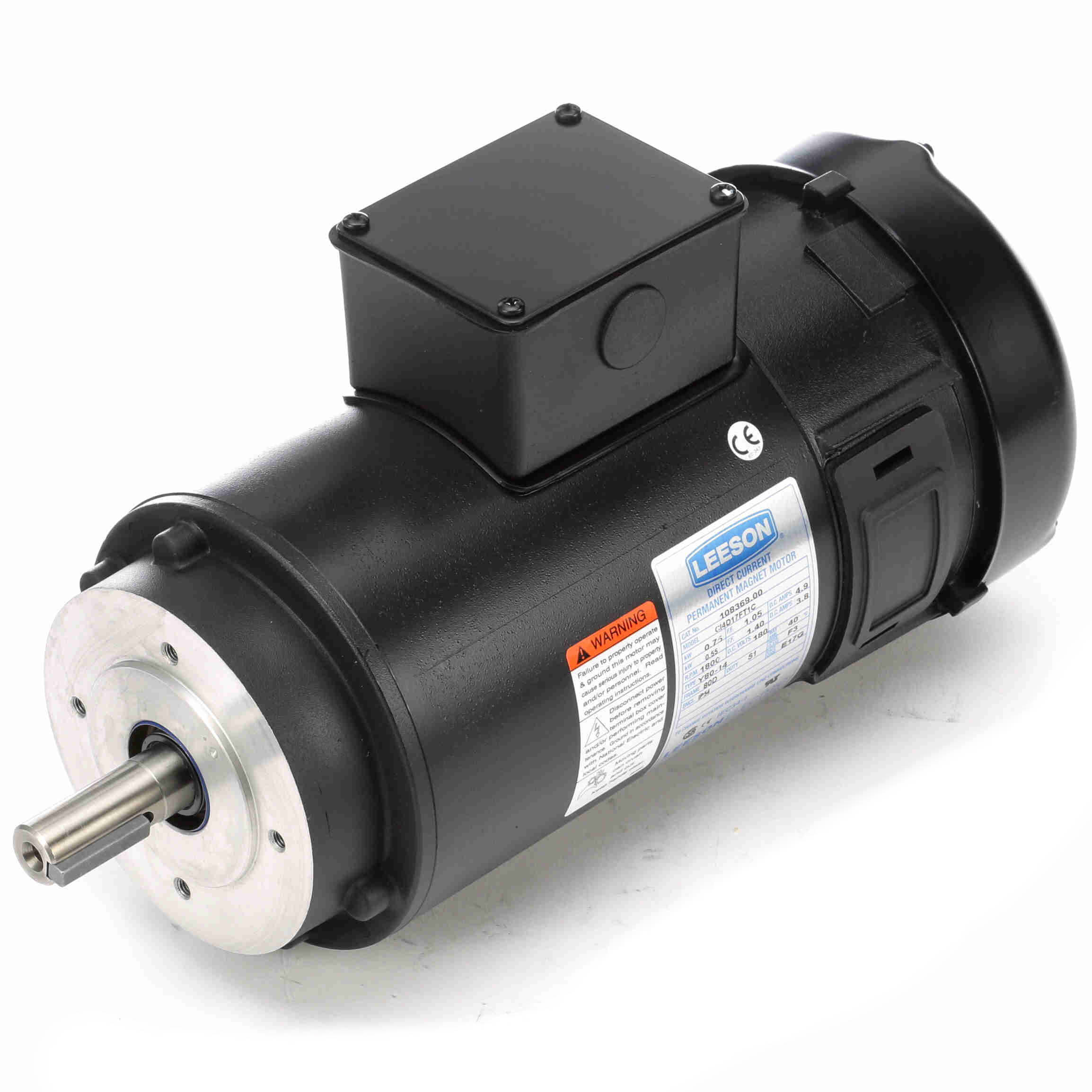

108369.00 Leeson 0.75kW IEC Metric DC Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 108369.00

Selected accessories will also be added to cart
$864.12 / Each
Quantity:
IP54, 80D Frame, 180VDC, CI4D17FT1C, Round Body, 19mm Keyed Shaft

Features

  • Cast aluminum conduit box
  • Terminal board provided for connections
  • All metric fasteners
  • Easy brush access for field service
  • Oversize brushes for extended life
  • High strength rolled steel frame
  • Die cast aluminum endshields with steel bearing inserts
  • Permanently lubricated sealed ball bearings
  • Reversible rotation; Simple 2 lead connection; Convenient wiring access
  • Tachometer mounting kits available for 71 and 80 frames only

General Specifications

UPC: 691720006917 Weight: 34 LB
Packaged Length: 19.5 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output KW: 0.75 kW Voltage: 180 V
Current: 4.9 A Speed: 1800 rpm
Service Factor: 1 Efficiency: 82 %
Duty: S1 Insulation Class: F
Frame: 80 Enclosure: IP54
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6204 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y

Technical Specifications

Rotation: Reversible Mounting: Special
Overall Length: 14.15 in Frame Length: 6.47 in
Shaft Diameter: 0.750 in Shaft Extension: 2.05 in
