/Products/Electric Motors/DC/Leeson/Washguard/109083.00 Leeson 0.50HP Washguard DC Electric Motor, 1750RPM
Click Image to Expand

Product ID: 109083.00

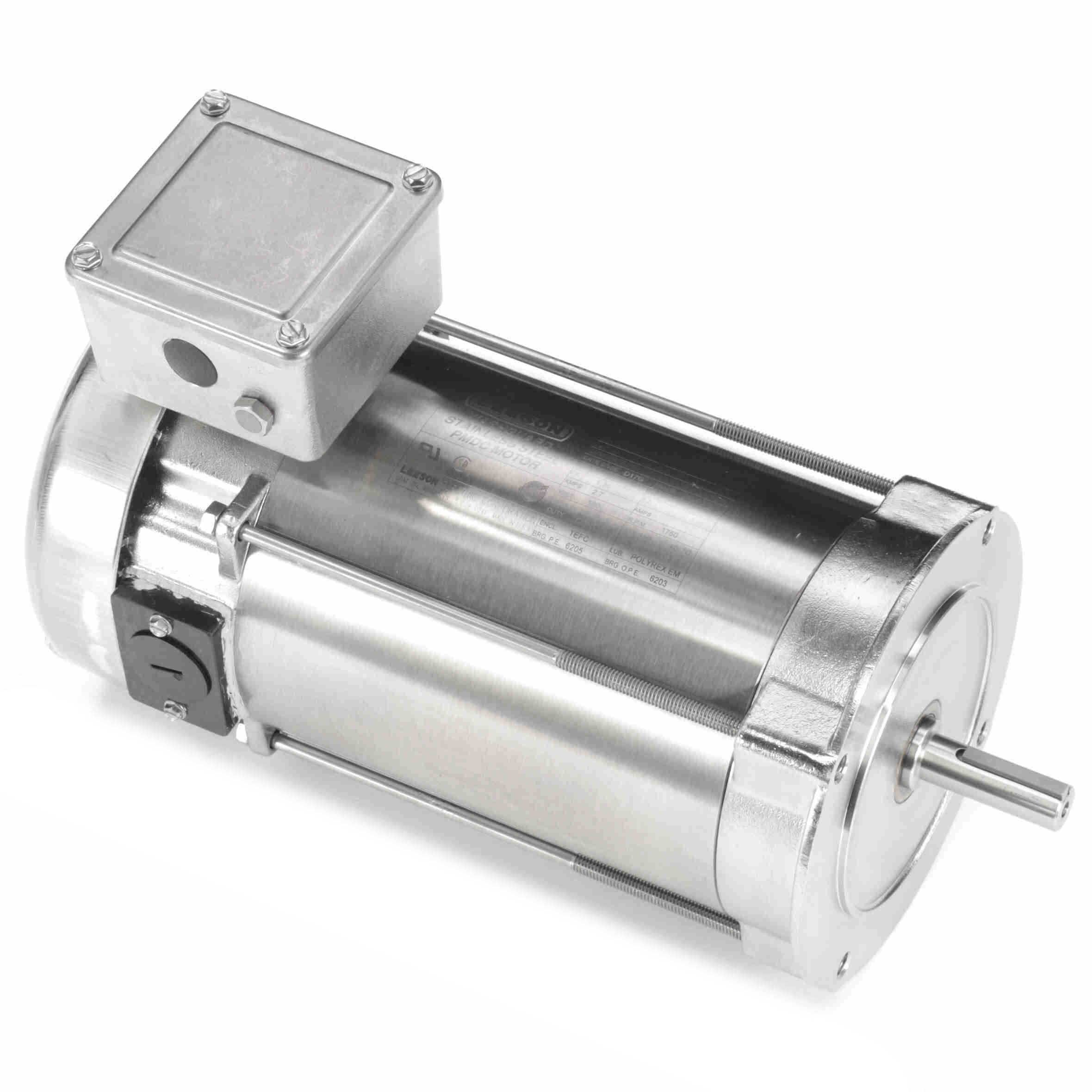

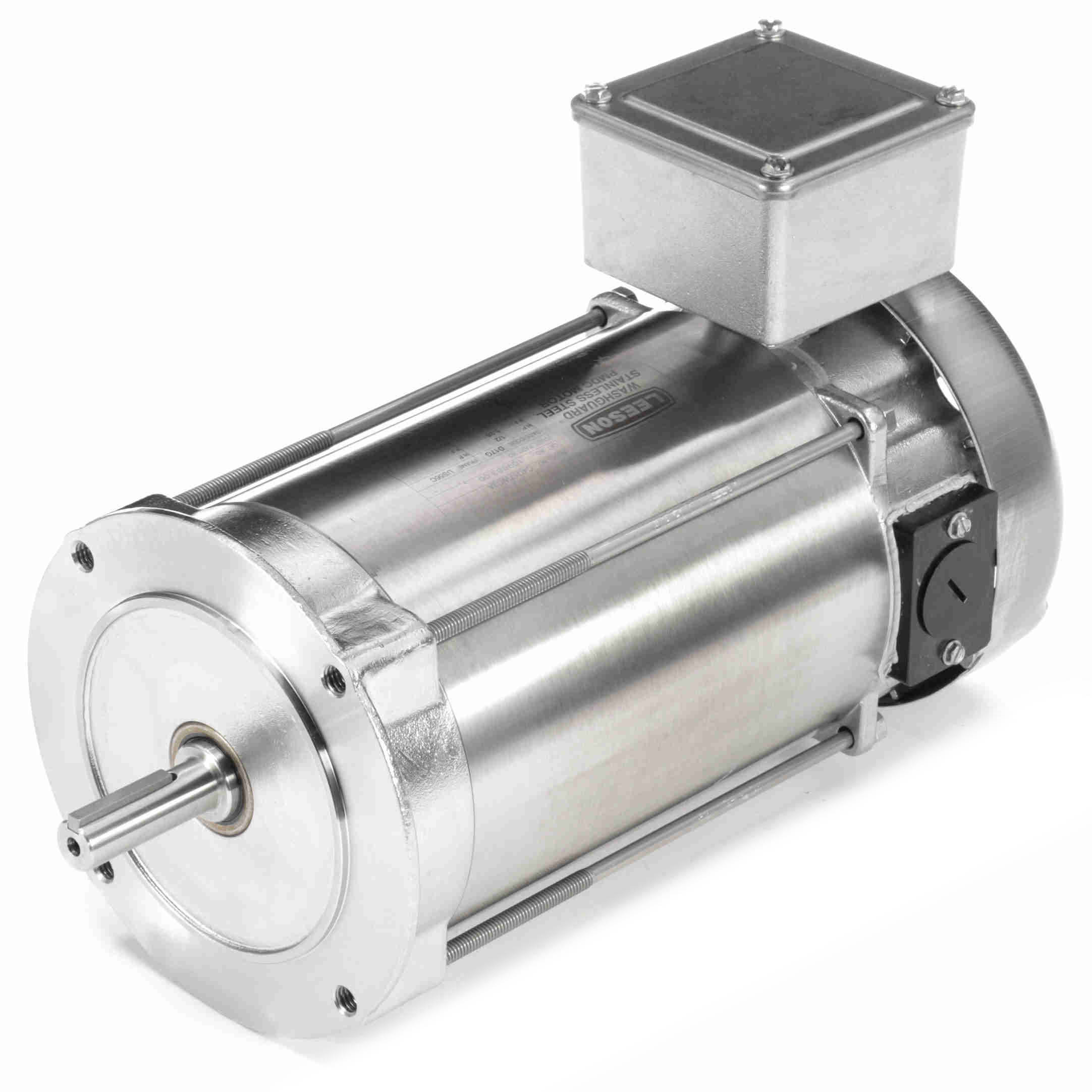

109083.00 Leeson 0.50HP Washguard DC Electric Motor, 1750RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 109083.00

Selected accessories will also be added to cart
$1,399.97 / Each
Quantity:
TEFC, 56C Frame, 180VDC, Round Body, C-Face, 5/8" Keyed Shaft, Stainless Steel

Features

  • All exterior components are 300-series stainless steel
  • All sealing components are Viton® for superior chemical resistance
  • Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
  • Double-sealed bearings are pre-lubricated with moisture-resistant high temperature grease for long life
  • Windings are immersed and cured in polyester insulating varnish for extra moisture-resistance
  • All Washdown Duty motors have Class F Insulation
  • New conduit box mounting system provides optimum sealing
  • Ease to clean construction is BISSC Certified for bakery applications
  • Full fact nameplate is laser etched on the motor frame

General Specifications

UPC: 691720343081 Weight: 46.00 LB
Packaged Length: 19.5 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 0.50 Hp Output KW: 0.37 kW
Voltage: 180 V Current: 2.7 A
Speed: 1750 rpm Service Factor: 1
Efficiency: 77.3 % Duty: Continuous
Insulation Class: F Frame: US56C
Enclosure: Totally Enclosed Fan Cooled Thermal Protection: No
Ambient Temperature: 40 °C Drive End Bearing Size: 6205
Opp Drive End Bearing Size: 6203 UL: Recognized
CSA: Y CE: N

Technical Specifications

Rotation: Reversible Mounting: Round
Overall Length: 13.87 in Frame Length: 7.25 in
Shaft Diameter: 0.625 in Shaft Extension: 2.05 in

Speed & Load Characteristics
