/Products/Electric Motors/Single Phase/Leeson/Washguard - TEFC/112527.00 Leeson Washguard Motor, 1/2HP, 1800RPM
Click Image to Expand

Product ID: 112527.00

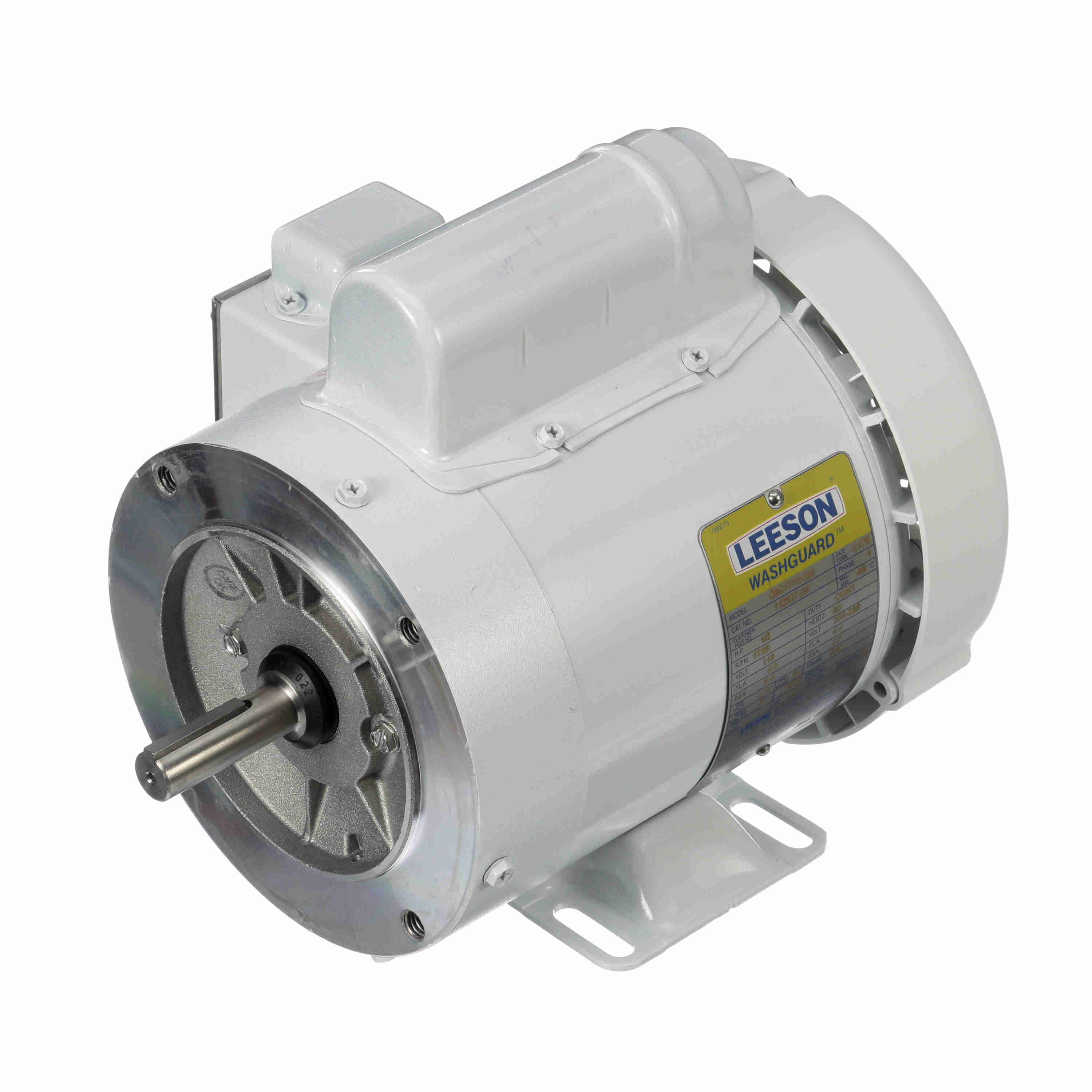

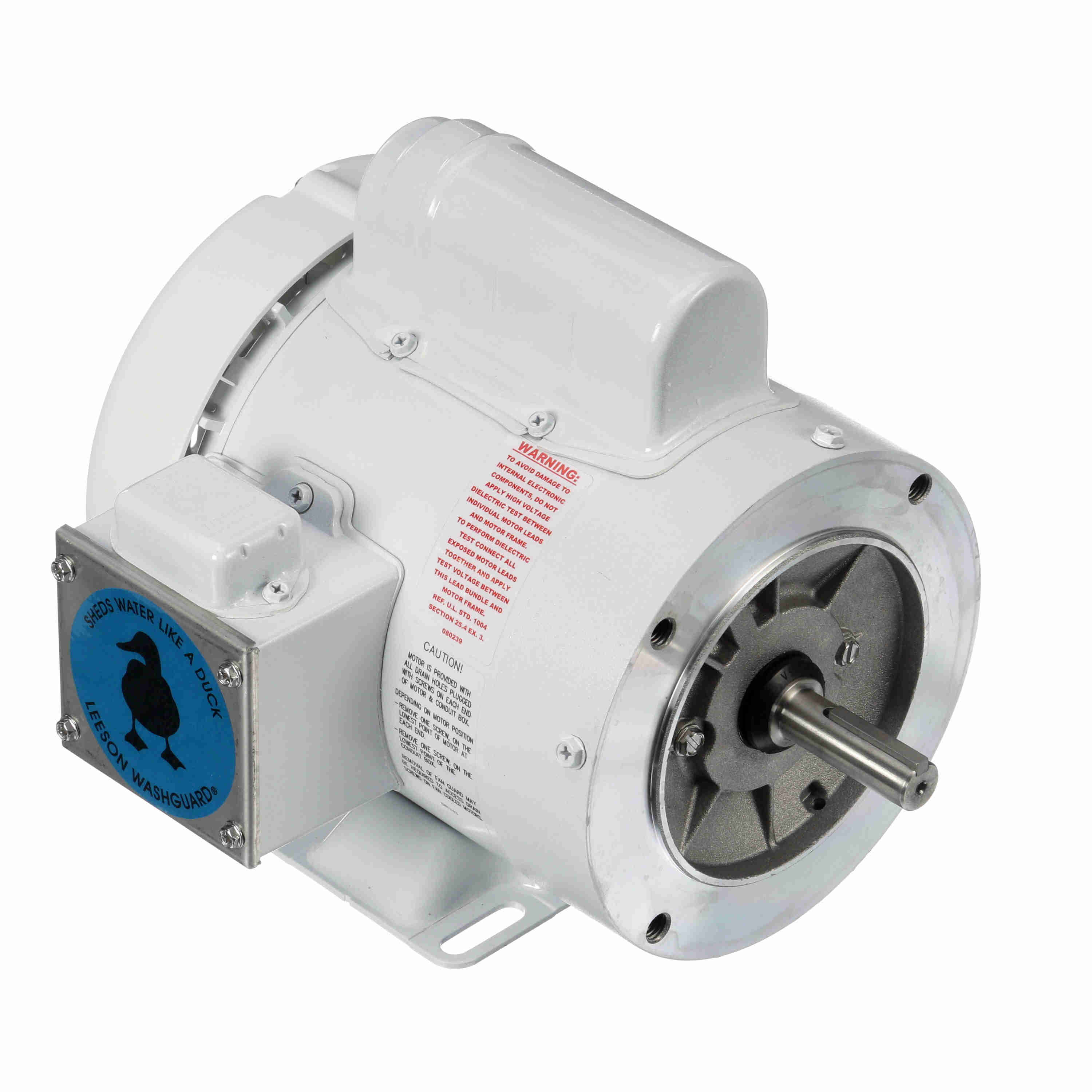

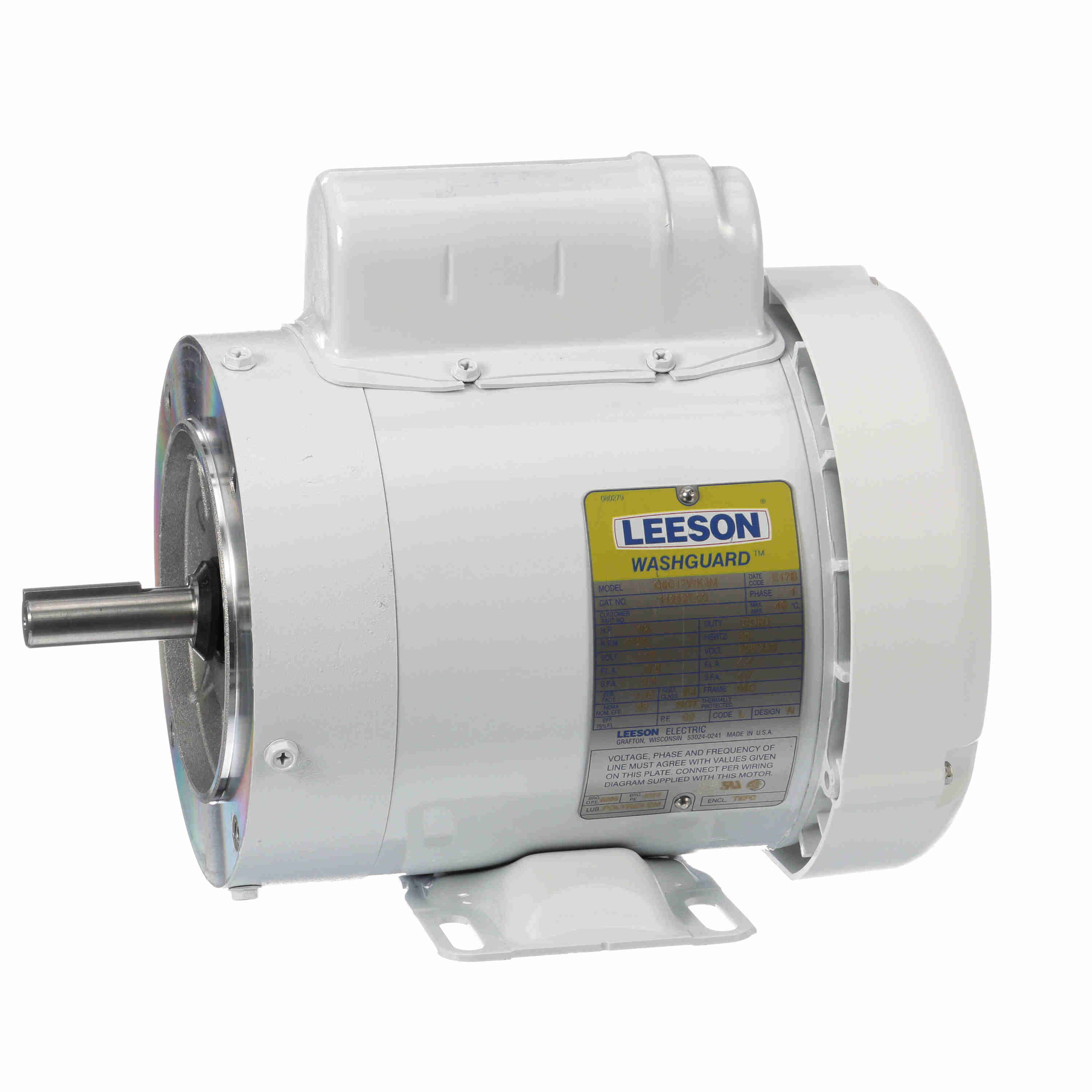

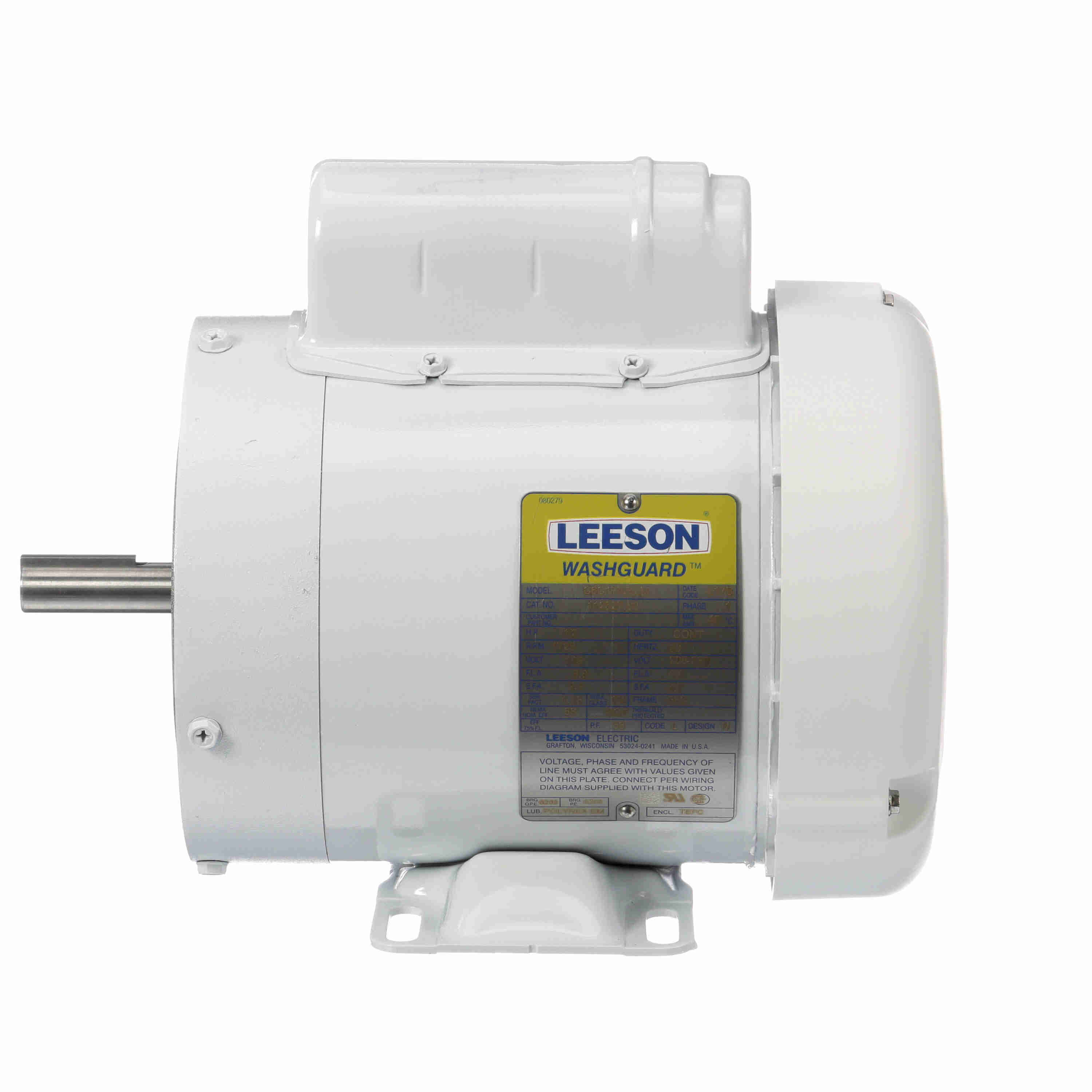

112527.00 Leeson Washguard Motor, 1/2HP, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 112527.00

Selected accessories will also be added to cart
$494.29 / Each
Quantity:
56C Frame, 115/208-230V 1-Phase, TEFC, C Face with Base, C6C17WK3M
Features
  • USDA-approved epoxy painted motors
  • Stainless steel Shaft
  • NEMA motors
  • AC washdown motors
  • Rigid base and C face mount types
  • BISSC approved designs
  • Double lip contact seals and v-ring seals used for shaft seals
  • UL recognized and CSA certified
  • Single phase motors feature an electronic Solid State Encapsulated switch
General Specifications
Model :C6C17WK3M Catalog No :112527.00
Part Description :1/2HP.- C-FACE WITH BASE -..1725RPM.56.TEFC./V.1PH.60HZ.CONT.NOT.40C.1.15SF.RIGID C.WASHGUARD.C6C17WK3M Category :General Purpose
Stock :No
Nameplate Specifications
Output HP :0.50 Hp Output KW :0.37 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :8.8/4.4 A Speed :1725 rpm
Service Factor :1.15 Phase :1
Efficiency :66 % Duty :Continuous
Insulation Class :F Design Code :N
KVA Code :L Frame :56C
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :55
Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :NEMA 56
Overall Length :10.87 in Frame Length :5.00 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720010853
Weight :26.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up0.000.064.50262.01,3000.000.00.50
Full Load4.360.024.000.01,7460.5958.10.50
Locked-Rotor20.280.086.40357.003.970.00.50
Break-Down0.000.067.30272.01,4750.000.00.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 3.70
  • 0.197
  • 0.0
  • 23.1
  • 1,792
  • 0.0
  • 0.00
  • 25 %
  • 3.65
  • 0.274
  • 34.6
  • 32.6
  • 1,781
  • 0.0
  • 6.00
  • 50 %
  • 3.76
  • 0.371
  • 50.7
  • 42.9
  • 1,767
  • 0.0
  • 12.00
  • 75 %
  • 3.97
  • 0.472
  • 59.3
  • 51.7
  • 1,753
  • 0.0
  • 18.00
  • 100 %
  • 4.35
  • 0.584
  • 63.0
  • 58.4
  • 1,728
  • 84.0
  • 24.00
  • 125 %
  • 4.64
  • 0.695
  • 65.9
  • 65.1
  • 1,720
  • 0.0
  • 30.00
  • 150 %
  • 5.09
  • 0.821
  • 66.1
  • 70.1
  • 1,699
  • 0.0
  • 36.00
