/Products/Electric Motors/Single Phase/Leeson/Washguard - TEFC/112528.00 Leeson Washguard Motor, 3/4HP, 1800RPM
Click Image to Expand

Product ID: 112528.00

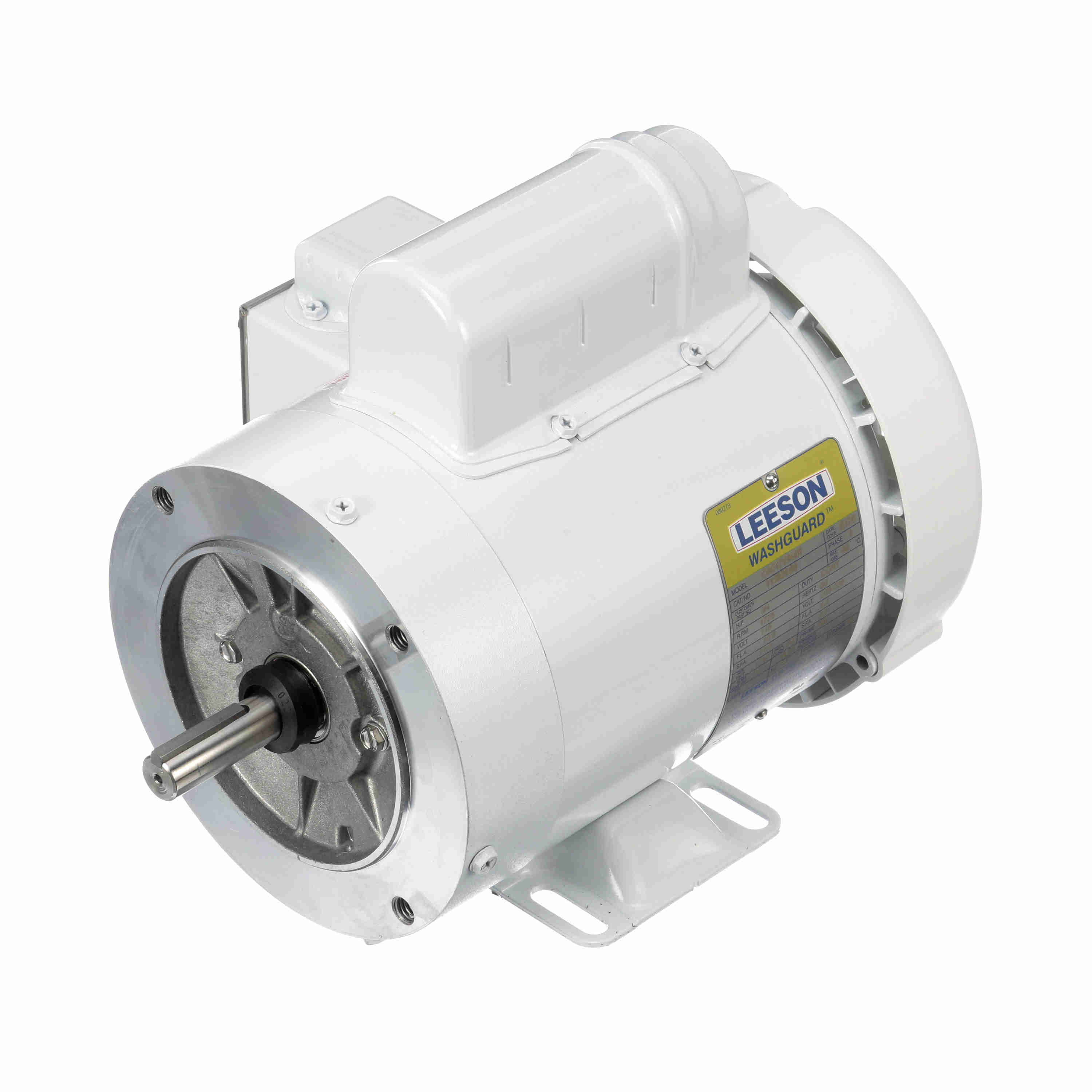

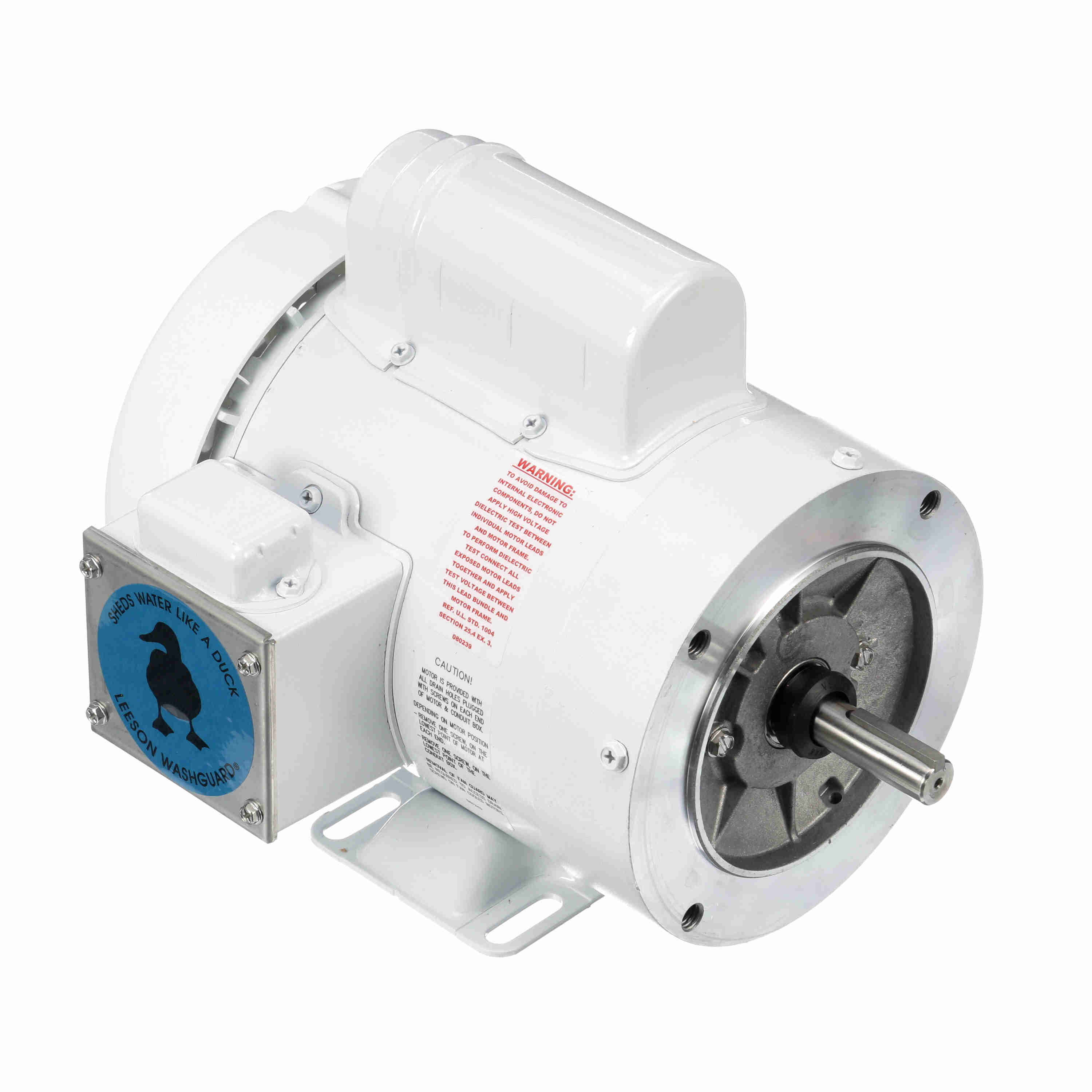

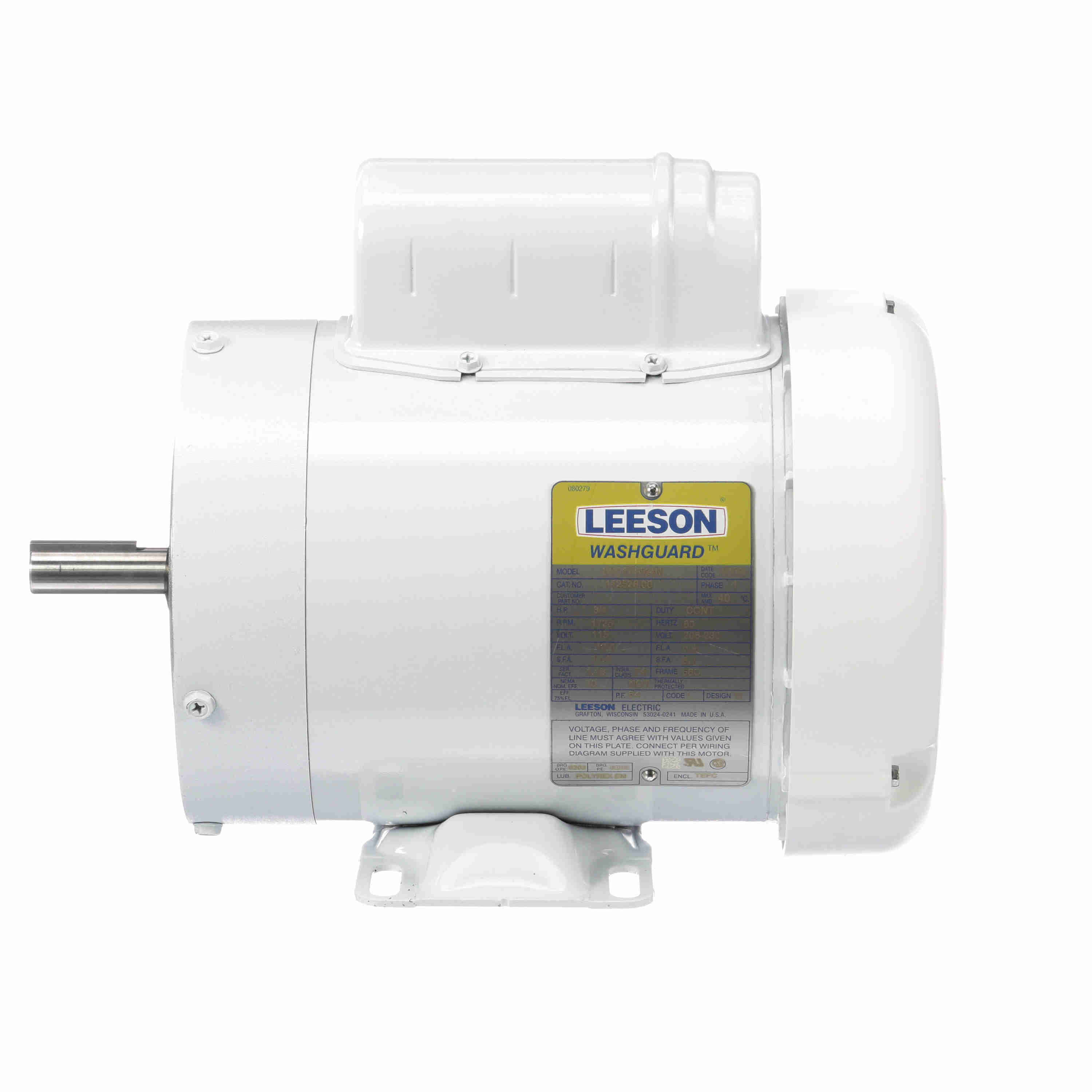

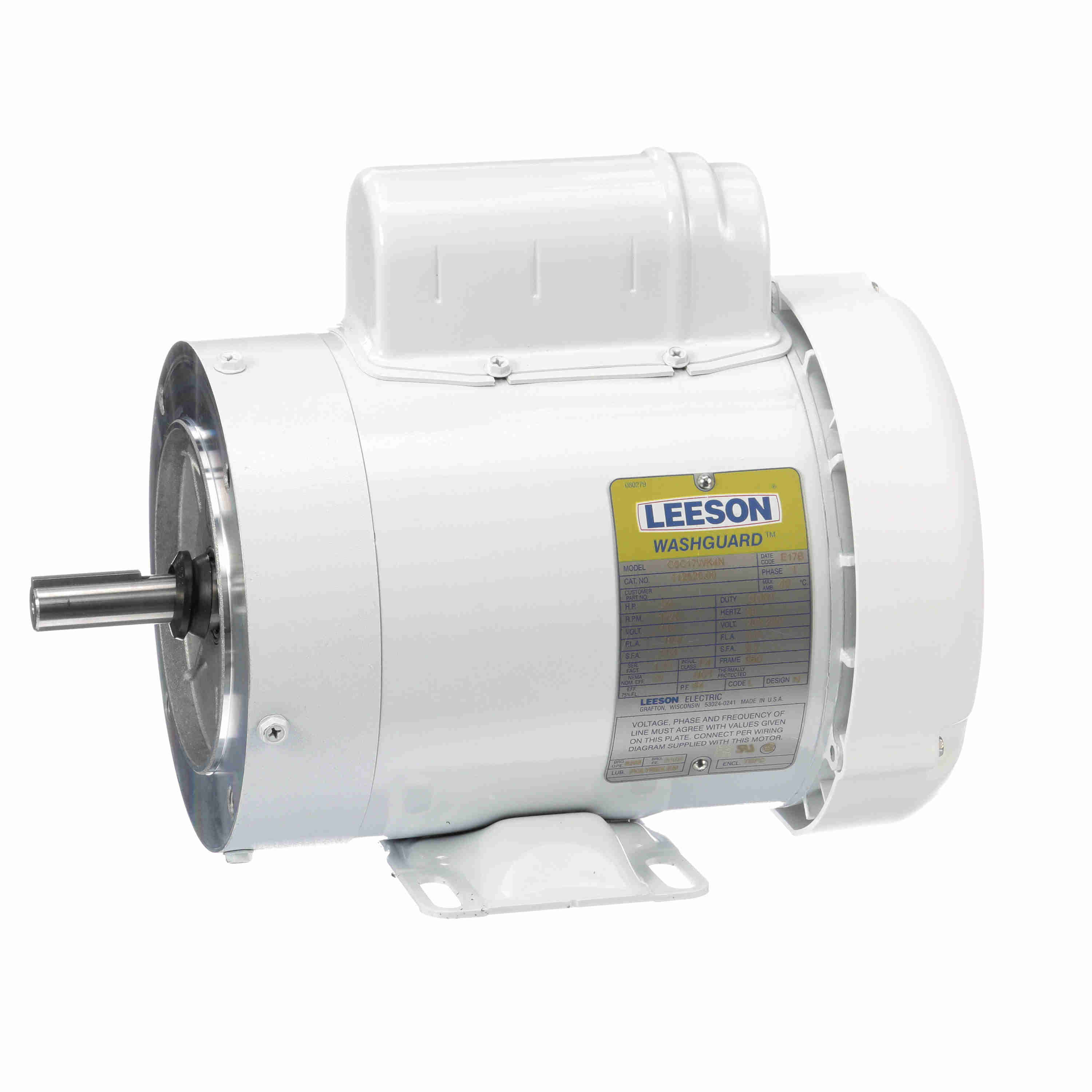

112528.00 Leeson Washguard Motor, 3/4HP, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 112528.00

Selected accessories will also be added to cart
$550.72 / Each
Quantity:
56C Frame, 115/208-230V 1-Phase, TEFC, C Face with Base, C6C17WK4N
Features
  • USDA-approved epoxy painted motors
  • Stainless steel Shaft
  • NEMA motors
  • AC washdown motors
  • Rigid base and C face mount types
  • BISSC approved designs
  • Double lip contact seals and v-ring seals used for shaft seals
  • UL recognized and CSA certified
  • Single phase motors feature an electronic Solid State Encapsulated switch
General Specifications
Model :C6C17WK4N Catalog No :112528.00
Part Description :3/4HP.- C-FACE WITH BASE -..1725RPM.56.TEFC./V.1PH.60HZ.CONT.NOT.40C.1.15SF.RIGID C.WASHGUARD.C6C17WK4N Category :General Purpose
Stock :No
Nameplate Specifications
Output HP :0.75 Hp Output KW :0.56 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :10.8/5.4 A Speed :1725 rpm
Service Factor :1.15 Phase :1
Efficiency :70 % Duty :Continuous
Insulation Class :F Design Code :N
KVA Code :L Frame :56C
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :55
Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :NEMA 56
Overall Length :11.62 in Frame Length :5.75 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720010938
Weight :33.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down15.200.098.470.01,5362.800.00.75
Locked-Rotor30.100.0114.480.006.000.00.75
Full Load5.460.035.950.01,7530.8064.00.75
Pull-Up19.200.084.190.01,3143.200.00.75
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 4.13
  • 0.172
  • 0.0
  • 18.1
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 4.20
  • 0.306
  • 46.0
  • 31.6
  • 1,786
  • 0.0
  • 8.85
  • 50 %
  • 4.45
  • 0.456
  • 61.3
  • 44.6
  • 1,777
  • 0.0
  • 17.72
  • 75 %
  • 4.86
  • 0.519
  • 67.8
  • 55.3
  • 1,766
  • 0.0
  • 26.79
  • 100 %
  • 5.42
  • 0.792
  • 70.7
  • 63.6
  • 1,754
  • 78.0
  • 35.94
  • 125 %
  • 6.11
  • 0.978
  • 71.5
  • 69.6
  • 1,740
  • 90.0
  • 45.30
  • 150 %
  • 6.97
  • 1.191
  • 70.8
  • 74.3
  • 1,723
  • 0.0
  • 55.09
  • 175 %
  • 7.97
  • 1.421
  • 88.9
  • 77.4
  • 1,703
  • 0.0
  • 64.75
