/Products/Electric Motors/3 Phase/Leeson/Washguard - TENV/TEFC/112547.00 Leeson Washguard Motor, 1/3 HP, 1800 RPM
Click Image to Expand

Product ID: 112547.00

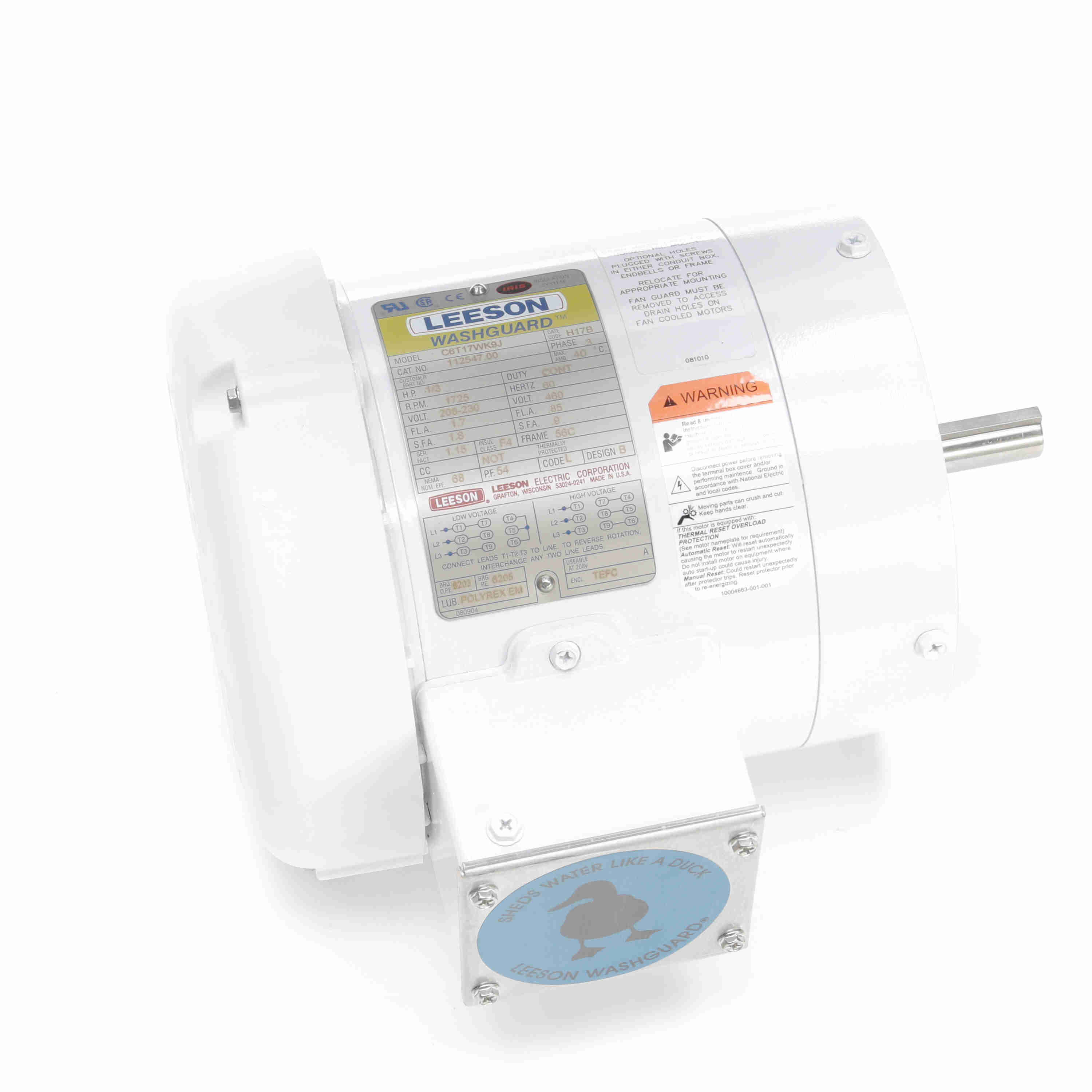

112547.00 Leeson Washguard Motor, 1/3 HP, 1800 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 112547.00

Selected accessories will also be added to cart
$629.97 / Each
Quantity:
56C Frame, 208-230/460V 3-Phase, TEFC, C Face with Face, C6T17WK9J, Washdown Duty
Features
  • USDA-approved epoxy painted motors
  • NEMA motors
  • Rigid base and C face mount types
  • BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • UL recognized and CSA certified
  • Washdown brakemotors and pump motors available
General Specifications
Model :C6T17WK9J Catalog No :112547.00
Part Description :1/3HP..1725RPM.56.TEFC.208-230/460V.3PH.60HZ.CONT.NOT.40C.1.15SF.RIGID C.WASHGUARD.C6T17WK9J Category :General Purpose
Stock :No
Nameplate Specifications
Output HP :0.33 Hp Output KW :0.25 kW
Frequency :60 Hz Voltage :208-230/460 V
Current :1.5-1.7/0.85 A Speed :1725 rpm
Service Factor :1.15 Phase :3
Efficiency :68 % Duty :Continuous
Insulation Class :F Design Code :B
KVA Code :L Frame :56C
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :Y
IP Code :55
Technical Specifications
Electrical Type :Squirrel Cage Induction Run Starting Method :Across The Line
Poles :4 Rotation :Reversible
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :NEMA 56
Overall Length :10.37 in Frame Length :4.50 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720010990
Weight :25.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up3.36391.060.00375.02002.200.00.33
Full Load0.86100.016.00100.01,7380.3957.40.33
Locked-Rotor3.65424.046.70292.002.210.00.33
Break-Down2.12247.080.00500.01,0001.390.00.33
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 0.76
  • 0.144
  • 0.0
  • 23.9
  • 1,789
  • 0.0
  • 0.00
  • 25 %
  • 0.74
  • 0.177
  • 35.8
  • 29.8
  • 1,777
  • 0.0
  • 4.00
  • 50 %
  • 0.77
  • 0.243
  • 51.5
  • 39.6
  • 1,765
  • 0.0
  • 8.00
  • 75 %
  • 0.78
  • 0.312
  • 59.8
  • 50.3
  • 1,750
  • 0.0
  • 12.00
  • 100 %
  • 0.83
  • 0.382
  • 64.4
  • 57.8
  • 1,733
  • 37.0
  • 16.00
  • 125 %
  • 0.89
  • 0.458
  • 66.5
  • 64.6
  • 1,716
  • 0.0
  • 20.00
  • 150 %
  • 0.95
  • 0.533
  • 67.8
  • 70.1
  • 1,698
  • 0.0
  • 24.00
  • 175 %
  • 1.04
  • 0.617
  • 67.5
  • 74.5
  • 1,676
  • 0.0
  • 28.00
  • 200 %
  • 1.12
  • 0.695
  • 67.5
  • 78.1
  • 1,653
  • 0.0
  • 32.00
