/Products/Electric Motors/3 Phase/Leeson/Washguard - TENV/TEFC/113019.00 Leeson Washguard Motor, 3/4 HP, 1800 RPM
Click Image to Expand

Product ID: 113019.00

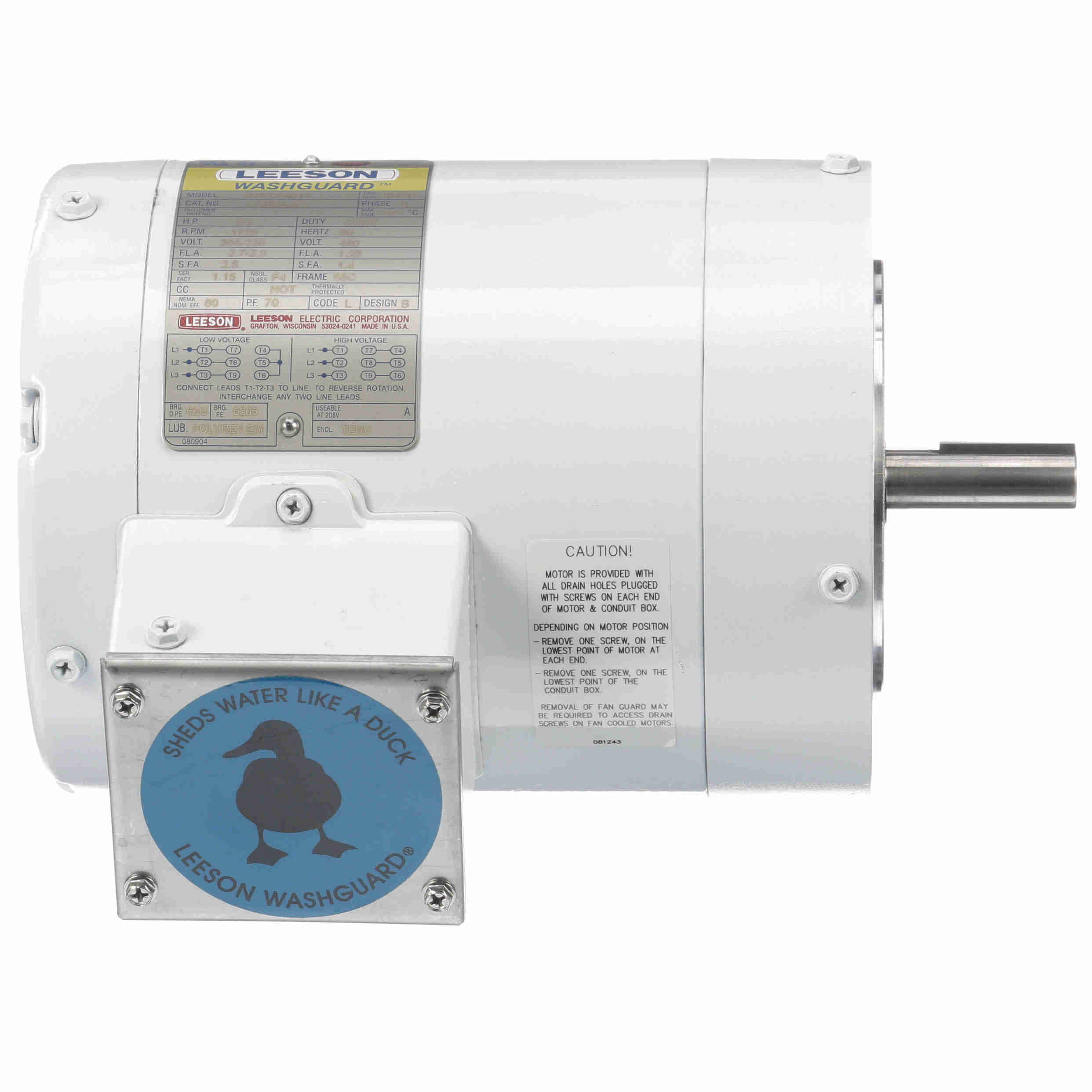

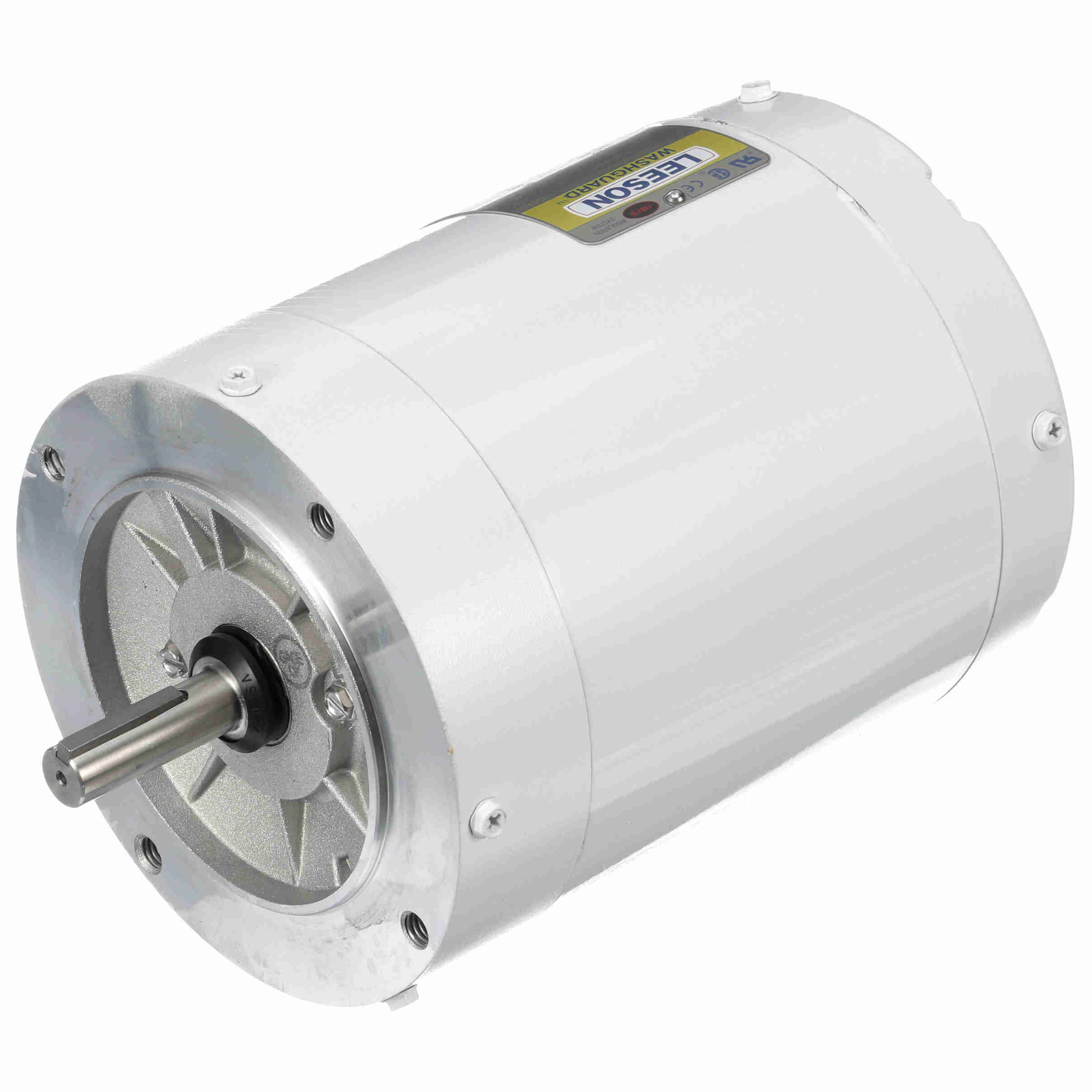

113019.00 Leeson Washguard Motor, 3/4 HP, 1800 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 113019.00

Selected accessories will also be added to cart
$568.97 / Each
Quantity:
56C Frame, 208-230/460V 3-Phase, TENV, C Face Less Base, C6T17VC1J, Washdown Duty
Features
  • USDA-approved epoxy painted motors
  • NEMA motors
  • Rigid base and C face mount types
  • BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • UL recognized and CSA certified
  • Washdown brakemotors and pump motors available
General Specifications
Model :C6T17VC1J Catalog No :113019.00
Part Description :..3/4HP..1725RPM.56.TENV.208-230/460V.3PH.60HZ.CONT.40C.1.15SF.C FACE.C6T17VC1J.....WASHGUARD.NOT....... Category :General Purpose
Stock :No
Nameplate Specifications
Output HP :0.75 Hp Output KW :0.56 kW
Frequency :60 Hz Voltage :208-230/460 V
Current :2.7-2.5/1.3 A Speed :1725 rpm
Service Factor :1.15 Phase :3
Efficiency :80 % Duty :Continuous
Insulation Class :F Design Code :B
KVA Code :L Frame :56C
Enclosure :Totally Enclosed Non Ventilated Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :Y
IP Code :55
Technical Specifications
Electrical Type :Squirrel Cage Induction Run Starting Method :Across The Line
Poles :4 Rotation :Reversible
Mounting :Round Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :NEMA 56
Overall Length :10.56 in Frame Length :5.50 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720011645
Weight :31.00 LB
