/Products/Electric Motors/3 Phase/Leeson/Washguard - TENV/TEFC/113024.00 Leeson Washguard Motor, 1.5 HP, 3600 RPM
Click Image to Expand

Product ID: 113024.00

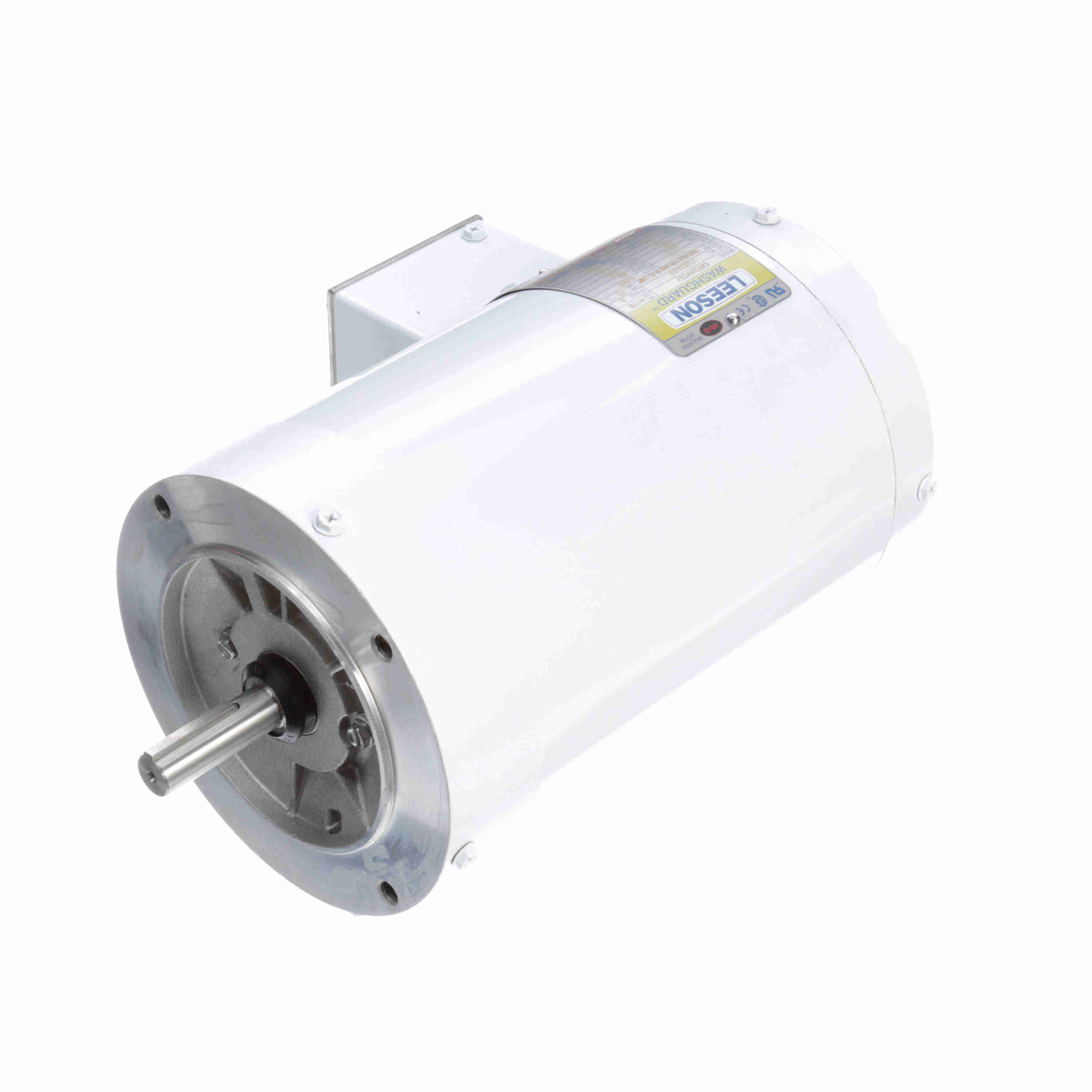

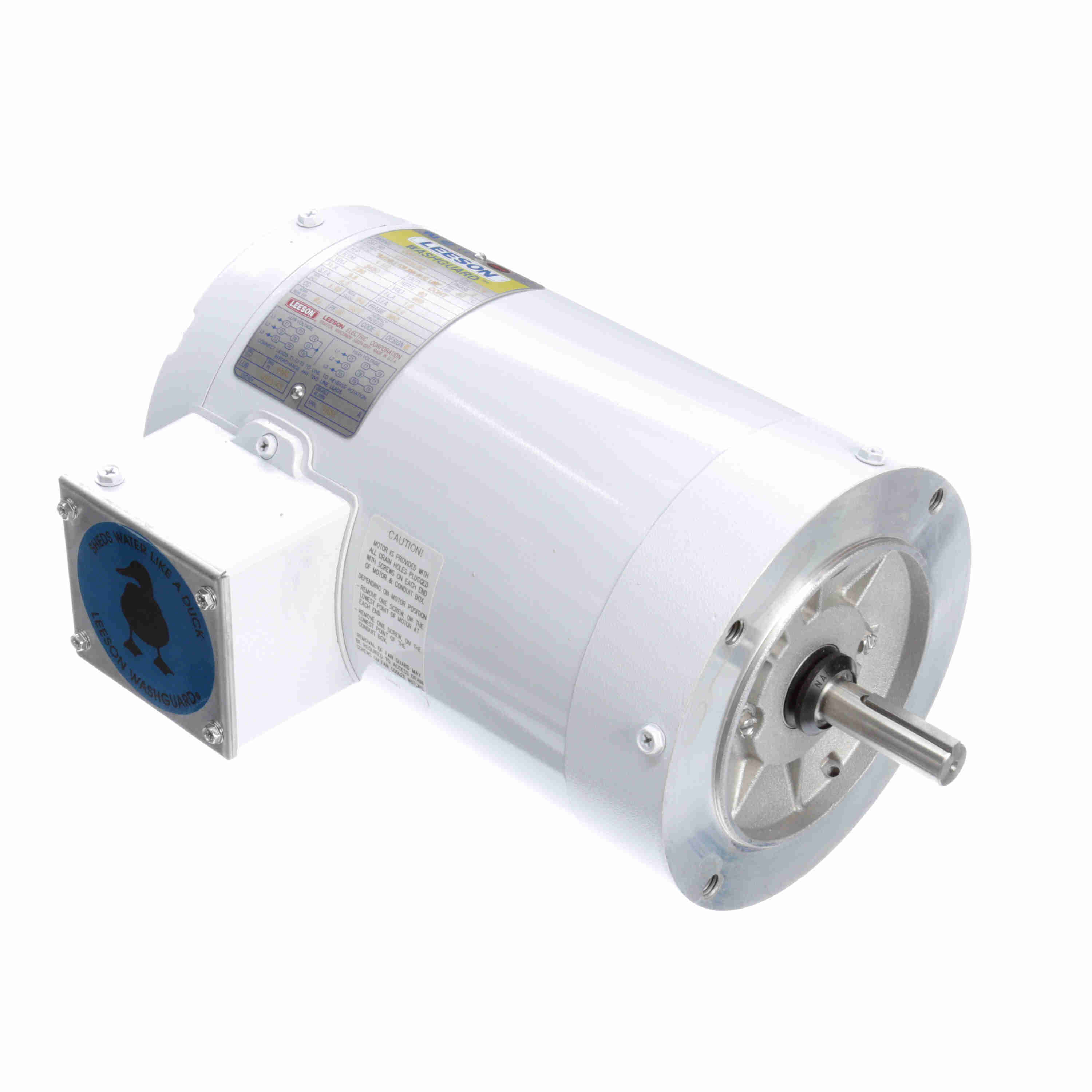

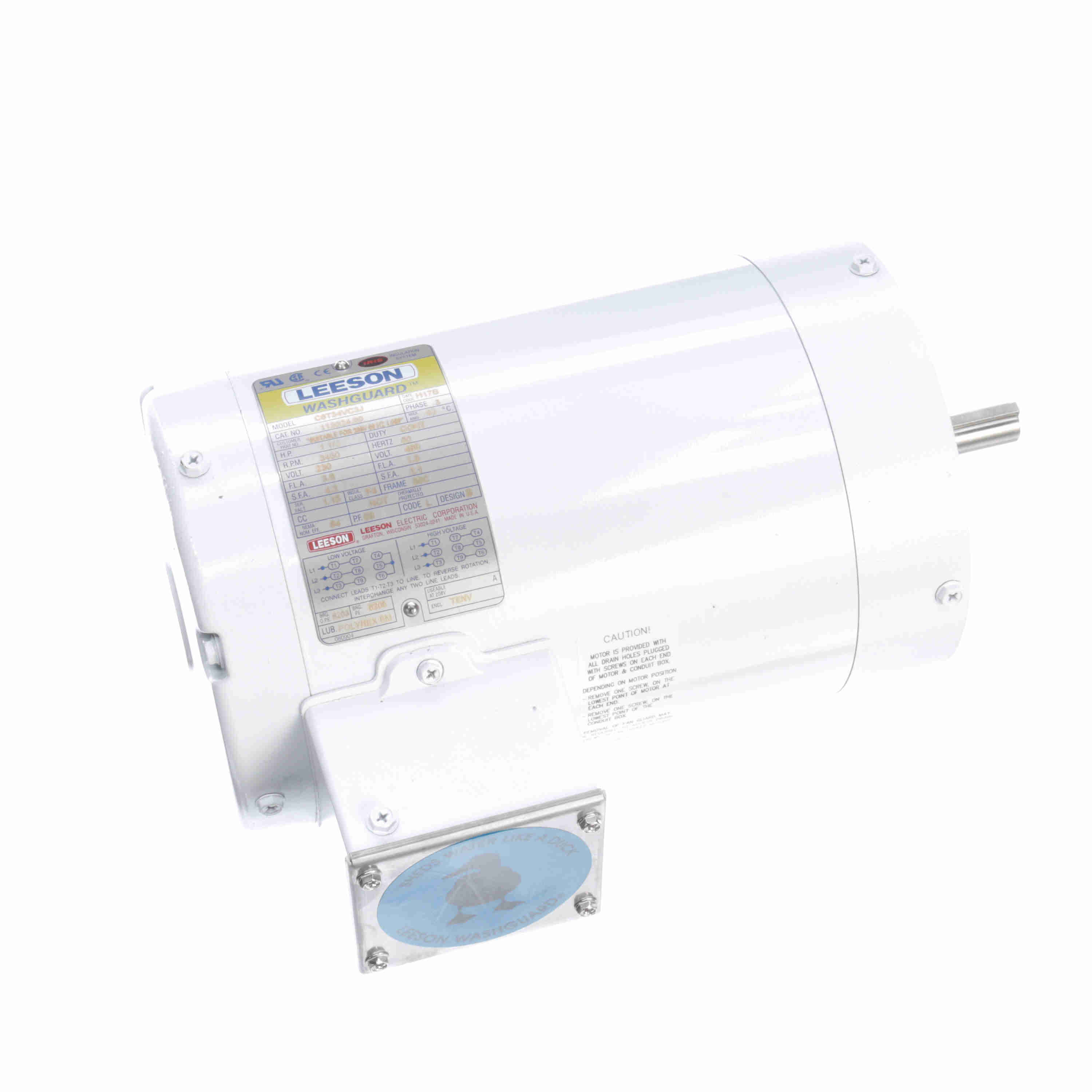

113024.00 Leeson Washguard Motor, 1.5 HP, 3600 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 113024.00

Selected accessories will also be added to cart
$613.97 / Each
Quantity:
56C Frame, 208-230/460V 3-Phase, TENV, C Face Less Base, C6T34VC3J, Washdown Duty
Features
  • USDA-approved epoxy painted motors
  • NEMA motors
  • Rigid base and C face mount types
  • BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • UL recognized and CSA certified
  • Washdown brakemotors and pump motors available
General Specifications
Model :C6T34VC3J Catalog No :113024.00
Part Description :..1 1/2HP..3450RPM.56.TENV.230/460V.3PH.60HZ.CONT.40C.1.15SF.C FACE.C6T34VC3J.....WASHGUARD.NOT....... Category :General Purpose
Stock :No
Nameplate Specifications
Output HP :1.50 Hp Output KW :1.1 kW
Frequency :60 Hz Voltage :230/460 V
Current :3.8/1.9 A Speed :3450 rpm
Service Factor :1.15 Phase :3
Efficiency :84 % Duty :Continuous
Insulation Class :F Design Code :B
KVA Code :L Frame :56C
Enclosure :Totally Enclosed Non Ventilated Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :Y
IP Code :55
Technical Specifications
Electrical Type :Squirrel Cage Induction Run Starting Method :Across The Line
Poles :2 Rotation :Reversible
Mounting :Round Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :NEMA 56
Overall Length :12.56 in Frame Length :7.50 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720011690
Weight :45.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up0.007.80347.02001.50
Full Load1.902.25100.03,4731.50
Break-Down0.009.50422.02,6001.50
Locked-Rotor17.008.20364.001.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 0.77
  • 0.140
  • 0.0
  • 22.8
  • 3,598
  • 0.0
  • 0.00
  • 25 %
  • 0.86
  • 0.355
  • 71.5
  • 51.8
  • 3,571
  • 0.0
  • 0.50
  • 50 %
  • 1.19
  • 0.764
  • 78.9
  • 80.6
  • 3,533
  • 0.0
  • 1.20
  • 75 %
  • 1.50
  • 1.049
  • 80.8
  • 87.8
  • 3,507
  • 0.0
  • 1.70
  • 100 %
  • 1.90
  • 1.345
  • 84.4
  • 88.9
  • 3,473
  • 85.0
  • 2.30
  • 125 %
  • 2.25
  • 1.657
  • 82.6
  • 92.4
  • 3,442
  • 0.0
  • 2.80
  • 150 %
  • 2.71
  • 2.016
  • 81.5
  • 93.4
  • 3,401
  • 0.0
  • 3.40
