/Products/Electric Motors/3 Phase/Leeson/Washguard - TENV/TEFC/113473.00 Leeson Washguard Motor, 1/2 HP, 1800 RPM
Click Image to Expand

Product ID: 113473.00

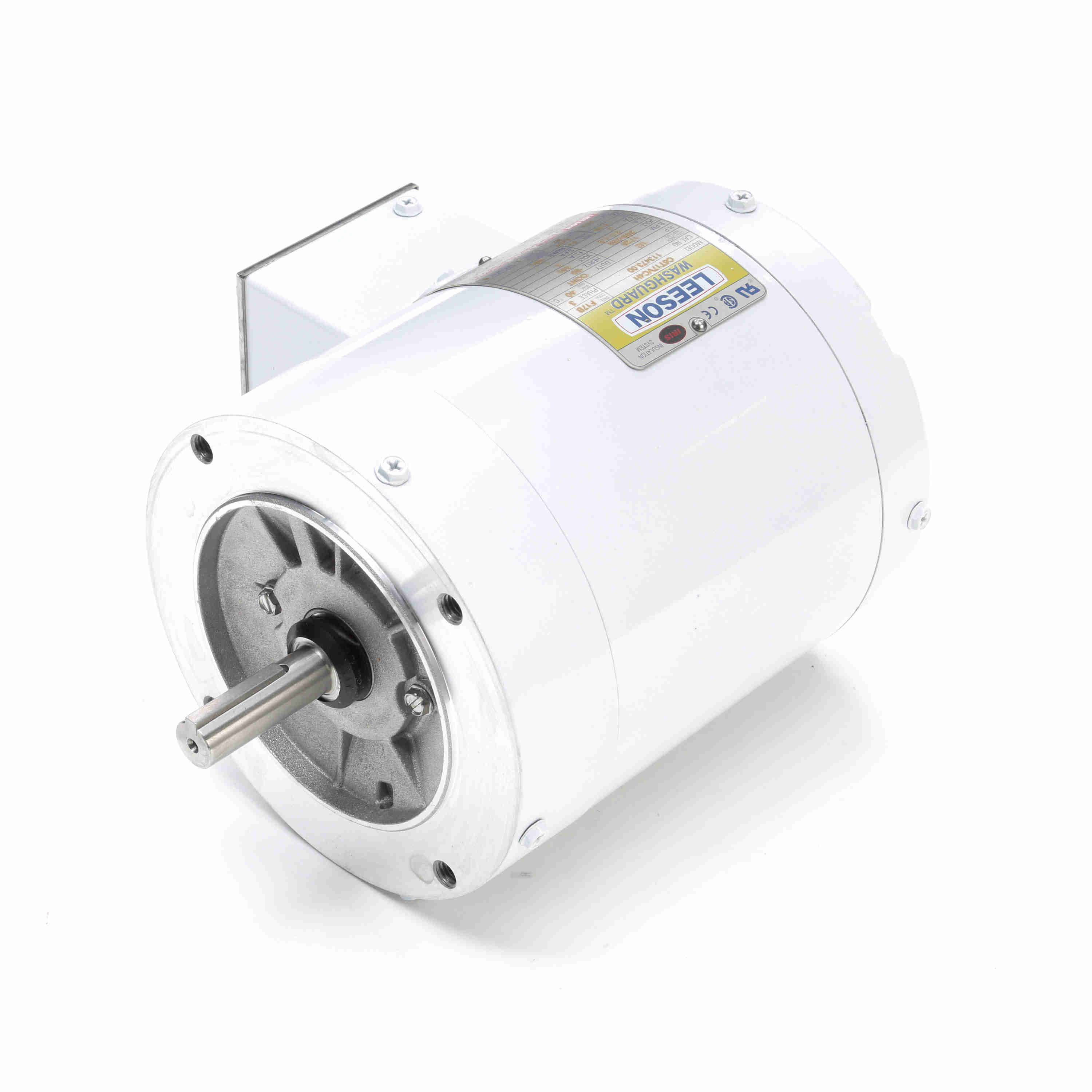

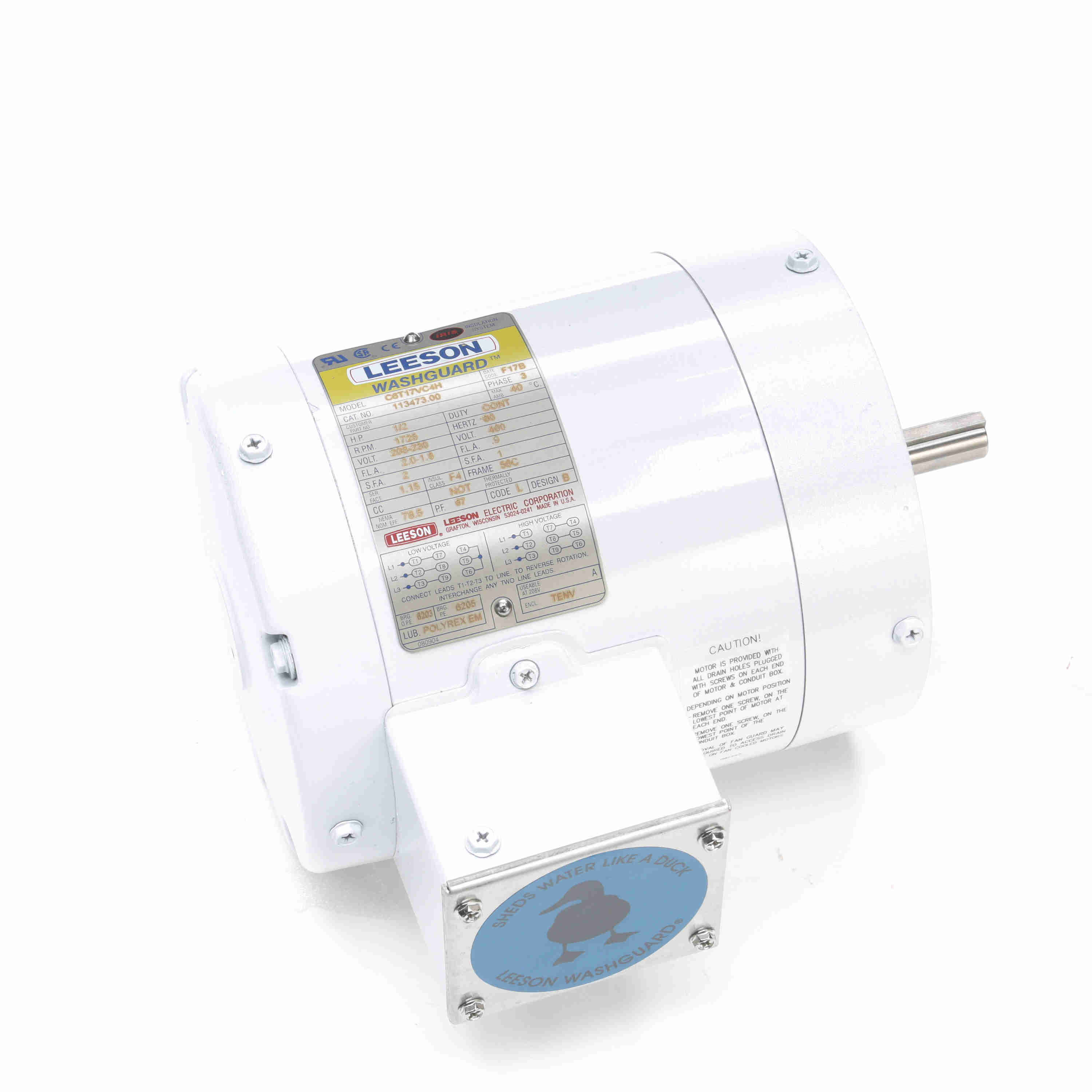

113473.00 Leeson Washguard Motor, 1/2 HP, 1800 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 113473.00

Selected accessories will also be added to cart
$491.97 / Each
Quantity:
56C Frame, 208-230/460V 3-Phase, TENV, C Face Less Base, C6T17VC4H, Washdown Duty
Features
  • USDA-approved epoxy painted motors
  • NEMA motors
  • Rigid base and C face mount types
  • BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • UL recognized and CSA certified
  • Washdown brakemotors and pump motors available
General Specifications
Model :C6T17VC4H Catalog No :113473.00
Part Description :..1/2HP..1725RPM.56.TENV.208-230/460V.3PH.60HZ.CONT.40C.1.15SF.C FACE.C6T17VC4H.....WASHGUARD.NOT....... Category :General Purpose
Stock :No
Nameplate Specifications
Output HP :0.50 Hp Output KW :0.37 kW
Frequency :60 Hz Voltage :208-230/460 V
Current :2.0-1.8/0.90 A Speed :1725 rpm
Service Factor :1.15 Phase :3
Efficiency :78.5 % Duty :Continuous
Insulation Class :F Design Code :B
KVA Code :L Frame :56C
Enclosure :Totally Enclosed Non Ventilated Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :Y
IP Code :55
Technical Specifications
Electrical Type :Squirrel Cage Induction Run Starting Method :Across The Line
Poles :4 Rotation :Reversible
Mounting :Round Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :NEMA 56
Overall Length :10.06 in Frame Length :5.00 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720012079
Weight :25.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down0.000.097.80408.000.000.00.50
Locked-Rotor12.20678.072.10300.000.000.00.50
Pull-Up0.000.071.40298.000.000.00.50
Full Load1.80100.024.00100.000.000.00.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 0.65
  • 0.068
  • 0.0
  • 13.1
  • 1,791
  • 0.0
  • 0.00
  • 25 %
  • 0.71
  • 0.165
  • 57.7
  • 29.2
  • 1,788
  • 0.0
  • 6.00
  • 50 %
  • 0.76
  • 0.267
  • 70.9
  • 44.1
  • 1,776
  • 0.0
  • 12.00
  • 75 %
  • 0.84
  • 0.372
  • 75.8
  • 55.9
  • 1,764
  • 0.0
  • 18.00
  • 100 %
  • 0.90
  • 0.475
  • 78.6
  • 66.2
  • 1,752
  • 70.0
  • 24.00
  • 125 %
  • 1.05
  • 0.593
  • 78.0
  • 71.2
  • 1,737
  • 0.0
  • 30.00
  • 150 %
  • 1.16
  • 0.701
  • 78.7
  • 75.8
  • 1,726
  • 0.0
  • 36.00
