/Products/Electric Motors/Single Phase/Leeson/Washguard - TEFC/113581.00 Leeson Washguard Motor, 1/2HP, 1800RPM

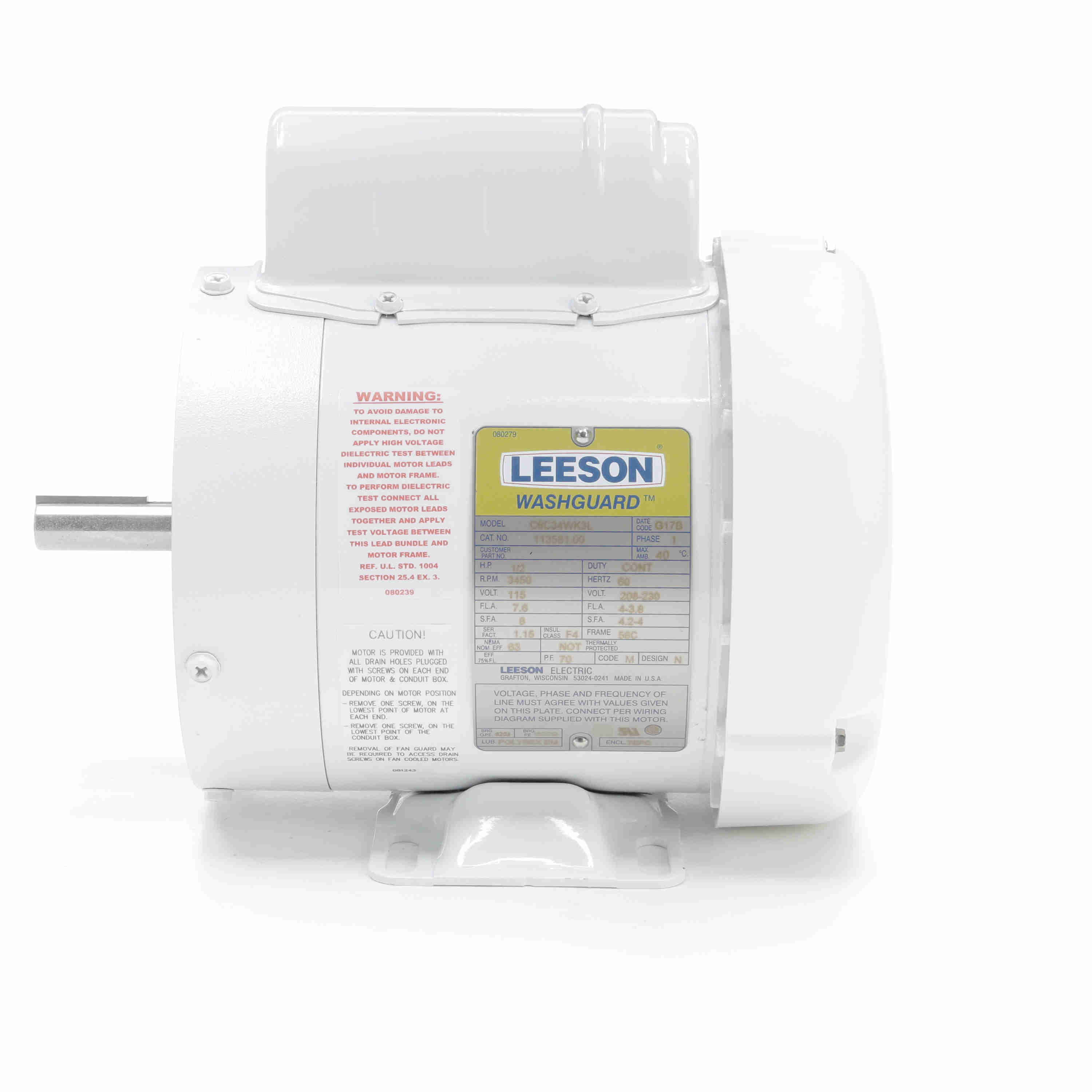

Click Image to Expand

Product ID: 113581.00

113581.00 Leeson Washguard Motor, 1/2HP, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 113581.00

Selected accessories will also be added to cart
$472.95 / Each
Quantity:
56C Frame, 115/208-230V 1-Phase, TEFC, C Face with Base, C6C17WK2
Features
  • USDA-approved epoxy painted motors
  • Stainless steel Shaft
  • NEMA motors
  • AC washdown motors
  • Rigid base and C face mount types
  • BISSC approved designs
  • Double lip contact seals and v-ring seals used for shaft seals
  • UL recognized and CSA certified
  • Single phase motors feature an electronic Solid State Encapsulated switch
General Specifications
Model :C6C34WK3L Catalog No :113581.00
Part Description :1/2HP.- C-FACE WITH BASE -..3450RPM.56.TEFC.115/208-230V.1PH.60HZ.CONT.NOT.40C.1.15SF.RIGID C.WASHGUARD.C6C34WK3L Category :General Purpose
Stock :No
Nameplate Specifications
Output HP :0.50 Hp Output KW :0.37 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :7.6/4.0-3.8 A Speed :3450 rpm
Service Factor :1.15 Phase :1
Efficiency :63 % Duty :Continuous
Insulation Class :F Design Code :N
KVA Code :M Frame :56C
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :55
Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :2 Rotation :Selective Counterclockwise
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :NEMA 56
Overall Length :10.37 in Frame Length :4.50 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720012062
Weight :28.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down0.0032.00267.000.50
Pull-Up0.0032.00267.000.50
Locked-Rotor22.0045.00375.000.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 2.80
  • 0.160
  • 0.0
  • 24.8
  • 3,598
  • 0.0
  • 0.00
  • 25 %
  • 2.88
  • 0.260
  • 36.0
  • 39.3
  • 3,564
  • 0.0
  • 2.96
  • 50 %
  • 3.09
  • 0.367
  • 51.1
  • 51.6
  • 3,538
  • 0.0
  • 5.97
  • 75 %
  • 3.34
  • 0.473
  • 59.3
  • 61.6
  • 3,515
  • 0.0
  • 8.99
  • 100 %
  • 3.69
  • 0.594
  • 63.0
  • 70.0
  • 3,486
  • 46.0
  • 12.09
  • 125 %
  • 4.18
  • 0.720
  • 64.9
  • 74.9
  • 3,456
  • 0.0
  • 15.23
  • 150 %
  • 4.74
  • 0.861
  • 65.1
  • 79.0
  • 3,420
  • 0.0
  • 18.45
