/Products/Electric Motors/Single Phase/Leeson/Washguard - TEFC/113583.00 Leeson 1HP Washguard Electric Motor, 3450RPM
Click Image to Expand

Product ID: 113583.00

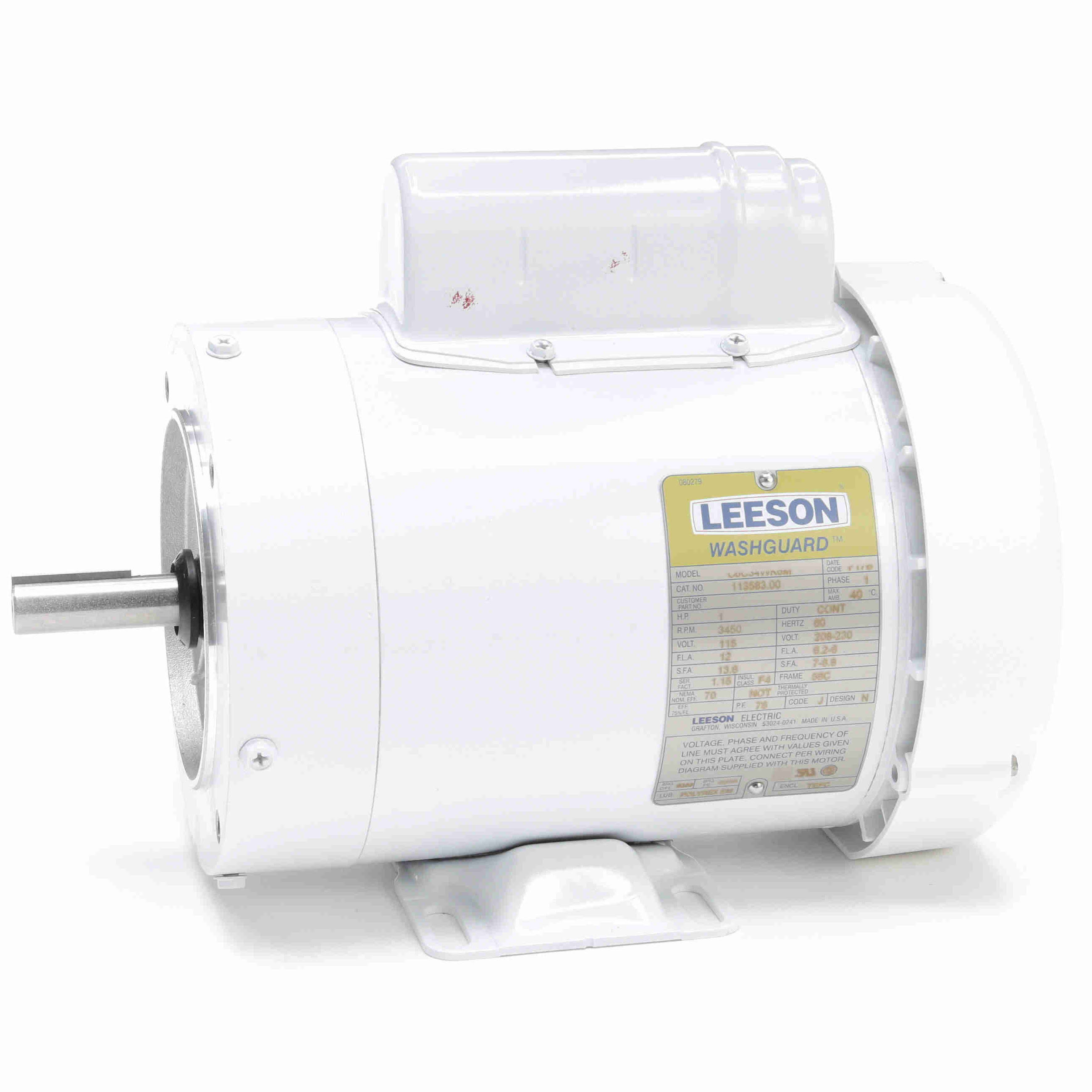

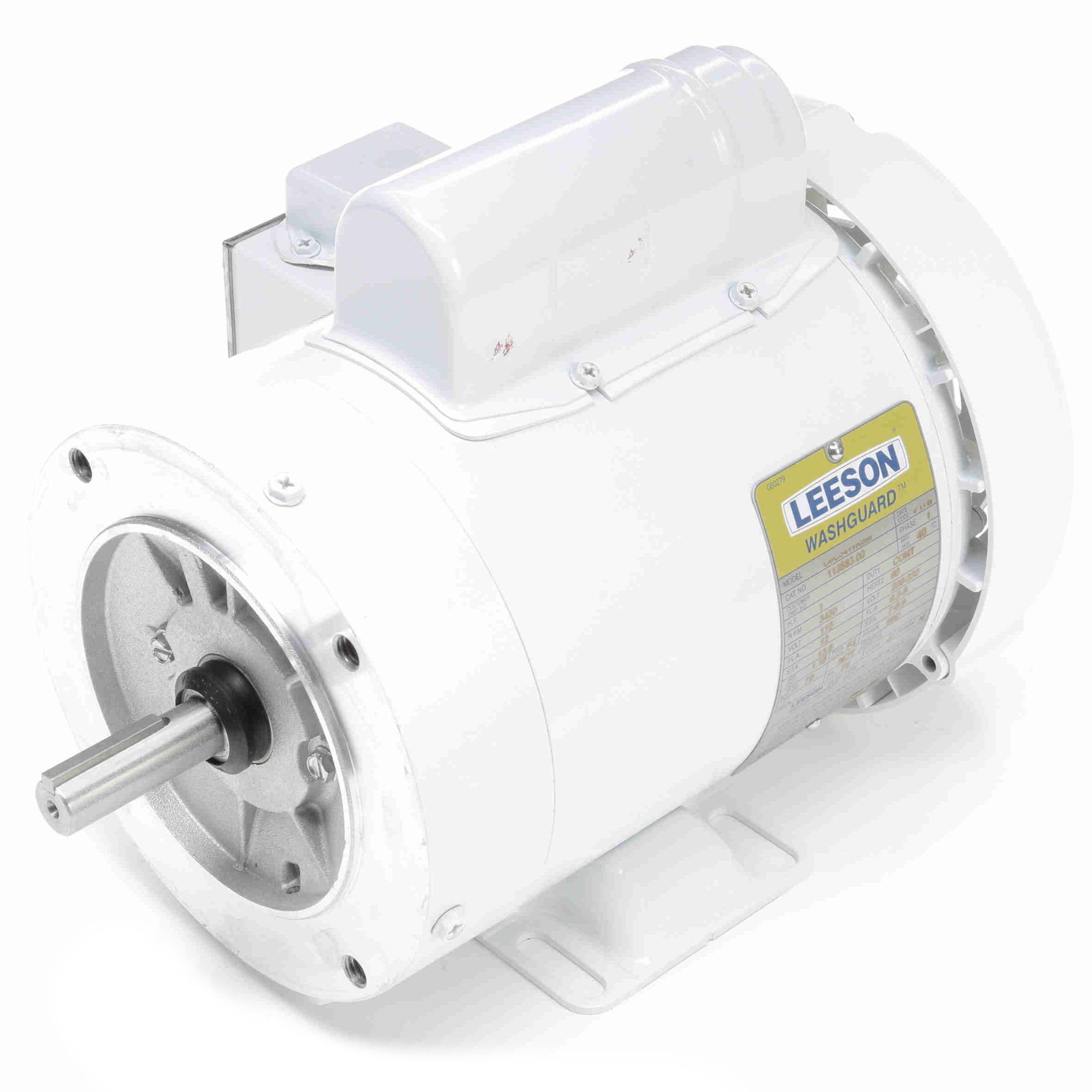

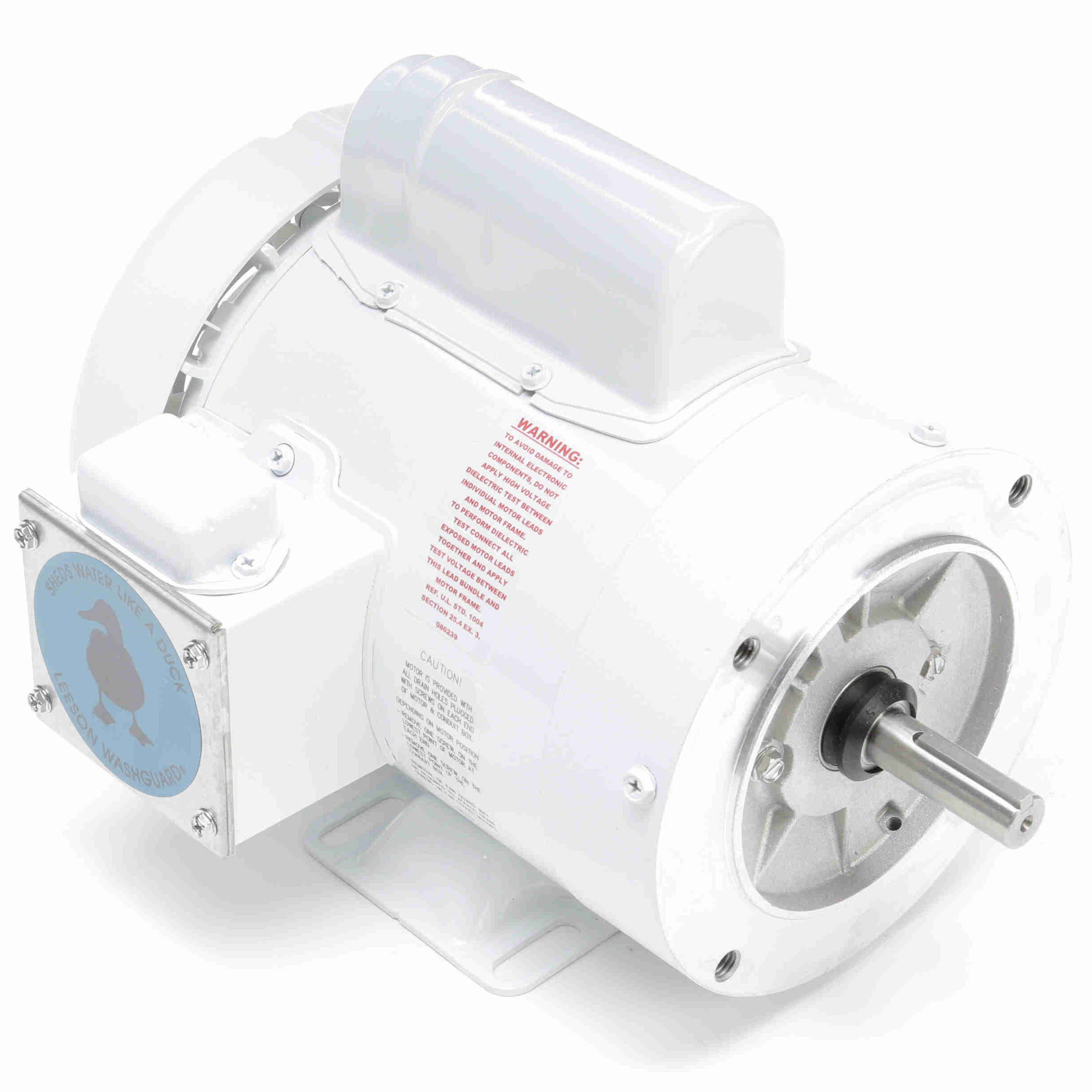

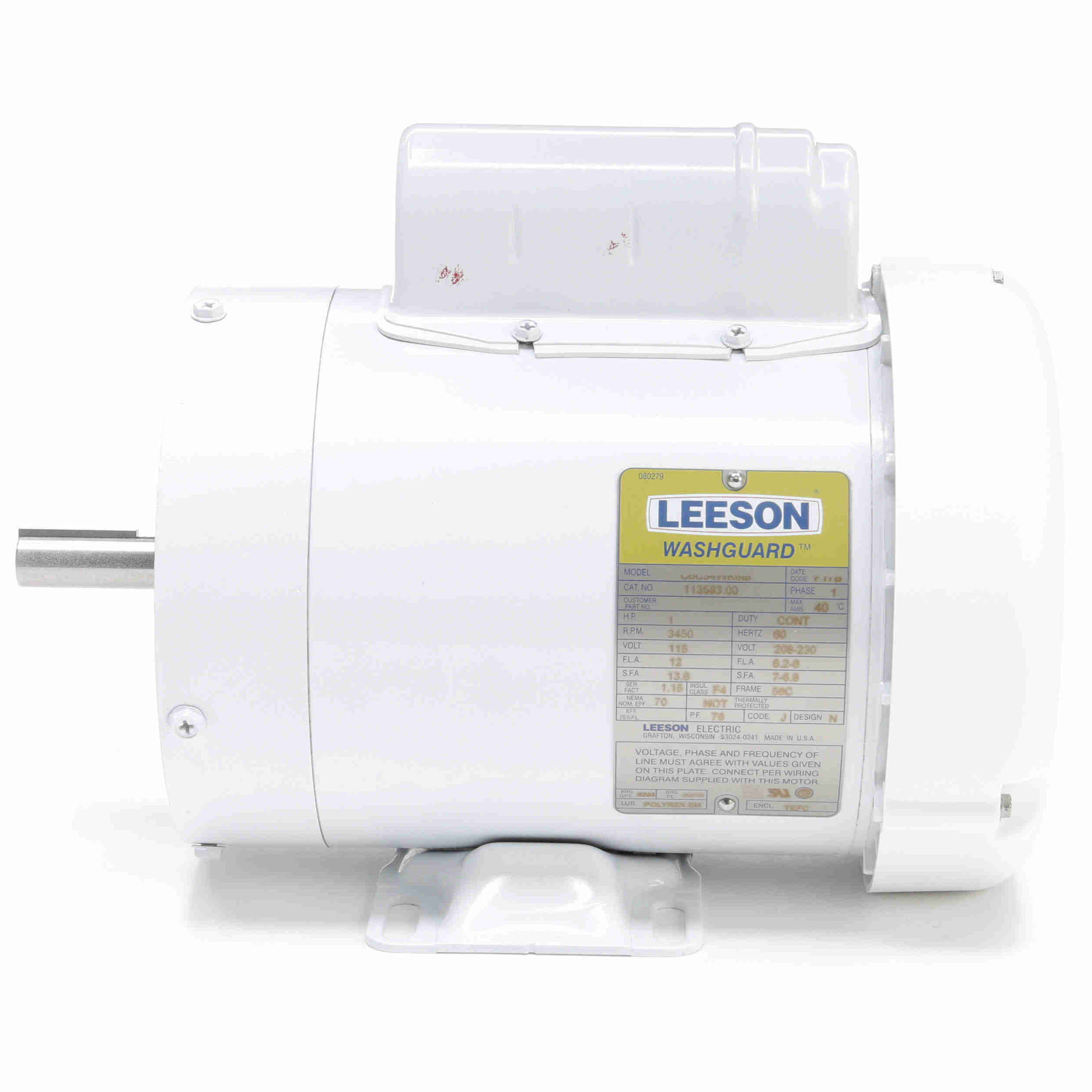

113583.00 Leeson 1HP Washguard Electric Motor, 3450RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 113583.00

Selected accessories will also be added to cart
$522.84 / Each
Quantity:
TEFC, 56C Frame, 115/208-230VAC 60Hz Single Phase, C Face with Base, C6C34WK6, Rolled Steel, 5/8" Keyed Shaft
Features
  • USDA-approved epoxy painted motors
  • Stainless steel Shaft
  • NEMA motors
  • AC washdown motors
  • Rigid base and C face mount types
  • BISSC approved designs
  • Double lip contact seals and v-ring seals used for shaft seals
  • UL recognized and CSA certified
  • Single phase motors feature an electronic Solid State Encapsulated switch
General Specifications
Model :C6C34WK6M Catalog No :113583.00
Part Description :1HP.- C-FACE WITH BASE -..3450RPM.56.TEFC.115/208-230V.1PH.60HZ.CONT.NOT.40C.1.15SF.RIGID C.WASHGUARD.C6C34WK6M Category :General Purpose
Stock :No
Nameplate Specifications
Output HP :1 Hp Output KW :0.75 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :12.0/6.2-6.0 A Speed :3450 rpm
Service Factor :1.15 Phase :1
Efficiency :70 % Duty :Continuous
Insulation Class :F Design Code :N
KVA Code :J Frame :56C
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :55
Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :2 Rotation :Selective Counterclockwise
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :NEMA 56
Overall Length :11.87 in Frame Length :6.00 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720012093
Weight :34.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Full Load6.0024.00100.03,4911.00
Locked-Rotor34.0080.00333.001.00
Pull-Up0.0060.00250.02,8001.00
Break-Down0.0064.00267.03,0001.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 3.70
  • 0.180
  • 0.0
  • 21.2
  • 3,599
  • 0.0
  • 0.00
  • 25 %
  • 3.95
  • 0.387
  • 49.1
  • 42.6
  • 3,568
  • 0.0
  • 6.00
  • 50 %
  • 4.44
  • 0.595
  • 63.5
  • 58.3
  • 3,544
  • 0.0
  • 12.00
  • 75 %
  • 5.13
  • 0.819
  • 68.7
  • 69.4
  • 3,519
  • 0.0
  • 18.00
  • 100 %
  • 5.99
  • 1.055
  • 70.5
  • 76.6
  • 3,491
  • 60.0
  • 24.00
  • 125 %
  • 7.04
  • 1.314
  • 70.1
  • 81.2
  • 3,458
  • 0.0
  • 30.00
  • 150 %
  • 8.28
  • 1.598
  • 68.4
  • 83.9
  • 3,420
  • 0.0
  • 36.00
