/Products/Electric Motors/3 Phase/Leeson/Washguard - TENV/TEFC/113587.00 Leeson Washguard Motor, 3/4 HP, 1800 RPM
Click Image to Expand

Product ID: 113587.00

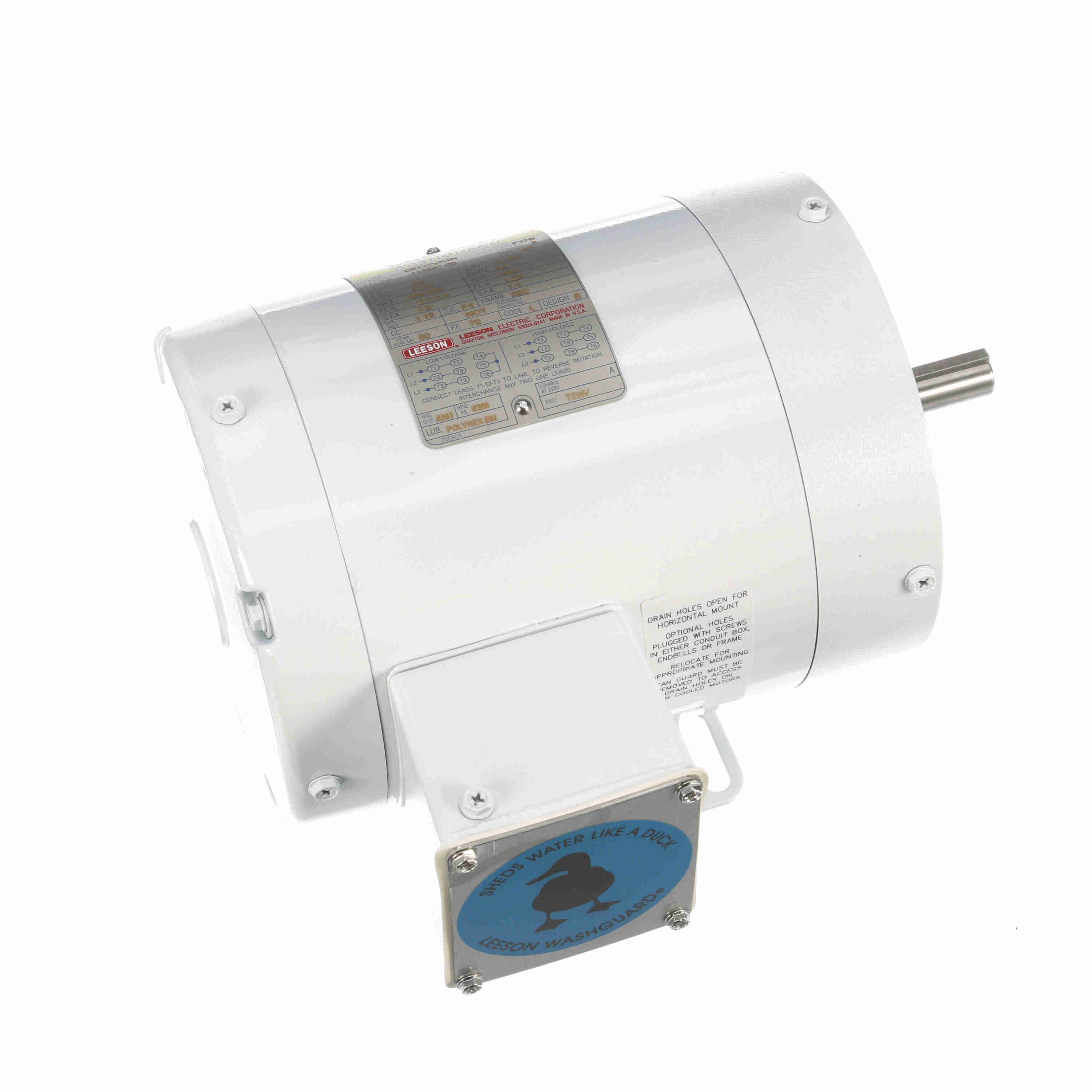

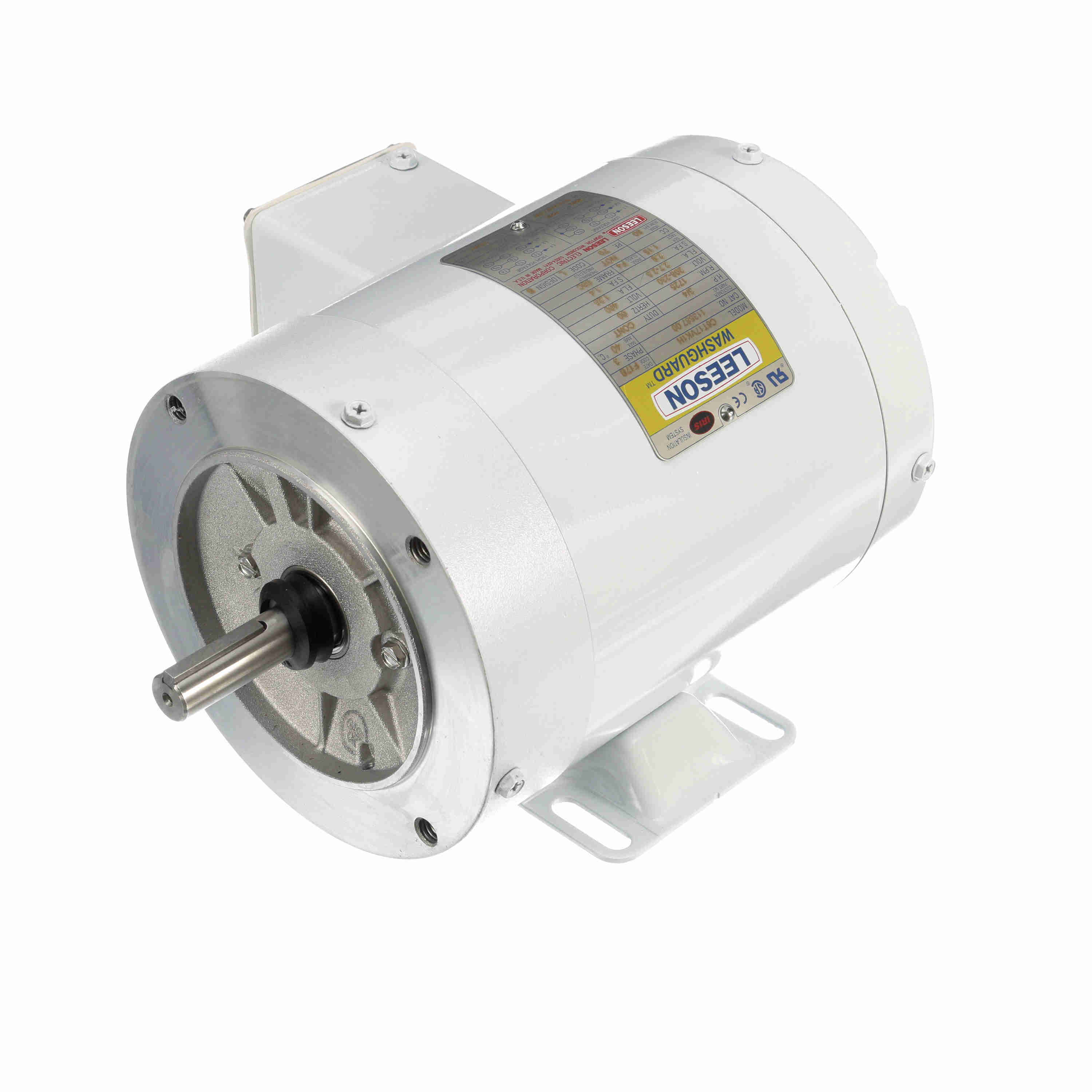

113587.00 Leeson Washguard Motor, 3/4 HP, 1800 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 113587.00

Selected accessories will also be added to cart
$584.97 / Each
Quantity:
56C Frame, 208-230/460V 3-Phase, TENV, C Face with Base, C6T17VK1H, Washdown Duty
Features
  • USDA-approved epoxy painted motors
  • NEMA motors
  • Rigid base and C face mount types
  • BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • UL recognized and CSA certified
  • Washdown brakemotors and pump motors available
General Specifications
Model :C6T17VK1H Catalog No :113587.00
Part Description :3/4HP..1725RPM.56.TENV.208-230/460V.3PH.60HZ.CONT.NOT.40C.1.15SF.RIGID C.WASHGUARD.C6T17VK1H Category :General Purpose
Stock :No
Nameplate Specifications
Output HP :0.75 Hp Output KW :0.56 kW
Frequency :60 Hz Voltage :208-230/460 V
Current :2.7-2.5/1.3 A Speed :1725 rpm
Service Factor :1.15 Phase :3
Efficiency :80 % Duty :Continuous
Insulation Class :F Design Code :B
KVA Code :L Frame :56C
Enclosure :Totally Enclosed Non Ventilated Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :Y
IP Code :55
Technical Specifications
Electrical Type :Squirrel Cage Induction Run Starting Method :Across The Line
Poles :4 Rotation :Reversible
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :NEMA 56
Overall Length :10.58 in Frame Length :5.50 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720012123
Weight :33.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down8.76701.0106.00393.01,2903.750.00.75
Locked-Rotor8.42674.080.00296.004.920.00.75
Full Load1.25100.027.00100.01,7500.730.00.75
Pull-Up8.53682.077.00285.02004.800.00.75
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 0.81
  • 0.094
  • 0.0
  • 14.6
  • 1,797
  • 0.0
  • 0.00
  • 25 %
  • 0.89
  • 0.349
  • 61.6
  • 49.4
  • 1,781
  • 0.0
  • 10.20
  • 50 %
  • 0.93
  • 0.405
  • 70.0
  • 54.4
  • 1,776
  • 0.0
  • 13.50
  • 75 %
  • 1.09
  • 0.567
  • 74.8
  • 65.5
  • 1,765
  • 0.0
  • 20.30
  • 100 %
  • 1.25
  • 0.730
  • 76.7
  • 73.3
  • 1,753
  • 73.2
  • 27.00
  • 125 %
  • 1.44
  • 0.893
  • 78.0
  • 77.9
  • 1,741
  • 0.0
  • 33.80
  • 150 %
  • 1.64
  • 1.063
  • 77.9
  • 81.2
  • 1,727
  • 0.0
  • 40.50
